Lian-Li EDGE GOLD Fully Modular Power Supply, 1000W Power, 80 PLUS Gold Efficiency, 120mm FDB Fan Type, Active PFC, ATX 3.1 Form Factor, 2400 RPM Fan Speed, White | EG1000G.WH00
Model :
SKU : PS-LIAN LI EG1000G WHITE
About this item
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
Specification
MSI EDGE Series Power Supply Specifications
| Specification | EDGE850 | EDGE1000 | EDGE1300 |
|---|---|---|---|
| Model No. | EG0850 | EG1000 | EG1300 |
| Color | Black / White | ||
| Dimensions | (D)182 mm x (W)86 mm x (H)150 mm | ||
| Design | Fully Modular | ||
| Material | Steel | ||
| Form Factor | ATX 3.1 | ||
| Certification | 80 PLUS Platinum / Cybenetics Platinum / PPLP Platinum | ||
| Max. DC Output | 850W | 1000W | 1300W |
| +3.3V & +5V Combined | 120W | 120W | 120W |
| +12V Combined | 849.6W | 996W | 1296W |
| Input Voltage | 100-240Vac | ||
| Input Frequency | 10-5A 50-60Hz | 12-6A 50-60Hz | 15-7.5A 50-60Hz |
| PFC | Active PFC, PF > 0.90 @ full load @ 115Vac, 60Hz | ||
| Efficiency | 92.41% MAX | 92.36% MAX | 92.39% MAX |
| Protective Circuits | OCP, OVP, OTP, OPP, SCP, UVP, SIP, NLP | ||

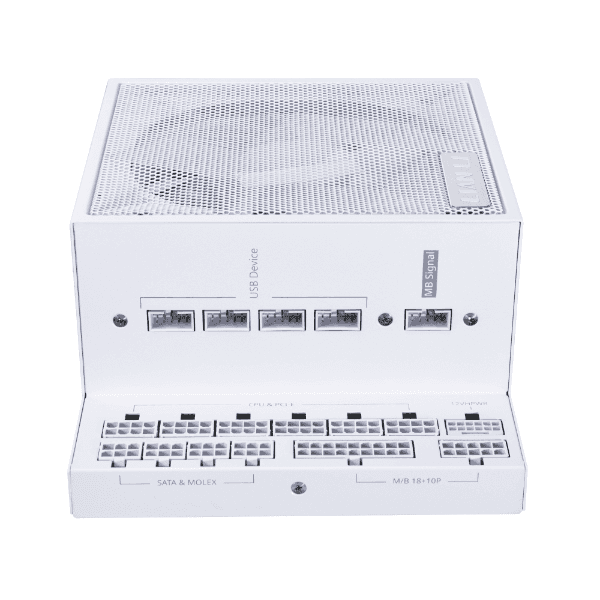

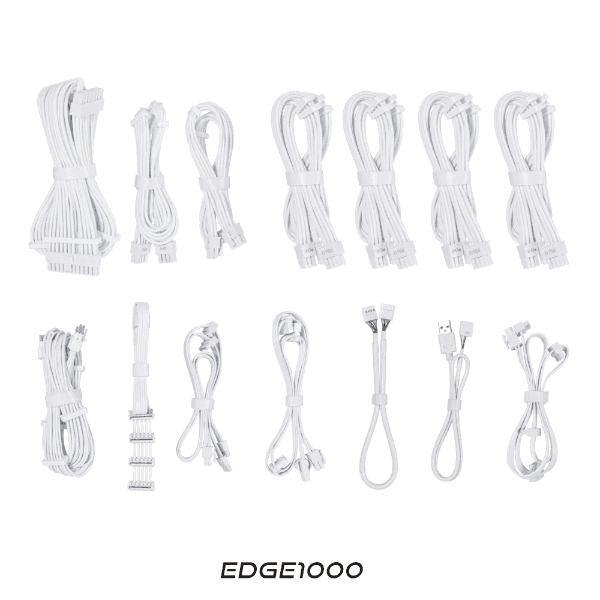

| Connectors | 1x 24/20-Pin MB 2x 8/4+4 CPU 3x 8/6+2 PCIe 1x 12V-2??6 1x 4-Pin Peripheral (4x) 2x SATA (4x) 1x Y-Type SATA (4x) 1x USB 9-pin to 9-pin 1x USB 9-pin to Type-A | 1x 24/20-Pin MB 2x 8/4+4 CPU 4x 8/6+2 PCIe 1x 12V-2??6 1x 4-Pin Peripheral (4x) 2x SATA (4x) 1x Y-Type SATA (4x) 1x USB 9-pin to 9-pin 1x USB 9-pin to Type-A | 1x 24/20-Pin MB 2x 8/4+4 CPU 4x 8/6+2 PCIe 1x 12V-2??6 1x 12V-2??6 to 2x8pin 1x 4-Pin Peripheral (4x) 2x SATA (4x) 1x Y-Type SATA (4x) 1x USB 9-pin to 9-pin 1x USB 9-pin to Type-A |
| Fan Type | 120mm FDB Fan | ||
| Fan Speed | 2000 RPM | 2400 RPM | 2400 RPM |
| Fan Noise Level | 25.96 dBA | 33.61 dBA | 33.61 dBA |
| Warranty | 10 Years | ||
