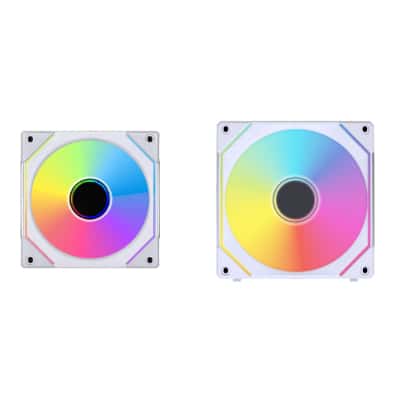

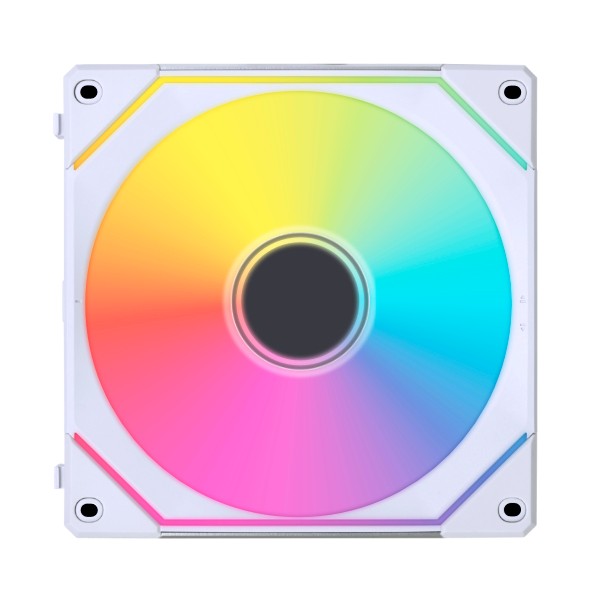

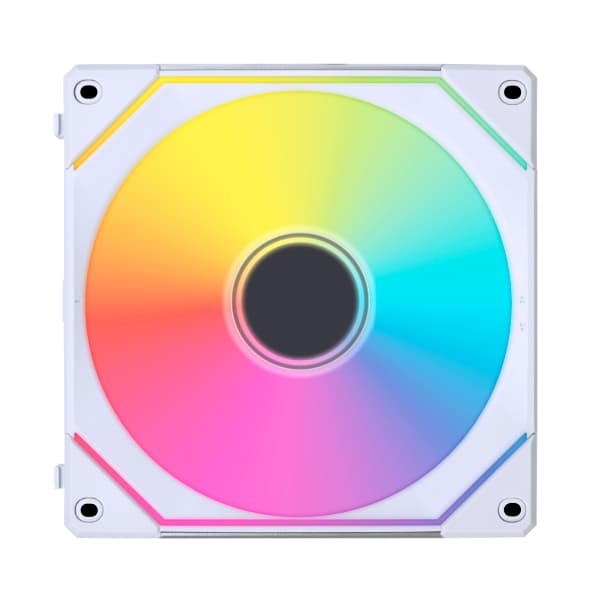

LIAN LI SL-INF 120 White Single Case Fan, 1 ?? 4-PIN PWM + 3-PIN ARGB, Fluid Dynamic Bearing (FDB) | UF-SLIN120-1W WHITE
Model :
SKU : CF-LIANLI SL-INF 120 WHIT
About this item
Description
LIAN LI UNI FAN UF-SLIN120-1W WHITE
Software controlled fan speed/ LED lighting
Only one cable is required for a cluster of fans
Embedded magnetic Fluid Dynamic Bearing to provide stability, durability, and longevity
40 LEDs in each fan
Quick PIN connection to provide ease of installation
Low noise level at high RPM
Infinity mirror look all around
tr { border-bottom: 1px solid rgb(222, 226, 230); }
| PRODUCT NAME | LIAN LI UNI FAN SL-INF 120/140 RGB | |||||
| MODEL | UF-SLIN120-3B BLACK | UF-SLIN120-1B BLACK | UF-SLIN120-3W WHITE | UF-SLIN120-1W WHITE | UF-SLIN140-1B BLACK | UF-SLIN140-1W WHITE |
| COLOR | Black | White | Black | White | Black | White |
| NUMBER OF FANS | 3 | 1 | 3 | 1 | 1 | 1 |
| CONTROLLER | Yes | No | Yes | No | No | No |
| CONNECTOR TYPE | 4 ?? 7-PIN | 1 ?? 4-PIN PWM + 3-PIN ARGB | 4 ?? 7-PIN | 1 ?? 4-PIN PWM + 3-PIN ARGB | 1 ?? 4-PIN PWM + 3-PIN ARGB | 1 ?? 4-PIN PWM + 3-PIN ARGB |
| FAN DIMENSION | 120 X 122.1 X 25 (mm) | 140 X 142 X 25 (mm) | ||||
| RATED VOLTAGE | DC 12V (FAN) & 5V (LED) | |||||
| FAN SPEED | 0,200~2100 RPM | 0,200~1600 RPM | ||||
| MAX. AIR PRESSURE | 2.66 mmH2O (Maximum) | 2.88 mmH2O (Maximum) | ||||
| MAX. AIRFLOW | 61.3 CFM (Maximum) | 72.7 CFM (Maximum) | ||||
| ACOUSTIC NOISE | 29 dB(A) Max | 28 dB(A) Max | ||||
| LOCKED CURRENT | ???50mA | ???40mA | ||||
| BEARING TYPE | Fluid Dynamic Bearing (FDB) | |||||
| START-UP VOLTAGE | DC ???6V | |||||
| INPUT CURRENT | 180mA (FAN) /600mA (LED) | 150mA (FAN) / 600mA(LED) | ||||
| INPUT POWER | 5.16W | 4.56w | ||||
| WARRANTY | 2 years |
