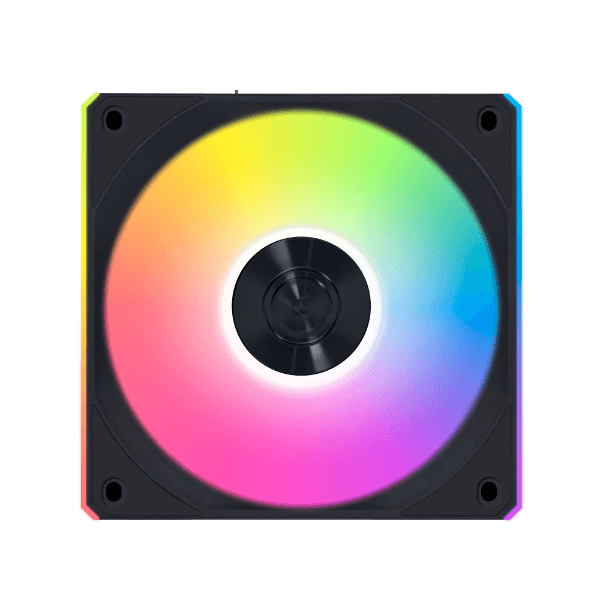

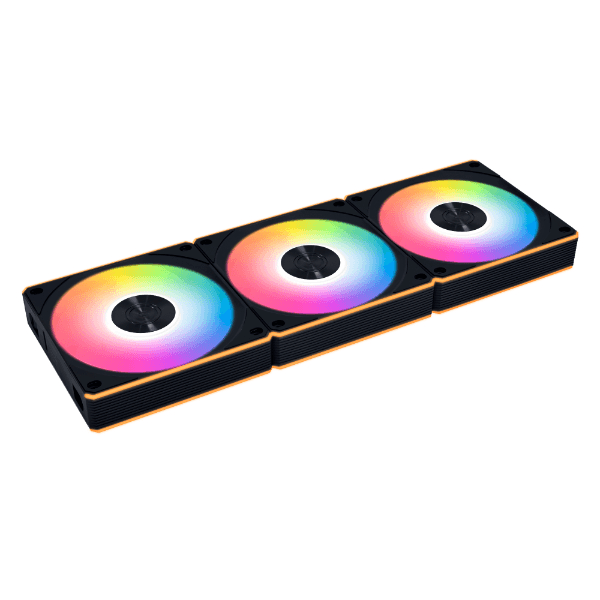

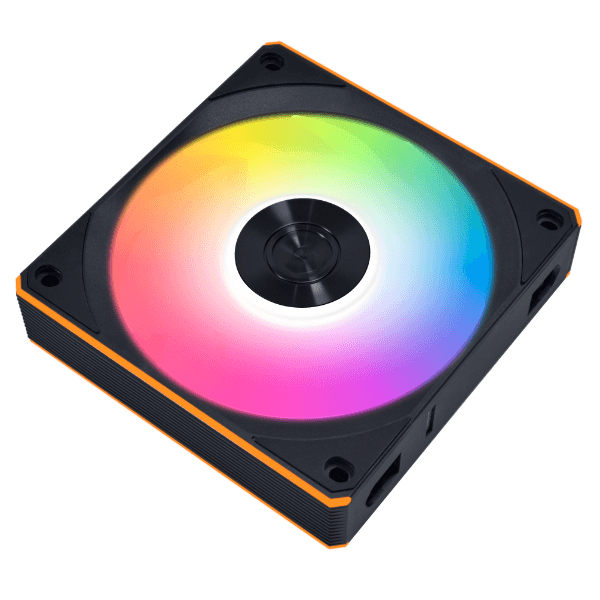

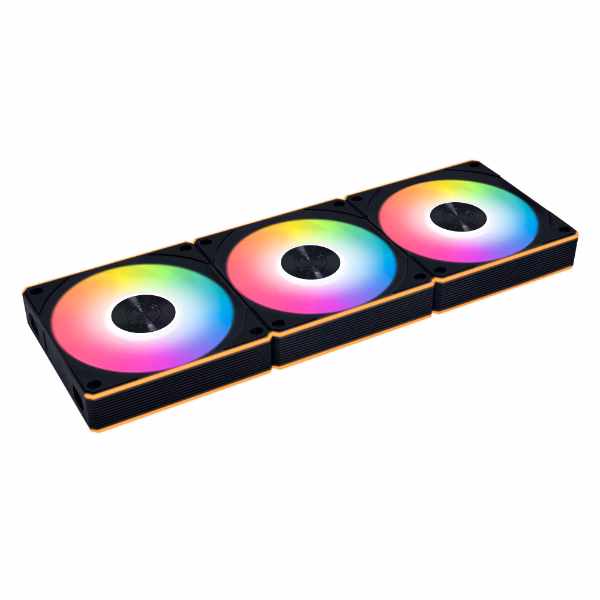

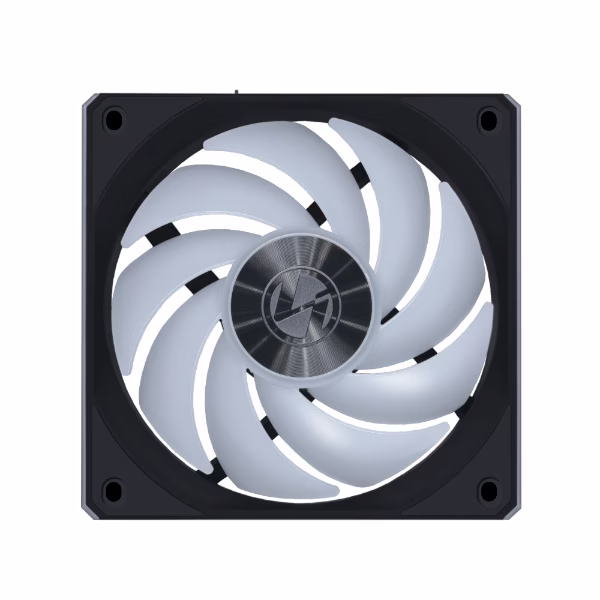

Lian Li UNI FAN CL Wireless Reverse Blade 3 Pack Black ARGB Case Fan, 120x120x28mm, 0,250~2100 RPM Fan Speed, 2.52 mmH2O (Maximum) Air Pressure, 72.73 CFM (Maximum) Airflow, FDB Bearing | 12RCL1W3B
Model :
SKU : CF-LIA UN CL WI 120 R B 3
Description
UNI FAN CL WIRELESS
Controlled with L-Wireless Controller for improved user experience.
L-Wireless Sync supported for seamless lighting synchronization with all LIAN LI wireless products.
28mm thickness for improved airflow and static pressure.
New UNI FAN interlocking system for simplified cable management.
Features individually controllable dual lighting zones on fan blades and side strips for personalized lighting effects.
Full software control via L-Connect 3.
Standard and reverse blade options for varied installation layouts.
Fluid Dynamic Bearing (FDB) for low noise operation and longer product life span
table { border-collapse: collapse; width: 100%; } tr { border-bottom: 1px solid rgb(222, 226, 230); } td { padding: 8px; margin: 0; } td:first-child { font-weight: bold; color: #333; } h3 { margin-top: 10px; }
UNI FAN CL Wireless Reverse Blade Specifications
| Product Name | UNI FAN CL Wireless Reverse Blade |
| Model | 12RCL1W3B / 12RCL1W3W / 12RCL1W1B / 12RCL1W1W |
| Color | BLACK / WHITE |
| Number of Fans | 3 / 1 |
| Controller | Yes / No |
| Fan Dimension | 120 x 120 x 28 mm |
| Material | PBT / PC / Aluminum |
| Rated Voltage | DC 12V (FAN) & 5V (LED) |
| Fan Speed | 0,250 ~ 2100 RPM |
| Max. Air Pressure | 2.52 mmH2O (Maximum) |
| Max. Airflow | 72.73 CFM (Maximum) |
| Acoustic Noise | 30.8 dBA (Maximum) |
| Bearing Type | FDB |
| Locked Current | ??? 50mA |
| Operational Voltage | DC 12V & 5V |
| Start-up Voltage | DC 6.0V |
| Input Current | 180mA (Fan) / 600mA (LED) |
| Input Power | 5.16W |
| Warranty | 3 years |
