Model :
SKU : CF-LIAN UNI FAN TL120 W R

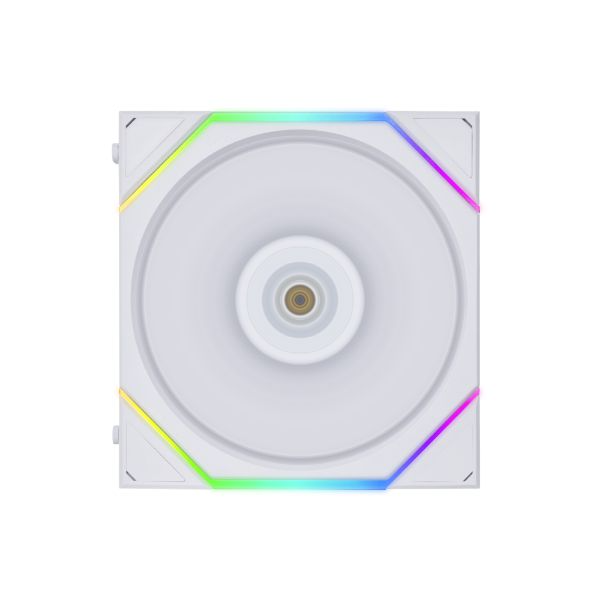

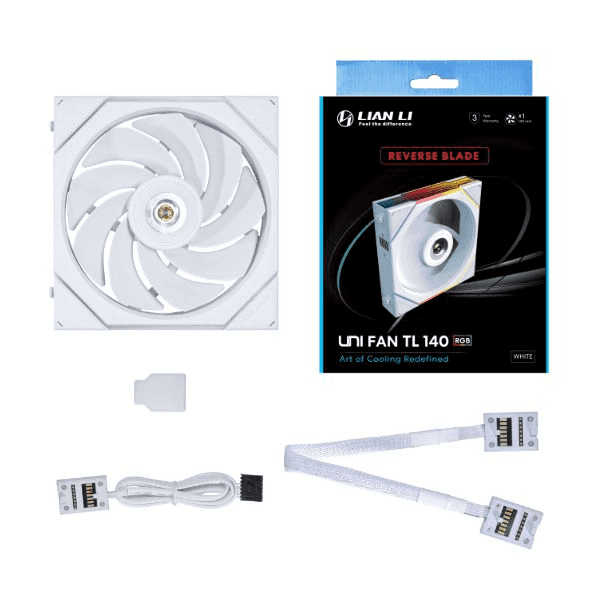

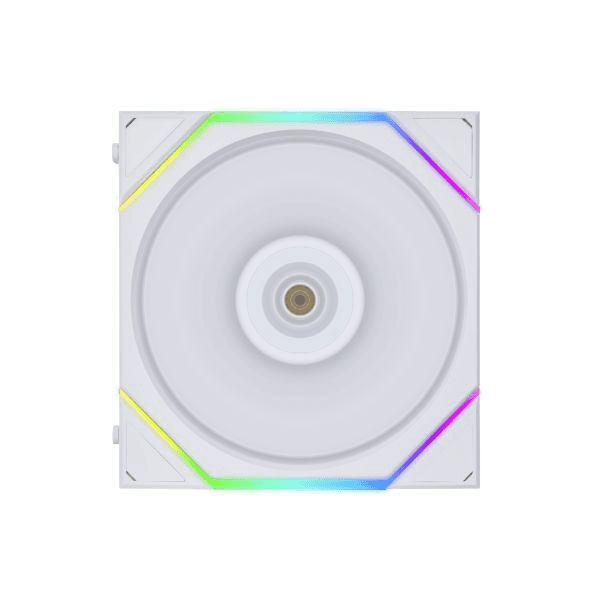

UNI FAN TL
Noise-optimized and performance-oriented fan.
LCP (liquid crystal polymer) fan blades are used for tight tolerance.
FDB bearing with copper shielding to ensure stable rotation of the impeller.
Enlarged infinity mirror around the frame with a longer light guide for a unified daisy-chained look.
Features two light zones for increased lighting customizability.
UNIFAN interlocking system for ease of cable management.
Cable connection is supported on both sides of the fan.
Support up to 10 fans per controller port via a daisy-chain POGO cable.
LED lighting and fan speed controller shared with UNIFAN TL LCD.
Complete software control with L-Connect 3.
The controller is required to use the fans.
Aesthetic Consistency with Reverse Airflow
Mounting standard intake fans often forces you to look at the "ugly" side of the fan frame. The TL120 Reverse Blade changes this by maintaining the clean, hub-centered design when installed as an intake. Whether you are placing these at the bottom, side, or front of your case, the fan ensures that the high-end look of your build remains consistent from every angle.
Modular Daisy-Chain Efficiency
Building a PC should be enjoyable, not a chore. The TL120 uses Lian Li's industry-leading contact-pin system to allow fans to snap together into a single cluster. This drastically reduces the number of cables snaking through your case, creating a clean internal aesthetic and allowing for a much faster, easier installation process.
Refined Cooling & Lighting
The TL series is built to impress, featuring high-quality components and refined airflow dynamics. The blades are tuned for a balance of airflow and static pressure, making them suitable for chassis intake, exhaust, or radiator use. The side-frame lighting has been upgraded to provide a more diffused, premium appearance, creating a seamless light effect that ties your entire system together through L-Connect 3 software integration.
| Model Name | UNI FAN TL 120 Reverse Blade / UNI FAN TL 140 Reverse Blade |
| Model No. | 12RTL3B / 12RTL3W / 12RTL1B / 12RTL1W / 14RTL1B / 14RTL1W |
| Color | Black / White |
| Number of Fans | 3 / 3 / 1 / 1 / 1 / 1 |
| Controller | Yes / No / No |
| Connector Type | UNI FAN Controller Cable x 1 (P-7P), Extension Cable x 1 (P-P), Power Adapter Cable x 1 (P-SA) UNI FAN Controller Cable x 1 (P-7P), Extension Cable x 1 (P-P) UNI FAN Controller Cable x 1 (P-7P), Extension Cable x 1 (P-P) |
| Fan Dimension | 124 × 120 × 28 mm (120mm) / 144 × 140 × 28 mm (140mm) |
| Fan Speed | 0, 200 ~ 2300 RPM (120mm) / 0, 200 ~ 1800 RPM (140mm) |
| Max. Air Pressure | 2.66 mmH₂O (120mm) / 2.27 mmH₂O (140mm) |
| Max. Airflow | 83.4 CFM (120mm) / 101.6 CFM (140mm) |
| Acoustic Noise | 34 dB(A) Max (120mm) / 31 dB(A) Max (140mm) |
| Input Power | 4.5W (120mm) / 4.6W (140mm) |
| Material | PA66 / LCP |
| Rated Voltage | DC 12V (Fan) & 5V (LED) |
| Bearing Type | Fluid Dynamic Bearing (FDB) |
| Operate Voltage | DC 12V & 5V |
| Warranty | 3 years |
