MSI MAG Z890 Tomahawk Wi-Fi LGA 1851 ATX Motherboard, Intel Z890 Chipset, 4x DDR5 UDIMM Slots, Up to 256GB Max Memory, 3x PCI-e x16 Slots, 4x M.2 Slots, Wi-Fi 7 & BT 5.4, | 911-7E32-003
Model :
SKU : MB-MSI MAG Z890 TOMAHA WI
About this item
About this item
Description

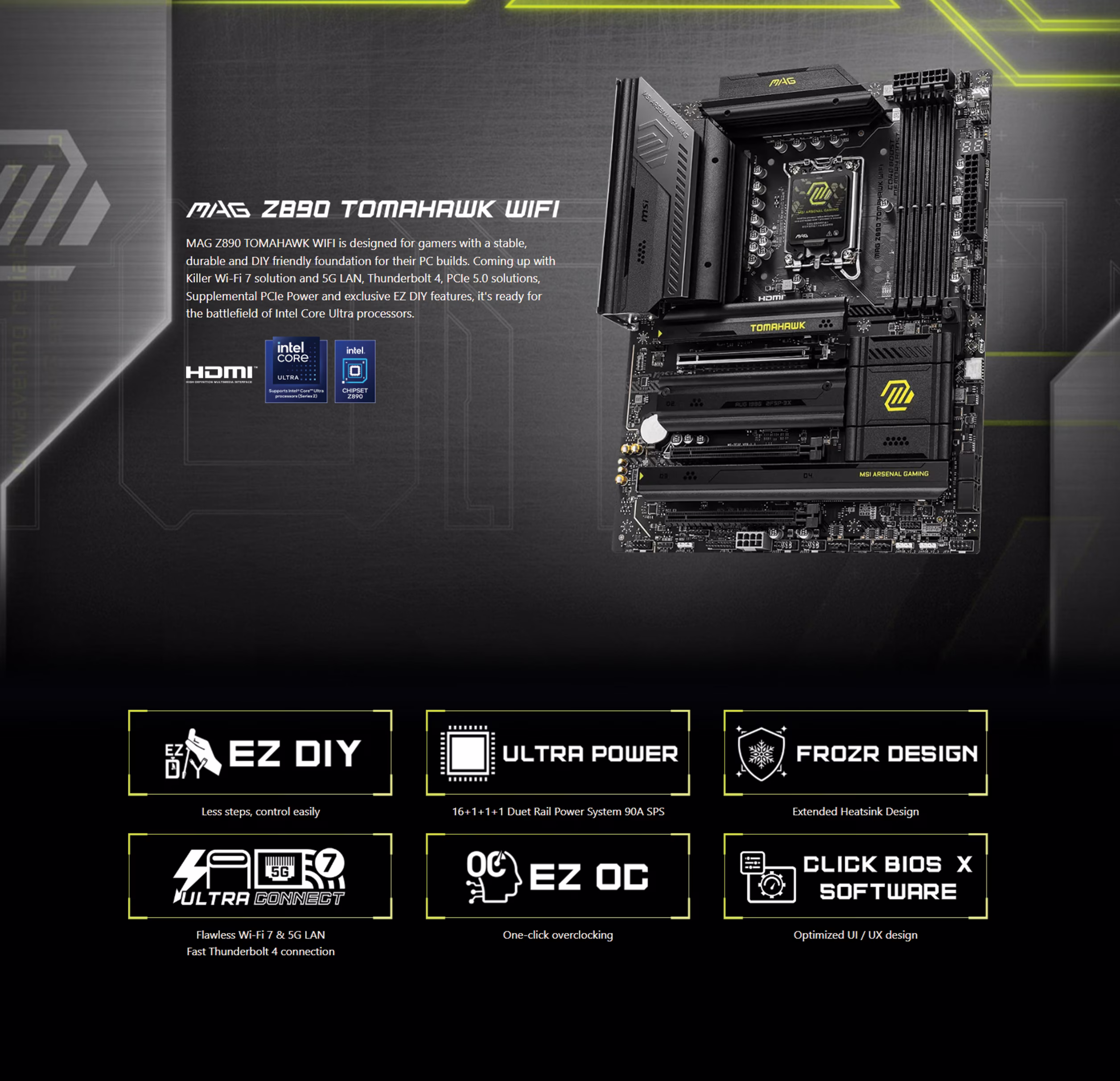

The MAG Z890 TOMAHAWK WIFI is engineered to unleash the full potential of Intel's "Arrow Lake" architecture. As a premier Intel Z890 chipset board, it serves as the perfect hub for an AI PC, providing the lanes and power required for local AI processing, high-end gaming, and professional content creation. Its signature heavy-plated heatsinks and military-inspired aesthetic make it a favorite for builders who prioritize "stability over flash."
Flagship Power Delivery & Cooling
To sustain the high-frequency demands of Core Ultra 9 processors, the TOMAHAWK utilizes a 16-phase Duet Rail Power System with 90A Smart Power Stages. Cooling is handled by an Extended Heatsink with 7W/mK thermal pads and a heavy-plated VRM heatsink. The M.2 Shield Frozr system covers all storage slots, ensuring that even the fastest PCIe 5.0 NVMe SSDs stay cool and perform at maximum velocity without thermal throttling.
Next-Gen Connectivity: WiFi 7, 5G LAN, & Thunderbolt 4
Speed is at the core of the Z890 TOMAHAWK. It features integrated WiFi 7, offering ultra-wide 320MHz bandwidth and speeds up to 5.8Gbps. For wired enthusiasts, the 5G LAN provides five times the speed of traditional Gigabit Ethernet. Additionally, dual Thunderbolt 4 ports provide 40Gbps bidirectional bandwidth and support for 8K displays, making it an ideal choice for high-speed external storage and professional-grade peripherals.
EZ DIY & Smart Features
MSI has simplified the building process with EZ DIY innovations. The EZ PCIe Release allows for easy, one-handed removal of large graphics cards, while the Screwless M.2 Shield Frozr and EZ M.2 Clip II make storage installation effortless. The board also features Frozr AI Cooling, which automatically balances fan speeds based on real-time CPU and GPU temperatures for a quiet yet cool gaming environment.
Why the MAG Z890 TOMAHAWK WIFI Stands Out
LGA 1851 Optimized: Built specifically for the latest Intel Core Ultra (Series 2) CPUs.
Extreme Data Path: Dual Thunderbolt 4 ports for professional-grade 40Gbps connectivity.
Future-Proof Wireless: WiFi 7 for low-latency, high-bandwidth gaming and streaming.
Storage Versatility: Multiple M.2 slots including support for ultra-fast PCIe 5.0 drives.
Specification
MSI MAG Z890 Tomahawk Wi-Fi LGA 1851 ATX Motherboard, Intel Z890 Chipset, 4x DDR5 UDIMM Slots, Up to 256GB Max Memory, Wi-Fi 7 & BT 5.4, 3x PCI-e x16 Slots, 4x M.2 Slots | 911-7E32-003 Specifications
| Chipset | INTEL Z890 |
| CPU | Supports Intel?? Core??? Ultra Processors (Series 2) LGA 1851 |
| Memory | 4x DDR5 UDIMM, Maximum Memory Capacity 256GB |
| Memory Support | 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s |
| Max. Overclocking Frequency | ??? 1DPC 1R Max speed up to 9200+ MT/s ??? 1DPC 2R Max speed up to 7200+ MT/s ??? 2DPC 1R Max speed up to 4800+ MT/s ??? 2DPC 2R Max speed up to 4800+ MT/s |
| Memory Features | Supports Intel?? POR Speed and JEDEC Speed Supports Memory Overclocking and Intel?? XMP 3.0 Supports Dual-Controller Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM |
| Onboard Graphics | 1x HDMI??? (HDMI??? 2.1 with FRL, maximum resolution of 4K 120Hz*) 2x Type-C DisplayPort |
| Thunderbolt | Thunderbolt??? 4 ports, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz* |
| Slots | 3x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) |
| Audio | Realtek?? ALC1220P Codec, 7.1-Channel High Definition Audio, Supports S/PDIF output |
| Storage | 4x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices |
| Onboard Thunderbolt | 2x Thunderbolt4 ports (Rear) Supports up to 40Gbps transfer rate with Thunderbolt devices Supports up to 20Gbps transfer rate with USB4 devices Supports up to 10Gbps transfer rate with USB 3.2 devices Supports up to 5V/3A,15W power charging Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices Supports up to 8K display |
| USB | 4x USB 2.0 (Front) 4x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 3x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) 1x USB 20Gbps Type C (Front) *USB 20Gbps Type-C (Front) support USB PD 27W fast charging for JUSBC1 |
| LAN | Intel?? Killer??? E5000 5Gbps LAN |
| Internal IO | 1x Thunderbolt5 card connector (JTBT5, support RTD3) 1x Power Connector (ATX_PWR) 2x Power Connector (CPU_PWR) 1x Power Connector (PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 6x System Fan 1x EZ Conn-header (JAF_2) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector (JRGB) 1x TPM pin header (Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports |
| Wireless LAN & Bluetooth | Intel?? Killer??? BE1750x Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth?? 5.4**, MLO, 4KQAM |
| LED Feature | 4x EZ Debug LED 1x EZ Digit Debug LED |
