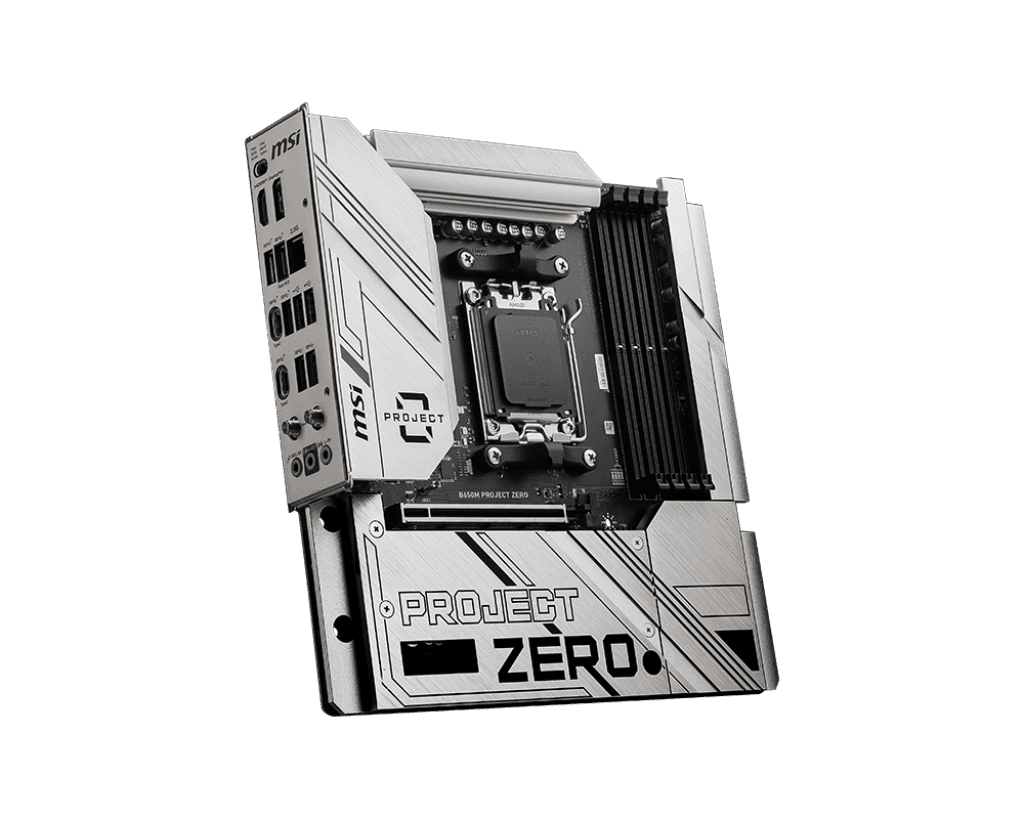

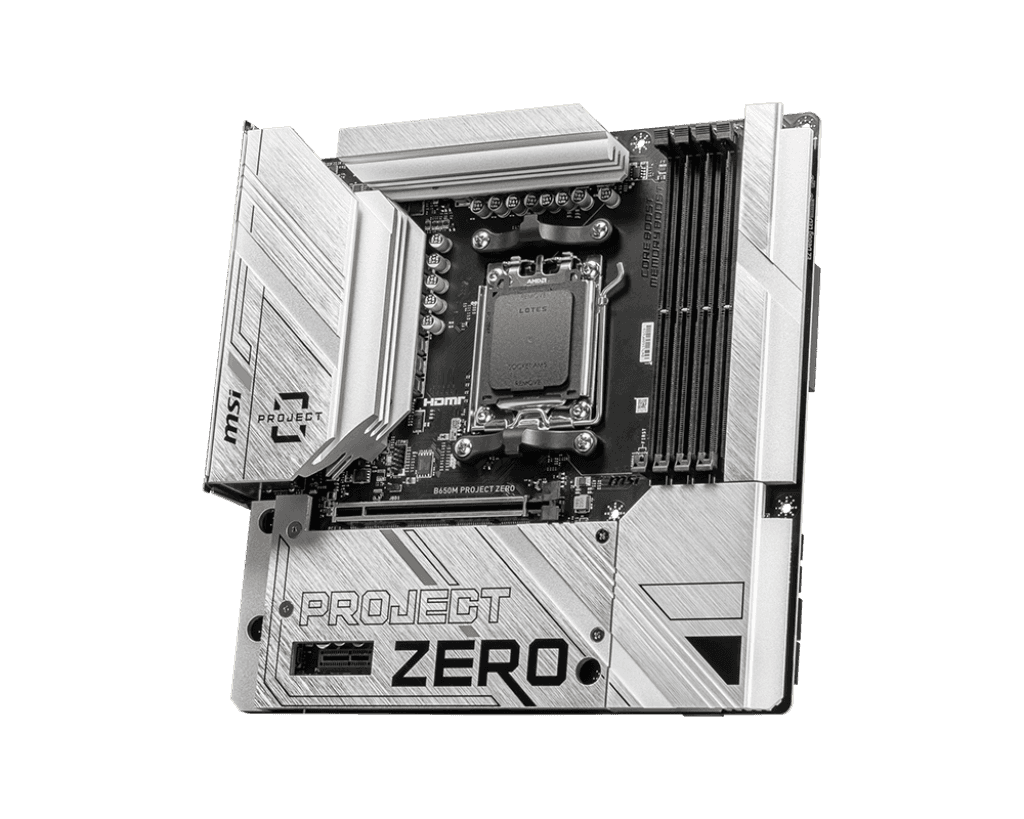

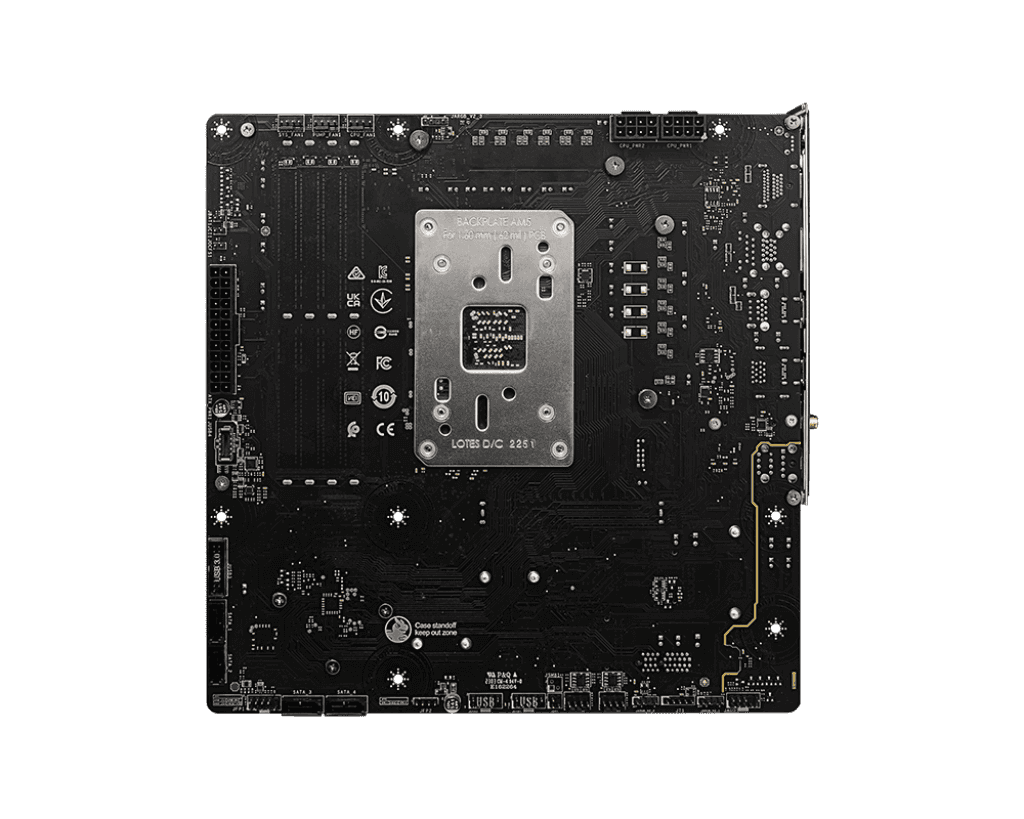

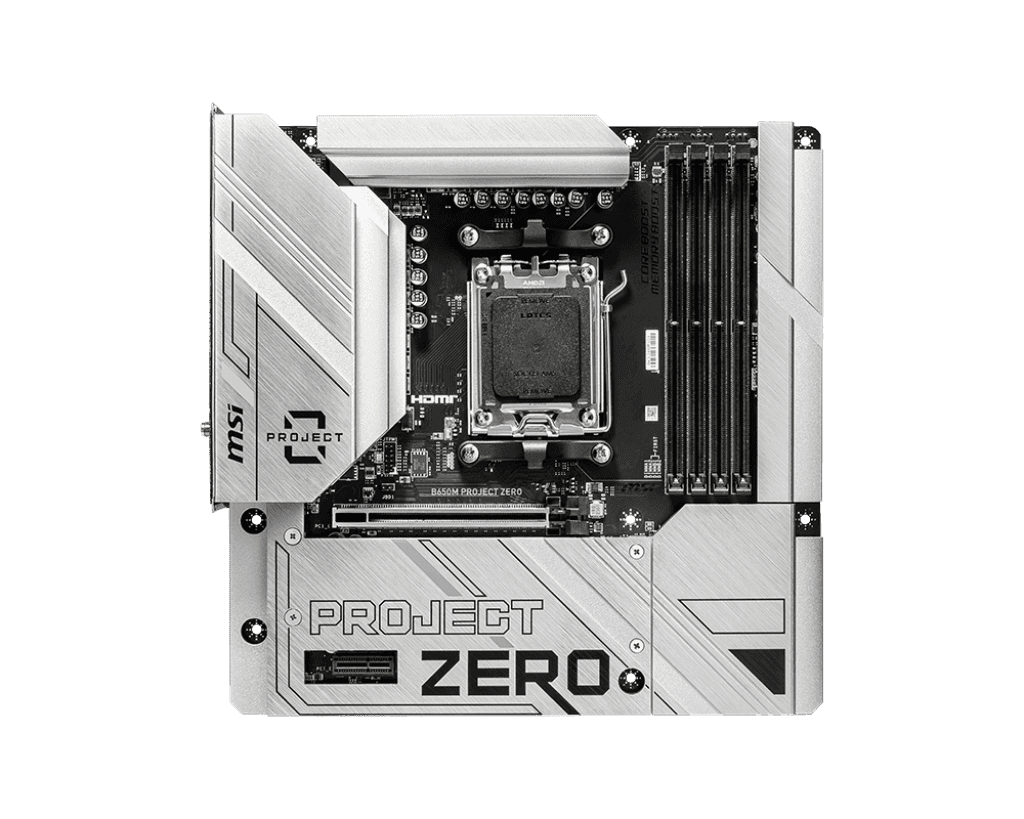

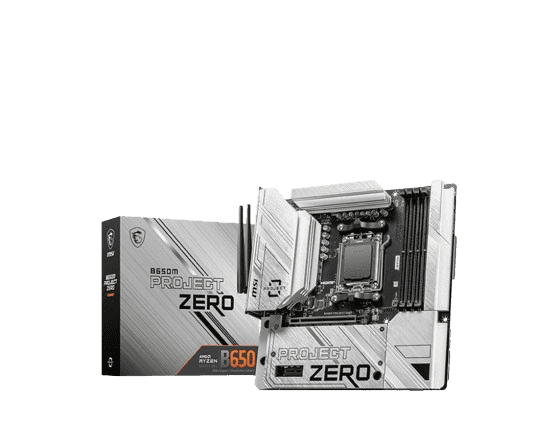

MSI B650M PROJECT ZERO AMD B650 ATX Motherboard, DDR5, up to 7600+(OC) MHz, Extended Heatsink Design, 2.5G LAN and AMD Wi-Fi 6E, M.2 Shield Frozr, Lightning M.2 | 911-7E09-003

Model :

SKU : MB-MSI B650M PROJECT ZERO

dirham-symbol0

Inclusive of VAT

Delivery to

FREE scheduled delivery as soon as Loading...

Sold and shipped by: Adarc computers

1

AED 0.00

stock : 1

About this item

Description

AMD B650 Motherboard Specifications

Chipset
  • AMD B650
CPU
  • Supports AMD Ryzen??? 7000 Series Desktop Processors
  • Socket AM5
Memory
  • 4x DDR5, Maximum Memory Capacity 128GB
  • Memory Support DDR5 7600+(OC)/7400(OC)/...
  • Max. overclocking frequency:
  • 1DPC 1R Max speed up to 7600+ MHz
  • 1DPC 2R Max speed up to 6400+ MHz
  • 2DPC 1R Max speed up to 6400+ MHz
  • 2DPC 2R Max speed up to 5400+ MHz
  • Supports Dual-Channel mode
Onboard Graphics
  • 1x HDMI??? - Supports HDMI??? 2.1 with HDR, maximum resolution of 4K 60Hz*
  • 1x DisplayPort - Supports DP 1.4, maximum resolution of 4K 60Hz*
  • *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot
  • 1x PCI-E x16 slot
  • 1x PCI-E x1 slot
  • PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
  • PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
Storage
  • 2x M.2
  • M.2_1 Source (From CPU) supports up to PCIe 4.0 x4, supports 2280/2260 devices
  • M.2_2 Source (From CPU) supports up to PCIe 4.0 x4, supports 2280/2260 devices
  • 4x SATA 6G
RAID
  • Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices*
  • Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
  • * SATA_A1_A2 do not support RAID function.

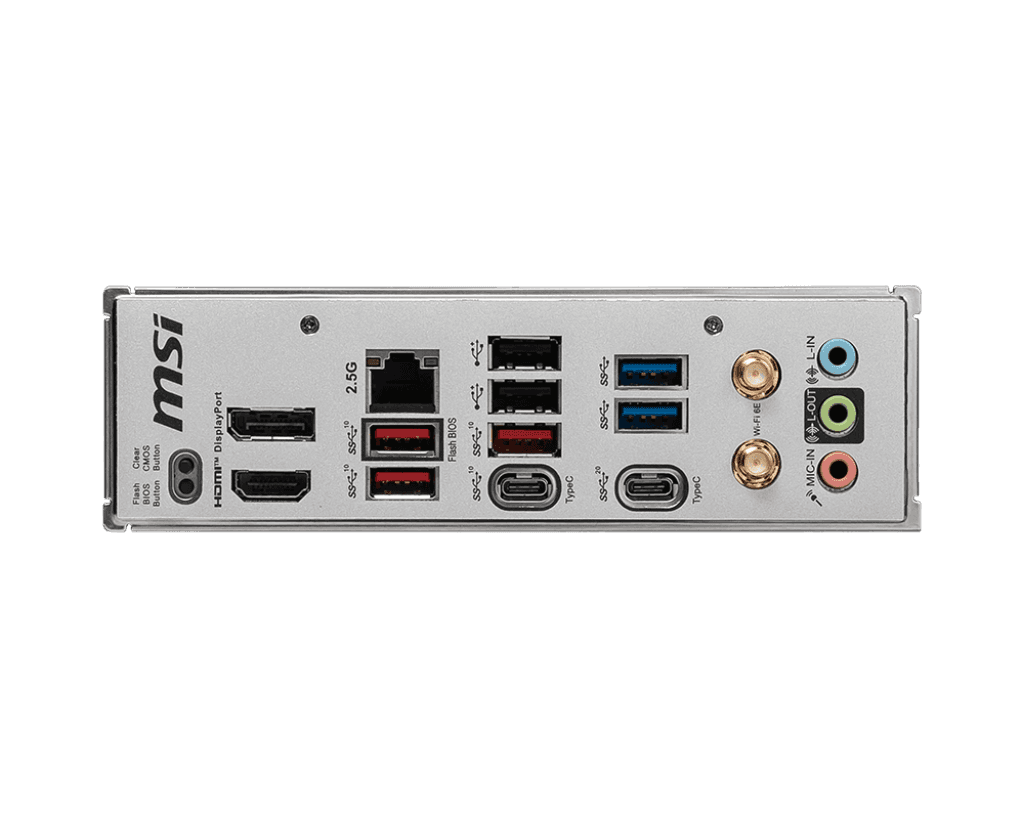

USB
  • 2x USB 2.0 (Rear)
  • 4x USB 2.0 (Front)
  • 2x USB 3.2 Gen1 Type A (Rear)
  • 2x USB 3.2 Gen1 Type A (Front)
  • 3x USB 3.2 Gen2 Type A (Rear)
  • 1x USB 3.2 Gen2 Type C (Rear)
  • 1x USB 3.2 Gen2 Type C (Front)
  • 1x USB 3.2 Gen2x2 Type C (Rear)
LAN
  • Realtek?? RTL8125BG 2.5Gbps LAN
Wireless LAN & Bluetooth
  • AMD Wi-Fi 6E - The Wireless module is pre-installed in the M.2 (Key-E) slot
  • Supports MU-MIMO TX/RX
  • Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/5GHz or 6GHz* bands
  • Supports 802.11 a/b/g/n/ac/ax
  • Supports Bluetooth?? 5.3**
  • * Wi-Fi 6E 6GHz may depend on every country???s regulations and will be ready in Windows 11.
  • ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
Audio
  • Realtek?? ALC897 Codec
  • 7.1-Channel High Definition Audio
  • Supports S/PDIF output
  • Supports up to 32-Bit/384 kHz playback on the front panel
Internal IO
  • 1x Power Connector(ATX_PWR)
  • 2x Power Connector(CPU_PWR)
  • 1x CPU Fan
  • 1x Pump Fan
  • 3x System Fan
  • 2x Front Panel (JFP)
  • 1x Chassis Intrusion (JCI)
  • 1x Front Audio (JAUD)
  • 3x Addressable V2 RGB LED connector (JARGB_V2)
  • 1x TPM pin header(Support TPM 2.0)
  • 4x USB 2.0 ports
  • 2x USB 3.2 Gen1 Type A ports
  • 1x USB 3.2 Gen2 Type C ports
LED Feature
  • 4x EZ Debug LED

Specification

AMD B650 Motherboard Specifications

Chipset
  • AMD B650
CPU
  • Supports AMD Ryzen??? 7000 Series Desktop Processors
  • Socket AM5
Memory
  • 4x DDR5, Maximum Memory Capacity 128GB
  • Memory Support DDR5 7600+(OC)/7400(OC)/...
  • Max. overclocking frequency:
  • 1DPC 1R Max speed up to 7600+ MHz
  • 1DPC 2R Max speed up to 6400+ MHz
  • 2DPC 1R Max speed up to 6400+ MHz
  • 2DPC 2R Max speed up to 5400+ MHz
  • Supports Dual-Channel mode
Onboard Graphics
  • 1x HDMI??? - Supports HDMI??? 2.1 with HDR, maximum resolution of 4K 60Hz*
  • 1x DisplayPort - Supports DP 1.4, maximum resolution of 4K 60Hz*
  • *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot
  • 1x PCI-E x16 slot
  • 1x PCI-E x1 slot
  • PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
  • PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
Storage
  • 2x M.2
  • M.2_1 Source (From CPU) supports up to PCIe 4.0 x4, supports 2280/2260 devices
  • M.2_2 Source (From CPU) supports up to PCIe 4.0 x4, supports 2280/2260 devices
  • 4x SATA 6G
RAID
  • Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices*
  • Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
  • * SATA_A1_A2 do not support RAID function.
USB
  • 2x USB 2.0 (Rear)
  • 4x USB 2.0 (Front)
  • 2x USB 3.2 Gen1 Type A (Rear)
  • 2x USB 3.2 Gen1 Type A (Front)
  • 3x USB 3.2 Gen2 Type A (Rear)
  • 1x USB 3.2 Gen2 Type C (Rear)
  • 1x USB 3.2 Gen2 Type C (Front)
  • 1x USB 3.2 Gen2x2 Type C (Rear)
LAN
  • Realtek?? RTL8125BG 2.5Gbps LAN
Wireless LAN & Bluetooth
  • AMD Wi-Fi 6E - The Wireless module is pre-installed in the M.2 (Key-E) slot
  • Supports MU-MIMO TX/RX
  • Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/5GHz or 6GHz* bands
  • Supports 802.11 a/b/g/n/ac/ax
  • Supports Bluetooth?? 5.3**
  • * Wi-Fi 6E 6GHz may depend on every country???s regulations and will be ready in Windows 11.
  • ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
Audio
  • Realtek?? ALC897 Codec
  • 7.1-Channel High Definition Audio
  • Supports S/PDIF output
  • Supports up to 32-Bit/384 kHz playback on the front panel
Internal IO
  • 1x Power Connector(ATX_PWR)
  • 2x Power Connector(CPU_PWR)
  • 1x CPU Fan
  • 1x Pump Fan
  • 3x System Fan
  • 2x Front Panel (JFP)
  • 1x Chassis Intrusion (JCI)
  • 1x Front Audio (JAUD)
  • 3x Addressable V2 RGB LED connector (JARGB_V2)
  • 1x TPM pin header(Support TPM 2.0)
  • 4x USB 2.0 ports
  • 2x USB 3.2 Gen1 Type A ports
  • 1x USB 3.2 Gen2 Type C ports
LED Feature
  • 4x EZ Debug LED
