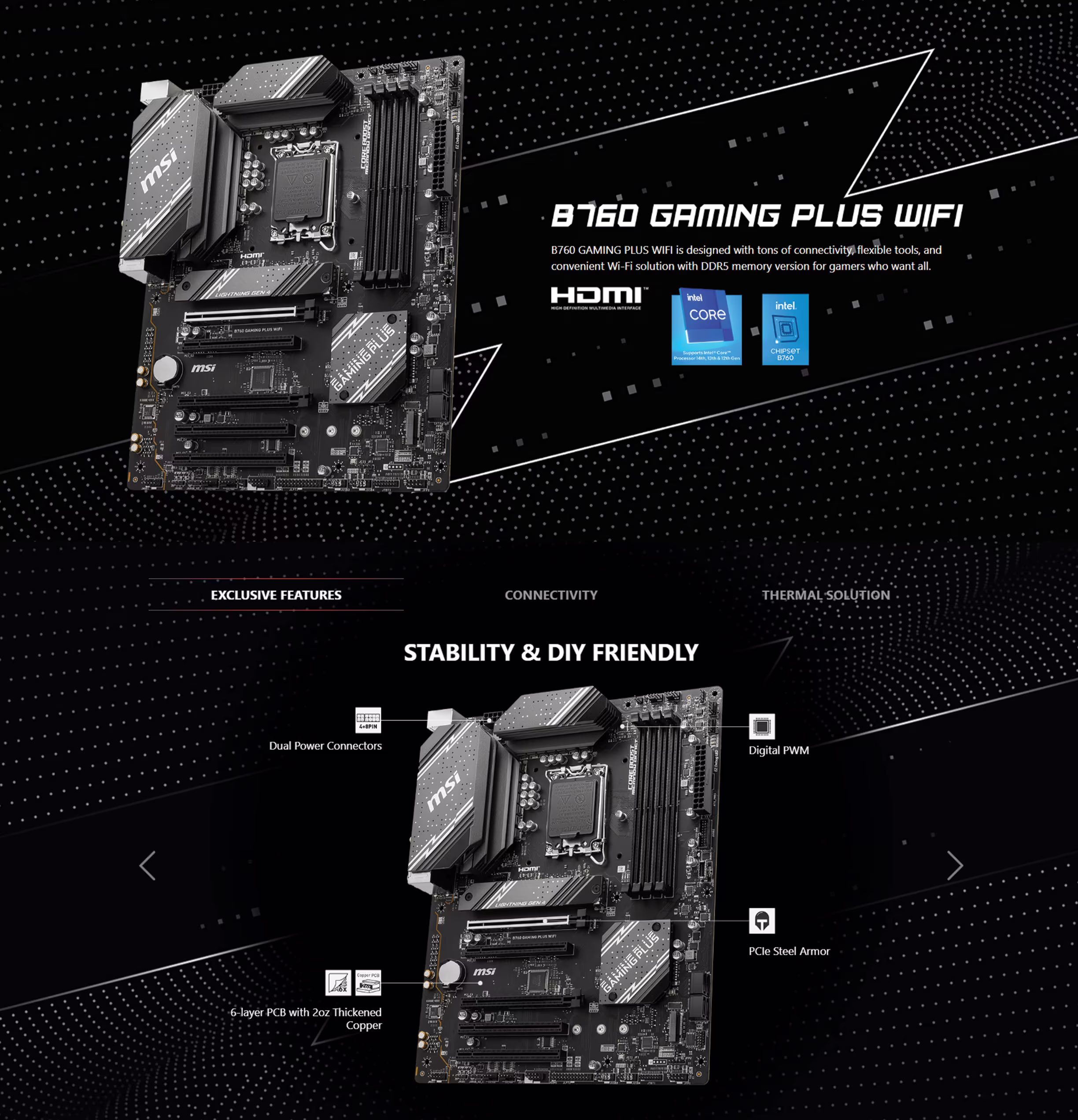

MSI B760 Gaming Plus WIFI DDR5 ATX Motherboard, LGA 1700 Socket, Intel B760 Chipset, Dual-Channel Mode, Intel Wi-Fi 6E, 5x PCI-E x16 Slot, 2x M.2 Storage | 911-7D98-012 - 911-7D98-019
Model :
SKU : MB-MSI B760 GAMING PLUS
About this item
About this item
Description
The B760 GAMING PLUS WIFI is engineered to provide the essential features needed for a modern gaming rig on the Intel platform. Utilizing the Intel B760 chipset, it is fully optimized for the hybrid architecture of Intel's latest CPUs, balancing power efficiency with raw performance. This board is an ideal choice for builders looking for the stability of the MSI Gaming series in a full-sized ATX form factor that offers plenty of room for expansion and cooling.
Advanced Thermal Solution & Power Delivery
To maintain peak performance during long gaming sessions, MSI has equipped this board with an Extended Heatsink Design and high-quality 7W/mK thermal pads. These features ensure that the voltage regulator modules (VRM) remain cool even under heavy CPU loads. Additionally, the M.2 Shield Frozr prevents thermal throttling for your NVMe SSDs, ensuring sustained high-speed data access for fast game loading and system snappiness.
Next-Gen Speed: DDR5 & Lightning Gen 4
Step into the next era of memory performance with support for DDR5. The B760 GAMING PLUS WIFI utilizes MSI’s Memory Boost technology, which features an isolated circuitry design to deliver pure data signals for maximum stability and extreme overclocking potential. For graphics and storage, the board leverages Lightning Gen 4 PCIe, providing massive bandwidth for modern GPUs and high-speed NVMe drives.
Seamless Connectivity: WiFi 6E & 2.5G LAN
Networking is a standout feature, providing both versatility and speed. Integrated WiFi 6E allows access to the 6GHz spectrum, significantly reducing congestion and latency in wireless environments. For those who demand the most stable wired connection, the 2.5Gbps LAN controller offers speeds 2.5 times faster than standard Gigabit Ethernet, making it perfect for competitive online play and large file transfers.
Why the MSI B860 GAMING PLUS WIFI Stands Out
LGA 1700 Ready: Full compatibility with Intel 14th, 13th, and 12th Gen Core processors.
DDR5 Memory Support: Achieve higher frequencies and lower power consumption.
WiFi 6E & Bluetooth: The latest wireless standards for ultra-fast connectivity and low-latency peripheral support.
Steel Armor PCIe Slot: Reinforced slot to protect against EMI and physical stress from heavy graphics cards.
Specification
| CHIPSET | INTEL B760 |
| CPU | Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors LGA 1700 |
| MEMORY | 4x DDR5, Maximum Memory Capacity 256GB Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: 1DPC 1R Max speed up to 6800+ MHz 1DPC 2R Max speed up to 6400+ MHz 2DPC 1R Max speed up to 6000+ MHz 2DPC 2R Max speed up to 5600+ MHz Supports Intel XMP 3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory |
| ONBOARD GRAPHICS | 1x HDMI Support HDMI 2.1 with HDR, maximum resolution of 4K 60Hz 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| SLOT | 5x PCI-E x16 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E5 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| STORAGE | 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G SATA8 will be unavailable when installing M.2 SATA SSD in the M2_2 slot. RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| USB | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Front) 1x USB 5Gbps Type C (Front) 2x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) |
| LAN | Realtek RTL8125BG 2.5G LAN |
| WIRELESS LAN & BLUETOOTH | Intel Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3, FIPS, FISMA Wi-Fi 6E 6GHz may depend on every countrys regulations and will be ready in Windows 11. Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11. |
| AUDIO | Realtek ALC897 Codec 7.1-Channel High Definition Audio Supports S/PDIF output |
| INTERNAL IO | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 5x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Printer Port (JLPT) 1x Com Port (JCOM) 1x TBT connector (JTBT, supports RTD3) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 5Gbps Type C ports |
| LED FEATURE | 4x EZ Debug LED |
