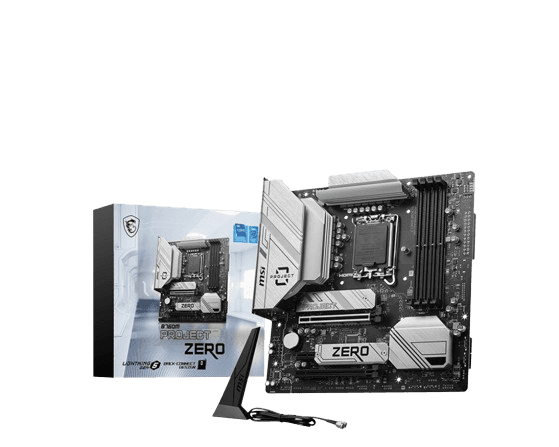

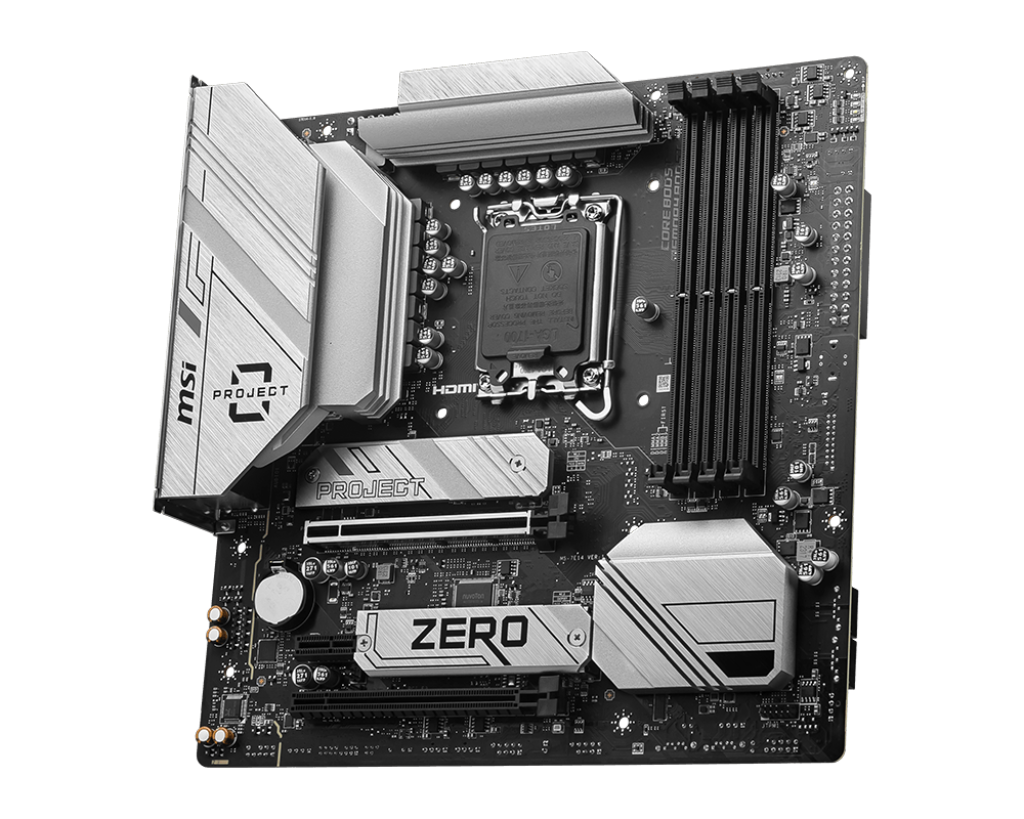

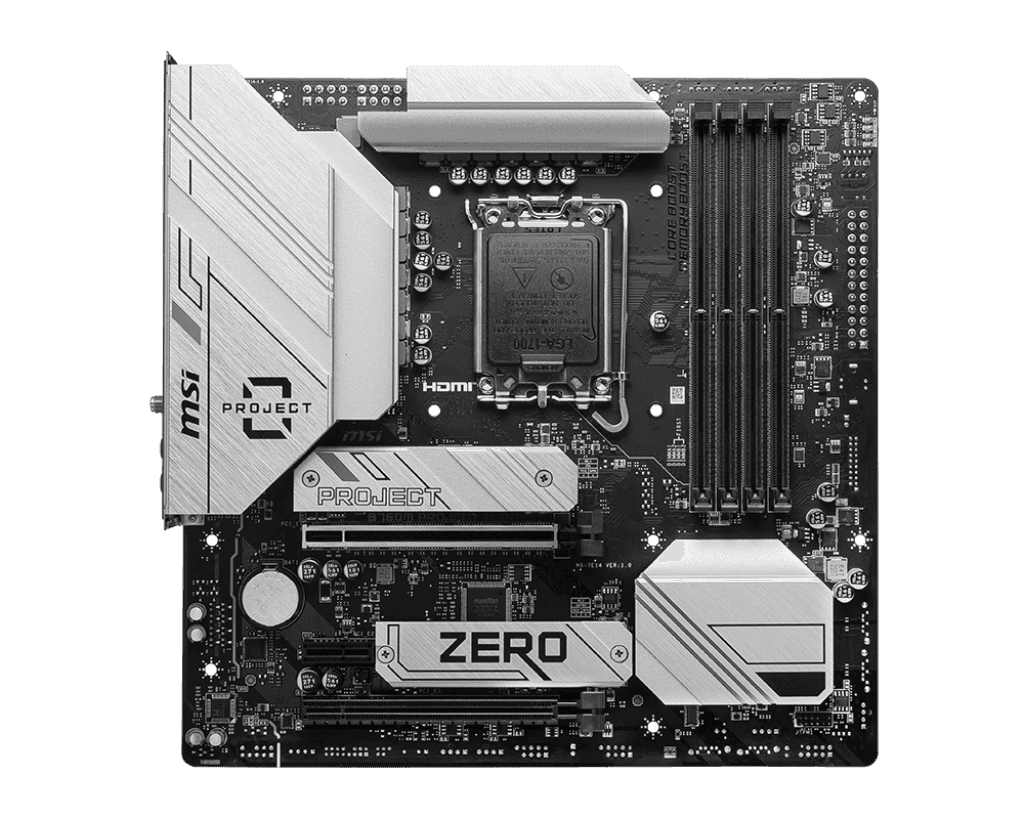

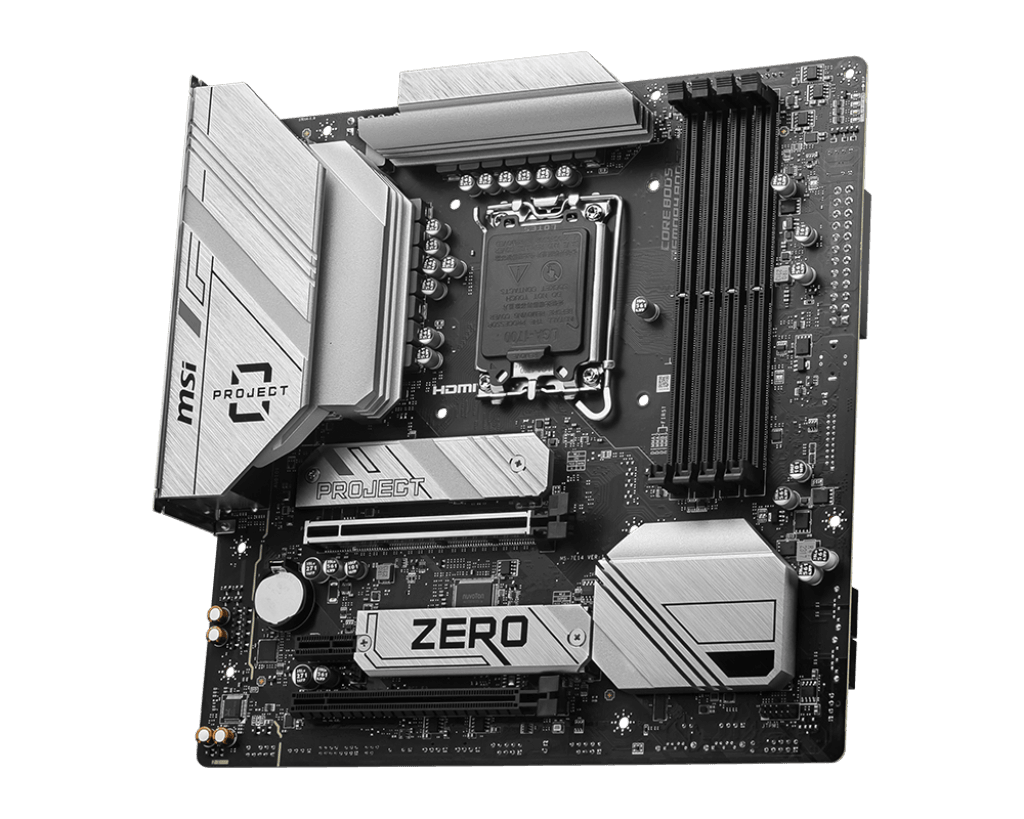

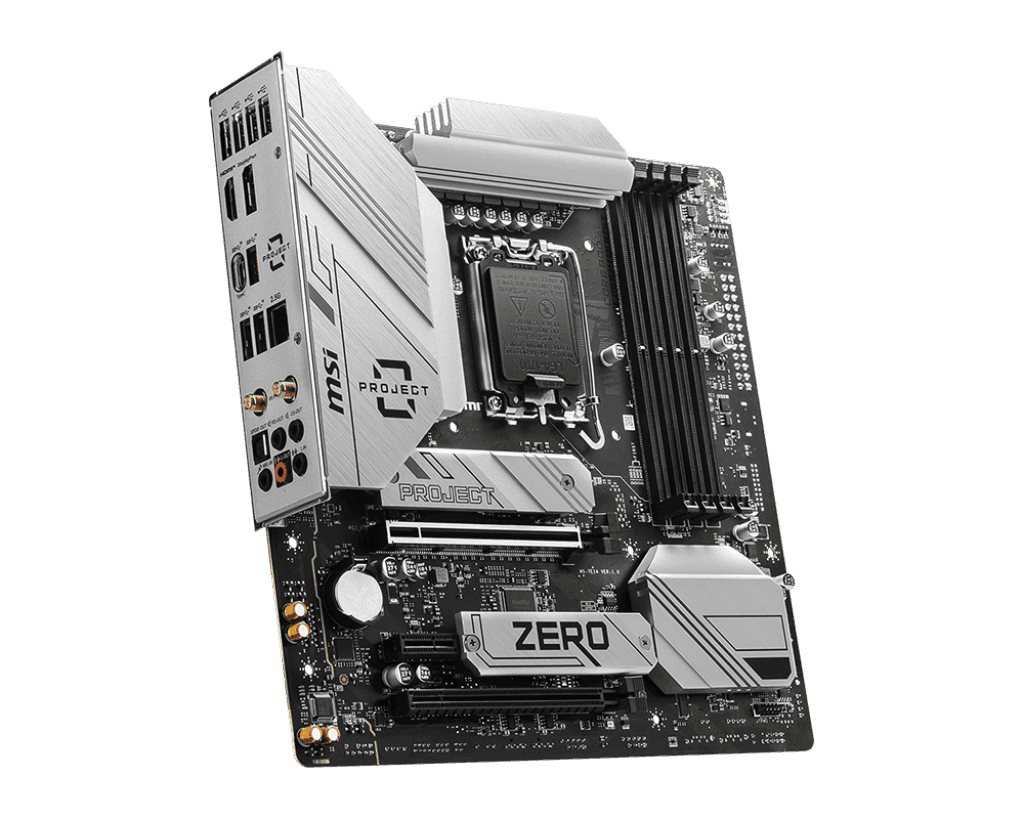

MSI B760M MSI PROJECT ZERO LGA 1700 mATX Motherboard, Intel B760 Chipset, 4x DDR5 Slots / 192GB Max, Wi-Fi 6E / BT 5.3, 2x PCI-E x16, 2x M.2, USB 3.2 Type-C, 1x HDMI / 1x DP | 911-7E14-001

Model :

SKU : MB-MSI B760M PROJECT ZERO

Description

Intel B760 Motherboard Specifications

Chipset & CPU Support
  • Chipset: Intel B760
  • CPU Support: Support Intel?? Core??? 14th/ 13th/ 12th Gen Processors, Intel?? Pentium?? Gold and Celeron?? Processors
  • LGA: 1700
Memory
  • 4x DDR5, Maximum Memory Capacity: 192GB
  • Memory Support: 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
  • Max. overclocking frequency:
    • 1DPC 1R Max speed up to 7800+ MHz
    • 1DPC 2R Max speed up to 6600+ MHz
    • 2DPC 1R Max speed up to 6400+ MHz
    • 2DPC 2R Max speed up to 5600+ MHz
  • Supports Dual-Channel mode
  • Supports non-ECC, un-buffered memory
  • Supports Intel?? Extreme Memory Profile
Onboard Graphics
  • 1x HDMI??? - Supports HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz*
  • 1x DisplayPort - Supports DP 1.4, maximum resolution of 4K 60Hz*
    • *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot
  • 2x PCI-E x16 slot
  • 1x PCI-E x1 slot
  • PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
  • PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
  • PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
Storage
  • 2x M.2
  • M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
  • M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
  • 4x SATA 6G
  • RAID: Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

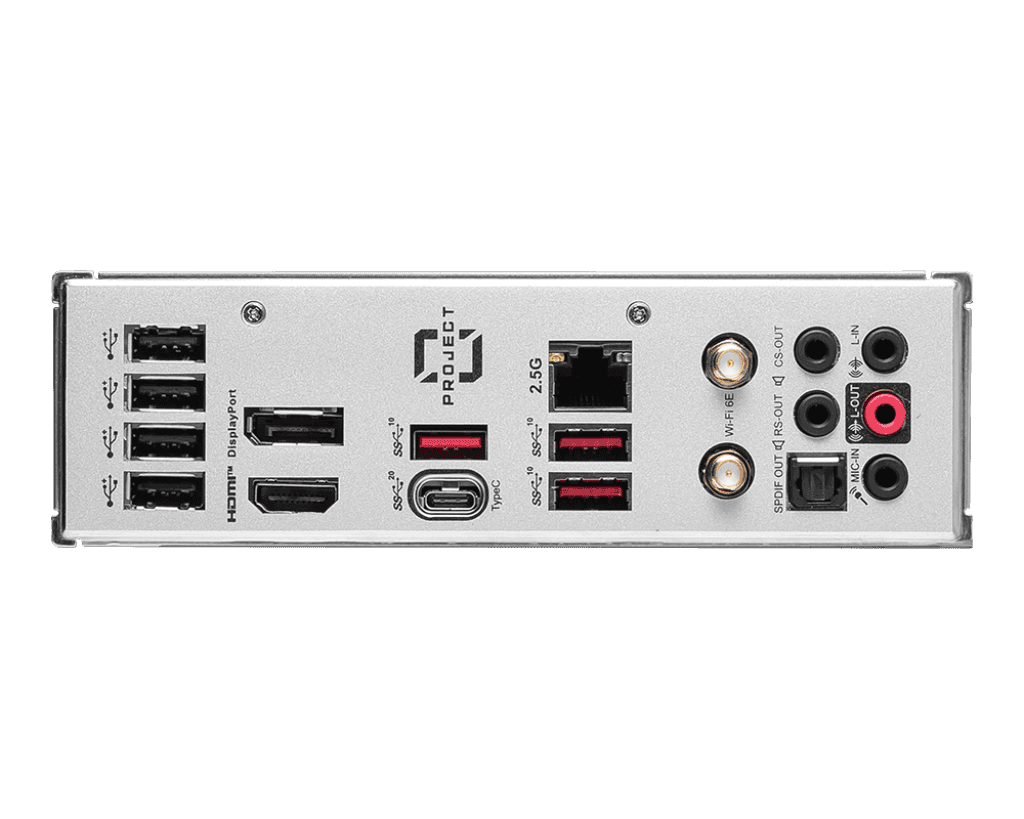

USB
  • 4x USB 2.0 (Rear)
  • 4x USB 2.0 (Front)
  • 2x USB 3.2 Gen1 Type A (Front)
  • 3x USB 3.2 Gen2 Type A (Rear)
  • 1x USB 3.2 Gen2 Type C (Front)
  • 1x USB 3.2 Gen2x2 Type C (Rear)
LAN
  • Realtek?? 2.5Gbps LAN
Wireless LAN & Bluetooth
  • Intel?? Wi-Fi 6E
  • The Wireless module is pre-installed in the M.2 (Key-E) slot
  • Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
  • Supports 802.11 a/ b/ g/ n/ ac/ ax
  • Supports Bluetooth?? 5.3, FIPS, FISMA
  • * Wi-Fi 6E 6GHz may depend on every country???s regulations and will be ready in Windows 11.
  • ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
Audio
  • Realtek?? ALC897 Codec
  • 7.1-Channel High Performance Audio
  • Supports S/PDIF output
Internal IO
  • 1x Power Connector(ATX_PWR)
  • 2x Power Connector(CPU_PWR)
  • 1x CPU Fan
  • 1x Pump Fan
  • 4x System Fan
  • 2x Front Panel (JFP)
  • 1x Chassis Intrusion (JCI)
  • 1x Front Audio (JAUD)
  • 1x TBT connector (JTBT, supports RTD3)
  • 1x Tuning Controller connector(JDASH)
  • 2x Addressable V2 RGB LED connector (JARGB_V2)
  • 2x RGB LED connector(JRGB)
  • 1x TPM pin header(Support TPM 2.0)
  • 4x USB 2.0 ports
  • 2x USB 3.2 Gen1 Type A ports
  • 1x USB 3.2 Gen2 Type C ports
LED Feature
  • 4x EZ Debug LED

Specification

Intel B760 Motherboard Specifications

Chipset & CPU Support
  • Chipset: Intel B760
  • CPU Support: Support Intel?? Core??? 14th/ 13th/ 12th Gen Processors, Intel?? Pentium?? Gold and Celeron?? Processors
  • LGA: 1700
Memory
  • 4x DDR5, Maximum Memory Capacity: 192GB
  • Memory Support: 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
  • Max. overclocking frequency:
    • 1DPC 1R Max speed up to 7800+ MHz
    • 1DPC 2R Max speed up to 6600+ MHz
    • 2DPC 1R Max speed up to 6400+ MHz
    • 2DPC 2R Max speed up to 5600+ MHz
  • Supports Dual-Channel mode
  • Supports non-ECC, un-buffered memory
  • Supports Intel?? Extreme Memory Profile
Onboard Graphics
  • 1x HDMI??? - Supports HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz*
  • 1x DisplayPort - Supports DP 1.4, maximum resolution of 4K 60Hz*
    • *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot
  • 2x PCI-E x16 slot
  • 1x PCI-E x1 slot
  • PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
  • PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
  • PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
Storage
  • 2x M.2
  • M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
  • M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
  • 4x SATA 6G
  • RAID: Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB
  • 4x USB 2.0 (Rear)
  • 4x USB 2.0 (Front)
  • 2x USB 3.2 Gen1 Type A (Front)
  • 3x USB 3.2 Gen2 Type A (Rear)
  • 1x USB 3.2 Gen2 Type C (Front)
  • 1x USB 3.2 Gen2x2 Type C (Rear)
LAN
  • Realtek?? 2.5Gbps LAN
Wireless LAN & Bluetooth
  • Intel?? Wi-Fi 6E
  • The Wireless module is pre-installed in the M.2 (Key-E) slot
  • Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
  • Supports 802.11 a/ b/ g/ n/ ac/ ax
  • Supports Bluetooth?? 5.3, FIPS, FISMA
  • * Wi-Fi 6E 6GHz may depend on every country???s regulations and will be ready in Windows 11.
  • ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
Audio
  • Realtek?? ALC897 Codec
  • 7.1-Channel High Performance Audio
  • Supports S/PDIF output
Internal IO
  • 1x Power Connector(ATX_PWR)
  • 2x Power Connector(CPU_PWR)
  • 1x CPU Fan
  • 1x Pump Fan
  • 4x System Fan
  • 2x Front Panel (JFP)
  • 1x Chassis Intrusion (JCI)
  • 1x Front Audio (JAUD)
  • 1x TBT connector (JTBT, supports RTD3)
  • 1x Tuning Controller connector(JDASH)
  • 2x Addressable V2 RGB LED connector (JARGB_V2)
  • 2x RGB LED connector(JRGB)
  • 1x TPM pin header(Support TPM 2.0)
  • 4x USB 2.0 ports
  • 2x USB 3.2 Gen1 Type A ports
  • 1x USB 3.2 Gen2 Type C ports
LED Feature
  • 4x EZ Debug LED
