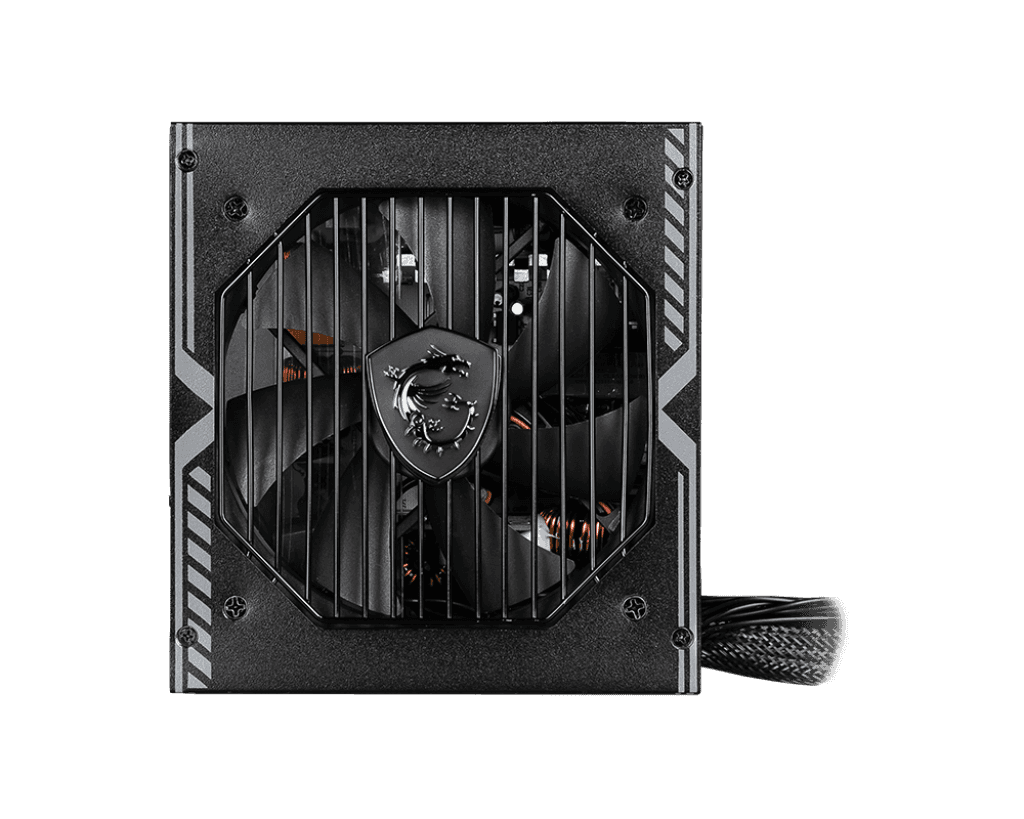

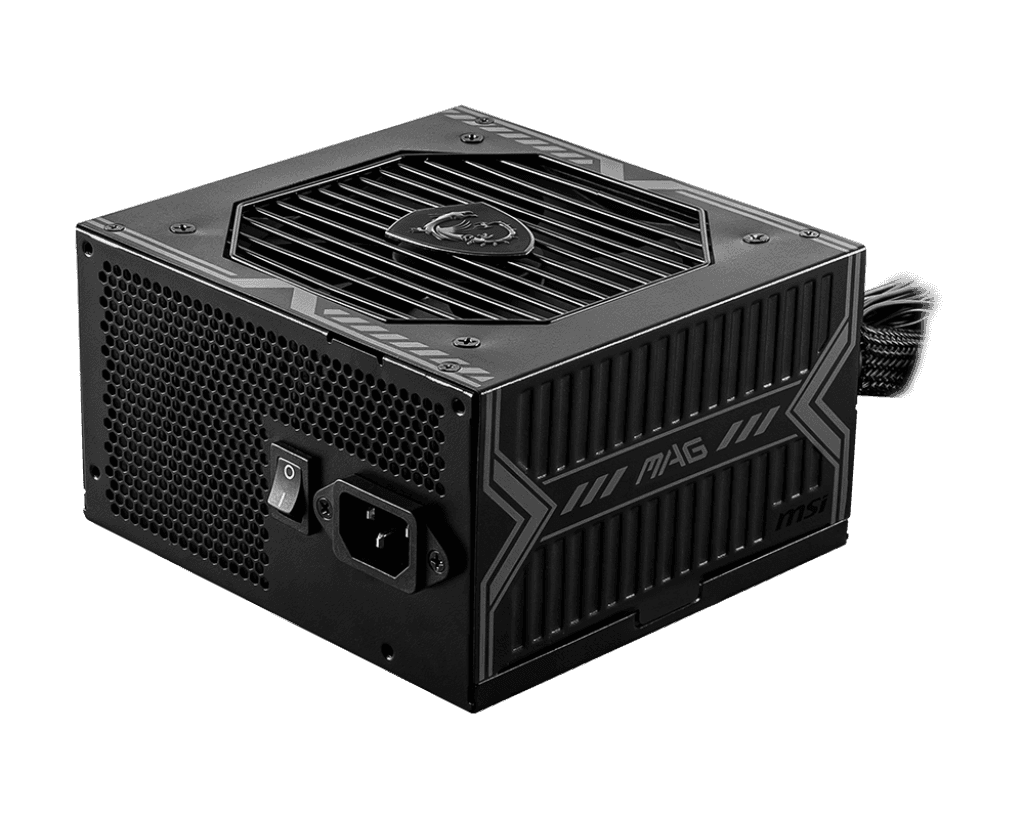

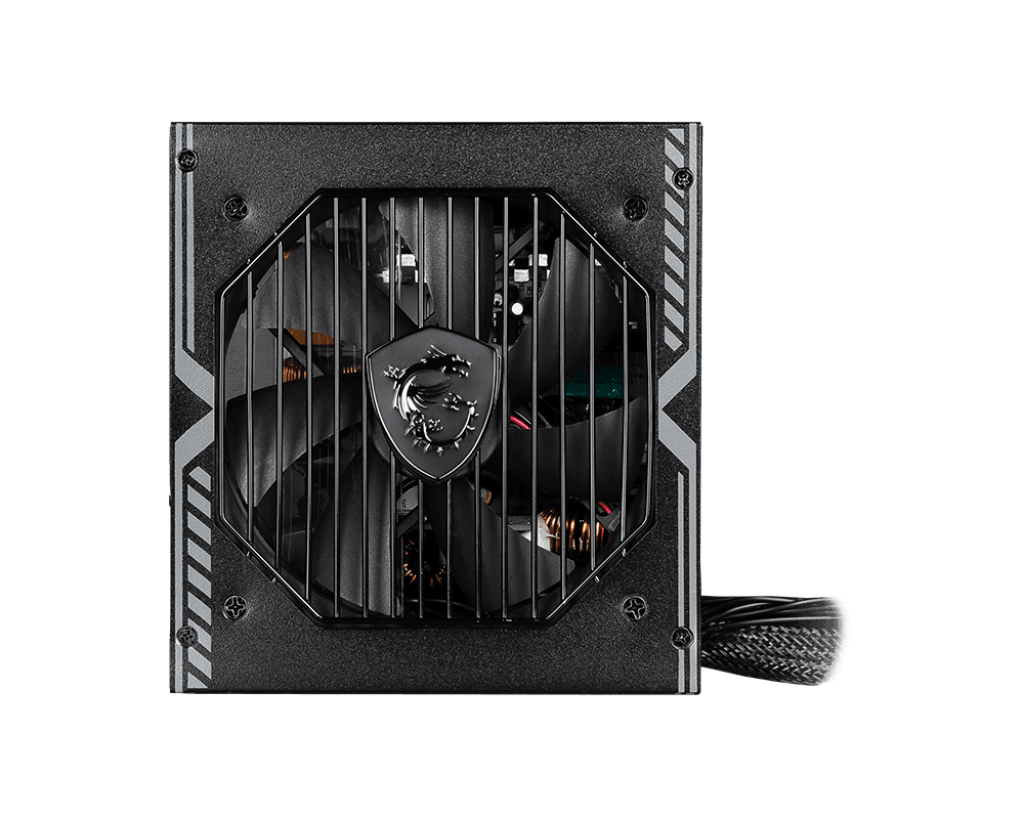

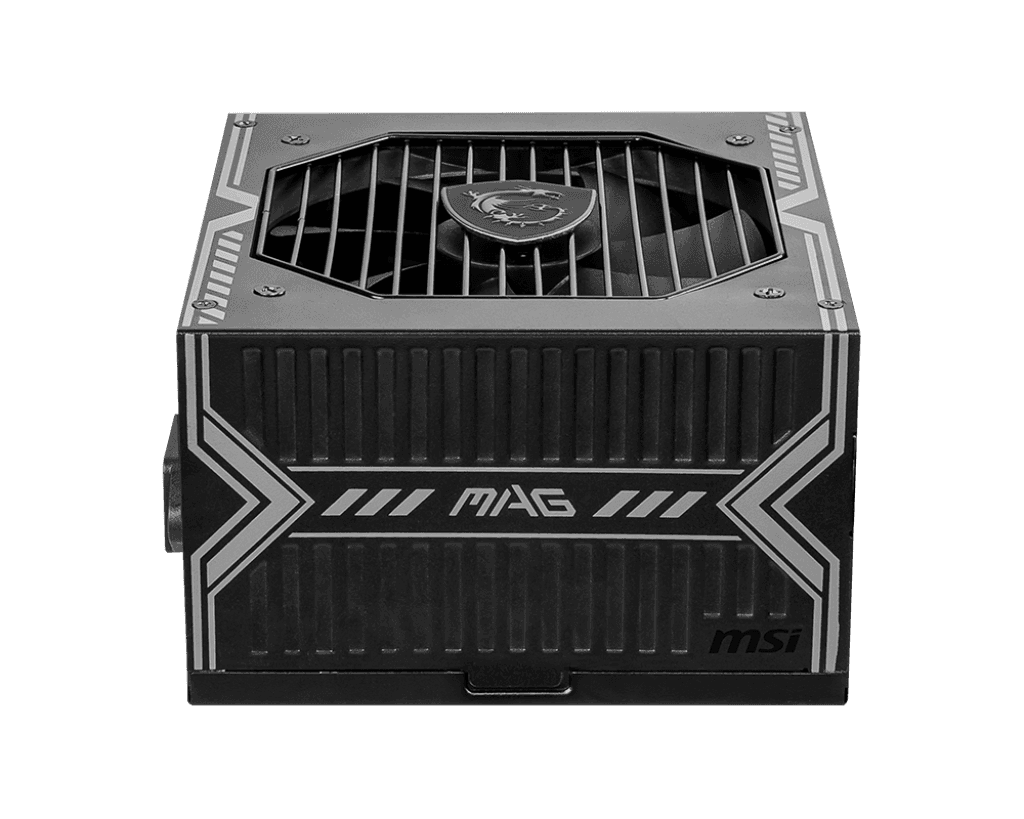

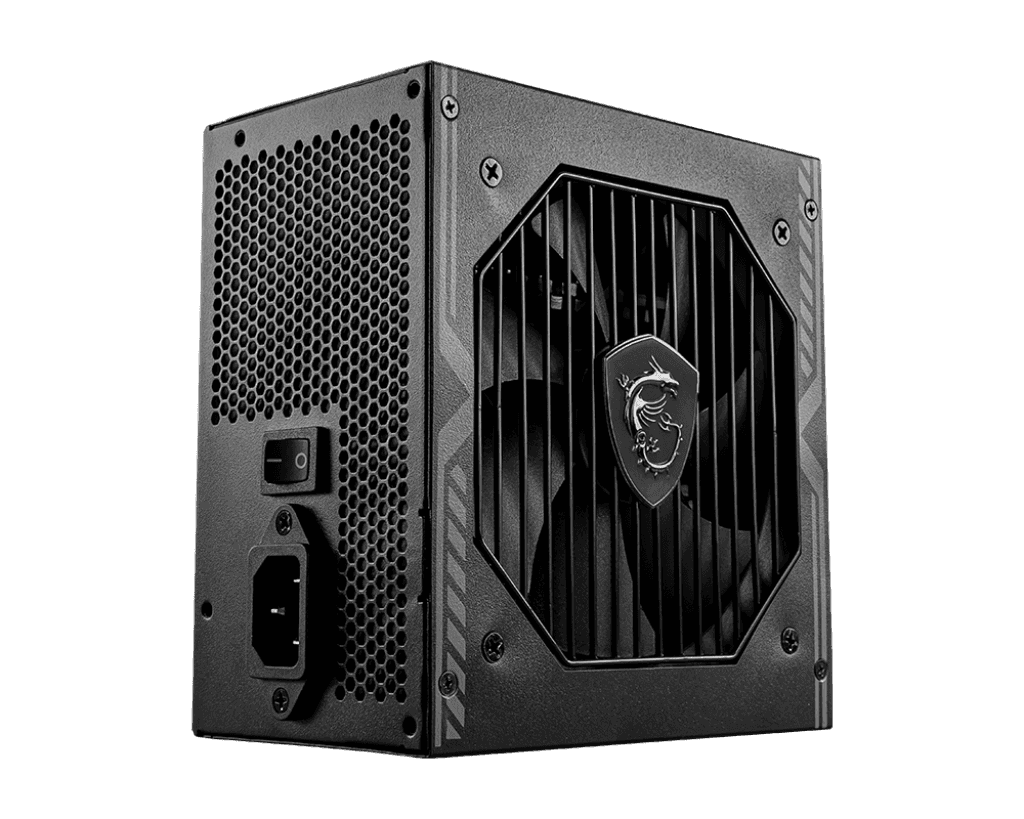

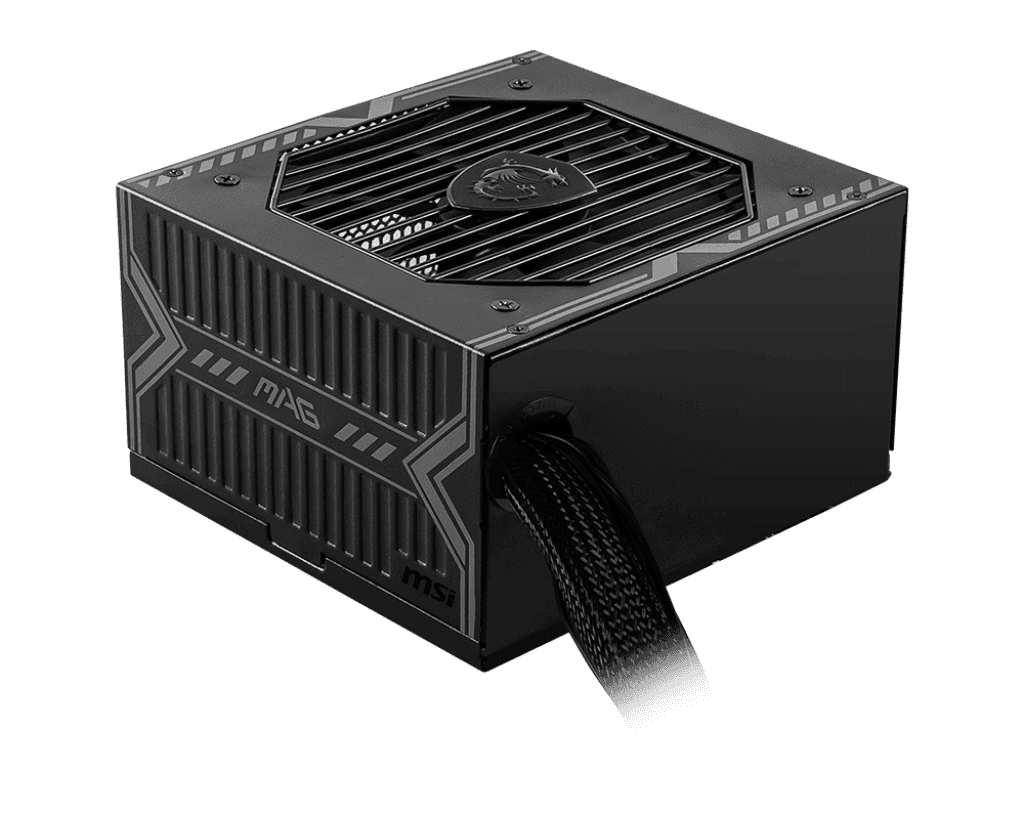

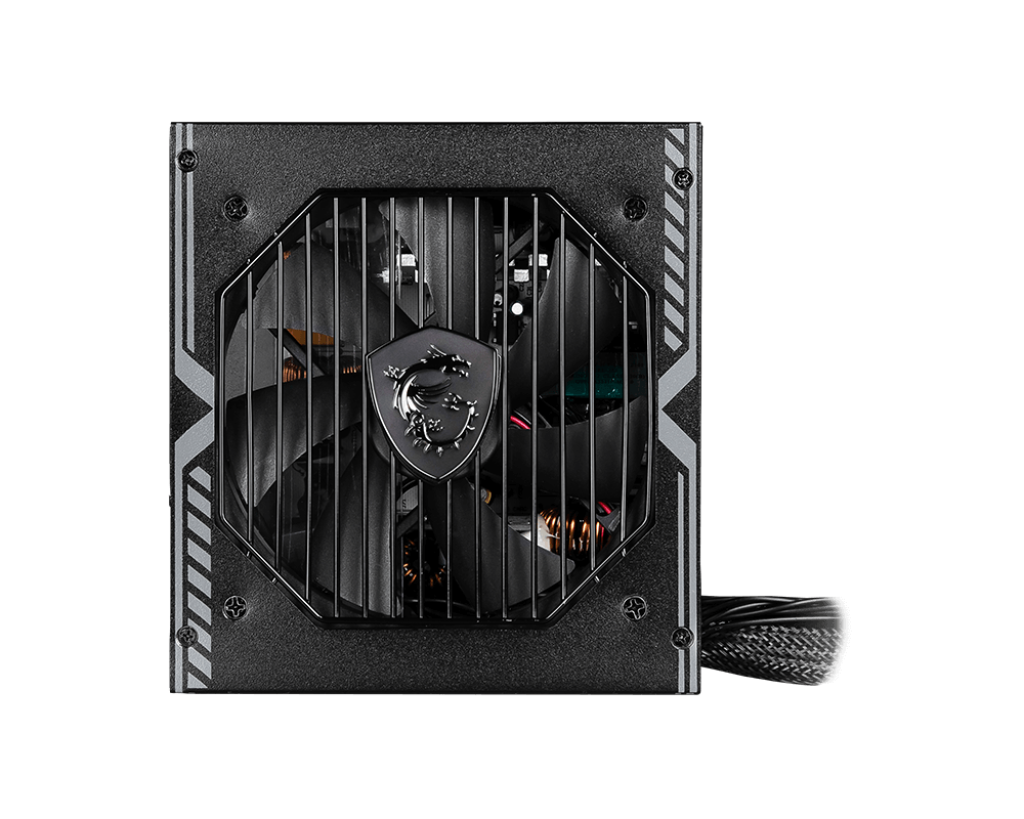

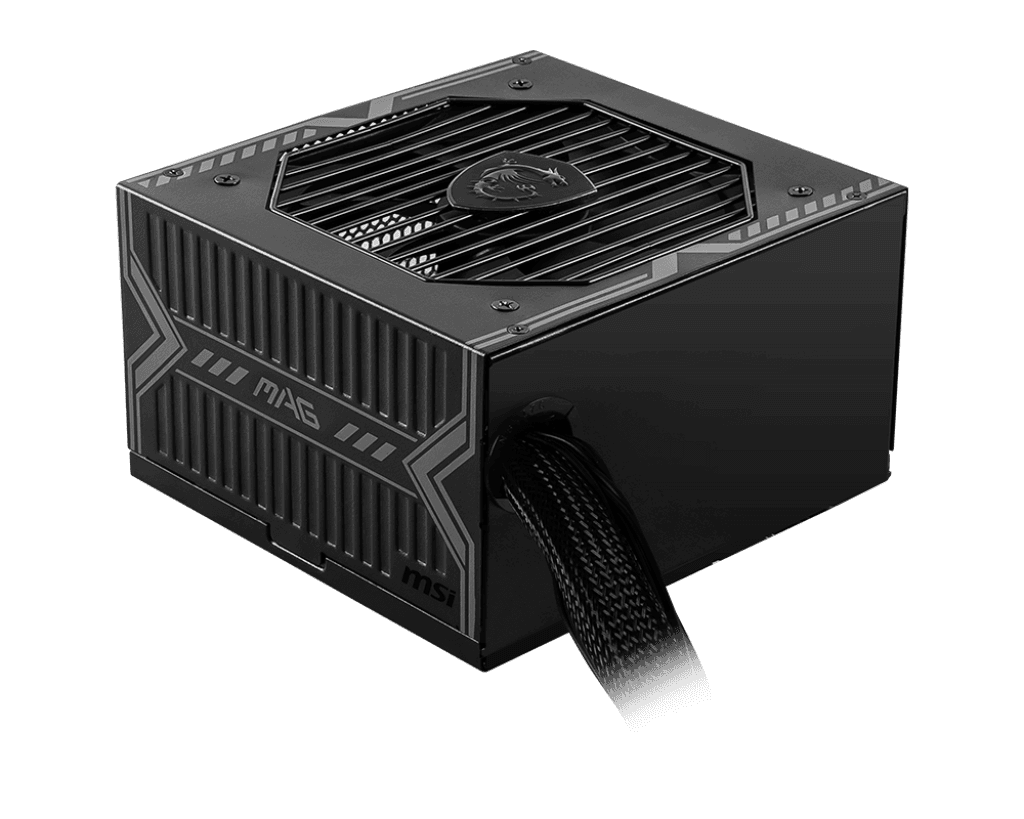

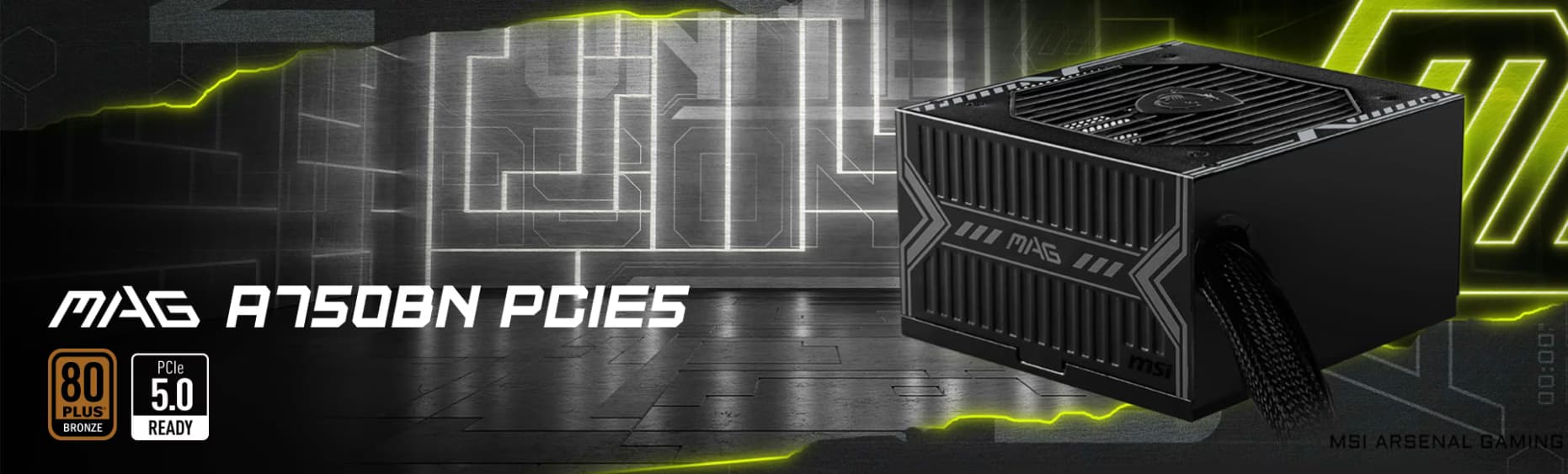

MSI MAG A750BN PCIE5 750W ATX Power Supply (PSU), PCIe 5.0 Ready, 120mm Fan, Active PFC, Sleeve Bearing, 80 PLUS Bronze, Black | 306-7ZP2C18-CE0
Model :
SKU : PS-MSI MAG A750BN
About this item
Description
The MAG A750BN PCIE5's distinctive design patterns symbolize unity and strength. It unites all the components by reliably and stably supplying power to the entire system. With the MAG A750BN PCIE5's , any system has the power it needs to survive all challenges.
PCIE5.0 READY
It has an output port that is compliant with PCIe 5.0, enabling to support the RTX 4070* series graphics cards.
Specification
MSI MAG A750BN PCIE5 750W ATX Power Supply (PSU), PCIe 5.0 Ready, Black | 306-7ZP2C18-CE0 Power Supply Specifications
| Efficiency Rating | 80 PLUS Bronze (up to 85%) |
| Modular | No |
| Fan Size | 120 mm |
| Fan Bearing | Sleeve Bearing |
| Dimensions (DxWxH) | 140mm x 150mm x 86mm / 5.51 x 5.9 x 3.38 inches |
| PFC Type | Active PFC |
| Input Voltage Range | 100???240V~ |
| Power Watt | 750W |
| Input Frequency Range | 50???60Hz |
| Protection | OCP, OVP, OPP, OTP, SCP |
| ATX (24 pin) | 1 |
| EPS (4+4 pin) | 2 |
| PCI-E 5.0 (16 pin) | 1 (300W) |
| PCI-E (6+2 pin) | 2 |
| SATA (15 pin) | 5 |
| PERIPHERAL (4 pin) | 2 |
| FDD (4 pin) | 1 |
