Home/PC Components/Motherboards/MSI MEG X670E GODLIKE AM5 E-ATX Motherboard, AMD X...
MSI MEG X670E GODLIKE AM5 E-ATX Motherboard, AMD X670 Chipset, 4 x DDR5 128GB Max Memory, I225V 2.5Gbps LAN, AMD Wi-Fi 6E, Bluetooth 5.2, 3x PCIe 5.0 x16, 4x M.2 Slot, USB 3.2/2.0 | 911-7D68-001
Model :
SKU : MB-MSI MEG X670E GODLIKE
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
MSI MEG X670E GODLIKE AM5 E-ATX Motherboard 911-7D68-001
Bend reality to your will: The MSI MEG X670E GODLIKE empowers you to push boundaries and shatter expectations. Master Ryzen 7000 performance, harness the power of PCIe 5.0 and experience gaming and creativity beyond limits. Prepare for the next level of gaming and computing with the MSI MEG X670E GODLIKE AM5 E-ATX Motherboard, combining advanced features, top-tier performance, and cutting-edge technology to meet the demands.
| CHIPSET | AMD X670 |
| CPU | Supports AMD Ryzen??? 7000 Series Desktop Processors Socket AM5 |
| MEMORY | 4x DDR5, Maximum Memory Capacity 192GB Memory Support DDR5 8000+(OC)/7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200(OC)/5000(OC)/4800(JEDEC) MHz Max. overclocking frequency: ??? 1DPC 1R Max speed up to 8000+ MHz ??? 1DPC 2R Max speed up to 6400+ MHz ??? 2DPC 1R Max speed up to 6400+ MHz ??? 2DPC 2R Max speed up to 5400+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports AMD EXPO |
| SLOT | 3x PCI-E x16 slot Supports x16/x0/x4, x8/x8/x4 PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU) PCI_E3 Gen PCIe 5.0 supports up to x4 (From CPU) |
| MULTI-GPU | AMD MULTI-GPU Support |
| STORAGE | 4x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4, supports 2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4, supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4, supports 2280/2260 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4, supports 2280/2260 devices 8x SATA 6G |
| RAID | Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices* Supports RAID 0, RAID 1, and RAID 10 for M.2 NVMe storage devices * SATA_A1_A2, SATA_B1_B2, and SATA_B3_B4 do not support RAID function. |
| USB | 4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Front) 7x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) 2x USB 3.2 Gen2x2 Type C (Rear) 1x USB 3.2 Gen2x2 Type C (Front) |
| LAN | Marvell?? AQC113CS-B1-C 10Gbps LAN Intel?? I225V 2.5Gbps LAN |
| WIRELESS LAN & BLUETOOTH | AMD Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz, 160MHz bandwidth in 2.4GHz/5GHz or 6GHz* bands Supports 802.11 a/b/g/n/ac/ax Supports Bluetooth?? 5.3** * Wi-Fi 6E 6GHz may depend on every country???s regulations and will be ready in Windows 11. ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11. |
| AUDIO | Realtek?? ALC4082 Codec + ESS ES9280AQ Combo DAC/HPA 7.1-Channel USB High Performance Audio Supports S/PDIF output Supports up to 32-Bit/384 kHz playback on front panel |
| INTERNAL IO | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 4pin or 6 pin) 1x Front Type-C Quick Charge Connector(PD_PWR1) 1x CPU Fan 2x Pump Fan 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Water Flow connector 1x Front Audio (JAUD) 2x Thermal Sensor connectors(T_SEN) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 4x USB 2.0 ports 4x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports 1x USB 3.2 Gen 2x2 Type C ports V-check point |
| LED FEATURE | 1x EZ LED Control switch 4x EZ Debug LED 1x 2-Digit Debug Code LED |

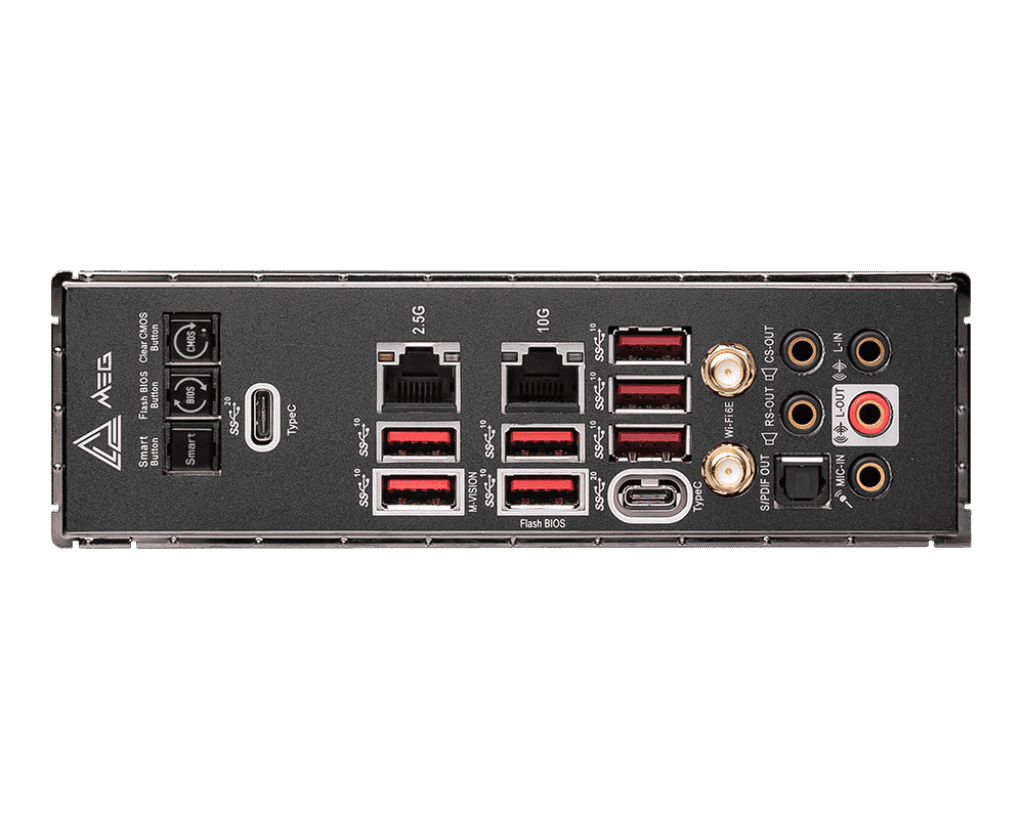

| BACK PANEL PORTS | Clear CMOS Button Flash BIOS Button 2.5G LAN 10G Super LAN USB 3.2 Gen 2 10Gbps (Type-A) Wi-Fi / Bluetooth HD Audio Connectors Smart Button USB 3.2 Gen 2x2 20Gbps (Type-C) USB 3.2 Gen 2 10Gbps (Type-A) USB 3.2 Gen 2 10Gbps (Type-A) USB 3.2 Gen 2x2 20Gbps (Type-C) Optical S/PDIF-Out |
| OPERATING SYSTEM | Support for Windows?? 11 64-bit, Windows?? 10 64-bit |
| PCB INFO | E-ATX 288mmx304.8mm |
