MSI MPG Z890I Edge Ti WiFi LGA 1851 Mini ITX Motherboard, Intel Z890 Chipset, 2x DDR5 UDIMM Slots, Up to 128GB Max Memory, 1x PCI-E x16 Slots, 4x M.2 Slots, WiFi & BT Connectivity | 911-7E33-004
Model :
SKU : MB-MPG Z890I EDGE TI WIFI
About this item
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
Specification
Intel Z890 Motherboard Specifications
| Component | Specification |
|---|---|
| Chipset | INTEL Z890 |
| CPU | Supports Intel® Core™ Ultra Processors (Series 2), LGA 1851 |
| Memory | 2x DDR5, up to 128GB 8600 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s • 1DPC 1R: Up to 8600+ MT/s • 1DPC 2R: Up to 7200+ MT/s Supports Intel XMP 3.0, Dual-Controller Dual-Channel, CUDIMM, Non-ECC Single-sided latches, compatibility varies based on CPU and memory config |
| Onboard Graphics | 1x HDMI™ 2.1 (8K 60Hz) 2x Thunderbolt™ 4 Type-C (DP 2.1, 4K@120Hz / 8K@60Hz) *Available only on CPUs with iGPU |
| Slot | 1x PCIe x16 (Gen 5, from CPU) BIOS adjustable to X8+X8 / X8+X4+X4 |
| Audio | Realtek® ALC4080 Codec, 7.1 USB Audio, S/PDIF supported |

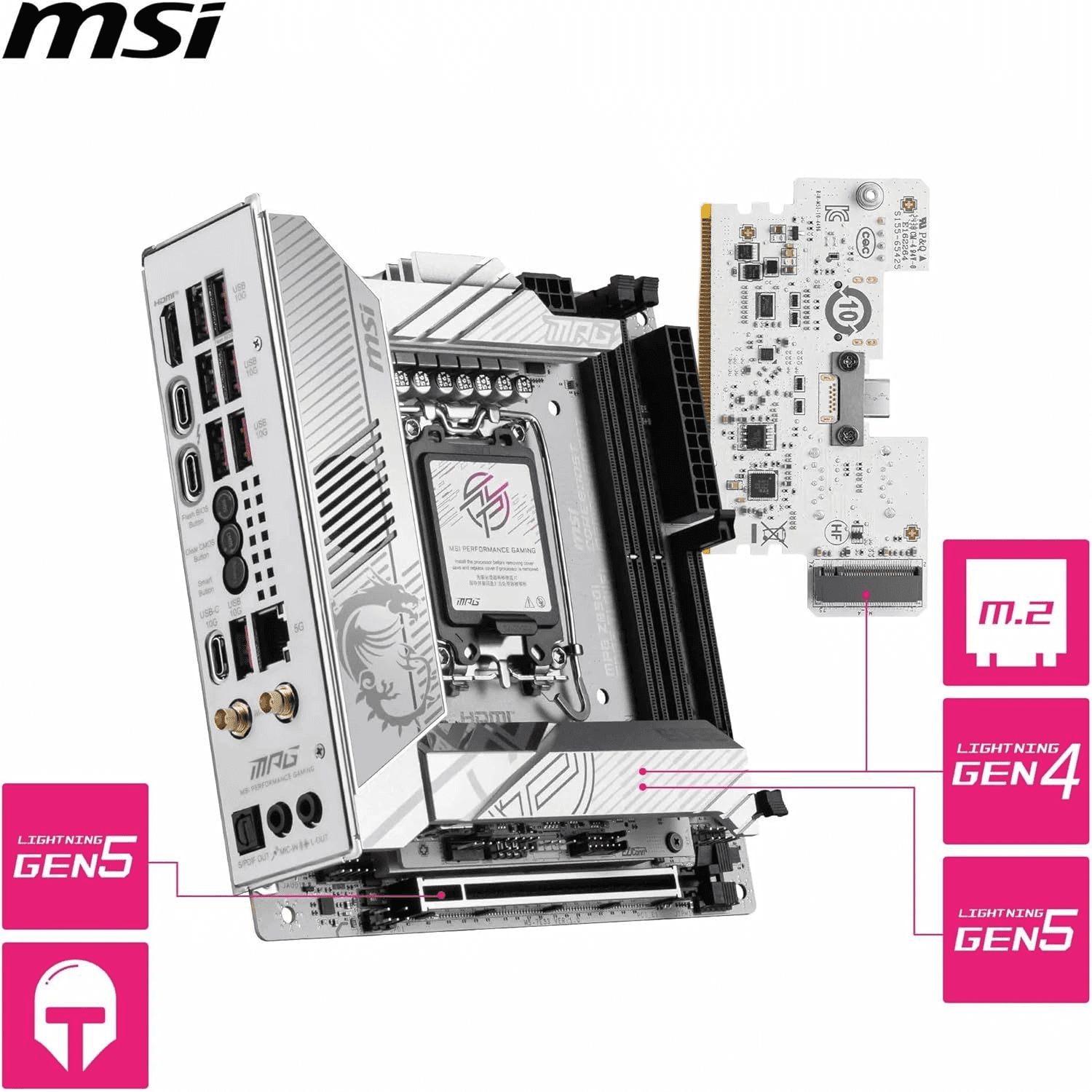

| Storage | 4x M.2: • M.2_1 (CPU): PCIe 5.0 x4 • M.2_2 (CPU): PCIe 4.0 x4 • M.2_3 (Chipset): PCIe 4.0 x4 / SATA • M.2_4 (Chipset): PCIe 4.0 x4 2x SATA 6Gb/s (shared with M.2_4 via XPANDER) |
| RAID | SATA: RAID 0, 1, 5 M.2 NVMe: RAID 0, 1, 5, 10 |
| Thunderbolt | 2x Thunderbolt 4 ports (Rear) • 40Gbps (Thunderbolt) • 20Gbps (USB4) • 15W Charging • Up to 8K Display • Daisy-chain up to 3x Thunderbolt 4 or 5x Thunderbolt 3 devices |

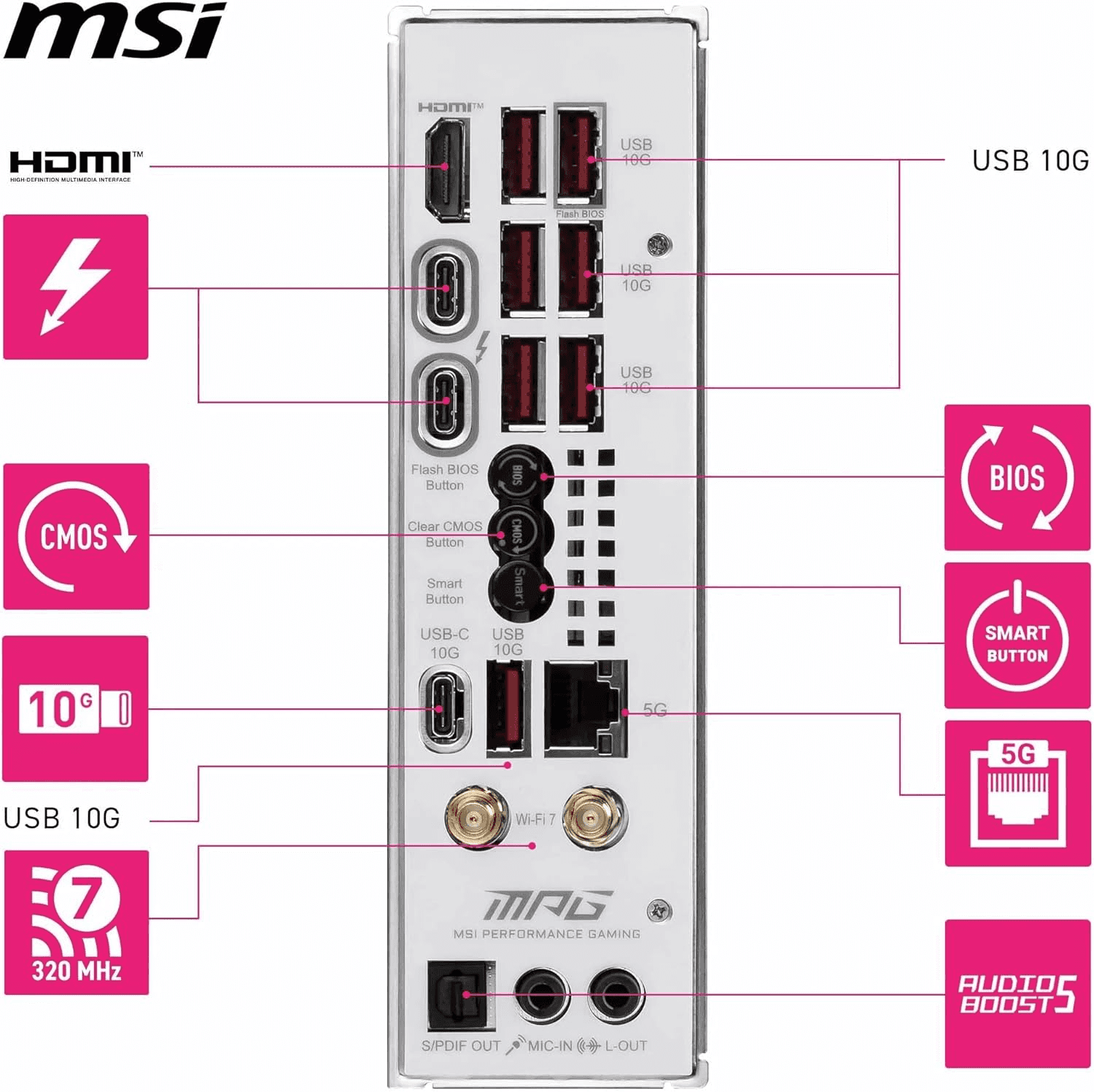

| USB | Front: 2x USB 2.0, 2x USB 5Gbps Type-A, 1x USB 20Gbps Type-C Rear: 7x USB 10Gbps Type-A, 1x USB 10Gbps Type-C |
| LAN | Intel® Killer™ E5000B 5G LAN |
| Internal IO | ATX_PWR, CPU_PWR, CPU Fan, Combo Fan, Sys Fan EZ Conn, Front Panel, Chassis Intrusion, JAUD T_SEN, JARGB_V2, TPM, USB 2.0, USB 5Gbps, USB 20Gbps |
| Wireless LAN & Bluetooth | Intel® Killer™ BE1750x Wi-Fi 7 2.4GHz/5GHz/6GHz, MU-MIMO, up to 5.8Gbps Bluetooth 5.4 (Windows 11 24H2 ready), MLO, 4KQAM |
| LED Feature | 4x EZ Debug LED |
