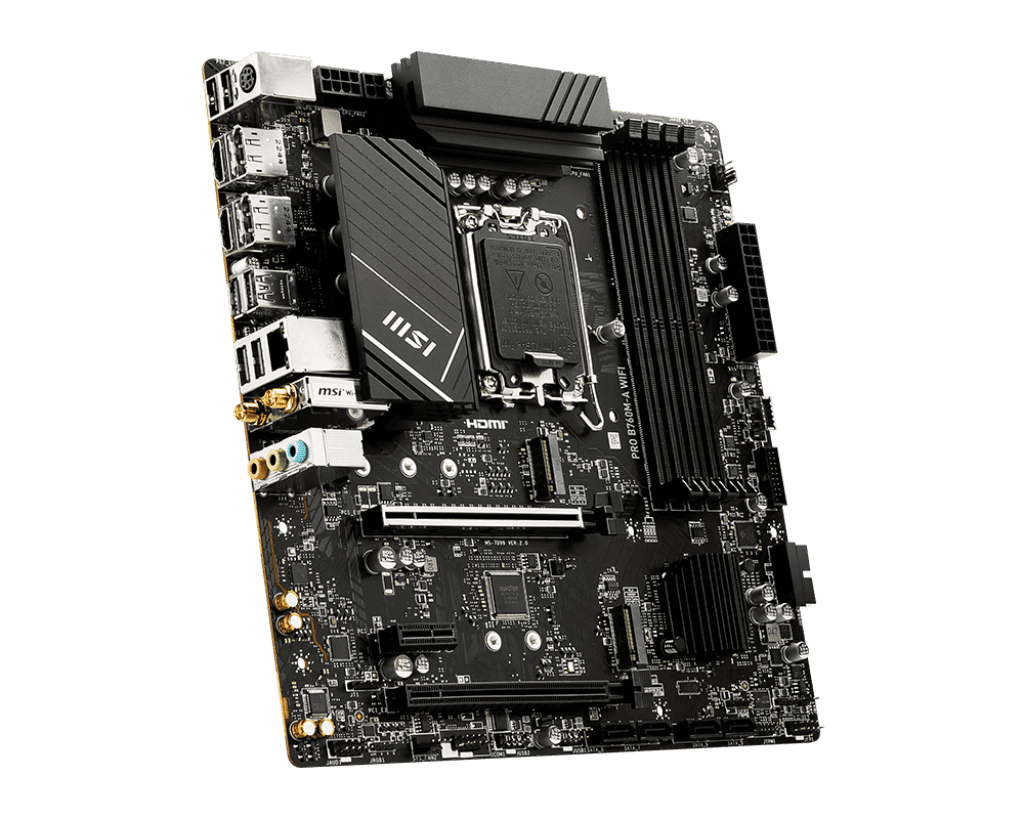

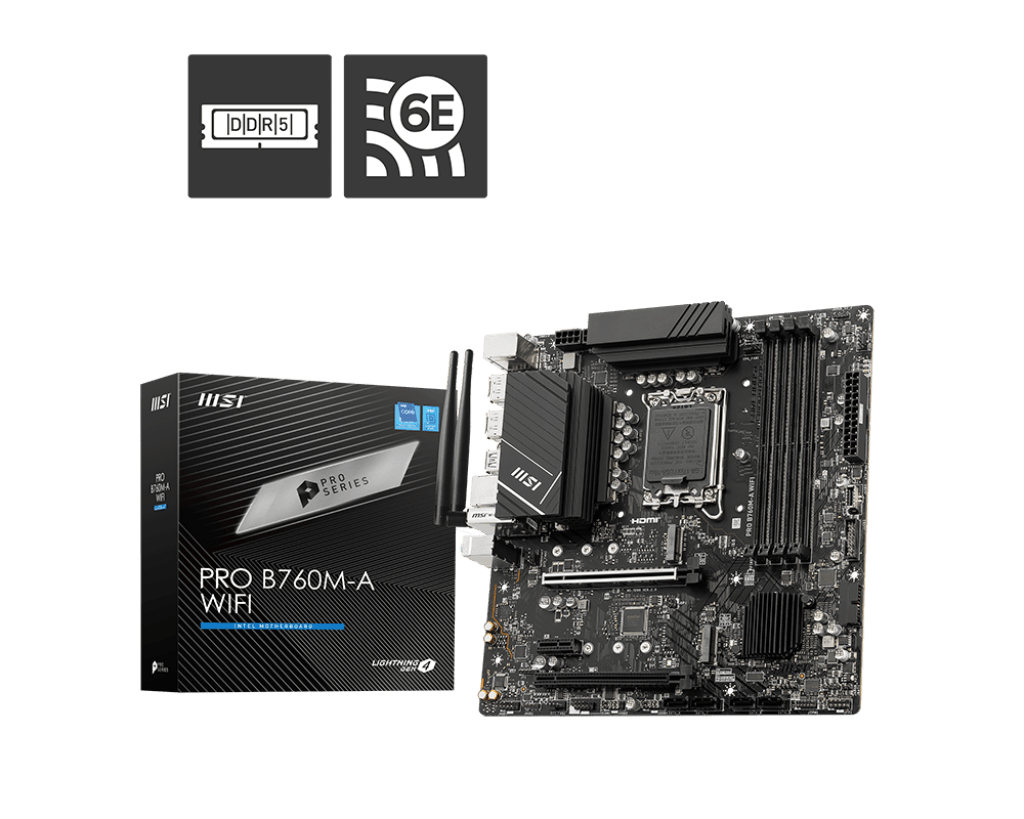

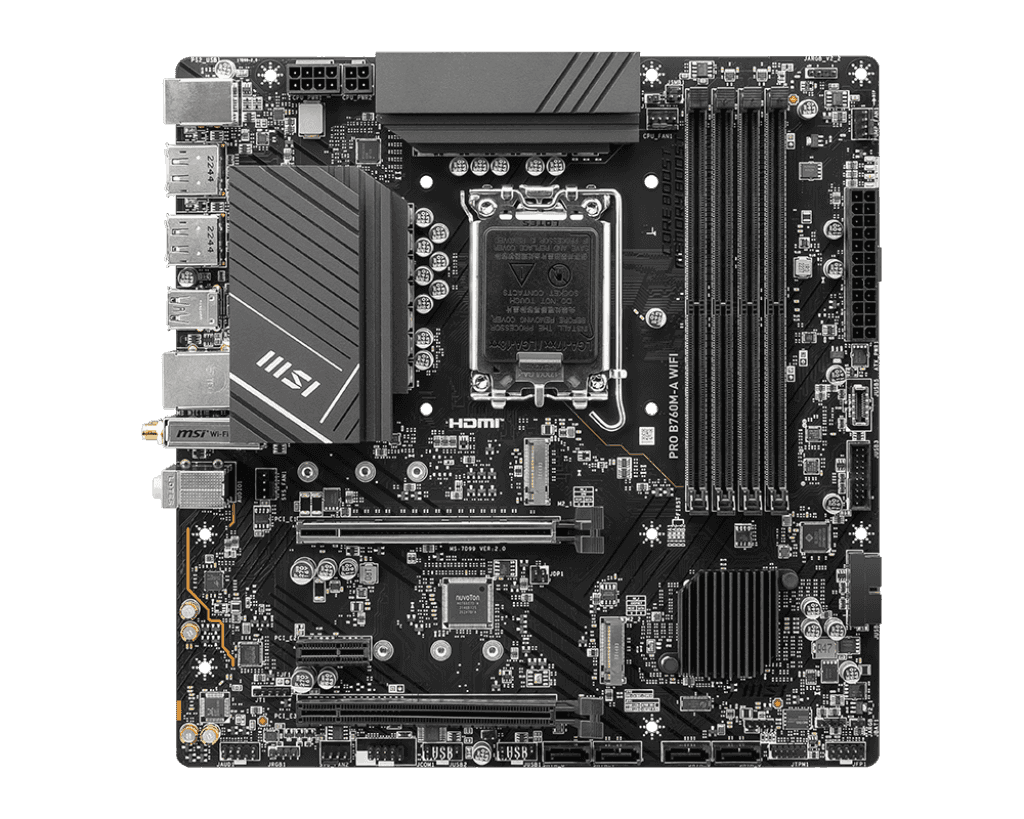

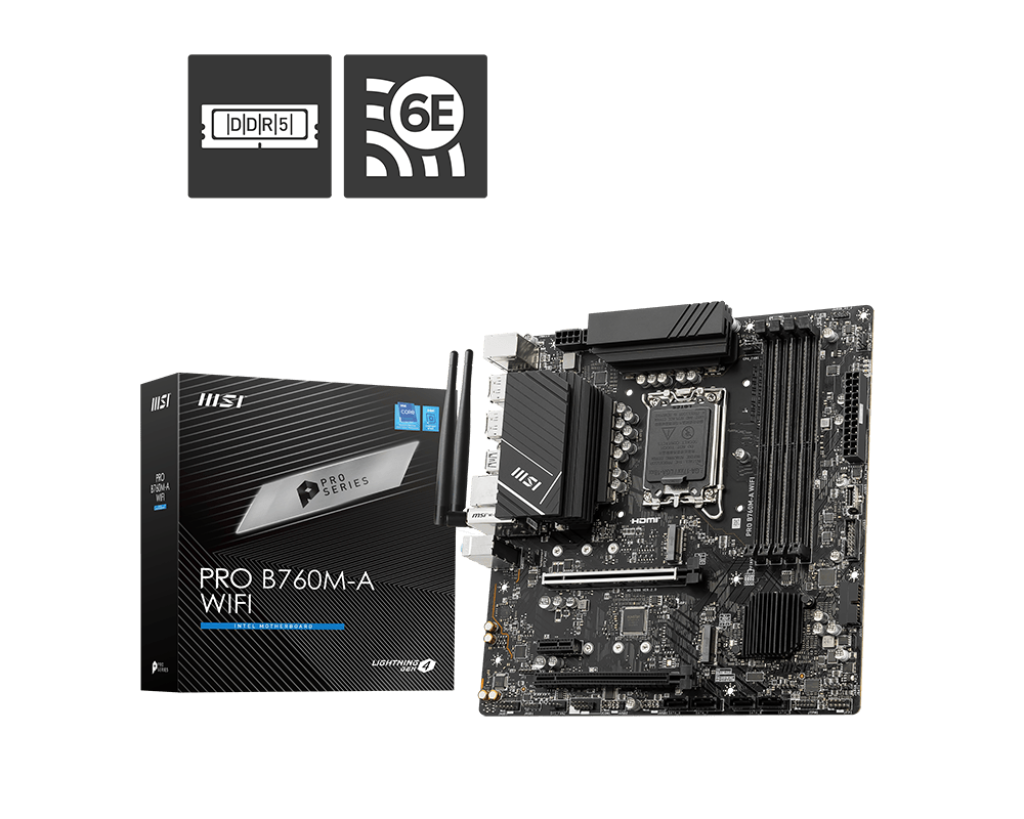

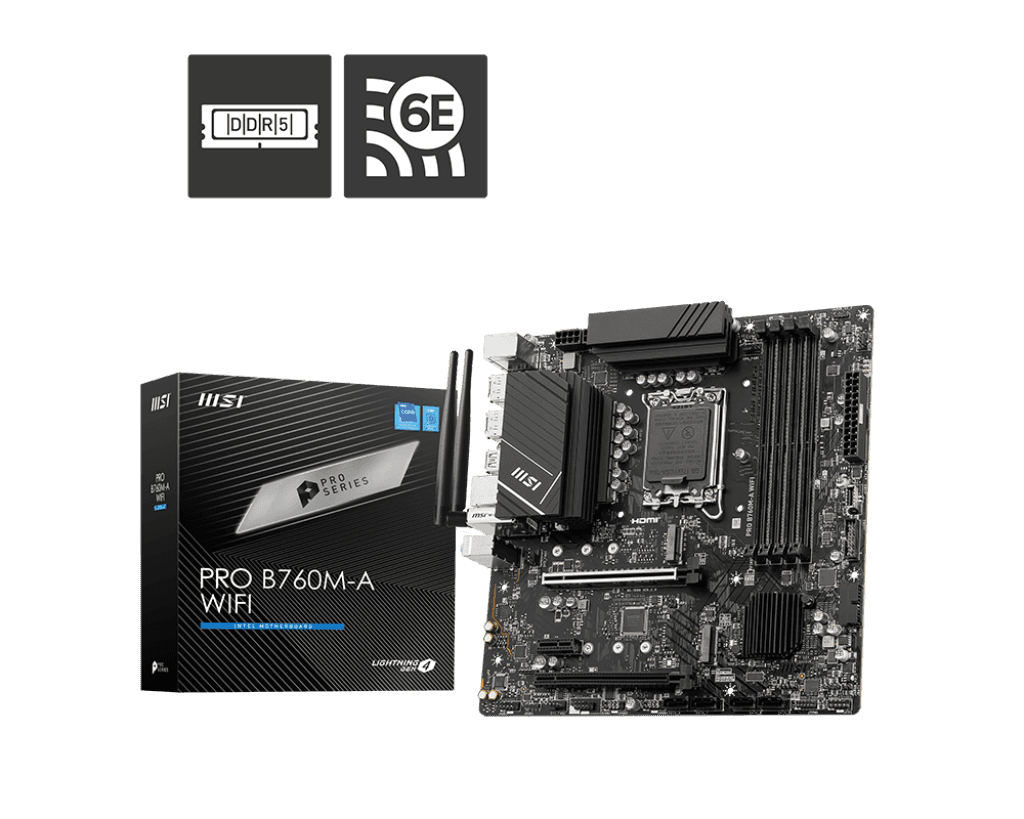

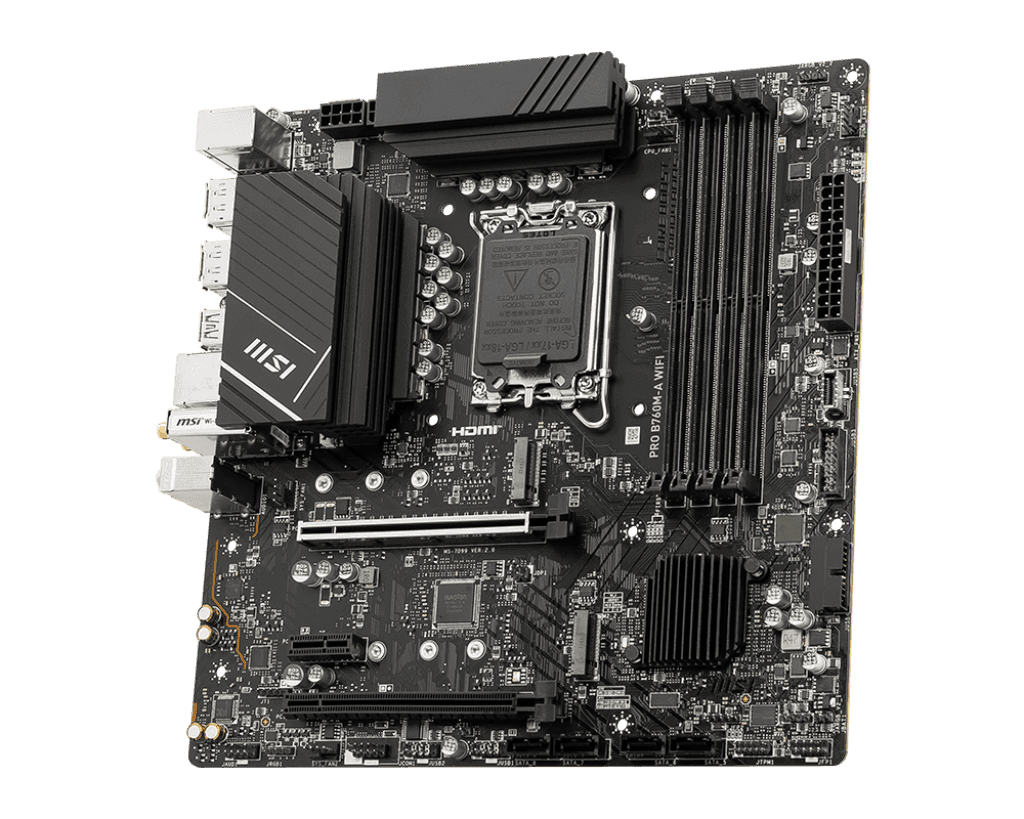

MSI PRO B760M-A WIFI DDR5 LGA 1700 mATX Motherboard, 4x DDR5 6800+MHz (OC). 2.5G Network, Wi-Fi 6E, BT | 911-7D99-007
Model :
SKU : MB-MS PRO B760M-A WIFI D5
About this item
About this item
Description
Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
Supports DDR5 Memory, Dual Channel DDR5 6800+MHz (OC)
Enhanced Power Design: 12+1 Duet Rail Power System with P-PAK, 8-pin + 4-pin CPU power connectors, Core Boost, Memory Boost
Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK and additional choke thermal pads are built for high performance system and non-stop gaming experience
High Quality PCB: 6-layer PCB made by 2oz thickened copper
Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2
Intel Turbo USB 3.2 Gen 2: Powered by Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds
2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
Specification
| Chipset | Intel B760 |
| CPU Support | Supports Intel® Core™ 14th / 13th / 12th Gen Processors, Intel® Pentium® Gold, and Celeron® Processors (LGA 1700) |
| Memory | 4x DDR5, up to 256GB Supported Speeds: DDR5 6800+(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600(JEDEC) / 5400(JEDEC) / 5200(JEDEC) / 5000(JEDEC) / 4800(JEDEC) Max OC Frequency: • 1DPC 1R: 6800+ MHz • 1DPC 2R: 6400 MHz • 2DPC 1R: 6000 MHz • 2DPC 2R: 5600 MHz Supports Intel® XMP 3.0, Dual-Controller Dual-Channel mode, Non-ECC Un-buffered memory |
| Onboard Graphics | 2x HDMI™ 2.1 (Max 4K @ 60Hz) 2x DisplayPort 1.4 (Max 4K @ 60Hz) *Available only on CPUs with integrated graphics. |
| Expansion Slots | 2x PCIe x16 1x PCIe x1 PCI_E1 Gen 4.0 up to x16 (CPU) PCI_E2 Gen 3.0 x1 (Chipset) PCI_E3 Gen 4.0 x4 (Chipset) |
| Audio | Realtek® ALC897 Codec, 7.1-Channel High Definition Audio |
| Storage | 2x M.2: • M.2_1 (CPU) PCIe 4.0 x4, 2280/2260/2242 • M.2_2 (Chipset) PCIe 4.0 x4 / SATA, 2280/2260/2242 4x SATA 6Gb/s * SATA8 unavailable when using M.2 SATA SSD in M2_2 |
| RAID | Supports RAID 0, 1, 5, 10 for SATA devices |
| USB | Rear: 2x USB 2.0, 2x USB 5Gbps Type-A, 2x USB 10Gbps Type-A Front: 4x USB 2.0, 4x USB 5Gbps Type-A, 1x USB 5Gbps Type-C |
| LAN | Realtek® RTL8125BG 2.5G LAN |
| Wireless | Intel® Wi-Fi 6E, MU-MIMO, 2.4/5/6GHz (160MHz), up to 2.4Gbps Bluetooth® 5.3, FIPS, FISMA |
| Internal I/O | 1x ATX Power, 2x CPU Power 1x CPU Fan, 1x Pump Fan, 2x System Fan 2x Front Panel, 1x Chassis Intrusion, 1x Front Audio, 1x COM Port 2x ARGB V2 headers, 1x RGB header 1x TPM header (TPM 2.0) 4x USB 2.0, 4x USB 5Gbps Type-A, 1x USB 5Gbps Type-C |
| LED Features | 4x EZ Debug LEDs |

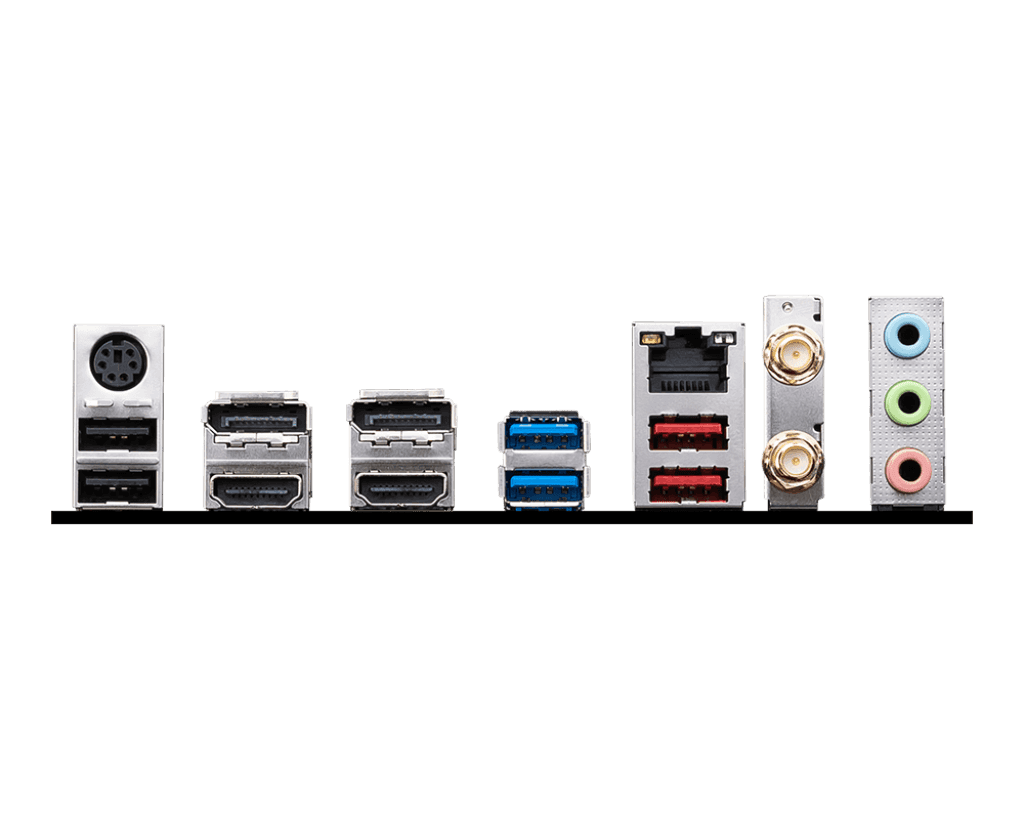

| Back Panel Ports | Keyboard/Mouse, DisplayPort, HDMI™, USB 2.0, USB 3.2 Gen1 (5Gbps), USB 3.2 Gen2 (10Gbps), 2.5G LAN, Wi-Fi/Bluetooth, Audio Connectors |
| Operating System | Windows® 11 64-bit, Windows® 10 64-bit |
| PCB Form Factor | mATX, 243.84mm x 243.84mm |
