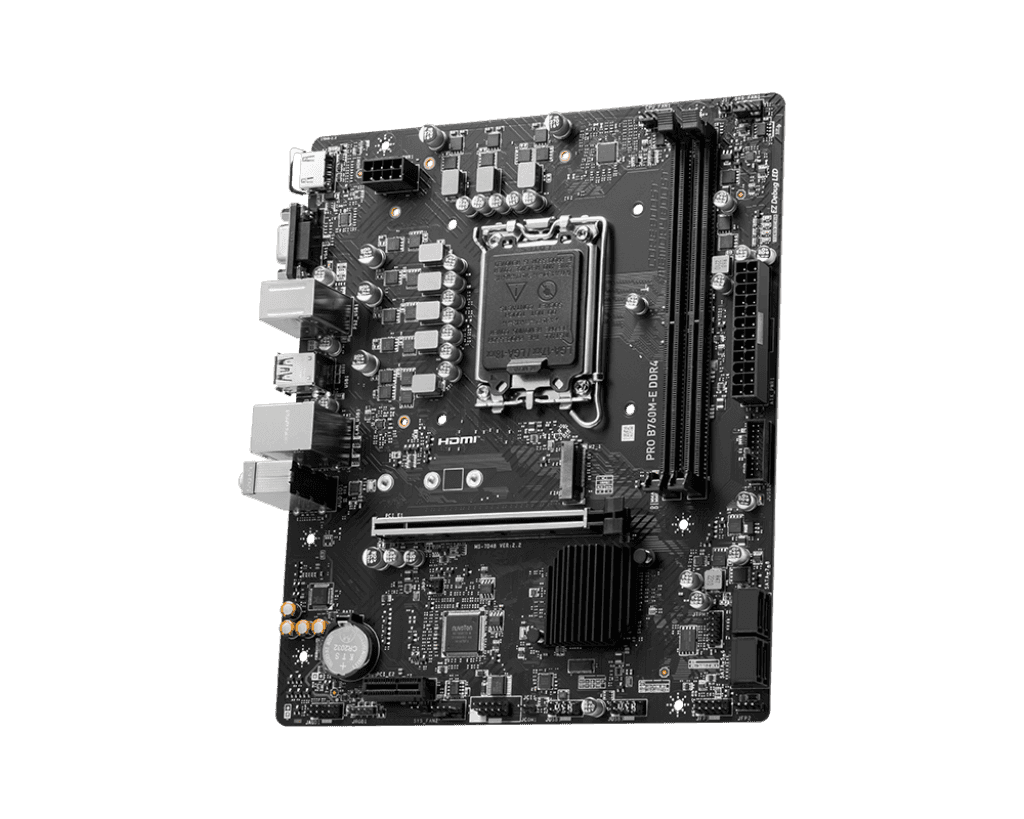

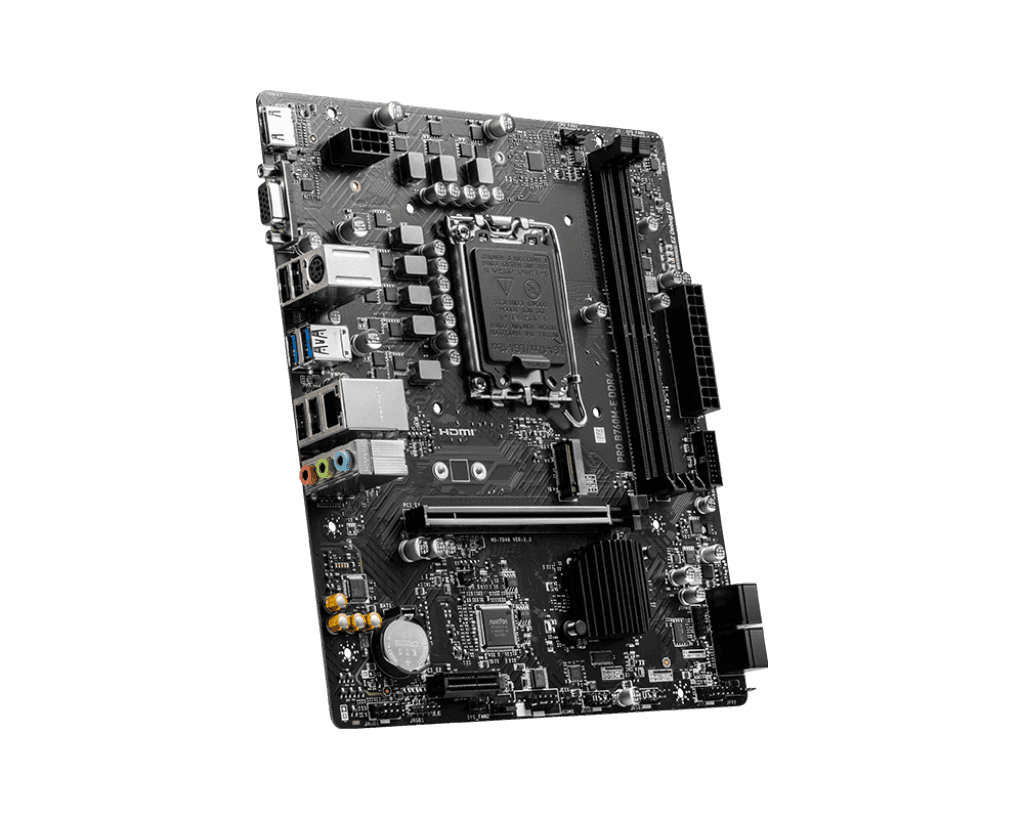

MSI PRO B760M-E DDR4 Intel?? LGA 1700 mATX Motherboard, INTEL B760 Chipset, 2x DDR4, 1x HDMI???, 1x VGA, PCI-E, 1x M.2, 4x SATA 6G, Realtek?? RTL8111H Gigabit LAN, Realtek?? ALC897 Codec, 4x EZ Debug LED, Steel Armor, Lightning Fast Experience | 911-7D48-

Model :

SKU : MB-MSI PRO B760M-E DDR4

dirham-symbol0

Inclusive of VAT

Delivery to

FREE scheduled delivery as soon as Loading...

Sold and shipped by: Adarc computers

1

AED 0.00

About this item

Description

Intel B760 Motherboard Specifications

Chipset & CPU Support
  • Chipset: Intel B760
  • CPU Support: Support Intel?? Core??? 14th/ 13th/ 12th Gen Processors, Intel?? Pentium?? Gold and Celeron?? Processors
  • LGA: 1700
Memory
  • 2x DDR4, Maximum Memory Capacity: 64GB
  • Memory Support: 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC)
  • Max. overclocking frequency:
    • 1DPC 1R Max speed up to 4800+ MHz
    • 1DPC 2R Max speed up to 4600+ MHz
  • Supports Dual-Channel mode
  • Supports non-ECC, un-buffered memory
  • Supports Intel?? Extreme Memory Profile (XMP)
Onboard Graphics
  • 1x HDMI??? - Supports HDMI??? 1.4 with HDR, maximum resolution of 4K 30Hz*
  • 1x VGA - Supports VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
    • *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot
  • 1x PCI-E x16 slot
  • 1x PCI-E x1 slot
  • PCI_E1 Gen PCIe 4.0 supports up to (From CPU)
  • PCI_E2 Gen PCIe 3.0 supports up to (From Chipset)
Storage
  • 1x M.2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
  • 4x SATA 6G - SATA5 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.
RAID
  • Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB
  • 4x USB 2.0 (Rear)
  • 4x USB 2.0 (Front)
  • 2x USB 3.2 Gen1 Type A (Rear)
  • 2x USB 3.2 Gen1 Type A (Front)
LAN
  • Realtek?? RTL8111H Gigabit LAN
Audio
  • Realtek?? ALC897 Codec
  • 7.1-Channel High Definition Audio
Internal IO
  • 1x Power Connector(ATX_PWR)
  • 1x Power Connector(CPU_PWR)
  • 1x CPU Fan
  • 2x System Fan
  • 2x Front Panel (JFP)
  • 1x Chassis Intrusion (JCI)
  • 1x Front Audio (JAUD)
  • 1x Com Port (JCOM)
  • 1x RGB LED connector(JRGB)
  • 1x TPM pin header(Support TPM 2.0)
  • 2x USB 2.0 ports
  • 1x USB 3.2 Gen1 Type A ports
LED Feature
  • 4x EZ Debug LED

Specification

Intel B760 Motherboard Specifications

Chipset & CPU Support
  • Chipset: Intel B760
  • CPU Support: Support Intel?? Core??? 14th/ 13th/ 12th Gen Processors, Intel?? Pentium?? Gold and Celeron?? Processors
  • LGA: 1700
Memory
  • 2x DDR4, Maximum Memory Capacity: 64GB
  • Memory Support: 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC)
  • Max. overclocking frequency:
    • 1DPC 1R Max speed up to 4800+ MHz
    • 1DPC 2R Max speed up to 4600+ MHz
  • Supports Dual-Channel mode
  • Supports non-ECC, un-buffered memory
  • Supports Intel?? Extreme Memory Profile (XMP)
Onboard Graphics
  • 1x HDMI??? - Supports HDMI??? 1.4 with HDR, maximum resolution of 4K 30Hz*
  • 1x VGA - Supports VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
    • *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot
  • 1x PCI-E x16 slot
  • 1x PCI-E x1 slot
  • PCI_E1 Gen PCIe 4.0 supports up to (From CPU)
  • PCI_E2 Gen PCIe 3.0 supports up to (From Chipset)
Storage
  • 1x M.2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
  • 4x SATA 6G - SATA5 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.
RAID
  • Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB
  • 4x USB 2.0 (Rear)
  • 4x USB 2.0 (Front)
  • 2x USB 3.2 Gen1 Type A (Rear)
  • 2x USB 3.2 Gen1 Type A (Front)
LAN
  • Realtek?? RTL8111H Gigabit LAN
Audio
  • Realtek?? ALC897 Codec
  • 7.1-Channel High Definition Audio
Internal IO
  • 1x Power Connector(ATX_PWR)
  • 1x Power Connector(CPU_PWR)
  • 1x CPU Fan
  • 2x System Fan
  • 2x Front Panel (JFP)
  • 1x Chassis Intrusion (JCI)
  • 1x Front Audio (JAUD)
  • 1x Com Port (JCOM)
  • 1x RGB LED connector(JRGB)
  • 1x TPM pin header(Support TPM 2.0)
  • 2x USB 2.0 ports
  • 1x USB 3.2 Gen1 Type A ports
LED Feature
  • 4x EZ Debug LED
