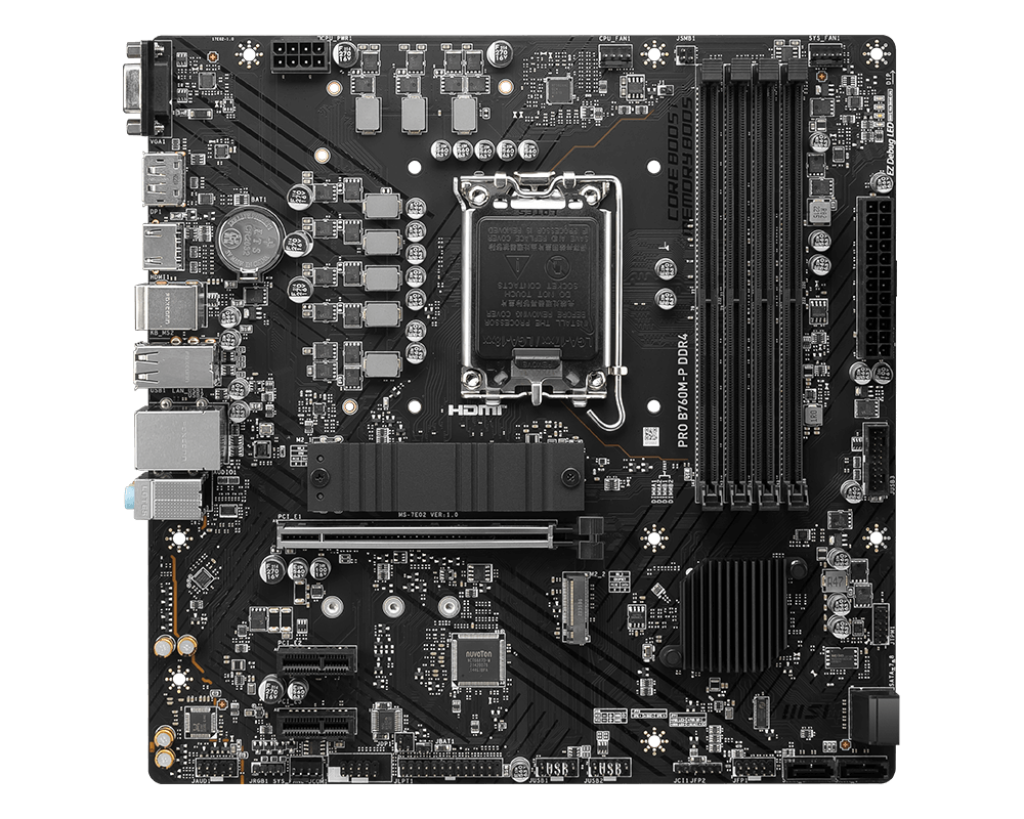

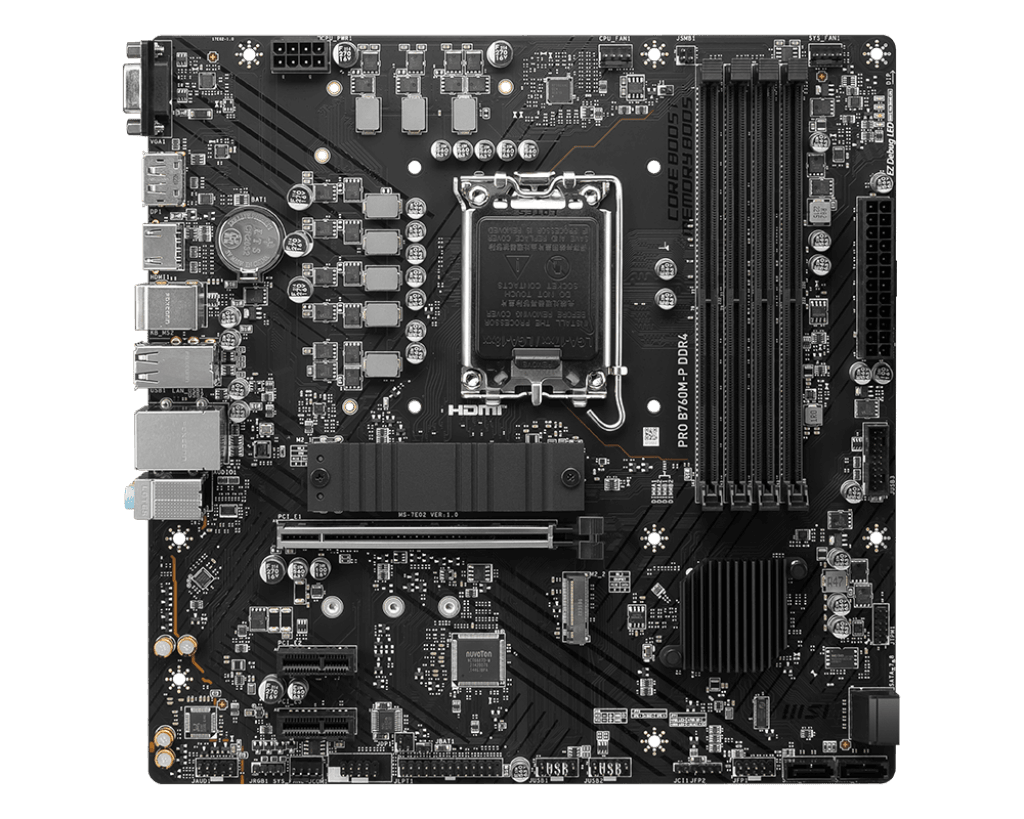

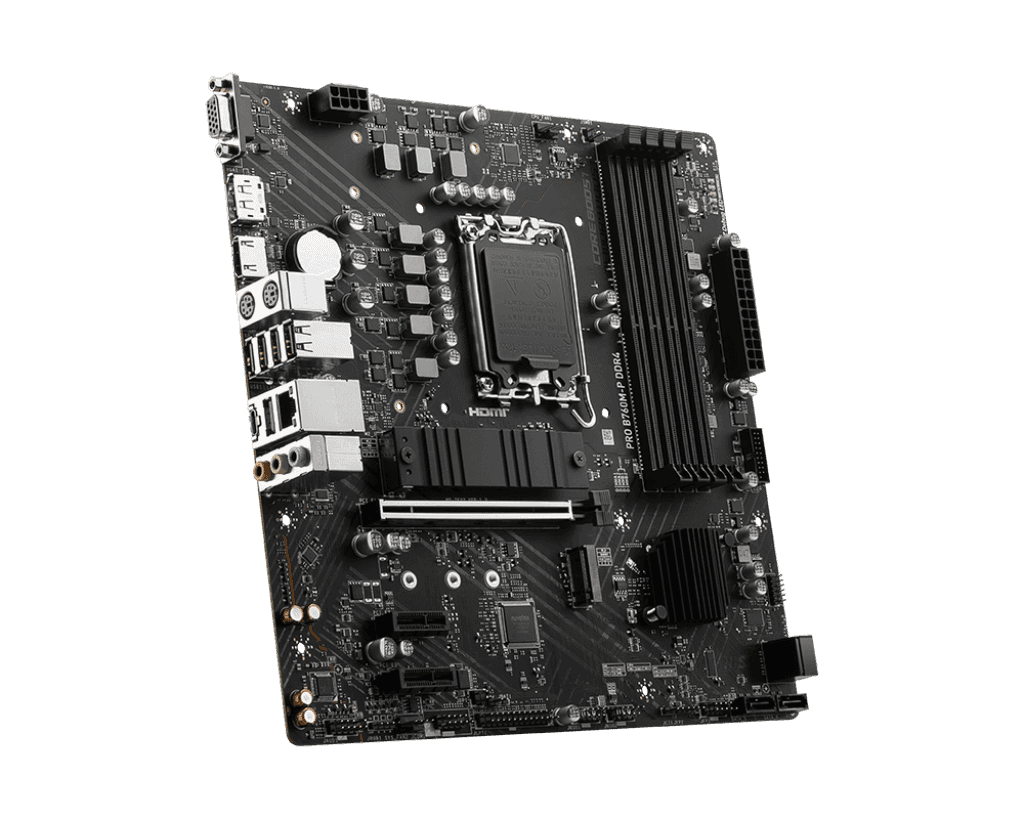

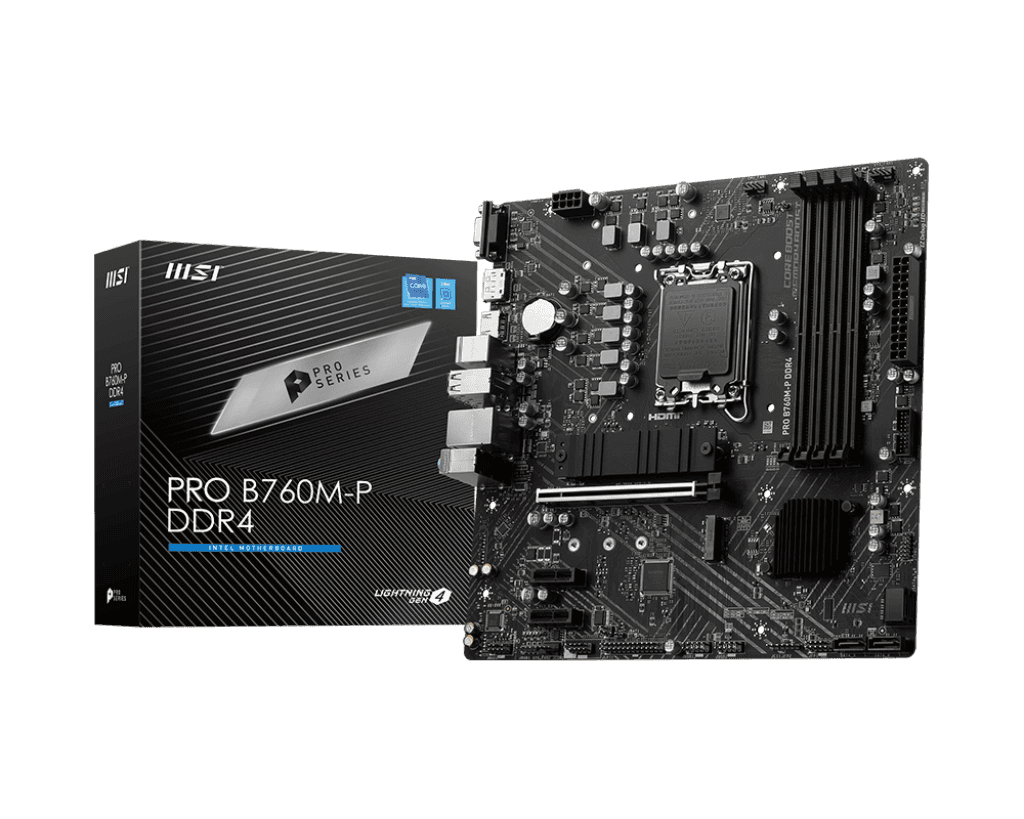

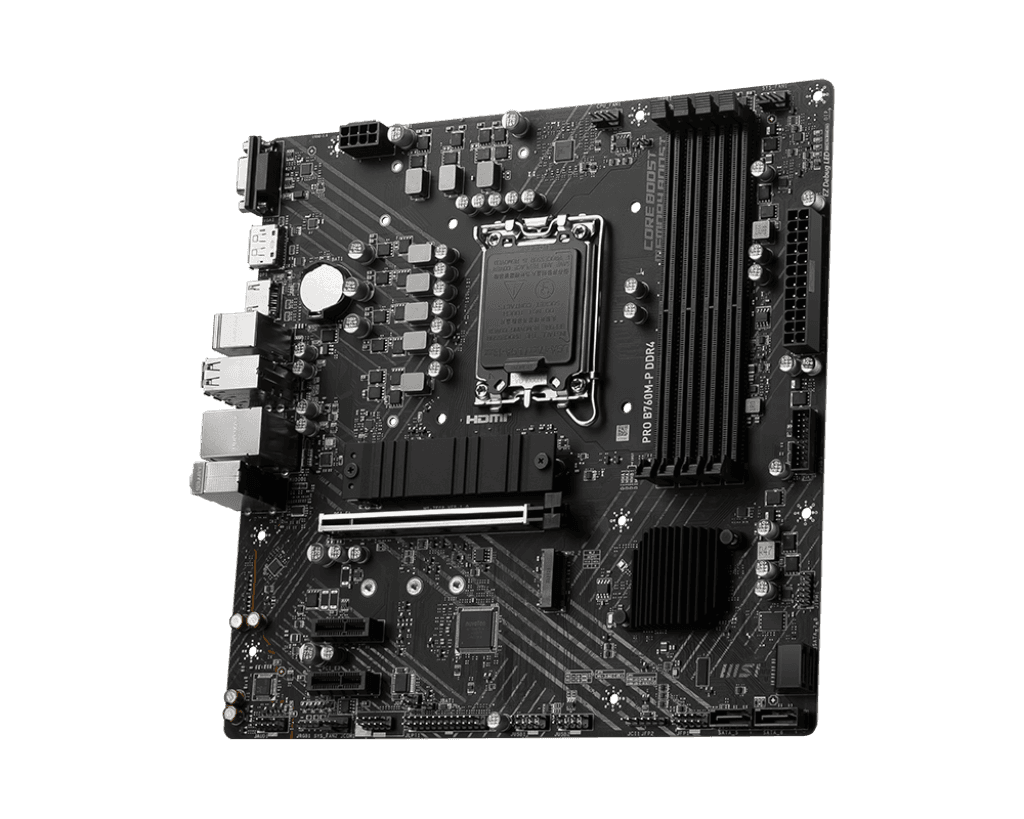

MSI PRO B760M-P DDR4 Intel LGA 1700 mATX Motherboard, INTEL B760 Chipset, 4x DDR4, 1x HDMI???, 1x DisplayPort, 1x VGA, 2x M.2, 4x SATA 6G, Realtek?? ALC897 Codec, Realtek?? RTL8111H Gigabit LAN, 4x EZ Debug LED | 911-7E02-006

Model :

SKU : MB-MSI PRO B760M-P DDR4

dirham-symbol0

Inclusive of VAT

Delivery to

FREE scheduled delivery as soon as Loading...

Sold and shipped by: Adarc computers

1

AED 0.00

stock : 1

About this item

Description

Intel B760 Motherboard Specifications

Chipset & CPU Support
  • Chipset: Intel B760
  • CPU Support: Support Intel?? Core??? 14th/ 13th/ 12th Gen Processors, Intel?? Pentium?? Gold and Celeron?? Processors
  • LGA: 1700
Memory
  • 4x DDR4, Maximum Memory Capacity: 128GB
  • Memory Support: 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC)
  • Max. overclocking frequency:
    • 1DPC 1R Max speed up to 4800+ MHz
    • 1DPC 2R Max speed up to 4600+ MHz
    • 2DPC 1R Max speed up to 4400+ MHz
    • 2DPC 2R Max speed up to 4000+ MHz
  • Supports Dual-Channel mode
  • Supports non-ECC, un-buffered memory
  • Supports Intel?? Extreme Memory Profile (XMP)
Onboard Graphics
  • 1x HDMI??? - Supports HDMI??? 1.4, maximum resolution of 4K 30Hz*
  • 1x DisplayPort - Supports DP 1.4, maximum resolution of 4K 60Hz*
  • 1x VGA - Supports VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
    • *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot
  • 1x PCI-E x16 slot
  • 2x PCI-E x1 slot
  • PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
  • PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset)
  • PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset)
Storage
  • 2x M.2
    • M.2_1 Source (From CPU) supports up to PCIe 4.0 x4, supports 2280/2260/2242 devices
    • M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
  • 4x SATA 6G (* SATA5 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.)
  • RAID: Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

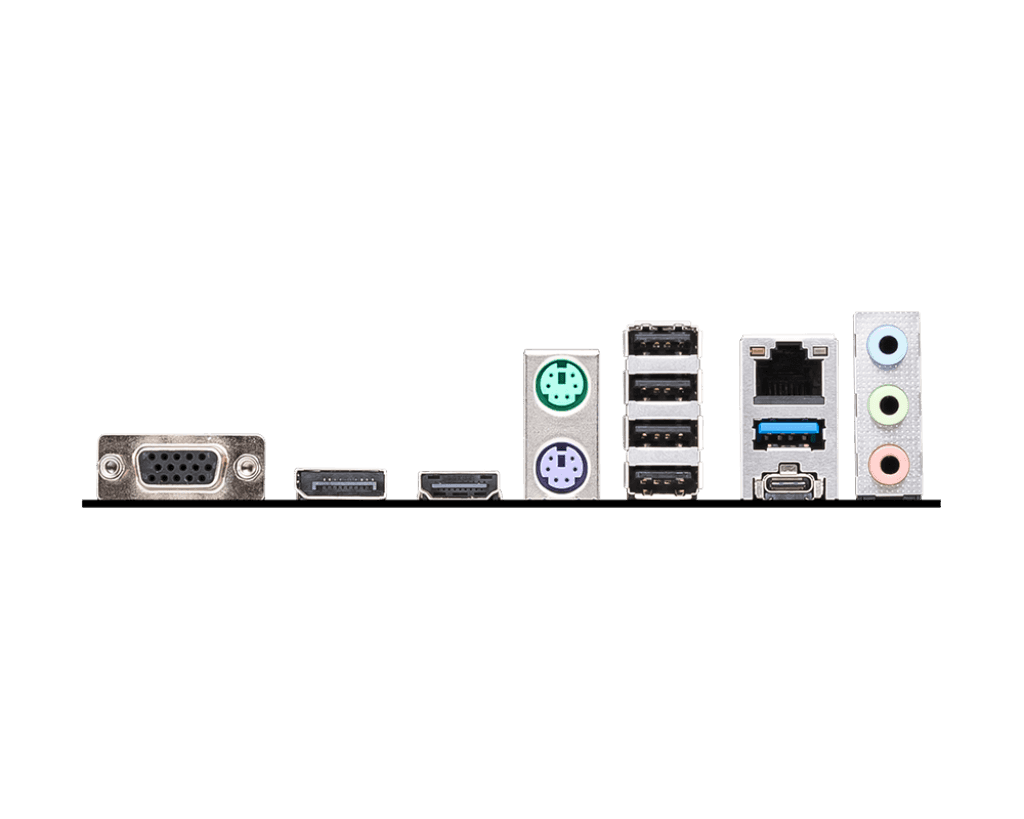

USB
  • 4x USB 2.0 (Rear)
  • 4x USB 2.0 (Front)
  • 1x USB 3.2 Gen1 Type A (Rear)
  • 2x USB 3.2 Gen1 Type A (Front)
  • 1x USB 3.2 Gen2 Type C (Rear)
LAN
  • Realtek?? RTL8111H Gigabit LAN
Audio
  • Realtek?? ALC897 Codec
  • 7.1-Channel High Definition Audio
Internal IO
  • 1x Power Connector(ATX_PWR)
  • 1x Power Connector(CPU_PWR)
  • 1x CPU Fan
  • 2x System Fan
  • 2x Front Panel (JFP)
  • 1x Chassis Intrusion (JCI)
  • 1x Front Audio (JAUD)
  • 1x Printer Port (JLPT)
  • 1x Com Port (JCOM)
  • 1x RGB LED connector(JRGB)
  • 1x TPM pin header(Support TPM 2.0)
  • 4x USB 2.0 ports
  • 2x USB 3.2 Gen1 Type A ports
LED Feature
  • 4x EZ Debug LED

Specification

Intel B760 Motherboard Specifications

Chipset & CPU Support
  • Chipset: Intel B760
  • CPU Support: Support Intel?? Core??? 14th/ 13th/ 12th Gen Processors, Intel?? Pentium?? Gold and Celeron?? Processors
  • LGA: 1700
Memory
  • 4x DDR4, Maximum Memory Capacity: 128GB
  • Memory Support: 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC)
  • Max. overclocking frequency:
    • 1DPC 1R Max speed up to 4800+ MHz
    • 1DPC 2R Max speed up to 4600+ MHz
    • 2DPC 1R Max speed up to 4400+ MHz
    • 2DPC 2R Max speed up to 4000+ MHz
  • Supports Dual-Channel mode
  • Supports non-ECC, un-buffered memory
  • Supports Intel?? Extreme Memory Profile (XMP)
Onboard Graphics
  • 1x HDMI??? - Supports HDMI??? 1.4, maximum resolution of 4K 30Hz*
  • 1x DisplayPort - Supports DP 1.4, maximum resolution of 4K 60Hz*
  • 1x VGA - Supports VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
    • *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot
  • 1x PCI-E x16 slot
  • 2x PCI-E x1 slot
  • PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
  • PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset)
  • PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset)
Storage
  • 2x M.2
    • M.2_1 Source (From CPU) supports up to PCIe 4.0 x4, supports 2280/2260/2242 devices
    • M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
  • 4x SATA 6G (* SATA5 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.)
  • RAID: Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB
  • 4x USB 2.0 (Rear)
  • 4x USB 2.0 (Front)
  • 1x USB 3.2 Gen1 Type A (Rear)
  • 2x USB 3.2 Gen1 Type A (Front)
  • 1x USB 3.2 Gen2 Type C (Rear)
LAN
  • Realtek?? RTL8111H Gigabit LAN
Audio
  • Realtek?? ALC897 Codec
  • 7.1-Channel High Definition Audio
Internal IO
  • 1x Power Connector(ATX_PWR)
  • 1x Power Connector(CPU_PWR)
  • 1x CPU Fan
  • 2x System Fan
  • 2x Front Panel (JFP)
  • 1x Chassis Intrusion (JCI)
  • 1x Front Audio (JAUD)
  • 1x Printer Port (JLPT)
  • 1x Com Port (JCOM)
  • 1x RGB LED connector(JRGB)
  • 1x TPM pin header(Support TPM 2.0)
  • 4x USB 2.0 ports
  • 2x USB 3.2 Gen1 Type A ports
LED Feature
  • 4x EZ Debug LED
