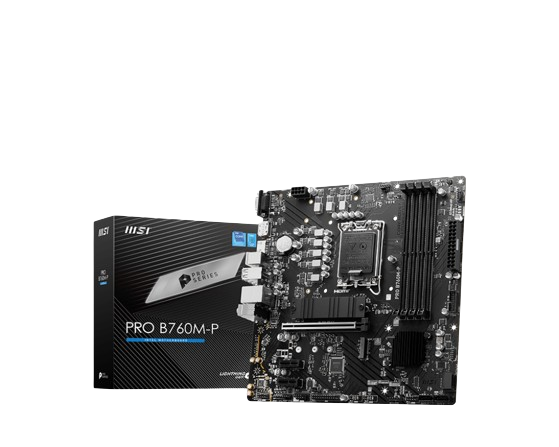

MSI PRO B760M-P Intel LGA 1700 mATX Motherboard, INTEL B760 Chipset, 4x DDR5, 1x HDMI, 2x M.2, 1x DisplayPort | 911-7E02-011

Chipset & CPU Support

• Chipset: Intel B760
• CPU Support: Support Intel?? Core??? 14th/ 13th/ 12th Gen Processors, Intel?? Pentium?? Gold and Celeron?? Processors
• LGA: 1700

Memory

• 4x DDR5, Maximum Memory Capacity: 192GB
• Memory Support: DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
• Max. overclocking frequency:
  • 1DPC 1R Max speed up to 6800+ MHz
  • 1DPC 2R Max speed up to 6400+ MHz
  • 2DPC 1R Max speed up to 6000+ MHz
  • 2DPC 2R Max speed up to 5600+ MHz
• Supports Intel?? XMP 3.0 OC
• Supports Dual-Controller Dual-Channel mode
• Supports non-ECC, un-buffered memory

Onboard Graphics

• 1x HDMI??? - Supports HDMI??? 1.4, maximum resolution of 4K 30Hz*
• 1x DisplayPort - Supports DP 1.4, maximum resolution of 4K 60Hz*
• 1x VGA - Supports VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
  • *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Slot

• 1x PCI-E x16 slot
• 2x PCI-E x1 slot
• PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
• PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset)
• PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset)

Storage

• 2x M.2
• M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
• M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
• 4x SATA 6G - SATA5 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
• RAID: Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

USB

• 4x USB 2.0 (Rear)
• 4x USB 2.0 (Front)
• 1x USB 3.2 Gen1 Type A (Rear)
• 2x USB 3.2 Gen1 Type A (Front)
• 1x USB 3.2 Gen2 Type C (Rear)

LAN

• Realtek?? RTL8111H Gigabit LAN

Audio

• Realtek?? ALC897 Codec
• 7.1-Channel High Definition Audio

Internal IO

• 1x Power Connector(ATX_PWR)
• 1x Power Connector(CPU_PWR)
• 1x CPU Fan
• 2x System Fan
• 2x Front Panel (JFP)
• 1x Chassis Intrusion (JCI)
• 1x Front Audio (JAUD)
• 1x Printer Port (JLPT)
• 1x Com Port (JCOM)
• 1x RGB LED connector(JRGB)
• 1x TPM pin header(Support TPM 2.0)
• 4x USB 2.0 ports
• 2x USB 3.2 Gen1 Type A ports

LED Feature

• 4x EZ Debug LED
