MSI PRO B860-P WIFI LGA 1851 ATX Motherboard, 4x DDR5 DDR5 8800+ MT/s (OC), Thunderbolt 4 port, 5G LAN with Intel Wi-Fi 7 | 911-7E41-001
Model :
SKU : MB-MSI PRO B860-P WIFI
About this item
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
Specification
| Chipset | INTEL B860 |
|---|---|
| CPU | Supports Intel® Core™ Ultra Processors (Series 2), LGA 1851 |
| Memory | 4x DDR5 UDIMM, Maximum Capacity 256GB Support: 8800 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s Max. Overclocking Frequency: • 1DPC 1R: up to 8800+ MT/s • 1DPC 2R: up to 7200+ MT/s • 2DPC 1R: up to 6400+ MT/s • 2DPC 2R: up to 5600+ MT/s Supports Intel® POR & JEDEC Speed, Intel® XMP 3.0, Dual-Controller Dual-Channel Mode, Non-ECC, Un-buffered, CUDIMM Note: DIMM slots use single-sided latches. Compatibility varies by CPU and memory. |
| Onboard Graphics | 1x HDMI™ 2.1 (4K@60Hz) 1x DisplayPort 1.4 (4K@60Hz) 1x Type-C DisplayPort (Thunderbolt™ 4, DP 2.1, 4K@120Hz / 8K@60Hz) *Available only on CPUs with integrated graphics |
| Expansion Slots | 4x PCI-E x16 slots: • PCI_E1 Gen5 x16 (CPU) • PCI_E2 Gen4 x1 (Chipset) • PCI_E3 Gen4 x4 (Chipset) • PCI_E4 Gen4 x1 (Chipset) |
| Audio | Realtek® ALC897 Codec, 7.1-Channel HD Audio |
| Storage | 3x M.2 slots: • M.2_1 (CPU): PCIe 5.0 x4, 2280/2260 • M.2_2 (Chipset): PCIe 4.0 x4, 2280/2260/2242 • M.2_3 (Chipset): PCIe 4.0 x2, 2280/2260 4x SATA 6Gb/s *Check manual for M.2 heatsink restrictions |
| RAID | Supports RAID 0, 1, 5, 10 for SATA |
| Thunderbolt | 1x Thunderbolt™ 4 (Rear) • Up to 40Gbps (Thunderbolt) • 20Gbps (USB4) • 10Gbps (USB 3.2) • 5V/3A, 15W Power Delivery • Daisy-chain: 3x TB4 / 5x TB3 devices • Supports up to 8K display |
| USB Ports | • 4x USB 2.0 (Rear) • 4x USB 2.0 (Front) • 2x USB 5Gbps Type-A (Rear) • 4x USB 5Gbps Type-A (Front) • 2x USB 10Gbps Type-A (Rear) • 1x USB 10Gbps Type-C (Front) |
| LAN | Realtek® 8126 5Gbps LAN |
| Wireless | Intel® Wi-Fi 7 (pre-installed M.2 Key-E) • MU-MIMO TX/RX • 2.4GHz / 5GHz / 6GHz (320MHz) up to 5.8Gbps • Supports 802.11 a/b/g/n/ac/ax/be • Bluetooth® 5.4 (Windows 11 24H2+) • MLO, 4KQAM |
| Internal I/O | 1x Thunderbolt5 card connector 1x ATX_PWR, 2x CPU_PWR, 1x PCIe_PWR 8pin 1x CPU Fan, 1x Combo Fan (Pump/Sys Fan), 4x System Fan 2x Front Panel, 1x Chassis Intrusion, 1x Front Audio, 1x COM port 1x Tuning Controller connector, 2x ARGB V2, 1x RGB, 1x TPM 2.0 USB headers: 4x USB 2.0, 4x USB 5Gbps Type-A, 1x USB 10Gbps Type-C |
| LED Features | 4x EZ Debug LED |

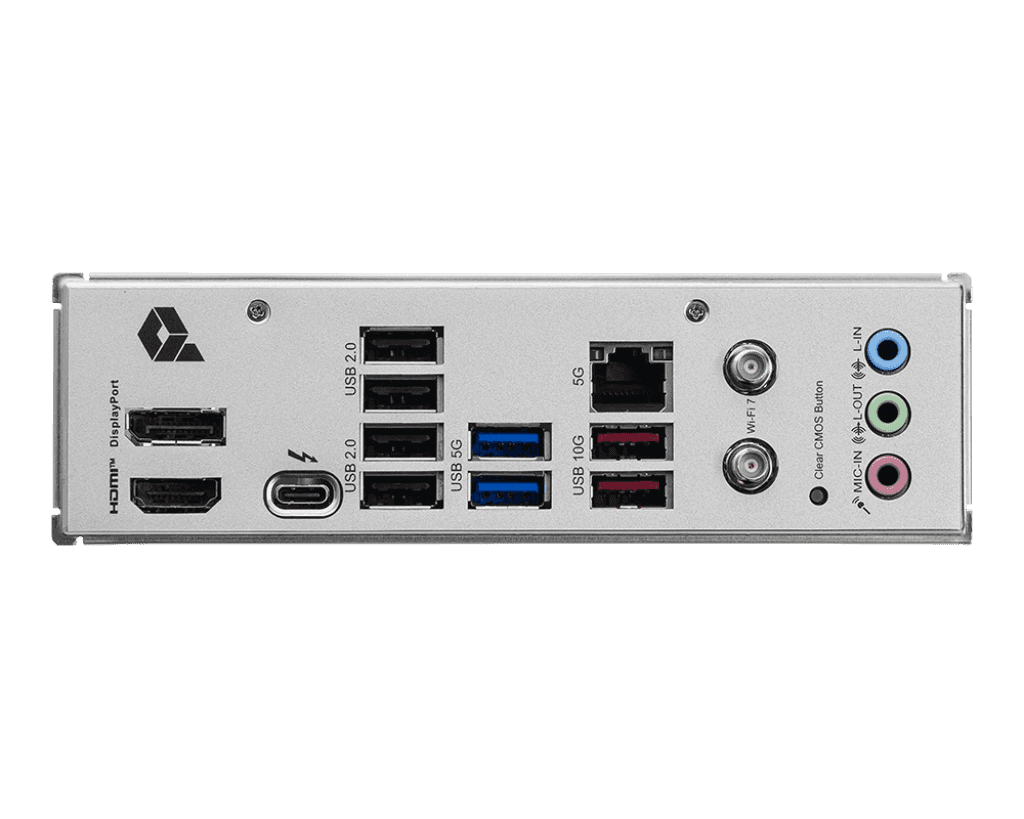

| Back Panel Ports | DisplayPort HDMI™ USB 2.0 USB 5Gbps Type-A USB 10Gbps Type-A Thunderbolt™ 4 (Type-C) 5G LAN Wi-Fi / Bluetooth Audio Connectors Clear CMOS Button |
| Operating System | Windows® 11 64-bit |
