| Chipset | INTEL H610 |
| CPU | Support Intel?? Core??? 14th/ 13th/ 12th Gen Processors, Intel?? Pentium?? Gold and Celeron?? Processors, LGA 1700 |
| Memory | 2x DDR4, Maximum Memory Capacity 64GB, Memory Support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC, Supports Dual-Channel mode, Supports non-ECC, un-buffered memory |
| Audio | Realtek?? ALC897 Codec, 7.1-Channel High Definition Audio |
| Storage | 1x M.2, M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4, supports 2280/2260/2242 devices, 2x SATA 6G |
| LAN | Realtek?? RTL8111H Gigabit LAN |
| Onboard Graphics | 1x HDMI???, Support HDMI??? 1.4 with HDR, maximum resolution of 4K 30Hz, *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| Slot | 1x PCI-E x16 slot, 1x PCI-E x1 slot, PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU), PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) |

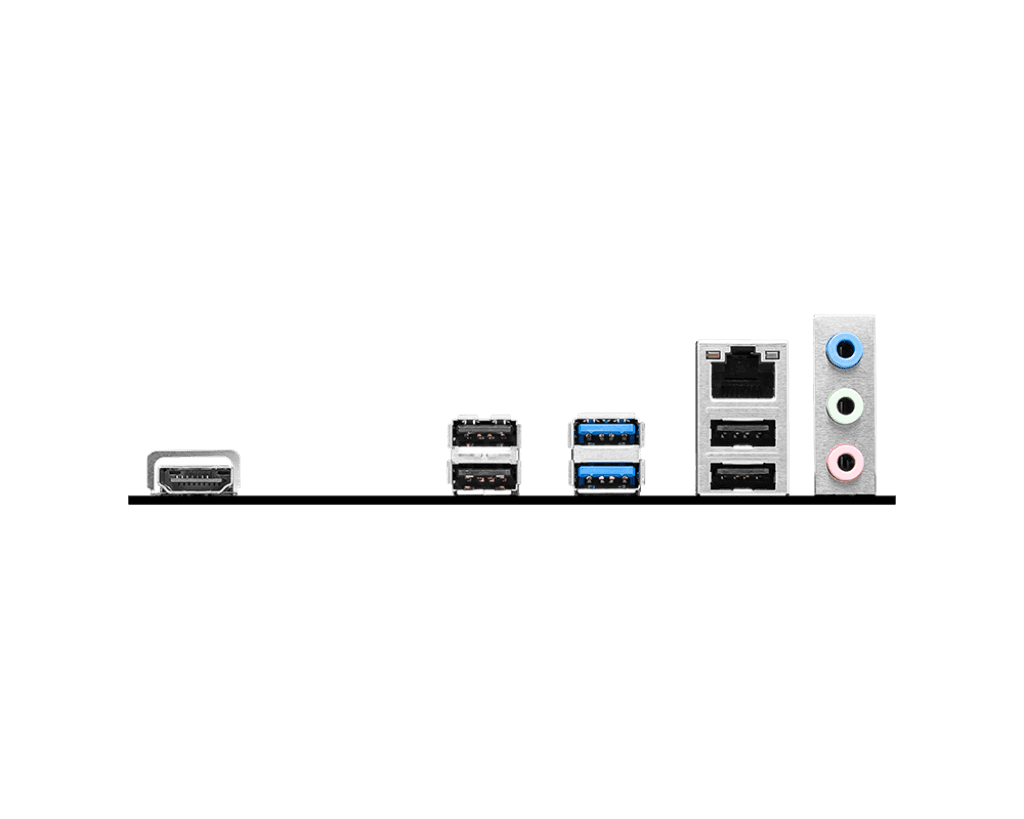

| USB | 4x USB 2.0 (Rear), 4x USB 2.0 (Front), 2x USB 5Gbps Type A (Rear), 2x USB 5Gbps Type A (Front) |
| Internal IO | 1x Power Connector(ATX_PWR), 1x Power Connector(CPU_PWR), 1x CPU Fan, 1x System Fan, 2x Front Panel (JFP), 1x Chassis Intrusion (JCI), 1x Front Audio (JAUD), 1x Com Port (JCOM), 1x TPM pin header(Support TPM 2.0), 4x USB 2.0 ports |
| LED Feature | 4x EZ Debug LED |

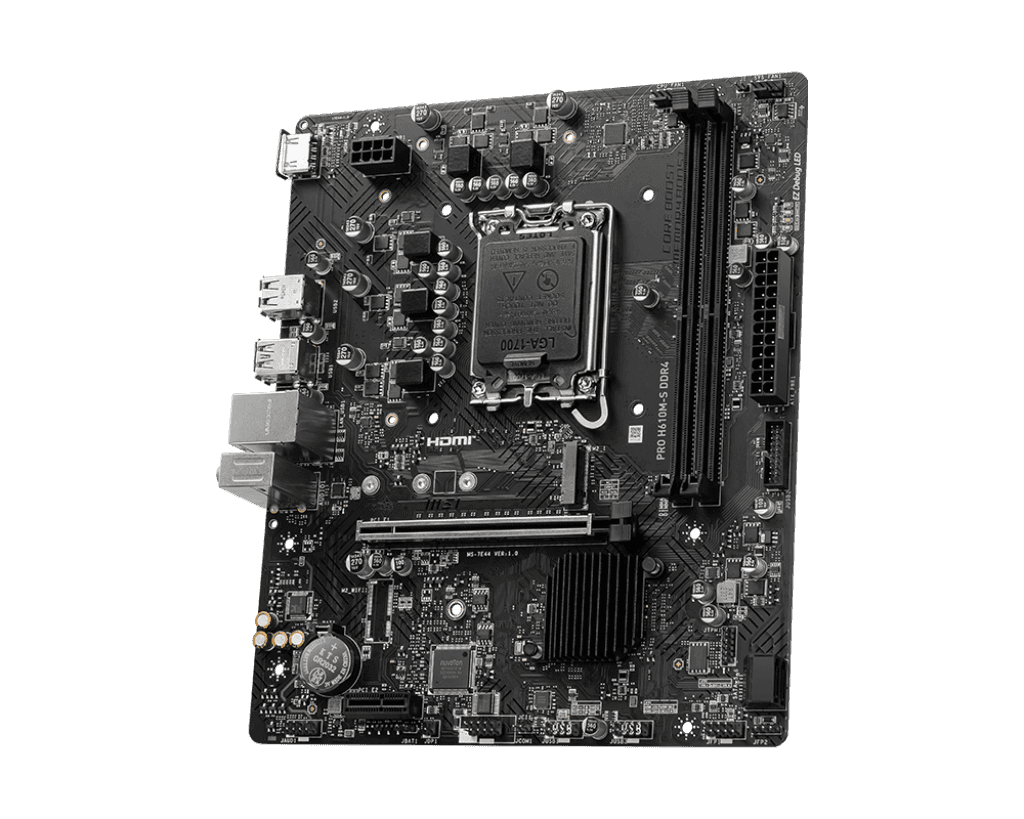

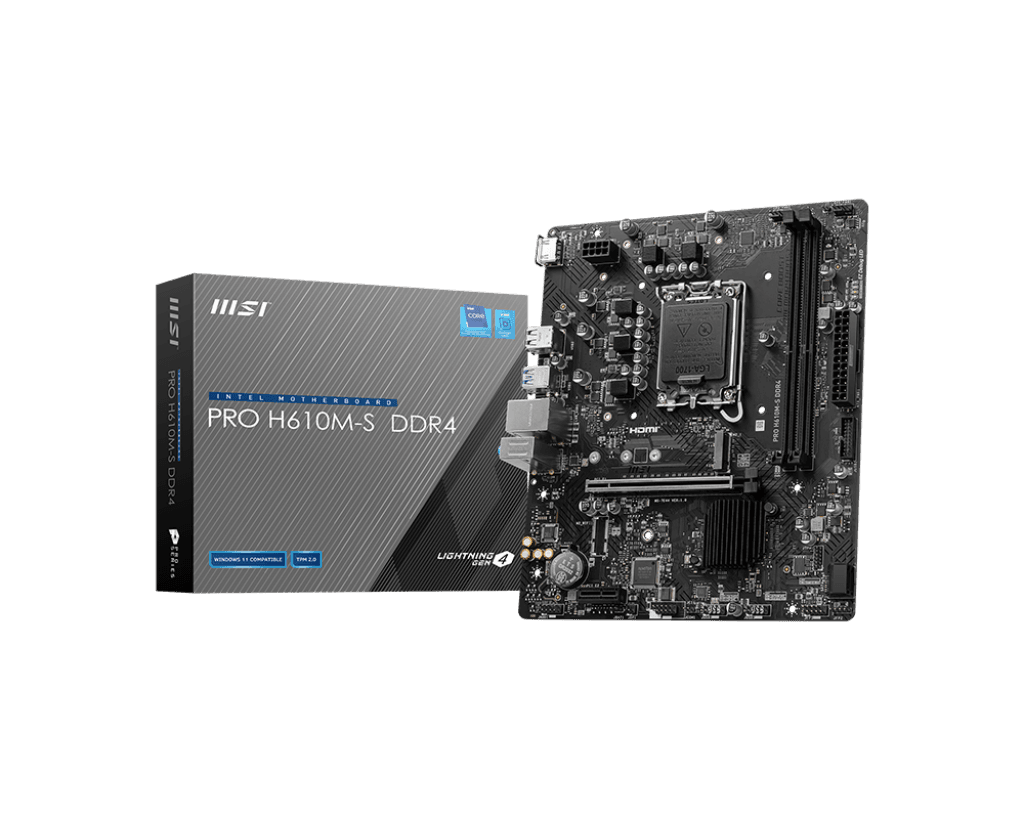

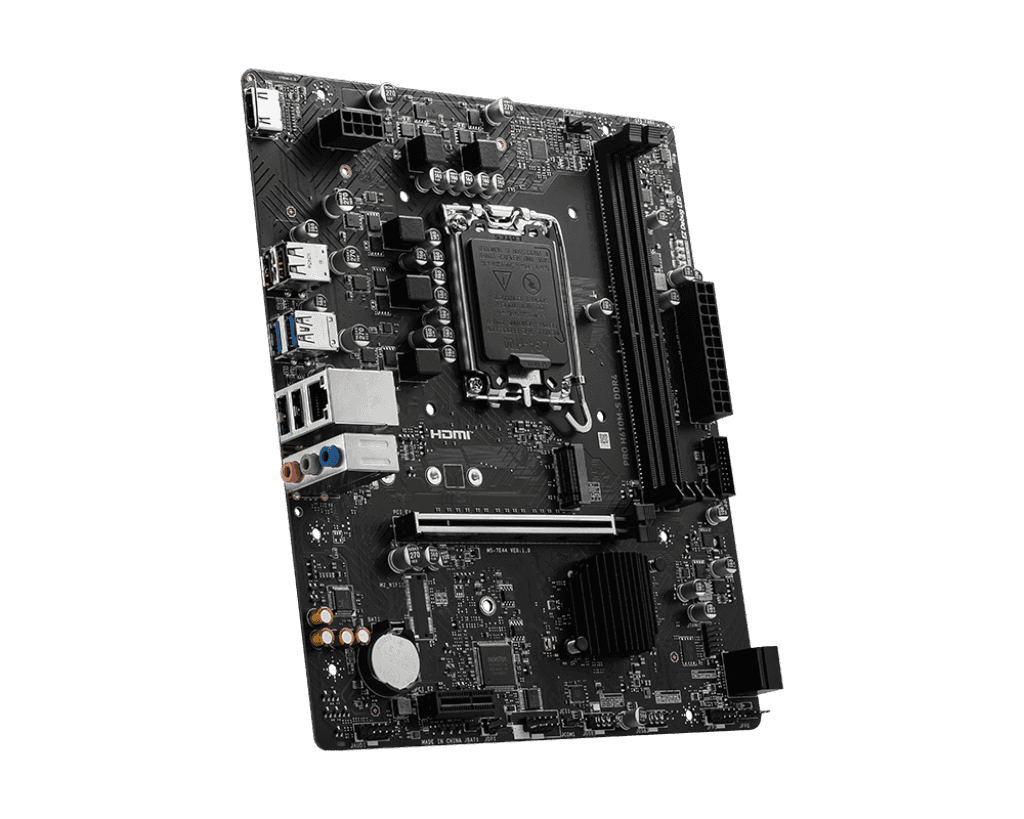

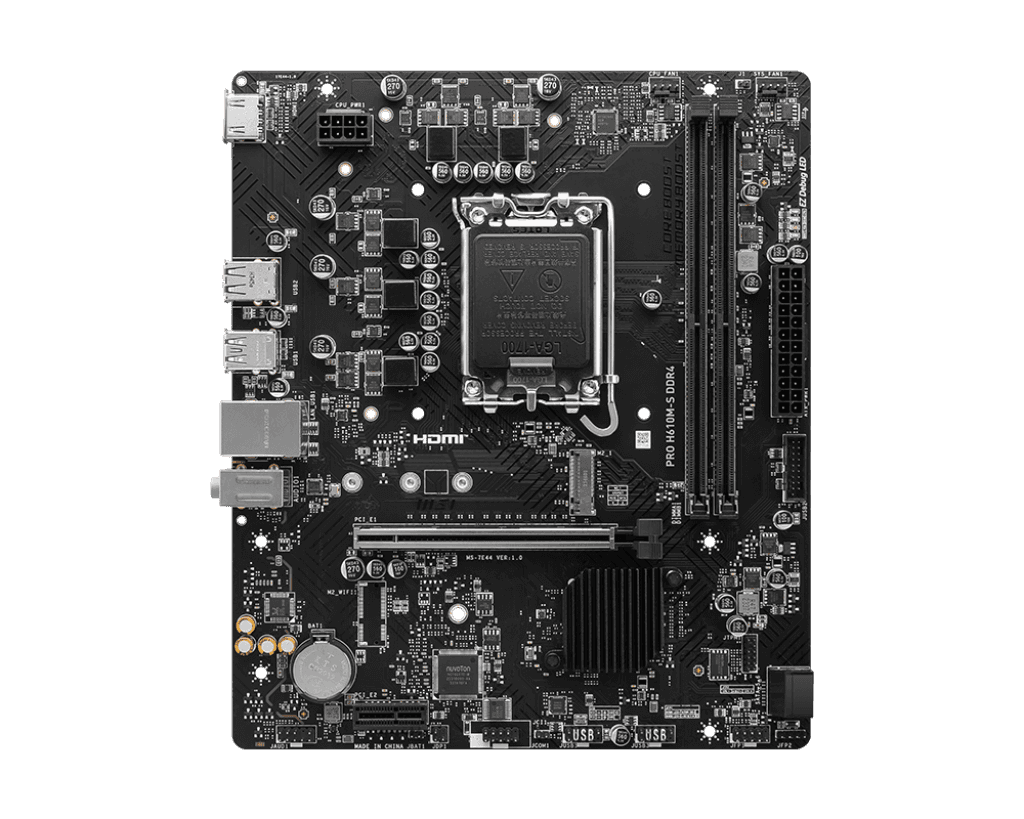

Build a Solid Foundation for Your Next PC with the MSI PRO H610M-S DDR4 Motherboard
Stable Performance for Everyday Needs: The MSI PRO H610M-S DDR4 motherboardprovides a reliable foundation for building a powerful and versatile PC. Supporting Intel?? Core??? 14th/13th/12th Gen processors, Pentium?? Gold and Celeron?? processors, it delivers the performance you need for everyday tasks, productivity applications, and even light gaming.
Fast Memory & Storage: Experience smooth system operation with support for up to 64GB of DDR4 memory at speeds up to 3200 MHz. The board also features one M.2 slot for blazing-fast PCIe 3.0 x4 storage and two SATA 6Gb/s ports for additional storage options.
Excellent Audio & Networking: Immerse yourself in realistic sound with the Realtek?? ALC897 audio codec, perfect for gaming and multimedia. The Realtek?? RTL8111H Gigabit LAN ensures a stable and reliable wired network connection.
Ready for Various Displays: The onboard HDMI??? 1.4 port allows you to connect your motherboard to a variety of displays, supporting resolutions up to 4K at 30Hz.
Expansion Capabilities: Customize your build with a PCI-E x16 slot for a dedicated graphics card and a PCI-E x1 slot for additional peripherals. Multiple USB ports provide plenty of connectivity for your peripherals.
The MSI PRO H610M-S DDR4 motherboard is a great choice for users building a budget-friendly PC for everyday use, productivity tasks, or light gaming. It offers reliable performance, essential features, and a variety of expansion options.
table { border-collapse: collapse; width: 100%; } tr { border-bottom: 1px solid rgb(222, 226, 230); } td { padding: 8px; margin: 0; } td:first-child { font-weight: bold; color: #333; } h3 { margin-top: 10px; }
| Chipset | INTEL H610 |
| CPU | Support Intel?? Core??? 14th/ 13th/ 12th Gen Processors, Intel?? Pentium?? Gold and Celeron?? Processors, LGA 1700 |
| Memory | 2x DDR4, Maximum Memory Capacity 64GB, Memory Support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC, Supports Dual-Channel mode, Supports non-ECC, un-buffered memory |
| Audio | Realtek?? ALC897 Codec, 7.1-Channel High Definition Audio |
| Storage | 1x M.2, M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4, supports 2280/2260/2242 devices, 2x SATA 6G |
| LAN | Realtek?? RTL8111H Gigabit LAN |
| Onboard Graphics | 1x HDMI???, Support HDMI??? 1.4 with HDR, maximum resolution of 4K 30Hz, *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| Slot | 1x PCI-E x16 slot, 1x PCI-E x1 slot, PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU), PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| USB | 4x USB 2.0 (Rear), 4x USB 2.0 (Front), 2x USB 5Gbps Type A (Rear), 2x USB 5Gbps Type A (Front) |
| Internal IO | 1x Power Connector(ATX_PWR), 1x Power Connector(CPU_PWR), 1x CPU Fan, 1x System Fan, 2x Front Panel (JFP), 1x Chassis Intrusion (JCI), 1x Front Audio (JAUD), 1x Com Port (JCOM), 1x TPM pin header(Support TPM 2.0), 4x USB 2.0 ports |
| LED Feature | 4x EZ Debug LED |
Build a Solid Foundation for Your Next PC with the MSI PRO H610M-S DDR4 Motherboard
Stable Performance for Everyday Needs: The MSI PRO H610M-S DDR4 motherboardprovides a reliable foundation for building a powerful and versatile PC. Supporting Intel?? Core??? 14th/13th/12th Gen processors, Pentium?? Gold and Celeron?? processors, it delivers the performance you need for everyday tasks, productivity applications, and even light gaming.
Fast Memory & Storage: Experience smooth system operation with support for up to 64GB of DDR4 memory at speeds up to 3200 MHz. The board also features one M.2 slot for blazing-fast PCIe 3.0 x4 storage and two SATA 6Gb/s ports for additional storage options.
Excellent Audio & Networking: Immerse yourself in realistic sound with the Realtek?? ALC897 audio codec, perfect for gaming and multimedia. The Realtek?? RTL8111H Gigabit LAN ensures a stable and reliable wired network connection.
Ready for Various Displays: The onboard HDMI??? 1.4 port allows you to connect your motherboard to a variety of displays, supporting resolutions up to 4K at 30Hz.
Expansion Capabilities: Customize your build with a PCI-E x16 slot for a dedicated graphics card and a PCI-E x1 slot for additional peripherals. Multiple USB ports provide plenty of connectivity for your peripherals.
The MSI PRO H610M-S DDR4 motherboard is a great choice for users building a budget-friendly PC for everyday use, productivity tasks, or light gaming. It offers reliable performance, essential features, and a variety of expansion options.
