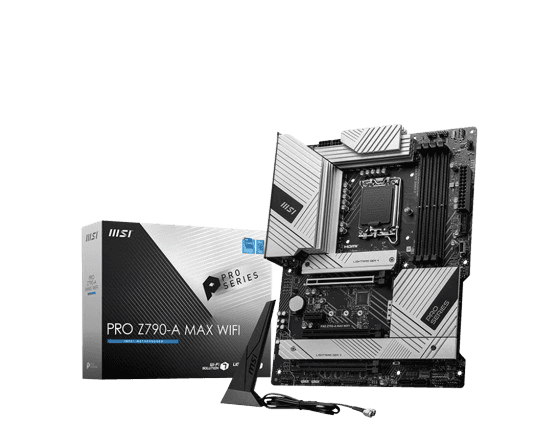

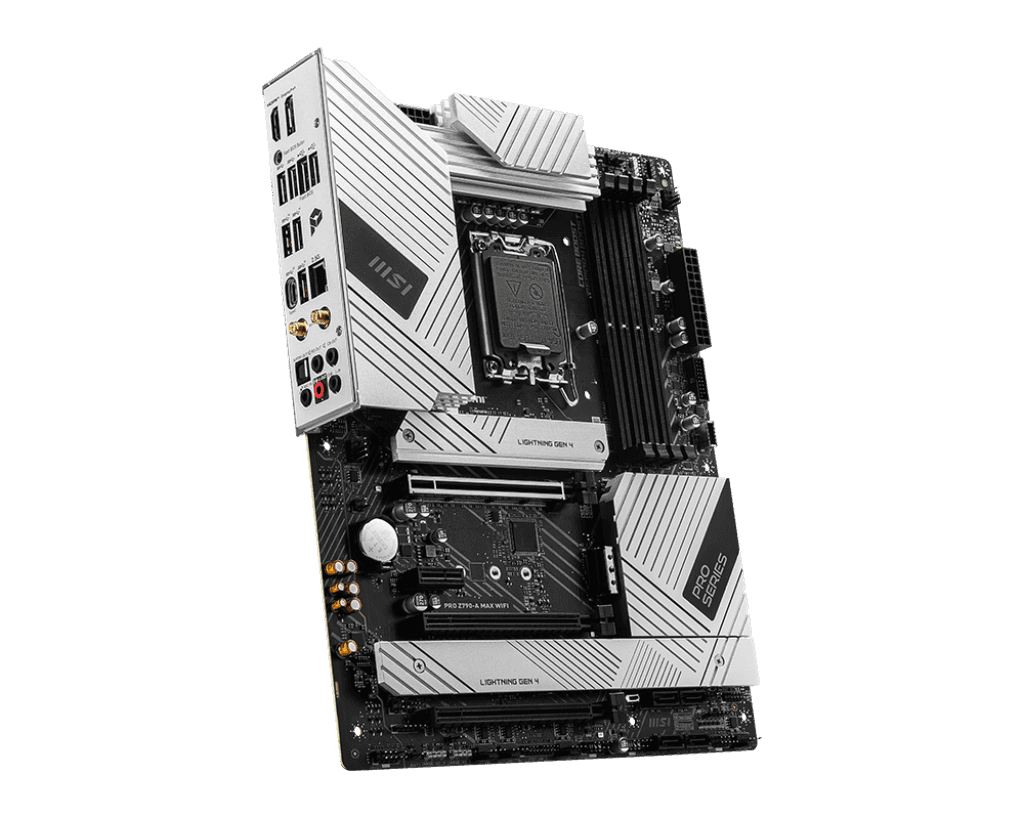

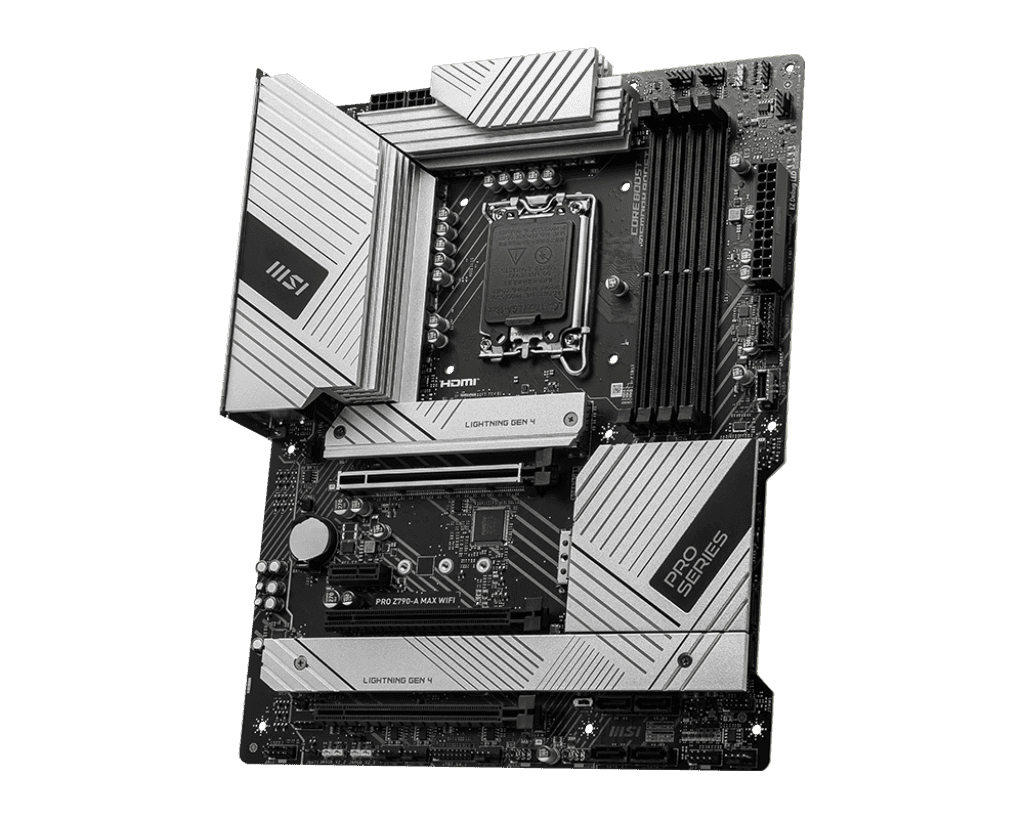

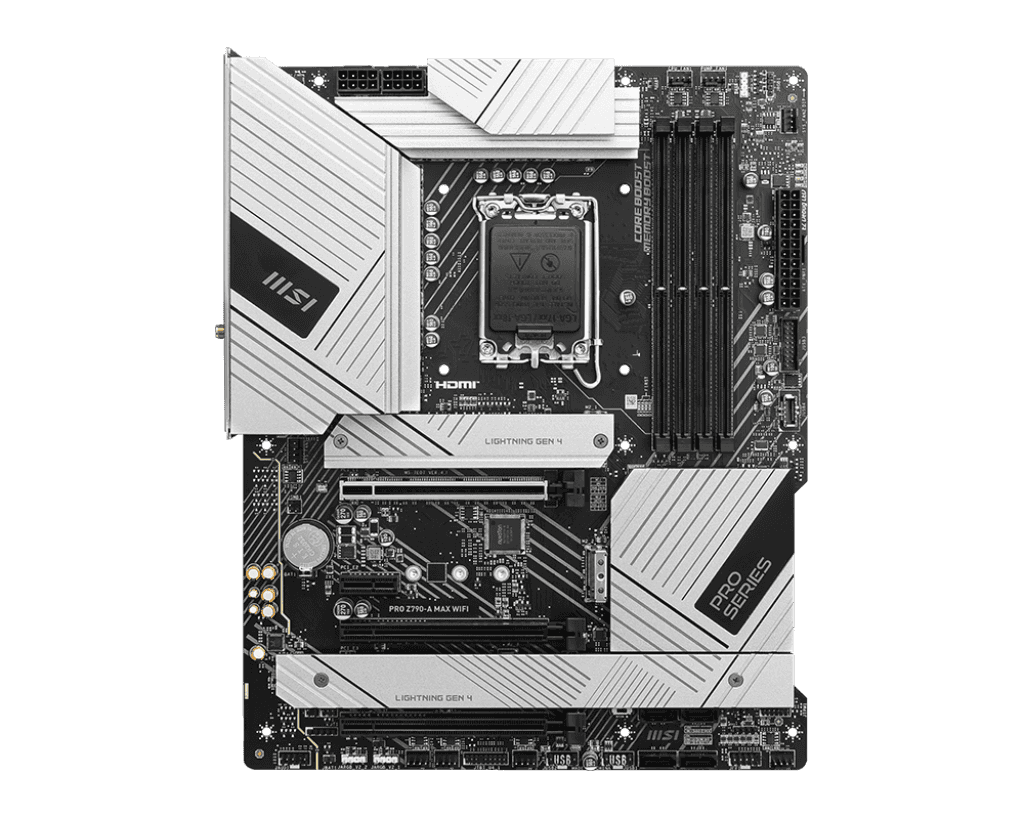

MSI PRO Z790-A MAX WIFI DDR5 Intel?? ATX Mother board, Digital PWM, PCI-E, 6x SATA 6G, 4x M.2, 1x HDMI???, 1x DisplayPort, 2.5Gbps LAN, VRM Heatsink, Pre installed IO Shield | 911-7E07-018

Chipset & CPU Support

• Chipset: Intel Z790
• CPU Support: Intel?? Core??? 14th/ 13th/ 12th Gen Processors, Intel?? Pentium?? Gold and Celeron?? Processors
• LGA: 1700

Memory

• 4x DDR5 UDIMM, Maximum Memory Capacity: 192GB
• Memory Support: 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
• Max. overclocking frequency:
  • 1DPC 1R Max speed up to 7800+ MHz
  • 1DPC 2R Max speed up to 6600+ MHz
  • 2DPC 1R Max speed up to 6400+ MHz
  • 2DPC 2R Max speed up to 5600+ MHz
• Supports Intel?? XMP 3.0 OC
• Supports Dual-Controller Dual-Channel mode
• Supports non-ECC, un-buffered memory

Onboard Graphics

• 1x HDMI??? - Supports HDMI??? 2.1 with HDR, maximum resolution of 4K 60Hz*
• 1x DisplayPort - Supports DP 1.4, maximum resolution of 8K 60Hz*
  • *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Slot

• 3x PCI-E x16 slot
• 1x PCI-E x1 slot
• PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
• PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
• PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
• PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)

Storage

• 4x M.2
• M.2_1 Source (From CPU) supports up to PCIe 4.0 x4, supports 22110/2280/2260/2242 devices
• M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4, supports 2280/2260/2242 devices
• M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
• M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
• 6x SATA 6G

RAID

• Supports RAID 0, RAID 1, RAID 5, and RAID 10 for SATA storage devices
• Supports RAID 0, RAID 1, RAID 5, and RAID 10 for M.2 NVMe storage devices

USB

• 2x USB 2.0 (Rear)
• 4x USB 2.0 (Front)
• 2x USB 3.2 Gen1 Type A (Rear)
• 2x USB 3.2 Gen1 Type A (Front)
• 3x USB 3.2 Gen2 Type A (Rear)
• 1x USB 3.2 Gen2 Type C (Front)
• 1x USB 3.2 Gen2x2 Type C (Rear)

LAN

• Intel?? 2.5Gbps LAN

Wireless LAN & Bluetooth

• Wi-Fi 7
• The Wireless module is pre-installed in the M.2 (Key-E) slot
• Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps
• Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
• Supports Bluetooth?? 5.4**, MLO, 4KQAM
• * 6GHz band support may depend on every country???s regulations and Wi-Fi 7 will be ready in Windows 11 SV3.
• ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor???s website for details. Bluetooth 5.4 support schedule depends on MSFT Windows 11 plan.

Audio

• Realtek?? ALC4080 Codec
• 7.1-Channel USB High Performance Audio
• Supports S/PDIF output

Internal IO

• 1x Power Connector(ATX_PWR)
• 2x Power Connector(CPU_PWR)
• 1x CPU Fan
• 1x Pump Fan
• 6x System Fan
• 2x Front Panel (JFP)
• 1x Chassis Intrusion (JCI)
• 1x Front Audio (JAUD)
• 1x TBT connector (JTBT, supports RTD3)
• 1x Tuning Controller connector(JDASH)
• 3x Addressable V2 RGB LED connector (JARGB_V2)
• 1x RGB LED connector(JRGB)
• 1x TPM pin header(Support TPM 2.0)
• 4x USB 2.0 ports
• 2x USB 3.2 Gen1 Type A ports
• 1x USB 3.2 Gen2 Type C ports
• 1x USB4 card connector (JTBT_U4_1, supports RTD3)

LED Feature

• 4x EZ Debug LED
