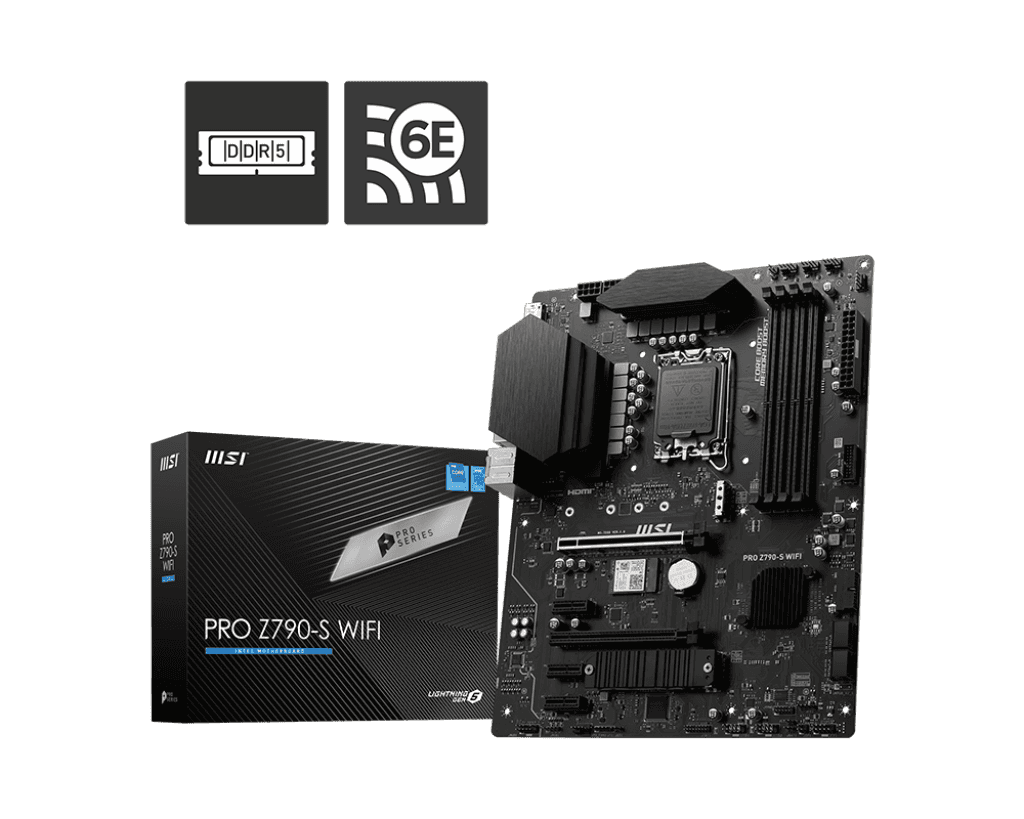

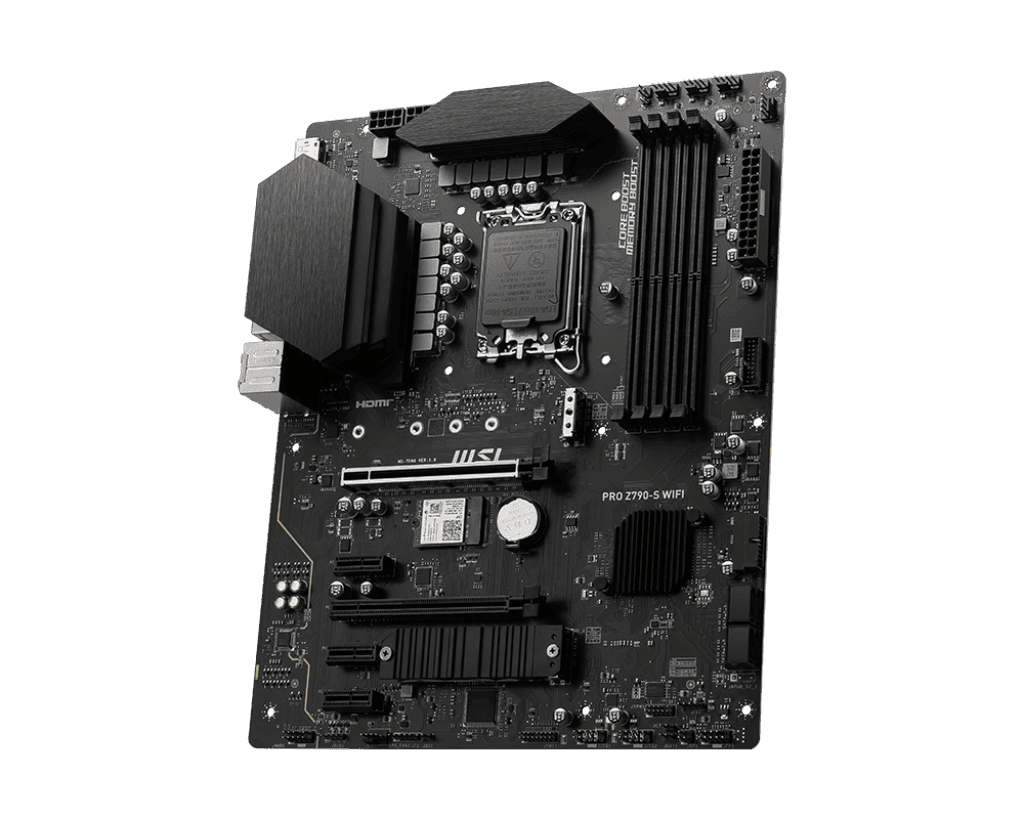

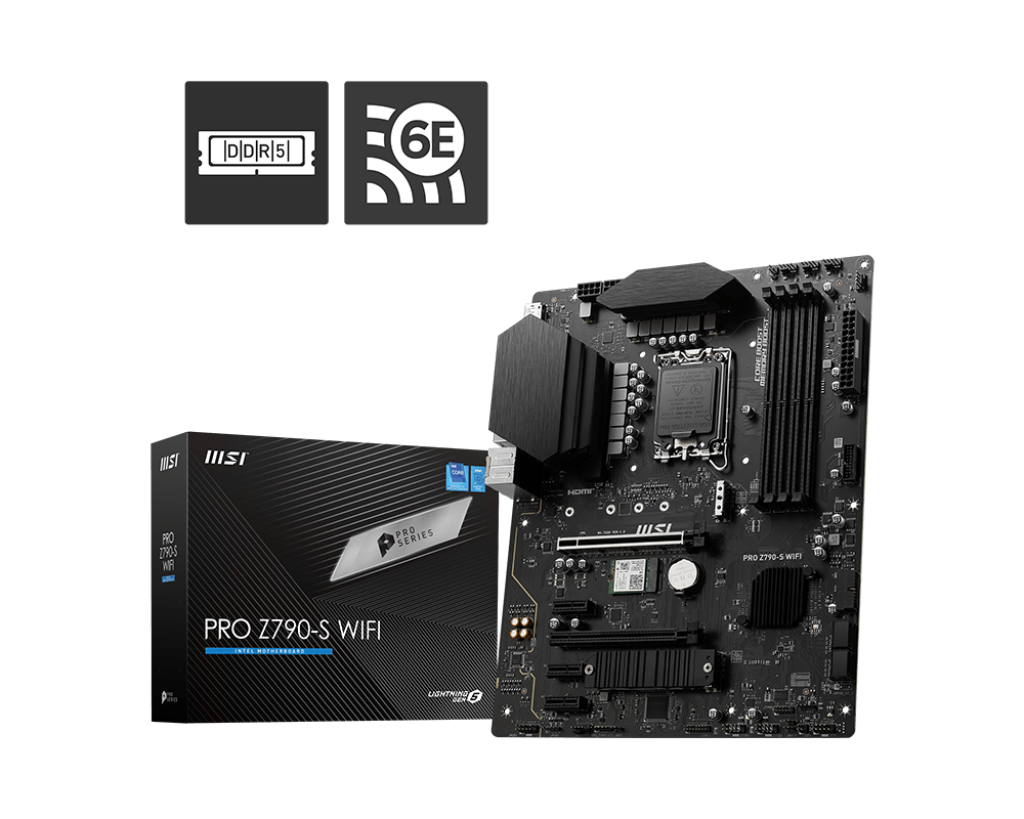

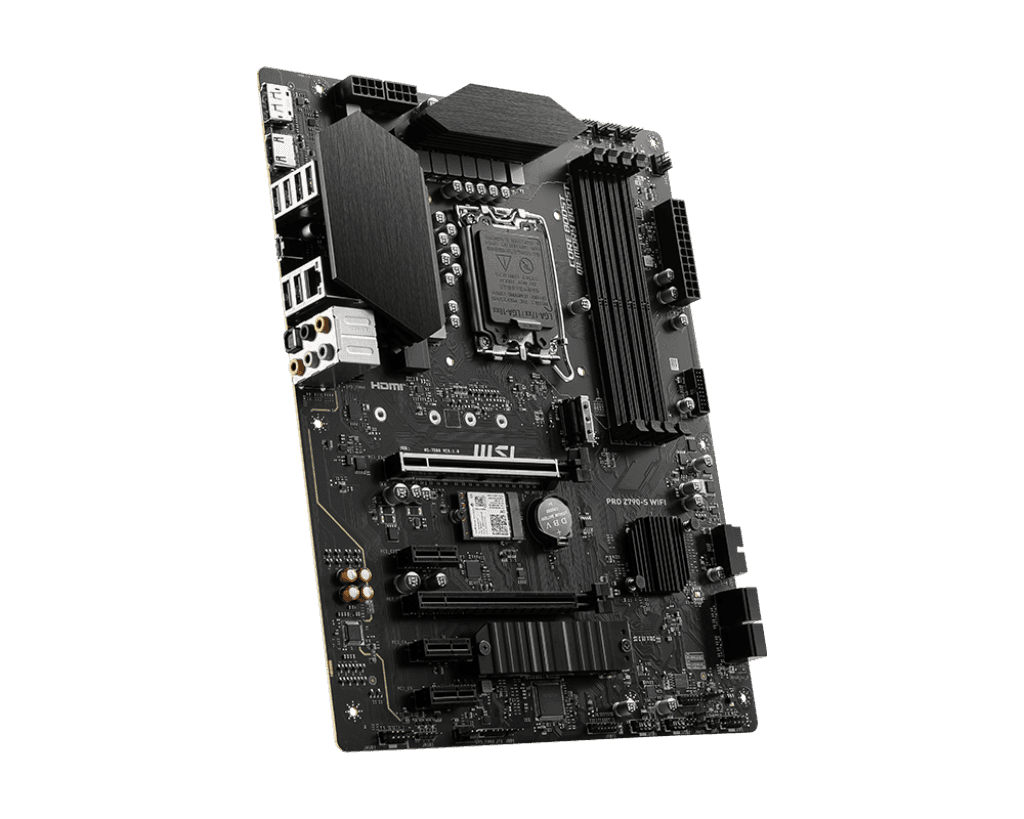

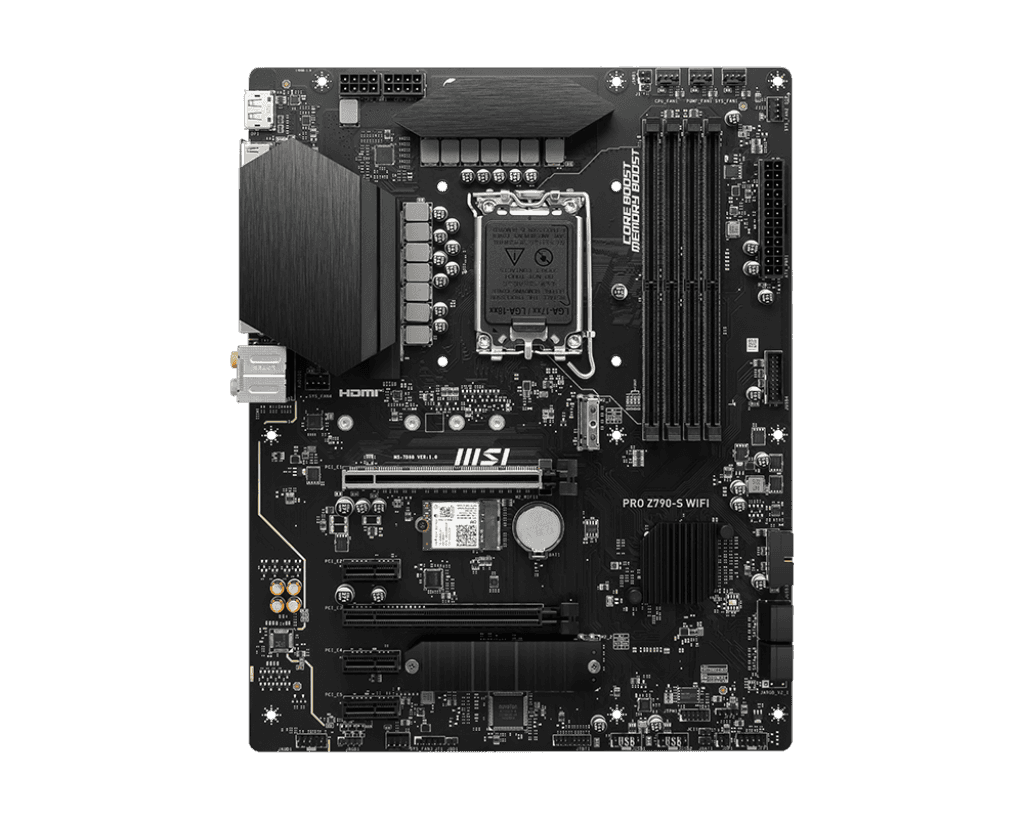

MSI Pro Z790-S WIFI 6E LGA 1700 ATX Intel Motherboard, Intel Z790 Chipset, 4x DDR5 Slot, 192GB Max Memory, 2x M.2 Storage, 4x SATA 6G, 2x PCI-E x16 Slot, HDMI / DP | 911-7D88-001

• 4x DDR5, Maximum Memory Capacity 256GB
• Memory Support DDR5 6600+(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
• Max. overclocking frequency:
  • 1DPC 1R Max speed up to 6600+ MHz
  • 1DPC 2R Max speed up to 6400+ MHz
  • 2DPC 1R Max speed up to 6000+ MHz
  • 2DPC 2R Max speed up to 5600+ MHz
• Supports Intel?? XMP 3.0 OC
• Supports Dual-Controller Dual-Channel mode
• Supports non-ECC, un-buffered memory

• 1x HDMI??? - Supports HDMI??? 1.4 with HDR, maximum resolution of 4K 30Hz*
• 1x DisplayPort - Supports DP 1.4, maximum resolution of 4K 60Hz*

*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

• 2x PCI-E x16 slot
• 3x PCI-E x1 slot
• PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
• PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
• PCI_E3 Gen PCIe 3.0 supports up to x4 (From Chipset)
• PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)
• PCI_E5 Gen PCIe 3.0 supports up to x1 (From Chipset)

• 2x M.2 - M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices - M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
• 4x SATA 6G - Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

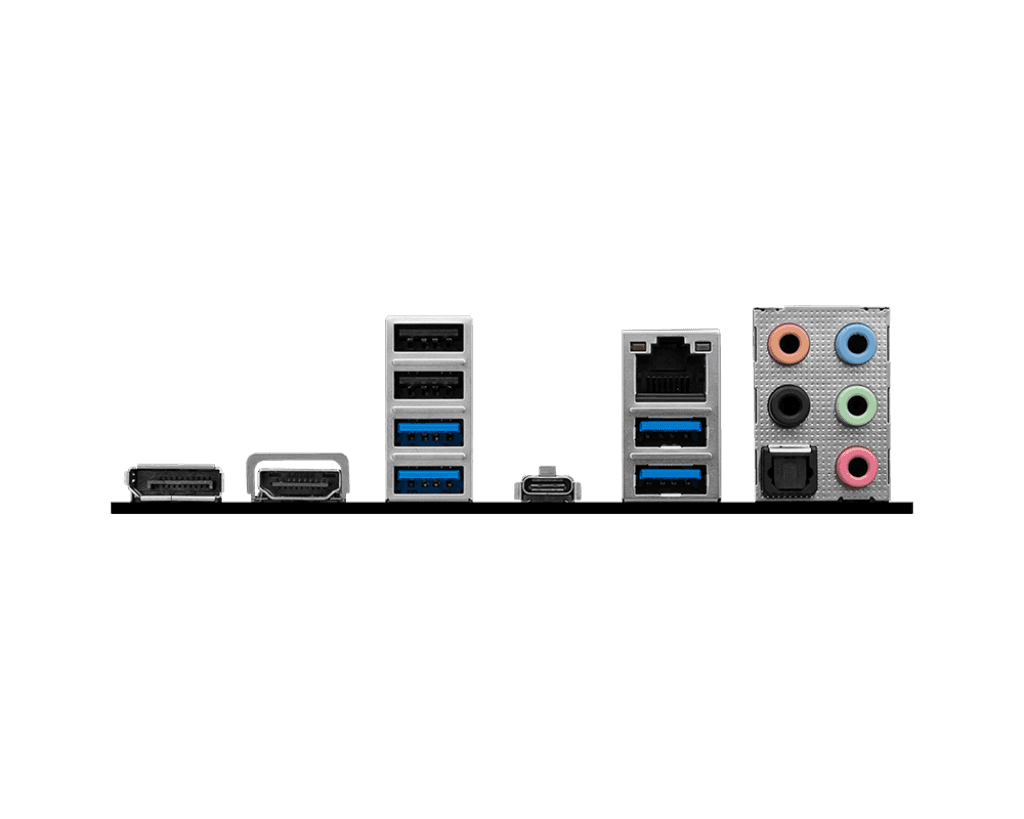

• 2x USB 2.0 (Rear)
• 4x USB 2.0 (Front)
• 4x USB 3.2 Gen1 Type A (Rear)
• 4x USB 3.2 Gen1 Type A (Front)
• 1x USB 3.2 Gen2x2 Type C (Rear)

• Intel?? Wi-Fi 6E - The Wireless module is pre-installed in the M.2_WIFI1 (Key-E) slot - Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps - Supports 802.11 a/ b/ g/ n/ ac/ ax
• Supports Bluetooth?? 5.3, FIPS, FISMA

* Wi-Fi 6E 6GHz may depend on every country???s regulations and will be ready in Windows 11.

** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.

• Realtek?? ALC897 Codec
• 7.1-Channel High Definition Audio
• Supports S/PDIF output

• 1x Power Connector(ATX_PWR)
• 2x Power Connector(CPU_PWR)
• 1x CPU Fan
• 1x Pump Fan
• 4x System Fan
• 2x Front Panel (JFP)
• 1x Chassis Intrusion (JCI)
• 1x Front Audio (JAUD)
• 1x TBT connector (JTBT, supports RTD3)
• 1x RGB LED connector(JRGB)
• 1x TPM pin header(Support TPM 2.0)
• 4x USB 2.0 ports
• 4x USB 3.2 Gen1 Type A ports
