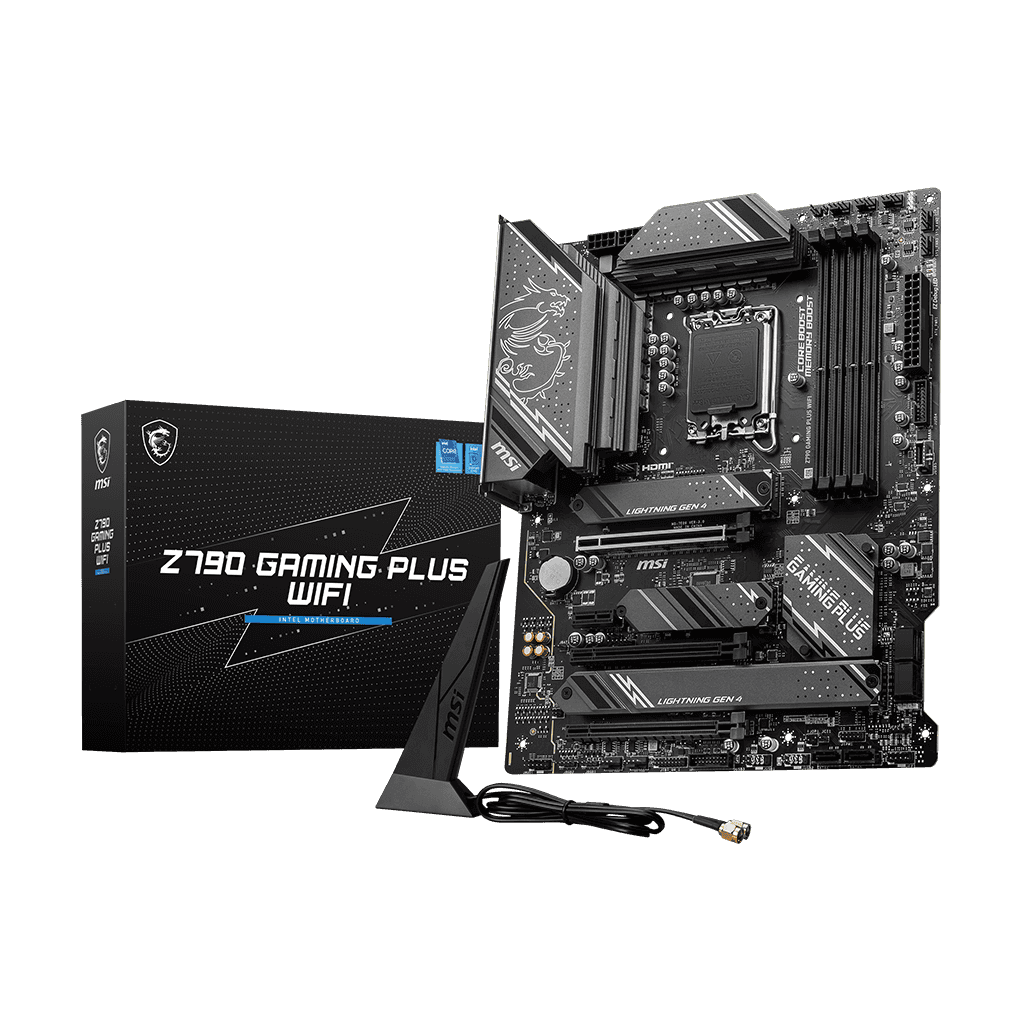

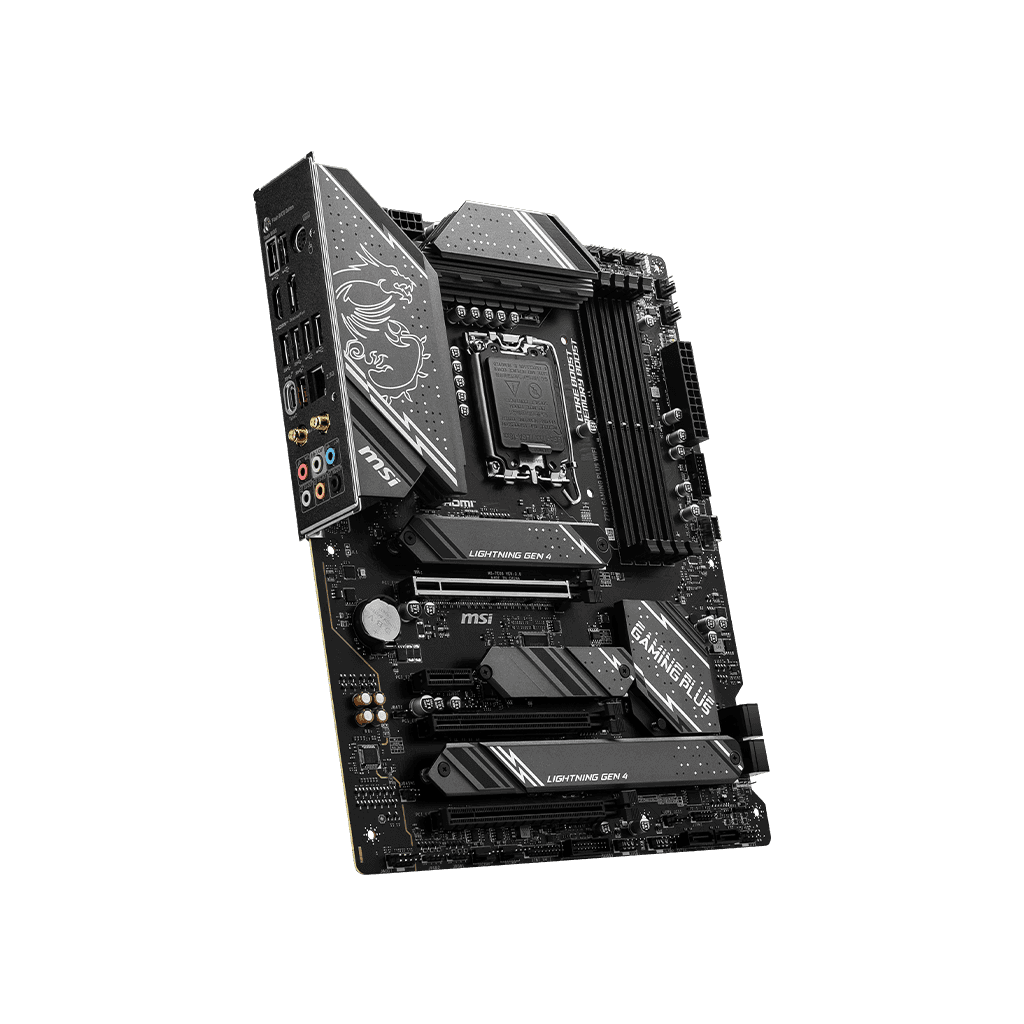

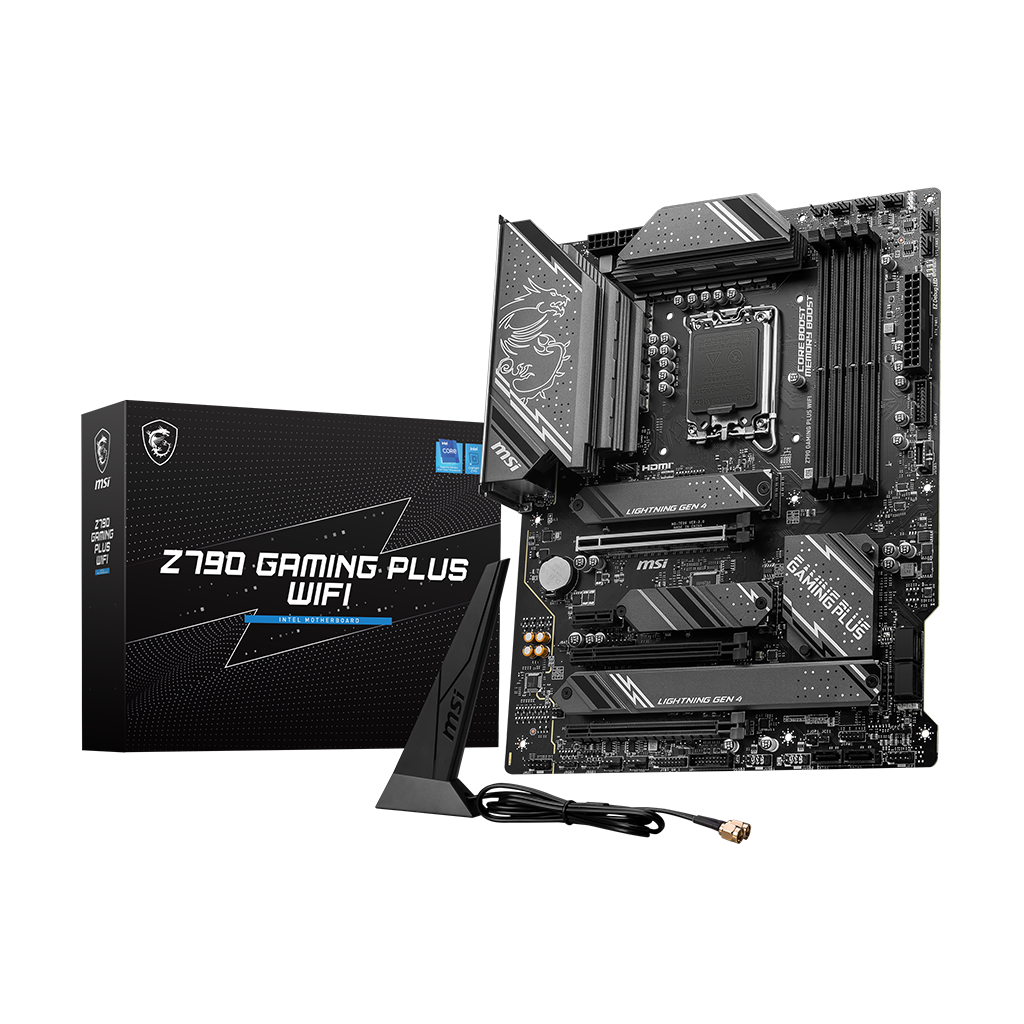

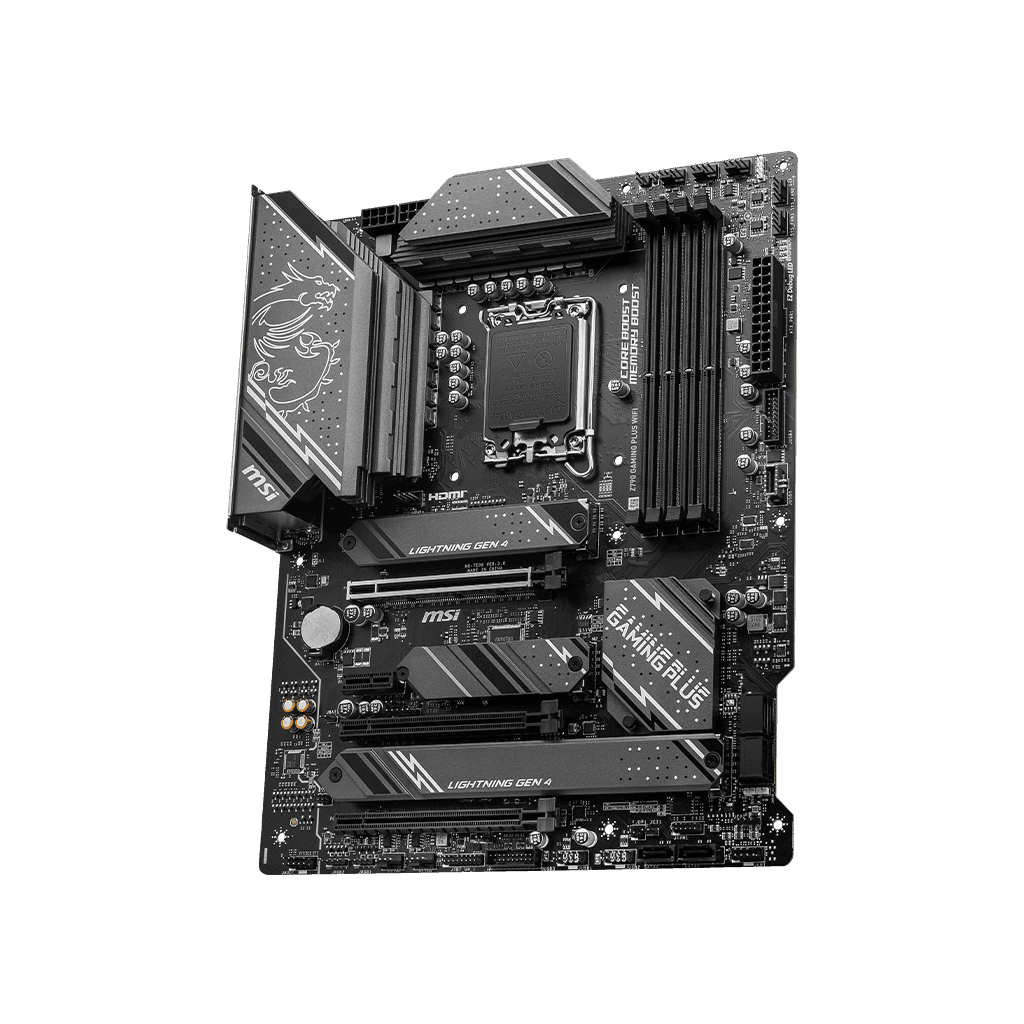

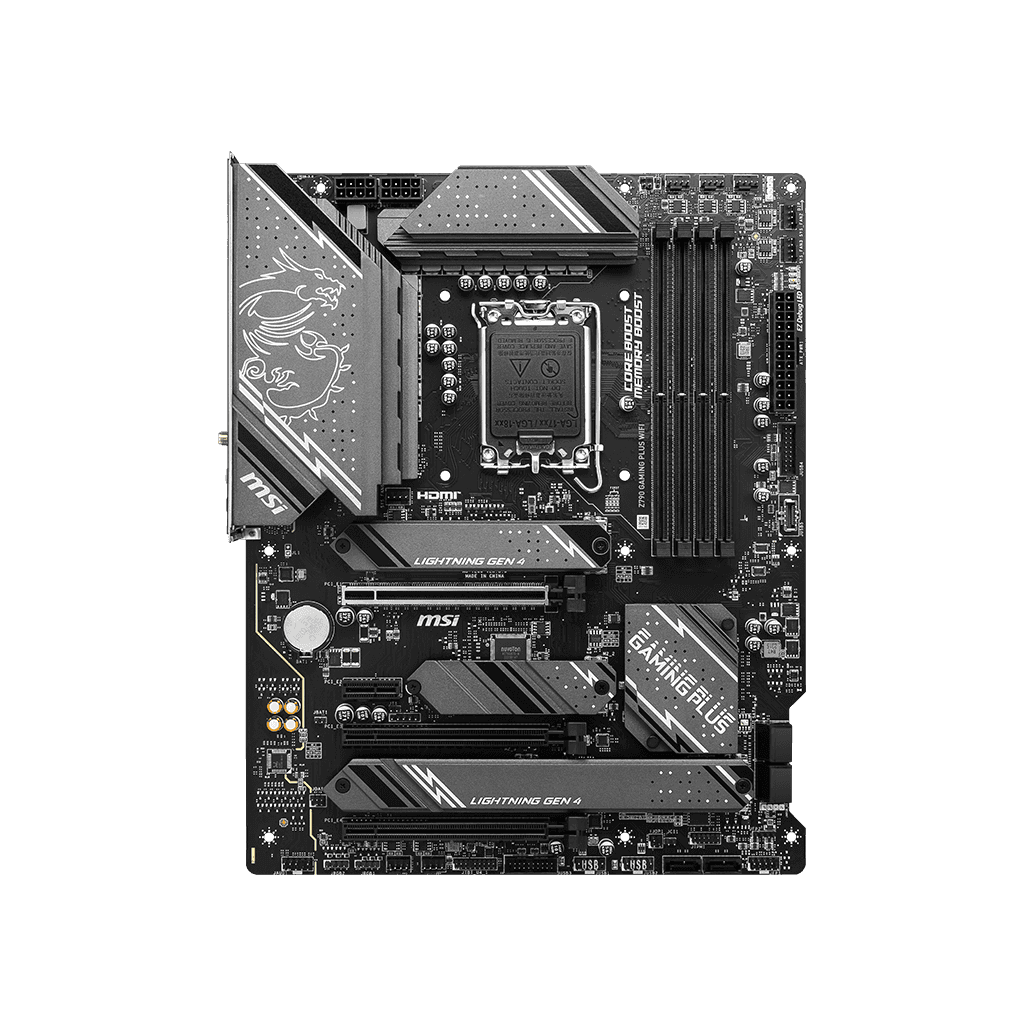

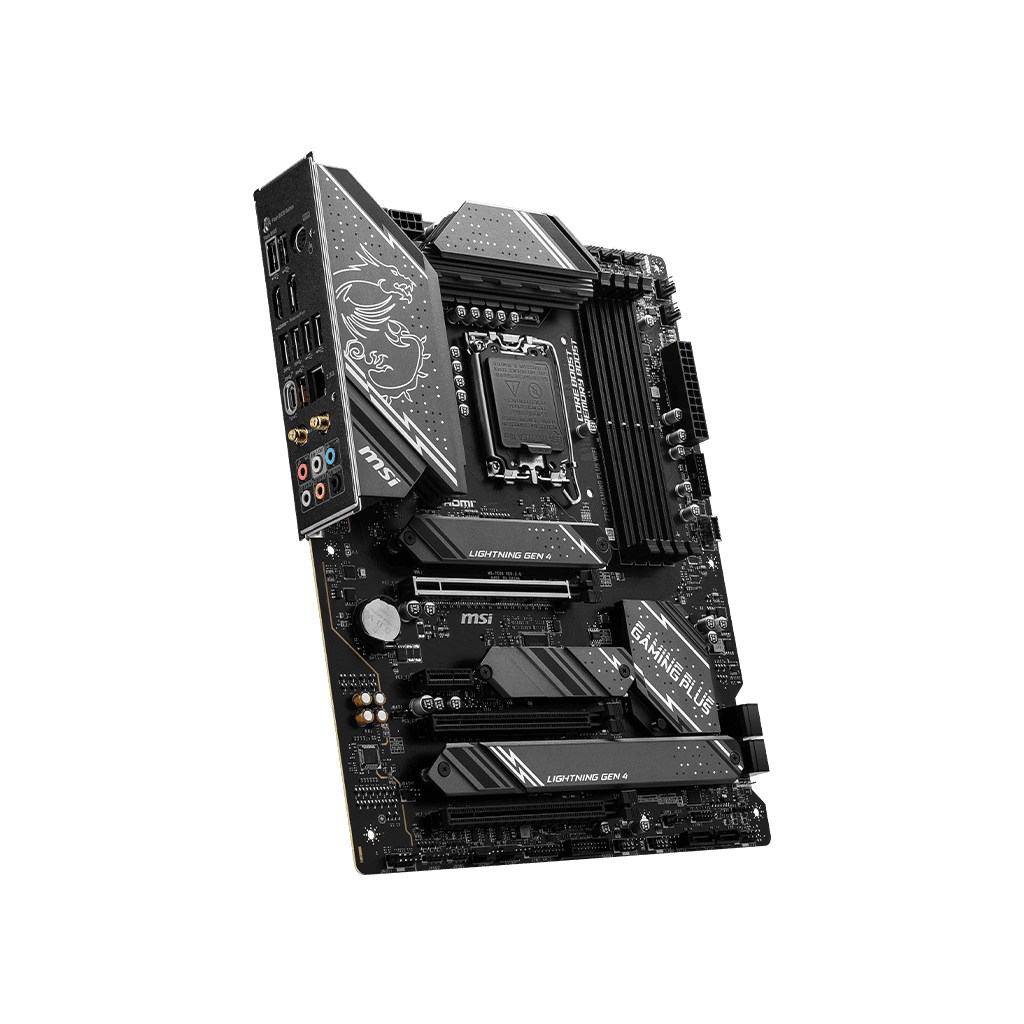

MSI Z790 GAMING PLUS WIFI ATX Intel Motherboard, LGA 1700, Support Intel Core 14th/ 13th/ 12th Gen, DDR5 Memory, up to 7200+(OC) MHz, PCIe 5.0 slot, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, USB 3.2 Gen 2x2 20G, Wi-Fi 6E, 2.5Gbps LAN | 911-7E06-061
Model :
SKU : MB-Z790 GAMING PLUS WIFI
About this item
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
Z790 GAMING PLUS WIFI is designed with tons of connectivity, flexible tools, and a convenient Wi-Fi solution with DDR5 memory version for gamers who want it all.
Specification
MSI Z790 GAMING PLUS WIFI Motherboard Specifications
| Manufacturer Number | Z790 GAMING PLUS WIFI |
| Product Condition | New |
| CPU | Supports Intel® Core™ 14th/13th/12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA 1700 |
| Chipset | Intel® Z790 Chipset |
| CPU Socket | LGA1700 |
| Form Factor | ATX Form Factor |
| Memory | 4x DDR5, Maximum Memory Capacity 192GB Memory Support: 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(JEDEC)/5400(JEDEC)/5200(JEDEC)/5000(JEDEC)/4800(JEDEC) MHz Max. Overclocking Frequency: 1DPC 1R: up to 7200+ MHz DPC 2R: up to 6600+ MHz 2DPC 1R: up to 6400+ MHz 2DPC 2R: up to 5600+ MHz Supports Intel® XMP3.0 OC, Dual-Controller Dual-Channel mode, non-ECC un-buffered memory |
| LAN | 1 x Intel® 2.5Gbps LAN |
| Wireless LAN | Intel® Wi-Fi 6E Pre-installed M.2 (Key-E) module MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz (160MHz) up to 2.4Gbps Supports 802.11 a/b/g/n/ac/ax |
| Bluetooth | Bluetooth® 5.3, FIPS, FISMA Wi-Fi 6E 6GHz may depend on regional regulations; available in Windows 11. Bluetooth 5.3 available in Windows 10 build 21H1 and Windows 11. |
| Audio | Realtek® ALC897 Codec 7.1-Channel High Definition Audio Supports S/PDIF output |
| Multi-GPU | - |
| Storage | 4x M.2 Slots: • M.2_1 (CPU): PCIe 4.0 x4, supports 22110/2280/2260/2242 • M.2_2 (Chipset): PCIe 4.0 x4, supports 2280/2260/2242 • M.2_3 (Chipset): PCIe 4.0 x4 / SATA, supports 2280/2260/2242 • M.2_4 (Chipset): PCIe 4.0 x4 / SATA, supports 2280/2260/2242 6x SATA 6G |
| Onboard Graphics | 1x HDMIâ„¢ 2.1 HDR (4K 60Hz) 1x DisplayPort 1.4 (4K 60Hz) Available only with CPUs featuring integrated graphics |
| RAID | Supports RAID 0, 1, 5, 10 for SATA and M.2 NVMe devices |

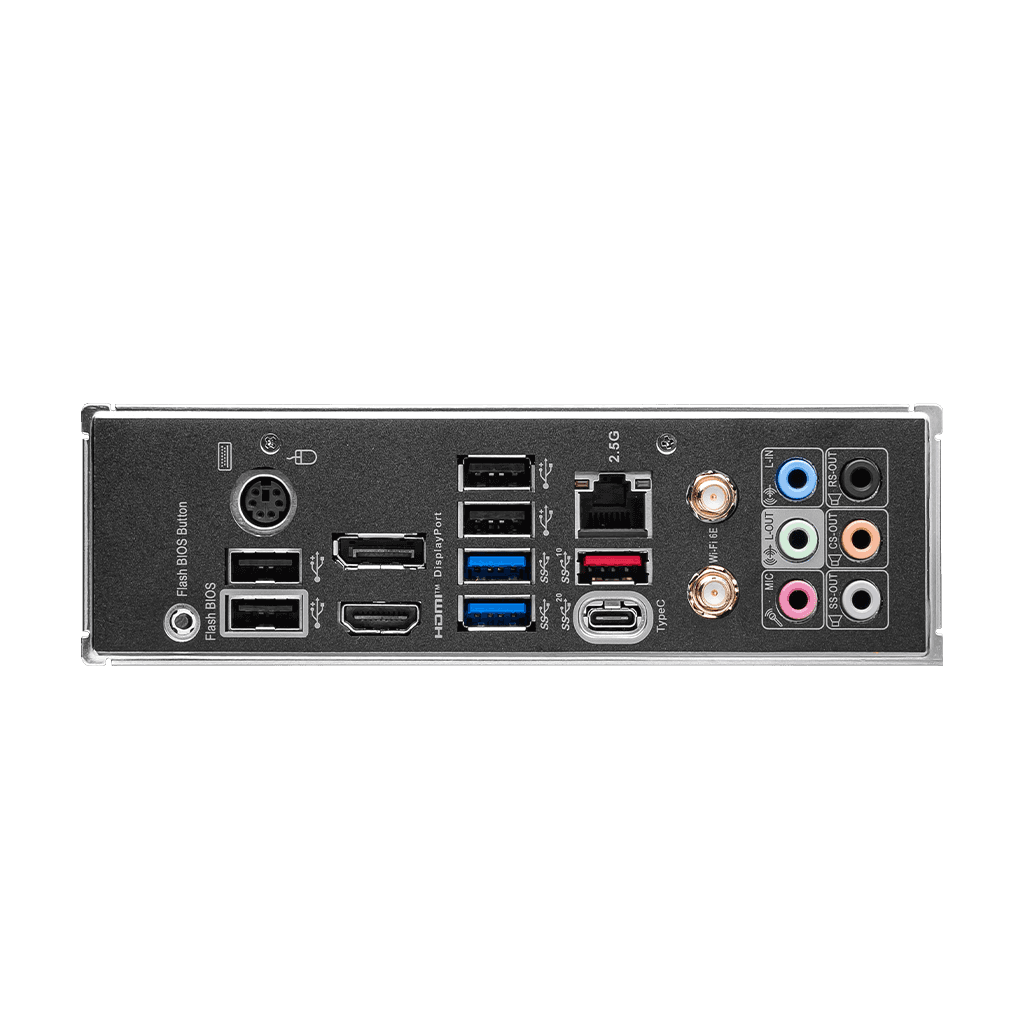

| I/O (Rear) | Keyboard / Mouse DisplayPort HDMIâ„¢ 2.1 Port 2x USB 2.0 2x USB 3.2 Gen1 Type-A 1x USB 3.2 Gen2 10Gbps Type-A 1x USB 3.2 Gen2x2 20Gbps Type-C 2.5G LAN Port Wi-Fi / Bluetooth Antenna Audio Connectors Flash BIOS Button |
| Expansion Slots | 3x PCI-E x16 1x PCI-E x1 PCI_E1: PCIe 5.0 x16 (CPU) PCI_E2: PCIe 3.0 x1 (Chipset) PCI_E3: PCIe 4.0 x4 (Chipset) PCI_E4: PCIe 3.0 x1 (Chipset) |
| USB (Front) | 4x USB 2.0 4x USB 3.2 Gen1 Type-A 1x USB 3.2 Gen2 Type-C |
| USB (Rear) | 4x USB 2.0 2x USB 3.2 Gen1 Type-A 1x USB 3.2 Gen2 Type-A 1x USB 3.2 Gen2x2 Type-C |
| Type-C Ports | 1x USB 3.2 Gen2 (Type-C) 1x USB 3.2 Gen2x2 (Type-C) |
| Internal Connectors | 1x ATX Power (24-pin) 2x CPU Power 1x CPU Fan 1x Pump Fan 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x TBT Connector (JTBT, RTD3) 1x Tuning Controller (JDASH) 2x Addressable RGB (JARGB_V2) 2x RGB LED (JRGB) 1x TPM Header (TPM 2.0) 4x USB 2.0 Ports 4x USB 3.2 Gen1 Type-A Ports 1x USB 3.2 Gen2 Type-C Port 1x USB4 Card Connector (JTBT_U4_1, RTD3) |
| Dimensions | 12.00" x 9.60" |
| Operating System | Windows® 11 64-bit, Windows® 10 64-bit |
| Manufacturer Warranty | 3 Years |
