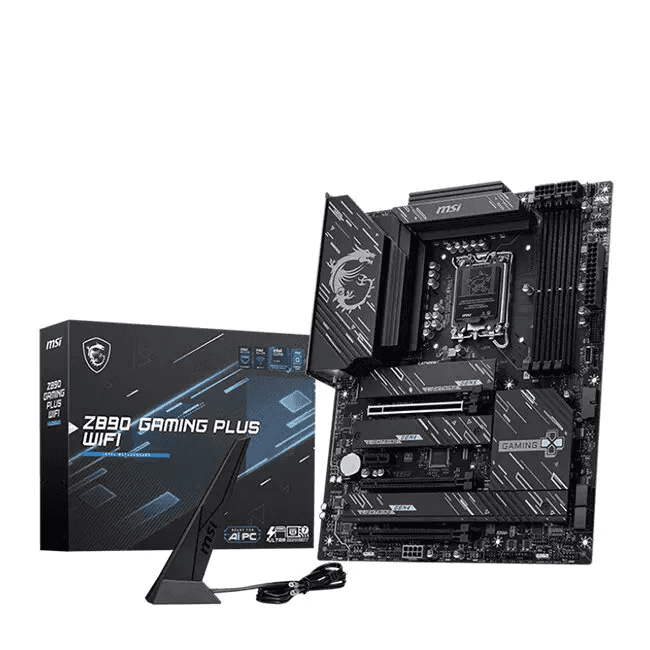

MSI Z890 GAMING PLUS WIFI LGA 1851 ATX Motherboard, INTEL Z890 Chipset, 4x DDR5 UDIMM, Max Memory 256GB, 4x M.2, 4x SATA 6G, Wi-Fi 7 & BT 5.4 | 911-7E34-002
Model :
SKU : MB-MSI Z890 GAMING PLUS W
About this item
Description
MSI Z890 GAMING PLUS WIFI LGA 1851 ATX Motherboard, INTEL Z890 Chipset, 4x DDR5 UDIMM, Max Memory 256GB, 4x M.2, 4x SATA 6G, Wi-Fi 7 & BT 5.4| 911-7E34-002 Specifications
| Chipset | INTEL Z890 |
| CPU | Supports Intel?? Core??? Ultra Processors (Series 2), LGA 1851 |
| Memory | 4x DDR5 UDIMM, Maximum Memory Capacity 256GB |
| Memory Support | 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s |
| Overclocking Frequency |
??? 1DPC 1R Max speed up to 9200+ MT/s ??? 1DPC 2R Max speed up to 7200+ MT/s ??? 2DPC 1R Max speed up to 4800+ MT/s ??? 2DPC 2R Max speed up to 4800+ MT/s |
| Memory Features | Supports Intel?? POR Speed, JEDEC Speed, Memory Overclocking, Intel?? XMP 3.0, Dual-Controller Dual-Channel mode, Non-ECC, Un-buffered memory, CUDIMM |
| Onboard Graphics |
1x HDMI??? 2.1 (max resolution of 4K 60Hz) 1x DisplayPort 1.4 (max resolution of 4K 60Hz) 1x Type-C DisplayPort (Thunderbolt??? 4, DisplayPort 2.1, 4K@120Hz / 8K@60Hz) |
| Expansion Slots |
3x PCI-E x16 slots, 1x PCI-E x1 slot PCI_E1 (Gen PCIe 5.0, x16 from CPU) PCI_E2, PCI_E3, PCI_E4 (Gen PCIe 4.0 from Chipset) |
| Audio | Realtek?? ALC897 Codec, 7.1-Channel High Definition Audio |
| Storage |
4x M.2 slots ??? M.2_1 (PCIe 5.0 x4 from CPU) ??? M.2_2, M.2_3, M.2_4 (PCIe 4.0 x4 from Chipset, with M.2_4 supporting SATA mode) 4x SATA 6G |
| RAID | Supports RAID 0, 1, 5, 10 for SATA and M.2 NVMe |
| Onboard Thunderbolt | 1x Thunderbolt 4 port (40Gbps, 8K display, USB4 & USB 3.2 support) |
| USB Ports |
Rear: 4x USB 2.0, 2x USB 5Gbps Type A, 1x USB 10Gbps Type A, 1x USB 10Gbps Type C Front: 4x USB 2.0, 4x USB 5Gbps Type A, 1x USB 20Gbps Type C |
| LAN | Intel?? Killer??? E5000 5Gbps LAN |
| Internal IO | Thunderbolt 5 card connector, Power Connectors, CPU/Combo/System Fan connectors, RGB/Addressable RGB connectors, TPM pin header, and more |
| Wireless LAN & Bluetooth | Intel?? Killer??? BE1750x Wi-Fi 7 (2.4GHz, 5GHz, 6GHz, MU-MIMO) and Bluetooth?? 5.4 |
| LED Feature | 4x EZ Debug LED |
Specification
MSI Z890 GAMING PLUS WIFI LGA 1851 ATX Motherboard, INTEL Z890 Chipset, 4x DDR5 UDIMM, Max Memory 256GB, 4x M.2, 4x SATA 6G, Wi-Fi 7 & BT 5.4| 911-7E34-002 Specifications
| Chipset | INTEL Z890 |
| CPU | Supports Intel?? Core??? Ultra Processors (Series 2), LGA 1851 |
| Memory | 4x DDR5 UDIMM, Maximum Memory Capacity 256GB |
| Memory Support | 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s |
| Overclocking Frequency |
??? 1DPC 1R Max speed up to 9200+ MT/s ??? 1DPC 2R Max speed up to 7200+ MT/s ??? 2DPC 1R Max speed up to 4800+ MT/s ??? 2DPC 2R Max speed up to 4800+ MT/s |
| Memory Features | Supports Intel?? POR Speed, JEDEC Speed, Memory Overclocking, Intel?? XMP 3.0, Dual-Controller Dual-Channel mode, Non-ECC, Un-buffered memory, CUDIMM |
| Onboard Graphics |
1x HDMI??? 2.1 (max resolution of 4K 60Hz) 1x DisplayPort 1.4 (max resolution of 4K 60Hz) 1x Type-C DisplayPort (Thunderbolt??? 4, DisplayPort 2.1, 4K@120Hz / 8K@60Hz) |
| Expansion Slots |
3x PCI-E x16 slots, 1x PCI-E x1 slot PCI_E1 (Gen PCIe 5.0, x16 from CPU) PCI_E2, PCI_E3, PCI_E4 (Gen PCIe 4.0 from Chipset) |
| Audio | Realtek?? ALC897 Codec, 7.1-Channel High Definition Audio |
| Storage |
4x M.2 slots ??? M.2_1 (PCIe 5.0 x4 from CPU) ??? M.2_2, M.2_3, M.2_4 (PCIe 4.0 x4 from Chipset, with M.2_4 supporting SATA mode) 4x SATA 6G |
| RAID | Supports RAID 0, 1, 5, 10 for SATA and M.2 NVMe |
| Onboard Thunderbolt | 1x Thunderbolt 4 port (40Gbps, 8K display, USB4 & USB 3.2 support) |
| USB Ports |
Rear: 4x USB 2.0, 2x USB 5Gbps Type A, 1x USB 10Gbps Type A, 1x USB 10Gbps Type C Front: 4x USB 2.0, 4x USB 5Gbps Type A, 1x USB 20Gbps Type C |
| LAN | Intel?? Killer??? E5000 5Gbps LAN |
| Internal IO | Thunderbolt 5 card connector, Power Connectors, CPU/Combo/System Fan connectors, RGB/Addressable RGB connectors, TPM pin header, and more |
| Wireless LAN & Bluetooth | Intel?? Killer??? BE1750x Wi-Fi 7 (2.4GHz, 5GHz, 6GHz, MU-MIMO) and Bluetooth?? 5.4 |
| LED Feature | 4x EZ Debug LED |
0Inclusive of VAT
