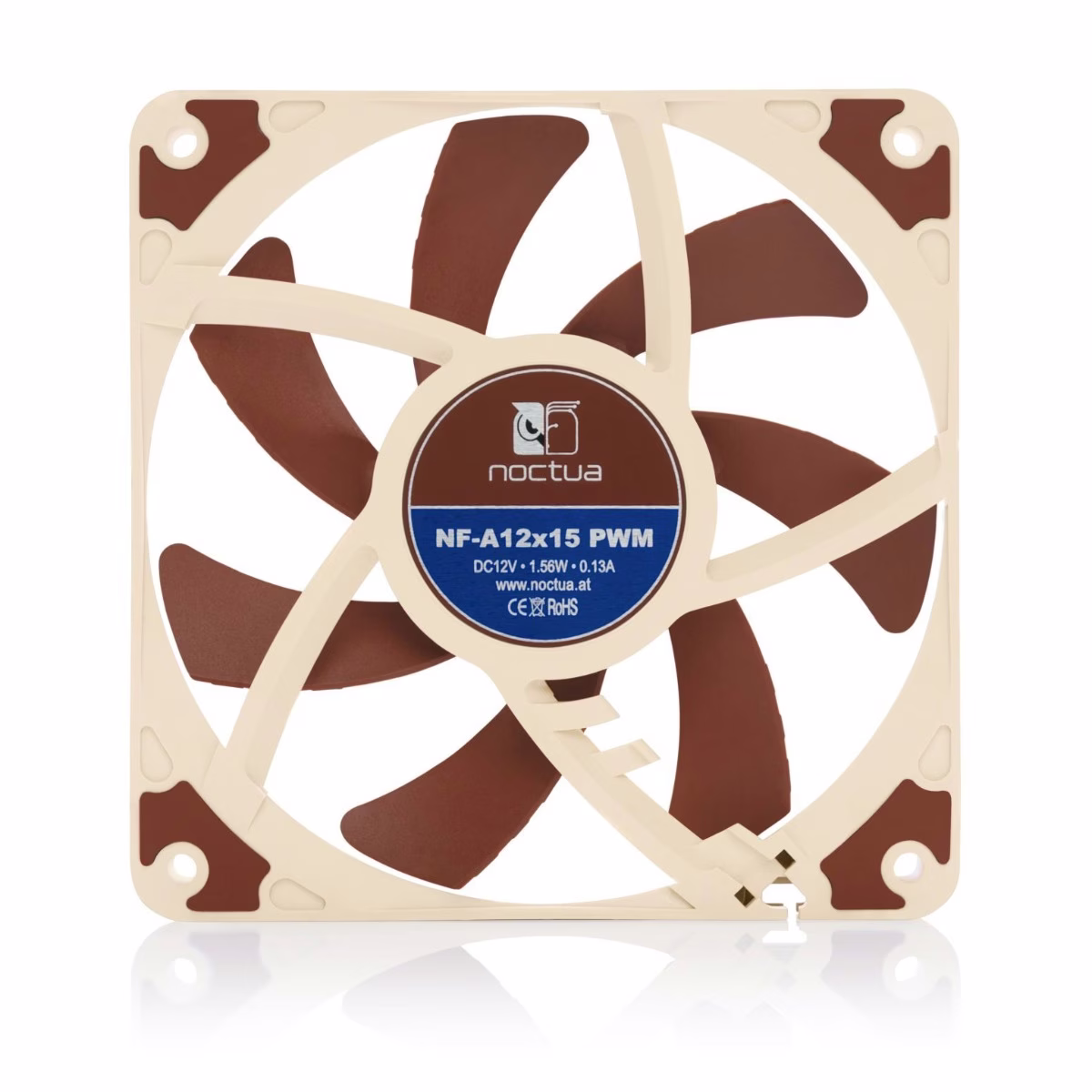

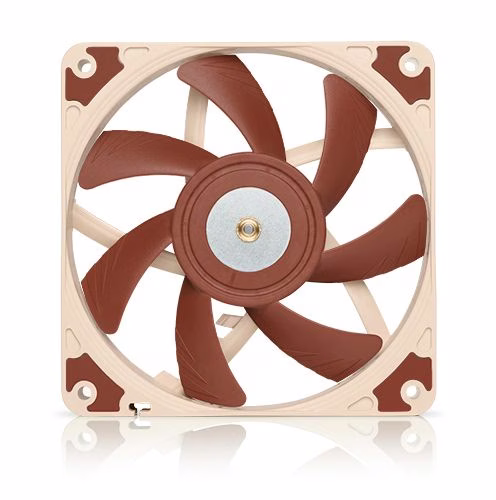

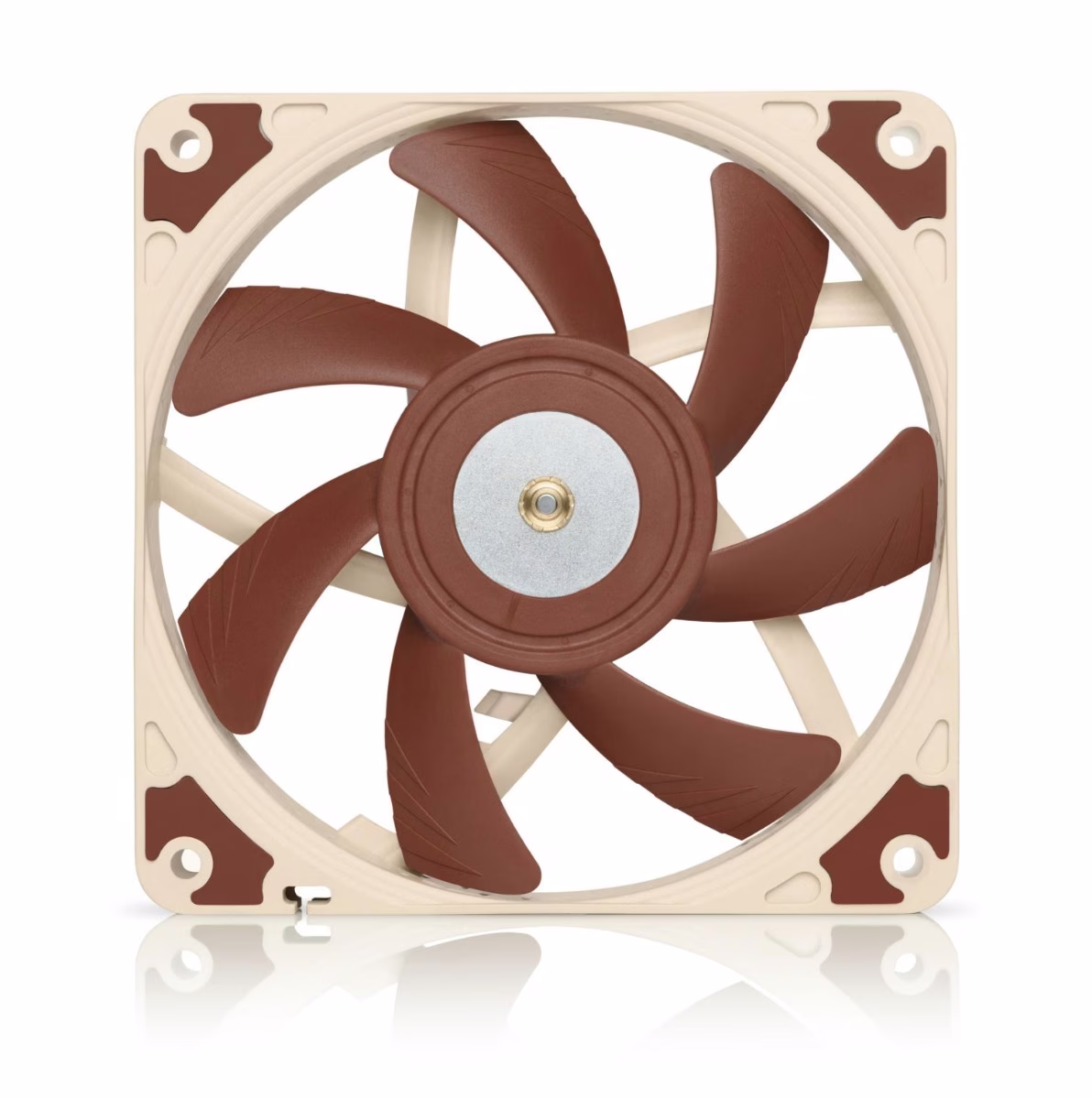

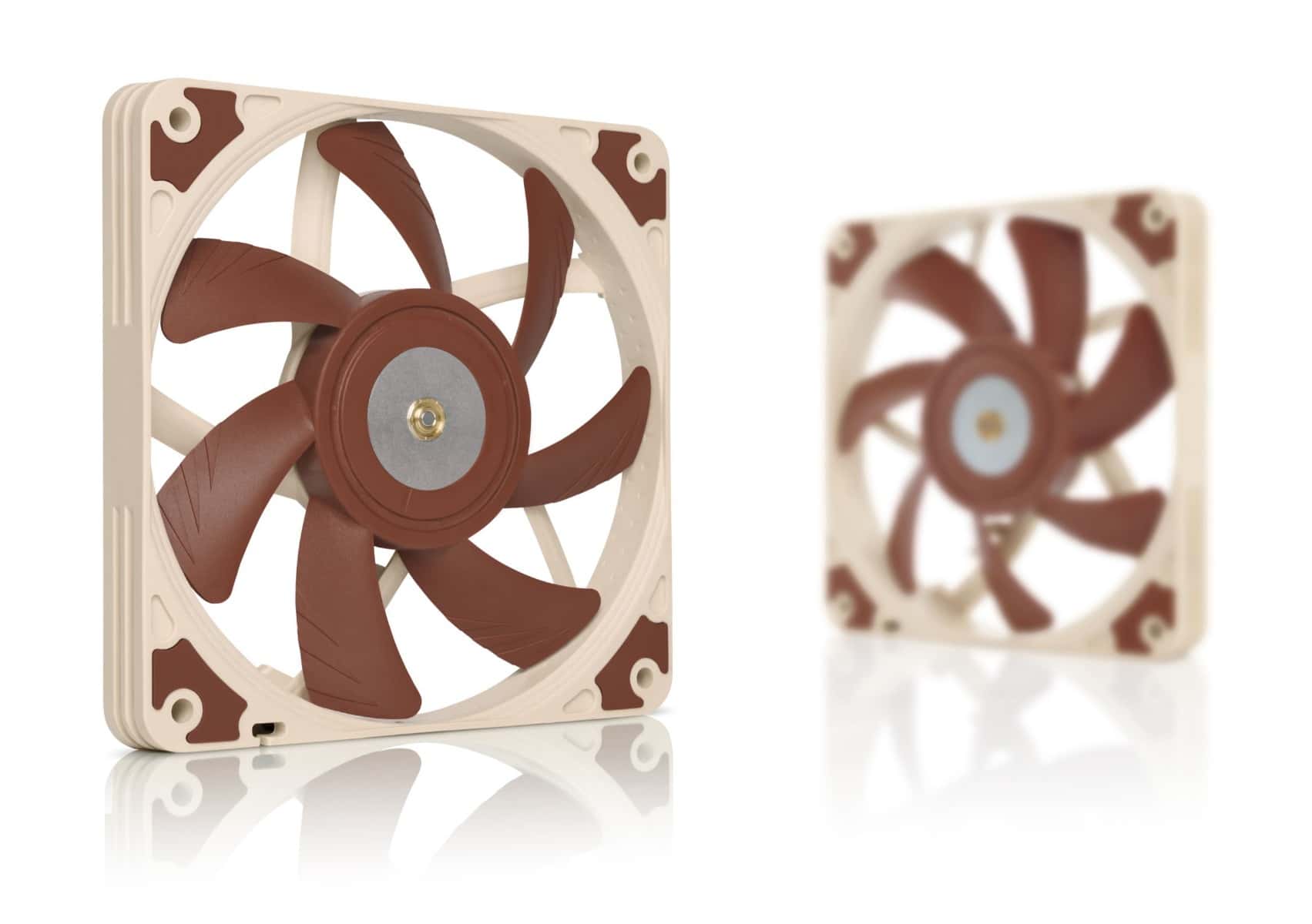

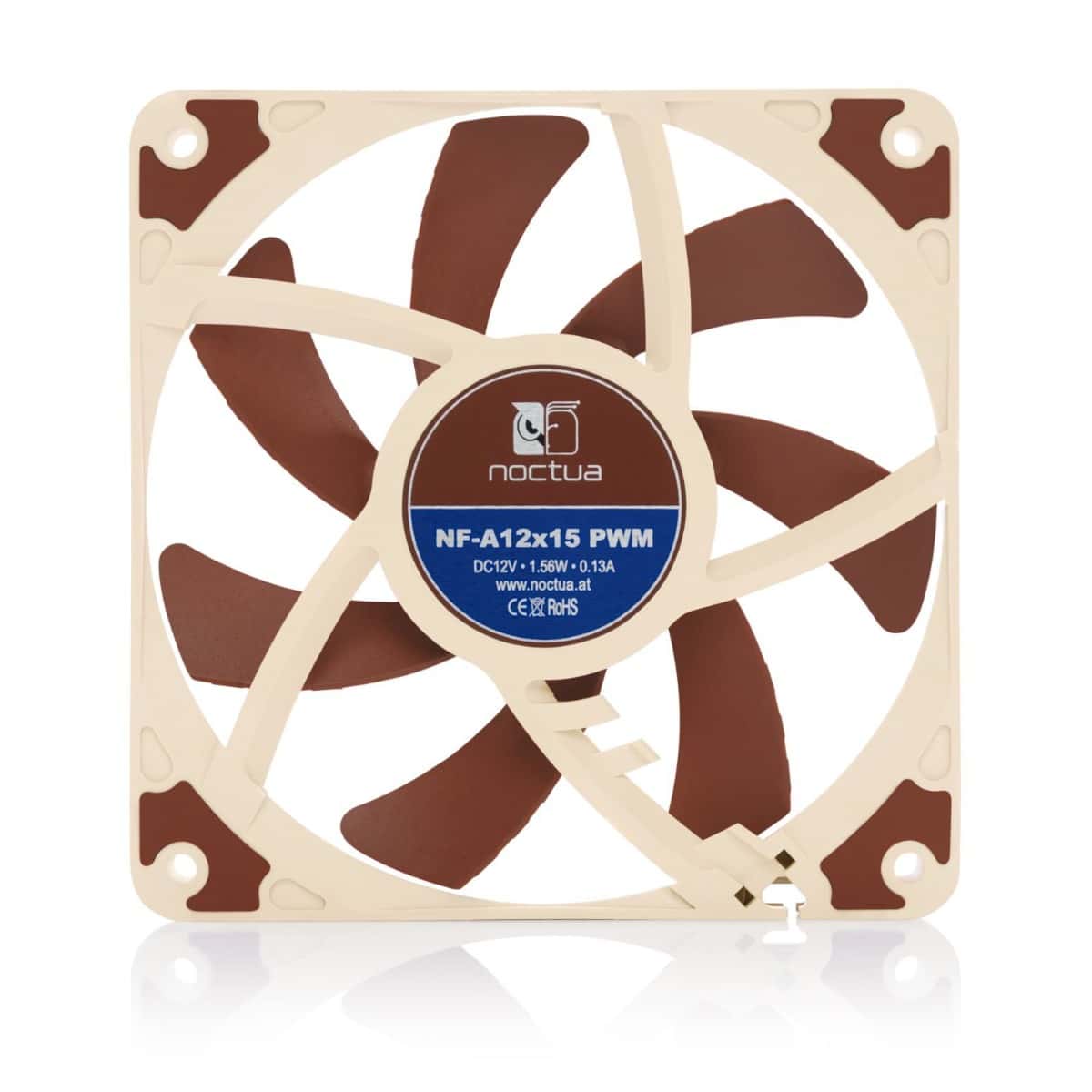

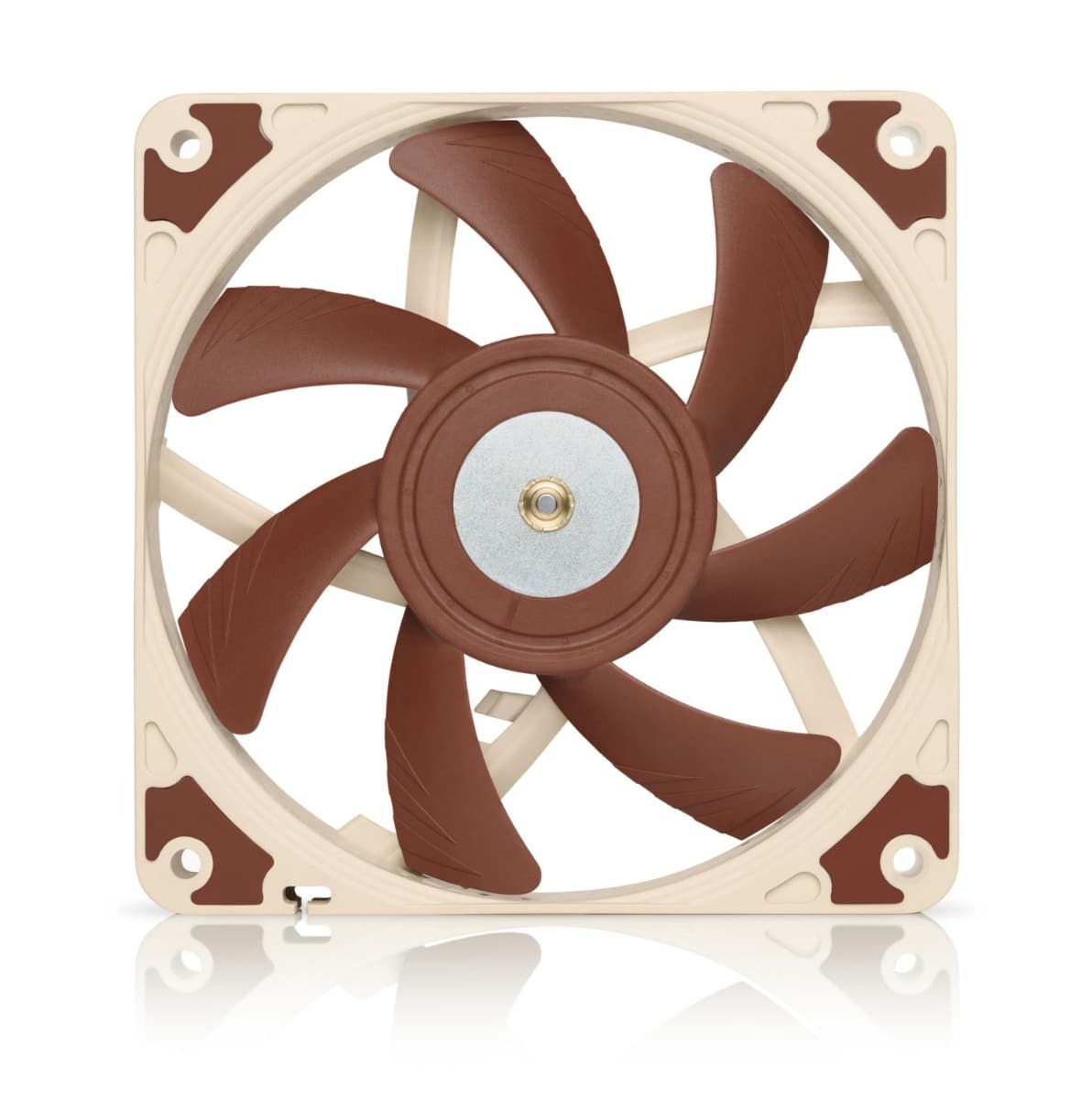

Noctua NF-A12x15 PWM, Premium Quiet Slim Fan, 4-Pin (120x15mm, Brown), 15mm slim design, Metal-reinforced motor hub, Stepped Inlet Design, AAO frame
Model :
SKU : CF-NOCTUA NF-A12X15 PWM
About this item
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
table { border-collapse: collapse; width: 100%; } tr { border-bottom: 1px solid rgb(222, 226, 230); } td { padding: 8px; margin: 0; } td:first-child { font-weight: bold; color: #333; } h3 { margin-top: 10px; }
Noctua NF-A12x15 PWM, Premium Quiet Slim Fan, 4-Pin (120x15mm, Brown), 15mm slim design, Metal-reinforced motor hub, Stepped Inlet Design, AAO frame
| Size | 120x120x15 mm |
| Mounting hole spacing | 105x105 mm |
| Connector & pin-configuration | 4-pin PWM |
| Cable length | 20cm + 30cm NA-EC1 extension cable |
| Bearing | SSO2 |
| Blade geometry | A-Series with Flow Acceleration Channels |
| Frame technology | AAO (Advanced Acoustic Optimisation) |
| Rotational speed (+/- 10%) | 1850 RPM |
| Rotational speed with L.N.A. (+/- 10%) | 1400 RPM |
| Min. rotational speed @ 20% PWM (+/-20%) | 450 RPM |
| Airflow | 94.2 m??/h |
| Airflow with L.N.A. | 70.8 m??/h |
| Acoustical noise | 23.9 dB(A) |
| Acoustical noise with L.N.A. | 16.8 dB(A) |
| Static pressure | 1.53 mm H???O |
| Static pressure with L.N.A. | 0.9 mm H???O |
| Input power (typical) | 1.27 W |
| Input power (max.) | 1.56 W |
| Input current (typical) | 0.11 A |
| Max. input current | 0.13 A |
| Operating voltage | 12 V |
| Voltage PWM signal | 5 V |
| MTTF | > 150,000 h |

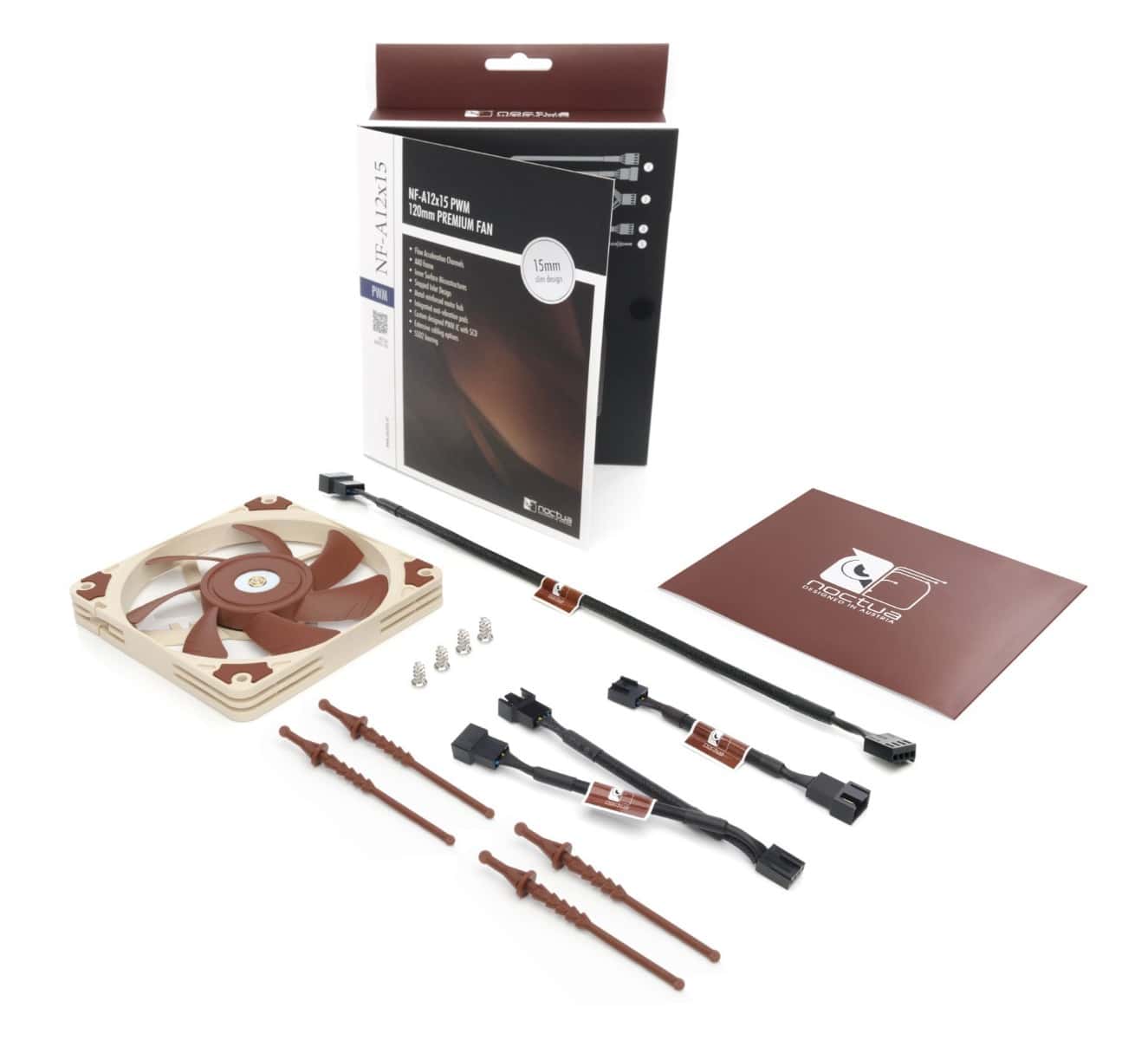

| Scope of delivery | Low-Noise Adaptor (L.N.A.) 4-pin y-cable 30cm extension cable NA-AV3 anti-vibration mounts Fan screws |
| Warranty | 6 years |
Specification
table { border-collapse: collapse; width: 100%; } tr { border-bottom: 1px solid rgb(222, 226, 230); } td { padding: 8px; margin: 0; } td:first-child { font-weight: bold; color: #333; } h3 { margin-top: 10px; }
Noctua NF-A12x15 PWM, Premium Quiet Slim Fan, 4-Pin (120x15mm, Brown), 15mm slim design, Metal-reinforced motor hub, Stepped Inlet Design, AAO frame
| Size | 120x120x15 mm |
| Mounting hole spacing | 105x105 mm |
| Connector & pin-configuration | 4-pin PWM |
| Cable length | 20cm + 30cm NA-EC1 extension cable |
| Bearing | SSO2 |
| Blade geometry | A-Series with Flow Acceleration Channels |
| Frame technology | AAO (Advanced Acoustic Optimisation) |
| Rotational speed (+/- 10%) | 1850 RPM |
| Rotational speed with L.N.A. (+/- 10%) | 1400 RPM |
| Min. rotational speed @ 20% PWM (+/-20%) | 450 RPM |
| Airflow | 94.2 m??/h |
| Airflow with L.N.A. | 70.8 m??/h |
| Acoustical noise | 23.9 dB(A) |
| Acoustical noise with L.N.A. | 16.8 dB(A) |
| Static pressure | 1.53 mm H???O |
| Static pressure with L.N.A. | 0.9 mm H???O |
| Input power (typical) | 1.27 W |
| Input power (max.) | 1.56 W |
| Input current (typical) | 0.11 A |
| Max. input current | 0.13 A |
| Operating voltage | 12 V |
| Voltage PWM signal | 5 V |
| MTTF | > 150,000 h |
| Scope of delivery | Low-Noise Adaptor (L.N.A.) 4-pin y-cable 30cm extension cable NA-AV3 anti-vibration mounts Fan screws |
| Warranty | 6 years |
