NZXT AMD B650E N7 AM5 ATX Motherboard, AMD B650 Chipset, 4x DDR5 DIMM, Max 128GB Memory, 3x M.2, 4x SATA, PCIe 5.0 ??16, AMD RDNA 2 Graphics, 1x HDMI, 2.5G LAN, USB 2.0x2 USB Type-C, Black | N7-B65XT-B1
Model :
SKU : MB-NZXT N7 B650E AMD BLAC
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
NZXT AMD B650E N7 AM5 ATX Motherboard, AMD B650 Chipset, 4x DDR5 DIMM, Max 128GB Memory, 3x M.2, 4x SATA, PCIe 5.0 ??16, AMD RDNA 2 Graphics, 1x HDMI, 2.5G LAN, USB 2.0x2 USB Type-C, Black | N7-B65XT-B1 Specifications
| CPU | |
|---|---|
| Supported Processors | AMD Socket AM5 for AMD Ryzen??? 9000, 8000, and 7000 Series |
| Chipset | |
| Chipset | AMD B650E |
| Memory | |
| DIMM Slots | 4, DDR5 only |
| Max Memory Support | 128GB |
| Memory Architecture | Dual-Channel |
| OC Frequency | DDR5 Non-ECC, Un-buffered Memory up to 7200+ (OC) |
| XMP / EXPO Support | Supported |
| Expansion Slots | |
| PCIe 5.0 ??16 slot (PCIEX16_1) | 1 (Supports NVMe SSD as boot disks) |
| PCIe 4.0 ??16 slots (PCIEX16_2 & PCIEX16_3) | 2 (Supports NVMe SSD as boot disks) |
| M.2 Socket (Key E) | 1 (Type 2230 Wi-Fi/BT PCIe Wi-Fi module) |
| Integrated Graphics | |
| Integrated Graphics | AMD RDNA??? 2 |
| HDMI 2.1 TMD Compatible | Supported (up to 4K 60Hz) |
| HDR / HDCP 2.3 | Supported |
| Storage | |
| M.2 Slots | M.2_1 (PCIe 5.0 x4), M.2_2 (PCIe 4.0 x4), M.2_3 (PCIe 4.0 x2) |
| SATA 6Gb/s Ports | 4 |
| RAID Support | RAID 0/1/10 for SATA & M.2 NVMe devices |
| Networking | |
| LAN | Realtek?? RTL8125BG 2.5G LAN |
| Wireless | 802.11ax Wi-Fi 6E, Bluetooth V5.2 |
| Audio | |
| Codec | Realtek?? ALC1220 |

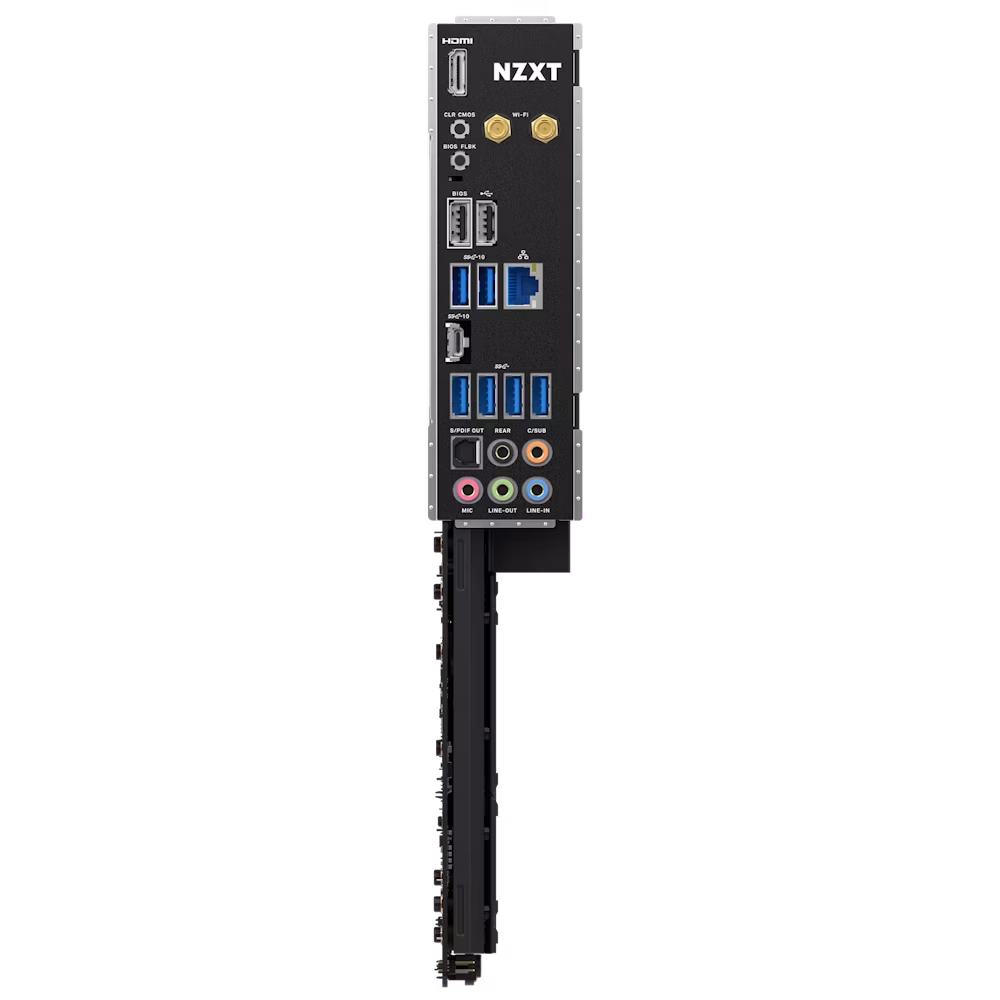

| Rear I/O | |
| Wireless Antenna SMA Connectors | 2 |
| HDMI??? Port | 1 |
| USB Ports | 2x USB 2.0, 1x USB 3.2 Gen 2 Type-C, 2x USB 3.2 Gen 2, 4x USB 3.2 Gen 1 |
| Buttons | Clear CMOS, BIOS Flashback |
| LAN (RJ45) Port | 1 |
| Audio Jacks | 5 |
| Optical S/PDIF Out Port | 1 |
| Internal I/O | |
| Power Connectors | 24-pin ATX, 8+4-pin ATX 12V |
| Fan Connectors | 1x CPU_FAN, 1x AIO_PUMP, 5x SYS_FAN |
| NZXT RGB LED Connectors | 4 |
| 5V ARGB LED Connectors | 2 |
| USB Headers | 3x USB 2.0, 2x USB 3.2 Gen1, 1x USB 3.2 Gen2x2 front panel (Type-C) |
| Other Connectors | Front panel audio, Power button, Reset button, POST LEDs |
| General | |
| System Requirements | NZXT CAM software (Windows?? 11/10) |
| Form Factor | ATX |
| Warranty | 3 years |
| Certifications | FCC, CE, WHQL, ErP/EuP Ready |
| Model Number | N7-B65XT-W1 (White) / N7-B65XT-B1 (Black) |
| UPC | 810074842877 (White) / 810074842884 (Black) |
| EAN | 5056547202815 (White) / 5056547202822 (Black) |
Specification
NZXT AMD B650E N7 AM5 ATX Motherboard, AMD B650 Chipset, 4x DDR5 DIMM, Max 128GB Memory, 3x M.2, 4x SATA, PCIe 5.0 ??16, AMD RDNA 2 Graphics, 1x HDMI, 2.5G LAN, USB 2.0x2 USB Type-C, Black | N7-B65XT-B1 Specifications
| CPU | |
|---|---|
| Supported Processors | AMD Socket AM5 for AMD Ryzen??? 9000, 8000, and 7000 Series |
| Chipset | |
| Chipset | AMD B650E |
| Memory | |
| DIMM Slots | 4, DDR5 only |
| Max Memory Support | 128GB |
| Memory Architecture | Dual-Channel |
| OC Frequency | DDR5 Non-ECC, Un-buffered Memory up to 7200+ (OC) |
| XMP / EXPO Support | Supported |
| Expansion Slots | |
| PCIe 5.0 ??16 slot (PCIEX16_1) | 1 (Supports NVMe SSD as boot disks) |
| PCIe 4.0 ??16 slots (PCIEX16_2 & PCIEX16_3) | 2 (Supports NVMe SSD as boot disks) |
| M.2 Socket (Key E) | 1 (Type 2230 Wi-Fi/BT PCIe Wi-Fi module) |
| Integrated Graphics | |
| Integrated Graphics | AMD RDNA??? 2 |
| HDMI 2.1 TMD Compatible | Supported (up to 4K 60Hz) |
| HDR / HDCP 2.3 | Supported |
| Storage | |
| M.2 Slots | M.2_1 (PCIe 5.0 x4), M.2_2 (PCIe 4.0 x4), M.2_3 (PCIe 4.0 x2) |
| SATA 6Gb/s Ports | 4 |
| RAID Support | RAID 0/1/10 for SATA & M.2 NVMe devices |
| Networking | |
| LAN | Realtek?? RTL8125BG 2.5G LAN |
| Wireless | 802.11ax Wi-Fi 6E, Bluetooth V5.2 |
| Audio | |
| Codec | Realtek?? ALC1220 |
| Rear I/O | |
| Wireless Antenna SMA Connectors | 2 |
| HDMI??? Port | 1 |
| USB Ports | 2x USB 2.0, 1x USB 3.2 Gen 2 Type-C, 2x USB 3.2 Gen 2, 4x USB 3.2 Gen 1 |
| Buttons | Clear CMOS, BIOS Flashback |
| LAN (RJ45) Port | 1 |
| Audio Jacks | 5 |
| Optical S/PDIF Out Port | 1 |
| Internal I/O | |
| Power Connectors | 24-pin ATX, 8+4-pin ATX 12V |
| Fan Connectors | 1x CPU_FAN, 1x AIO_PUMP, 5x SYS_FAN |
| NZXT RGB LED Connectors | 4 |
| 5V ARGB LED Connectors | 2 |
| USB Headers | 3x USB 2.0, 2x USB 3.2 Gen1, 1x USB 3.2 Gen2x2 front panel (Type-C) |
| Other Connectors | Front panel audio, Power button, Reset button, POST LEDs |
| General | |
| System Requirements | NZXT CAM software (Windows?? 11/10) |
| Form Factor | ATX |
| Warranty | 3 years |
| Certifications | FCC, CE, WHQL, ErP/EuP Ready |
| Model Number | N7-B65XT-W1 (White) / N7-B65XT-B1 (Black) |
| UPC | 810074842877 (White) / 810074842884 (Black) |
| EAN | 5056547202815 (White) / 5056547202822 (Black) |
