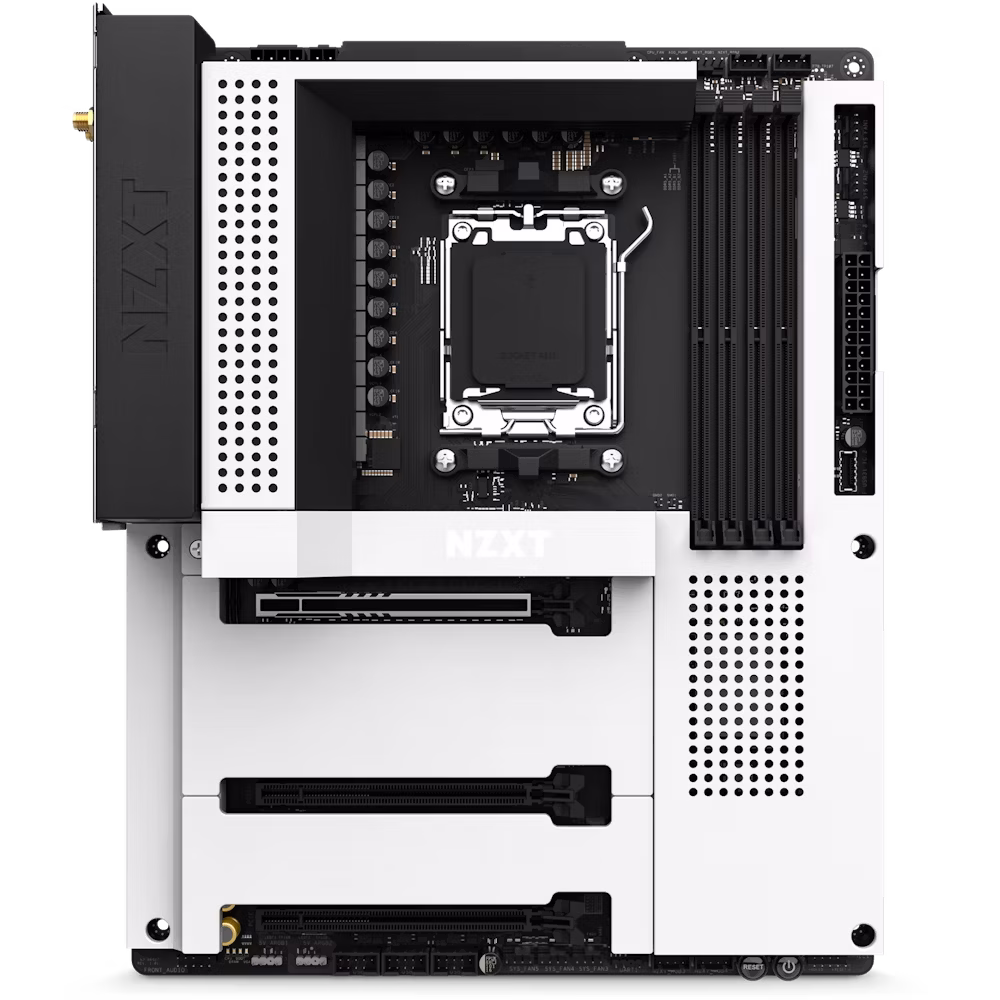

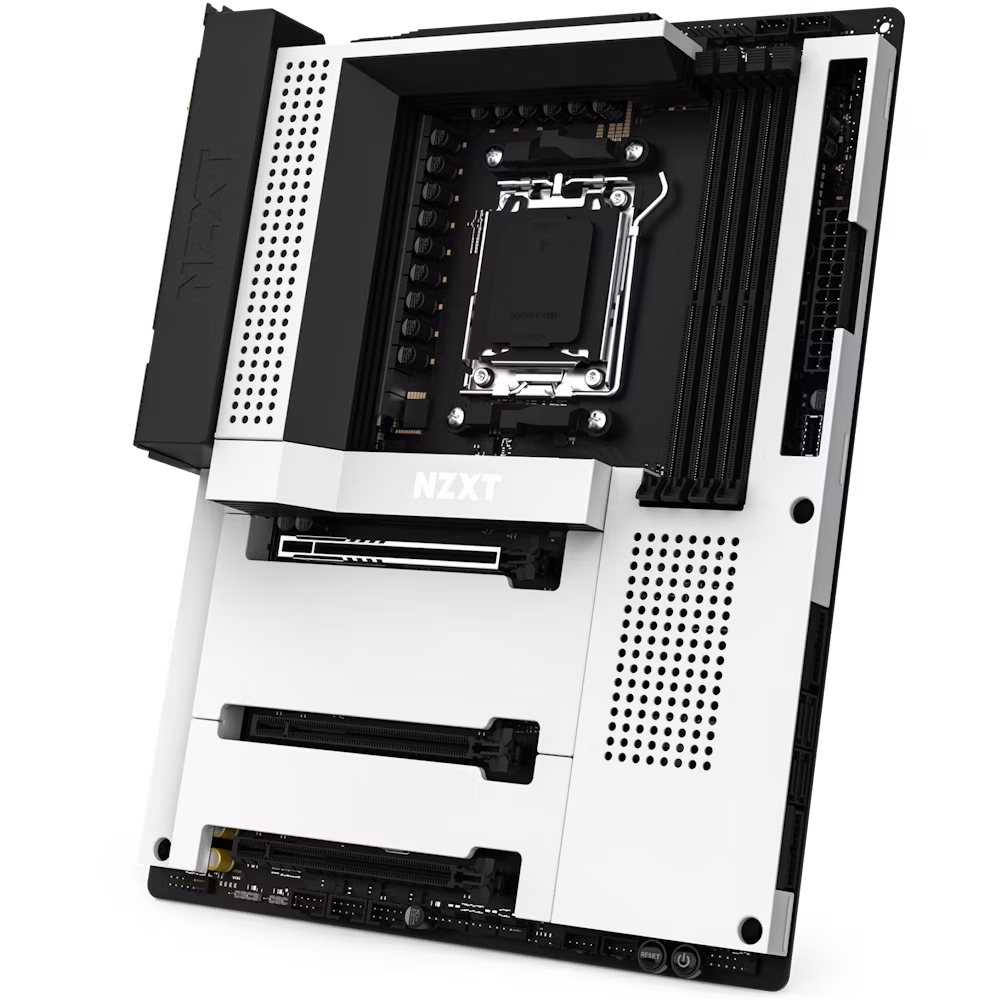

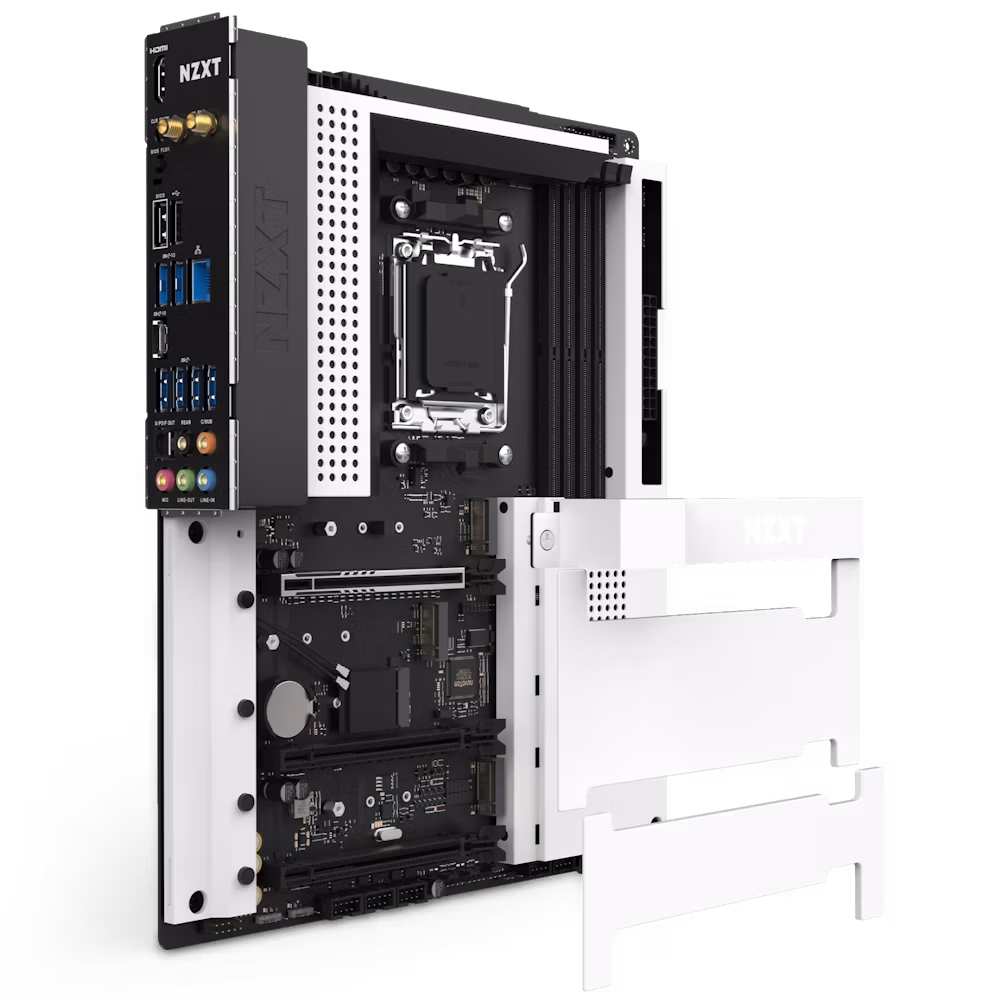

NZXT AMD B650E N7 AM5 ATX Motherboard, AMD B650 Chipset, 4x DDR5 DIMM, Max 128GB Memory, 3x M.2, 4x SATA, PCIe 5.0 ??16, AMD RDNA 2 Graphics, 1x HDMI, 2.5G LAN, USB 2.0x2 USB Type-C, White

Customer Service	Quick Links
Contact Us	My Account
Warranty & Repairs Policy	Cart
Shipping Policy	Wishlist
Online Returns Policy	View All Categories
Payment Terms

Customer Service

Quick Links

My Account

Warranty & Repairs Policy

Cart

Shipping Policy

Wishlist

Online Returns Policy

View All Categories

Payment Terms

CPU

Supported Processors

AMD Socket AM5 for AMD Ryzen??? 9000, 8000, and 7000 Series

Chipset

AMD B650E

Memory

DIMM Slots

4, DDR5 only

Max Memory Support

128GB

Memory Architecture

Dual-Channel

OC Frequency

DDR5 Non-ECC, Un-buffered Memory up to 7200+ (OC)

XMP / EXPO Support

Supported

Expansion Slots

PCIe 5.0 ??16 slot (PCIEX16_1)

1 (Supports NVMe SSD as boot disks)

PCIe 4.0 ??16 slots (PCIEX16_2 & PCIEX16_3)

2 (Supports NVMe SSD as boot disks)

M.2 Socket (Key E)

1 (Type 2230 Wi-Fi/BT PCIe Wi-Fi module)

Integrated Graphics

AMD RDNA??? 2

HDMI 2.1 TMD Compatible

Supported (up to 4K 60Hz)

HDR / HDCP 2.3

Supported

Storage

M.2 Slots

M.2_1 (PCIe 5.0 x4), M.2_2 (PCIe 4.0 x4), M.2_3 (PCIe 4.0 x2)

SATA 6Gb/s Ports

RAID Support

RAID 0/1/10 for SATA & M.2 NVMe devices

Networking

LAN

Realtek?? RTL8125BG 2.5G LAN

Wireless

802.11ax Wi-Fi 6E, Bluetooth V5.2

Audio

Codec

Realtek?? ALC1220

Rear I/O

Wireless Antenna SMA Connectors

HDMI??? Port

USB Ports

2x USB 2.0, 1x USB 3.2 Gen 2 Type-C, 2x USB 3.2 Gen 2, 4x USB 3.2 Gen 1

Buttons

Clear CMOS, BIOS Flashback

LAN (RJ45) Port

Audio Jacks

Optical S/PDIF Out Port

Internal I/O

Power Connectors

24-pin ATX, 8+4-pin ATX 12V

Fan Connectors

1x CPU_FAN, 1x AIO_PUMP, 5x SYS_FAN

NZXT RGB LED Connectors

5V ARGB LED Connectors

USB Headers

3x USB 2.0, 2x USB 3.2 Gen1, 1x USB 3.2 Gen2x2 front panel (Type-C)

Other Connectors

Front panel audio, Power button, Reset button, POST LEDs

General

System Requirements

NZXT CAM software (Windows?? 11/10)

Form Factor

ATX

Warranty

3 years

Certifications

FCC, CE, WHQL, ErP/EuP Ready

Model Number

N7-B65XT-W1 (White) / N7-B65XT-B1 (Black)

UPC

810074842877 (White) / 810074842884 (Black)

EAN

5056547202815 (White) / 5056547202822 (Black)

CPU

Supported Processors

AMD Socket AM5 for AMD Ryzen??? 9000, 8000, and 7000 Series

Chipset

AMD B650E

Memory

DIMM Slots

4, DDR5 only

Max Memory Support

128GB

Memory Architecture

Dual-Channel

OC Frequency

DDR5 Non-ECC, Un-buffered Memory up to 7200+ (OC)

XMP / EXPO Support

Supported

Expansion Slots

PCIe 5.0 ??16 slot (PCIEX16_1)

1 (Supports NVMe SSD as boot disks)

PCIe 4.0 ??16 slots (PCIEX16_2 & PCIEX16_3)

2 (Supports NVMe SSD as boot disks)

M.2 Socket (Key E)

1 (Type 2230 Wi-Fi/BT PCIe Wi-Fi module)

Integrated Graphics

AMD RDNA??? 2

HDMI 2.1 TMD Compatible

Supported (up to 4K 60Hz)

HDR / HDCP 2.3

Supported

Storage

M.2 Slots

M.2_1 (PCIe 5.0 x4), M.2_2 (PCIe 4.0 x4), M.2_3 (PCIe 4.0 x2)

SATA 6Gb/s Ports

RAID Support

RAID 0/1/10 for SATA & M.2 NVMe devices

Networking

LAN

Realtek?? RTL8125BG 2.5G LAN

Wireless

802.11ax Wi-Fi 6E, Bluetooth V5.2

Audio

Codec

Realtek?? ALC1220

Rear I/O

Wireless Antenna SMA Connectors

HDMI??? Port

USB Ports

2x USB 2.0, 1x USB 3.2 Gen 2 Type-C, 2x USB 3.2 Gen 2, 4x USB 3.2 Gen 1

Buttons

Clear CMOS, BIOS Flashback

LAN (RJ45) Port

Audio Jacks

Optical S/PDIF Out Port

Internal I/O

Power Connectors

24-pin ATX, 8+4-pin ATX 12V

Fan Connectors

1x CPU_FAN, 1x AIO_PUMP, 5x SYS_FAN

NZXT RGB LED Connectors

5V ARGB LED Connectors

USB Headers

3x USB 2.0, 2x USB 3.2 Gen1, 1x USB 3.2 Gen2x2 front panel (Type-C)

Other Connectors

Front panel audio, Power button, Reset button, POST LEDs

General

System Requirements

NZXT CAM software (Windows?? 11/10)

Form Factor

ATX

Warranty

3 years

Certifications

FCC, CE, WHQL, ErP/EuP Ready

Model Number

N7-B65XT-W1 (White) / N7-B65XT-B1 (Black)

UPC

810074842877 (White) / 810074842884 (Black)

EAN

5056547202815 (White) / 5056547202822 (Black)

Description

NZXT AMD B650E N7 AM5 ATX Motherboard, AMD B650 Chipset, 4x DDR5 DIMM, Max 128GB Memory, 3x M.2, 4x SATA, PCIe 5.0 ??16, AMD RDNA 2 Graphics, 1x HDMI, 2.5G LAN, USB 2.0x2 USB Type-C, Black | N7-B65XT-B1 Specifications

CPU
Supported Processors	AMD Socket AM5 for AMD Ryzen??? 9000, 8000, and 7000 Series
Chipset
Chipset	AMD B650E
Memory
DIMM Slots	4, DDR5 only
Max Memory Support	128GB
Memory Architecture	Dual-Channel
OC Frequency	DDR5 Non-ECC, Un-buffered Memory up to 7200+ (OC)
XMP / EXPO Support	Supported
Expansion Slots
PCIe 5.0 ??16 slot (PCIEX16_1)	1 (Supports NVMe SSD as boot disks)
PCIe 4.0 ??16 slots (PCIEX16_2 & PCIEX16_3)	2 (Supports NVMe SSD as boot disks)
M.2 Socket (Key E)	1 (Type 2230 Wi-Fi/BT PCIe Wi-Fi module)
Integrated Graphics
Integrated Graphics	AMD RDNA??? 2
HDMI 2.1 TMD Compatible	Supported (up to 4K 60Hz)
HDR / HDCP 2.3	Supported
Storage
M.2 Slots	M.2_1 (PCIe 5.0 x4), M.2_2 (PCIe 4.0 x4), M.2_3 (PCIe 4.0 x2)
SATA 6Gb/s Ports	4
RAID Support	RAID 0/1/10 for SATA & M.2 NVMe devices
Networking
LAN	Realtek?? RTL8125BG 2.5G LAN
Wireless	802.11ax Wi-Fi 6E, Bluetooth V5.2
Audio
Codec	Realtek?? ALC1220
Rear I/O
Wireless Antenna SMA Connectors	2
HDMI??? Port	1
USB Ports	2x USB 2.0, 1x USB 3.2 Gen 2 Type-C, 2x USB 3.2 Gen 2, 4x USB 3.2 Gen 1
Buttons	Clear CMOS, BIOS Flashback
LAN (RJ45) Port	1
Audio Jacks	5
Optical S/PDIF Out Port	1
Internal I/O
Power Connectors	24-pin ATX, 8+4-pin ATX 12V
Fan Connectors	1x CPU_FAN, 1x AIO_PUMP, 5x SYS_FAN
NZXT RGB LED Connectors	4
5V ARGB LED Connectors	2
USB Headers	3x USB 2.0, 2x USB 3.2 Gen1, 1x USB 3.2 Gen2x2 front panel (Type-C)
Other Connectors	Front panel audio, Power button, Reset button, POST LEDs
General
System Requirements	NZXT CAM software (Windows?? 11/10)
Form Factor	ATX
Warranty	3 years
Certifications	FCC, CE, WHQL, ErP/EuP Ready
Model Number	N7-B65XT-W1 (White) / N7-B65XT-B1 (Black)
UPC	810074842877 (White) / 810074842884 (Black)
EAN	5056547202815 (White) / 5056547202822 (Black)

Specification

NZXT AMD B650E N7 AM5 ATX Motherboard, AMD B650 Chipset, 4x DDR5 DIMM, Max 128GB Memory, 3x M.2, 4x SATA, PCIe 5.0 ??16, AMD RDNA 2 Graphics, 1x HDMI, 2.5G LAN, USB 2.0x2 USB Type-C, Black | N7-B65XT-B1 Specifications

CPU
Supported Processors	AMD Socket AM5 for AMD Ryzen??? 9000, 8000, and 7000 Series
Chipset
Chipset	AMD B650E
Memory
DIMM Slots	4, DDR5 only
Max Memory Support	128GB
Memory Architecture	Dual-Channel
OC Frequency	DDR5 Non-ECC, Un-buffered Memory up to 7200+ (OC)
XMP / EXPO Support	Supported
Expansion Slots
PCIe 5.0 ??16 slot (PCIEX16_1)	1 (Supports NVMe SSD as boot disks)
PCIe 4.0 ??16 slots (PCIEX16_2 & PCIEX16_3)	2 (Supports NVMe SSD as boot disks)
M.2 Socket (Key E)	1 (Type 2230 Wi-Fi/BT PCIe Wi-Fi module)
Integrated Graphics
Integrated Graphics	AMD RDNA??? 2
HDMI 2.1 TMD Compatible	Supported (up to 4K 60Hz)
HDR / HDCP 2.3	Supported
Storage
M.2 Slots	M.2_1 (PCIe 5.0 x4), M.2_2 (PCIe 4.0 x4), M.2_3 (PCIe 4.0 x2)
SATA 6Gb/s Ports	4
RAID Support	RAID 0/1/10 for SATA & M.2 NVMe devices
Networking
LAN	Realtek?? RTL8125BG 2.5G LAN
Wireless	802.11ax Wi-Fi 6E, Bluetooth V5.2
Audio
Codec	Realtek?? ALC1220
Rear I/O
Wireless Antenna SMA Connectors	2
HDMI??? Port	1
USB Ports	2x USB 2.0, 1x USB 3.2 Gen 2 Type-C, 2x USB 3.2 Gen 2, 4x USB 3.2 Gen 1
Buttons	Clear CMOS, BIOS Flashback
LAN (RJ45) Port	1
Audio Jacks	5
Optical S/PDIF Out Port	1
Internal I/O
Power Connectors	24-pin ATX, 8+4-pin ATX 12V
Fan Connectors	1x CPU_FAN, 1x AIO_PUMP, 5x SYS_FAN
NZXT RGB LED Connectors	4
5V ARGB LED Connectors	2
USB Headers	3x USB 2.0, 2x USB 3.2 Gen1, 1x USB 3.2 Gen2x2 front panel (Type-C)
Other Connectors	Front panel audio, Power button, Reset button, POST LEDs
General
System Requirements	NZXT CAM software (Windows?? 11/10)
Form Factor	ATX
Warranty	3 years
Certifications	FCC, CE, WHQL, ErP/EuP Ready
Model Number	N7-B65XT-W1 (White) / N7-B65XT-B1 (Black)
UPC	810074842877 (White) / 810074842884 (Black)
EAN	5056547202815 (White) / 5056547202822 (Black)

GIGABYTE B760 DS3H Motherboard, Ultra Durable Series, Intel LGA 1700, DDR5, PCIe Gen5, M.2 Thermal Guard, 2.5GbE LAN, Smart Fan 6 | 9MB76S355-00-G10

564.99

NZXT AMD B650E N7 AM5 ATX Motherboard, AMD B650 Chipset, 4x DDR5 DIMM, Max 128GB Memory, 3x M.2, 4x SATA, PCIe 5.0 ??16, AMD RDNA 2 Graphics, 1x HDMI, 2.5G LAN, USB 2.0x2 USB Type-C, White | N7-B65XT-W1

Description

NZXT AMD B650E N7 AM5 ATX Motherboard, AMD B650 Chipset, 4x DDR5 DIMM, Max 128GB Memory, 3x M.2, 4x SATA, PCIe 5.0 ??16, AMD RDNA 2 Graphics, 1x HDMI, 2.5G LAN, USB 2.0x2 USB Type-C, Black | N7-B65XT-B1 Specifications

Specification

NZXT AMD B650E N7 AM5 ATX Motherboard, AMD B650 Chipset, 4x DDR5 DIMM, Max 128GB Memory, 3x M.2, 4x SATA, PCIe 5.0 ??16, AMD RDNA 2 Graphics, 1x HDMI, 2.5G LAN, USB 2.0x2 USB Type-C, Black | N7-B65XT-B1 Specifications

Similar products

Intel Core Ultra 7 270K Elite Upgrade Bundle, ASUS ROG Strix B860-A Gaming WiFi 7 Motherboard, 64GB Kingston Fury DDR5 6400MHz ARGB White RAM

Intel Core Ultra 7 270K Elite Gaming Rig | MSI MAG Z890 TOMAHAWK WIFI | LGA 1851 Next-Gen PC Build | 36MB Cache | PCIe 5.0 | WiFi 7

GIGABYTE B760 AORUS ELITE AX DDR4 Intel LGA1700 ATX Motherboard, DDR4, PCIe 4.0, Wi-Fi 6E, 2.5GbE LAN | B760 A ELITE AX DDR4

GIGABYTE B850M EAGLE WIFI6E ICE AMD AM5 Micro-ATX Motherboard, White Design, DDR5, PCIe 5.0, Wi-Fi 6E | B850M EAGLE WF6E ICE

GIGABYTE B850M EAGLE WIFI6E AMD AM5 Motherboard, DDR5, PCIe 5.0, Wi-Fi 6E, 2.5GbE LAN | B850M EAGLE WF6E

GIGABYTE B760 GAMING X AX DDR4 Intel LGA1700 ATX Motherboard, DDR4, PCIe 4.0, Wi-Fi 6E, Triple M.2

GIGABYTE B850 AORUS STEALTH AMD AM5 ATX Motherboard, DDR5, PCIe 5.0, Wi-Fi 7, Hidden Connector Design

GIGABYTE X870 AORUS STEALTH ICE AMD AM5 ATX Motherboard, DDR5, PCIe 5.0, Wi-Fi 7, EZ-Latch, Hidden Connector Design

MSI MAG B850M MORTAR WIFI Motherboard, AMD AM5 Socket, B850 Chipset, DDR5, Wi-Fi 7, 5G LAN, mATX | 911-7E61-001

GIGABYTE B760 DS3H Motherboard, Ultra Durable Series, Intel LGA 1700, DDR5, PCIe Gen5, M.2 Thermal Guard, 2.5GbE LAN, Smart Fan 6 | 9MB76S355-00-G10

GIGABYTE B760 GAMING X WIFI6E Motherboard, Intel LGA 1700, DDR5, PCIe Gen5, WiFi 6E, 2.5GbE LAN, Triple M.2, Smart Fan 6 | 9MB76GX65-00-G10

MSI Z790 PROJECT ZERO Gaming Motherboard, Back-Connect Design, LGA 1700, DDR5, PCIe 5.0, WiFi 7, USB 3.2 Gen2, HDMI/DP, 2.5G LAN | 911-7E23-001

ASUS ROG STRIX X870E-A GAMING WIFI Motherboard, NEO AMD AM5, DDR5, WiFi 7, 5Gb LAN, PCIe 5.0, AI Overclocking | 90MB1P30-M0EAY0

MSI PRO B760M-A WIFI DDR4 Motherboard, Intel LGA 1700, 12th/13th/14th Gen Support, Lightning Gen 4, Wi-Fi 6E | 911-7D99-003

ASUS TUF Gaming B850M-E WIFI Motherboard, AM5 Socket, DDR5, PCIe 5.0, WiFi 6E, 2.5Gb LAN, mATX, Supports Ryzen 9000 Series | 90MB1LS0-M0EAY0

ASUS Pro WS B850M-ACE SE Workstation Motherboard, AMD AM5, DDR5, PCIe 5.0, 10Gb LAN, IPMI | 90MB1MN0-M0EAY0

MSI MAG X870E TOMAHAWK MAX WIFI PZ Motherboard, AMD Ryzen AM5, DDR5, PCIe 5.0, WiFi 7, BT 5.4 | 911-7E84-001

MSI PRO H610M-E DDR4 Motherboard, Intel 12th/13th/14th Gen, LGA 1700, PCIe 4.0, Micro-ATX | 911-7D48-012

MSI B850M GAMING PLUS WIFI Motherboard, AMD Ryzen AM5, DDR5, PCIe 5.0, WiFi 7 | 911-7E66-001

MSI PRO Z890-S WIFI Motherboard, Intel Core Ultra Support, LGA 1851, DDR5, PCIe 5.0, WiFi 6E, ATX | 911-7E54-010

MSI PRO Z890-P WIFI Motherboard, Intel Core Ultra Support, LGA 1851, DDR5, PCIe 5.0, WiFi 6E, ATX | 911-7E34-019

MSI PRO B840M-P WIFI 6E Motherboard, AMD Ryzen AM5 Socket, DDR5, PCIe 4.0, mATX | 911-7E77-002

MSI B840 GAMING PLUS WIFI Motherboard, AMD Ryzen AM5 Socket, DDR5, PCIe 4.0, WiFi 6E, ATX | 911-7E57-002

MSI B650M GAMING WIFI Motherboard, AMD Ryzen AM5 Socket, DDR5, PCIe 4.0, mATX | 911-7E30-009

Similar products

Intel Core Ultra 7 270K Elite Upgrade Bundle, ASUS ROG Strix B860-A Gaming WiFi 7 Motherboard, 64GB Kingston Fury DDR5 6400MHz ARGB White RAM

Intel Core Ultra 7 270K Elite Gaming Rig | MSI MAG Z890 TOMAHAWK WIFI | LGA 1851 Next-Gen PC Build | 36MB Cache | PCIe 5.0 | WiFi 7

GIGABYTE B760 AORUS ELITE AX DDR4 Intel LGA1700 ATX Motherboard, DDR4, PCIe 4.0, Wi-Fi 6E, 2.5GbE LAN | B760 A ELITE AX DDR4

GIGABYTE B850M EAGLE WIFI6E ICE AMD AM5 Micro-ATX Motherboard, White Design, DDR5, PCIe 5.0, Wi-Fi 6E | B850M EAGLE WF6E ICE

GIGABYTE B850M EAGLE WIFI6E AMD AM5 Motherboard, DDR5, PCIe 5.0, Wi-Fi 6E, 2.5GbE LAN | B850M EAGLE WF6E

GIGABYTE B760 GAMING X AX DDR4 Intel LGA1700 ATX Motherboard, DDR4, PCIe 4.0, Wi-Fi 6E, Triple M.2

GIGABYTE B850 AORUS STEALTH AMD AM5 ATX Motherboard, DDR5, PCIe 5.0, Wi-Fi 7, Hidden Connector Design

GIGABYTE X870 AORUS STEALTH ICE AMD AM5 ATX Motherboard, DDR5, PCIe 5.0, Wi-Fi 7, EZ-Latch, Hidden Connector Design

MSI MAG B850M MORTAR WIFI Motherboard, AMD AM5 Socket, B850 Chipset, DDR5, Wi-Fi 7, 5G LAN, mATX | 911-7E61-001

GIGABYTE B760 DS3H Motherboard, Ultra Durable Series, Intel LGA 1700, DDR5, PCIe Gen5, M.2 Thermal Guard, 2.5GbE LAN, Smart Fan 6 | 9MB76S355-00-G10

GIGABYTE B760 GAMING X WIFI6E Motherboard, Intel LGA 1700, DDR5, PCIe Gen5, WiFi 6E, 2.5GbE LAN, Triple M.2, Smart Fan 6 | 9MB76GX65-00-G10

MSI Z790 PROJECT ZERO Gaming Motherboard, Back-Connect Design, LGA 1700, DDR5, PCIe 5.0, WiFi 7, USB 3.2 Gen2, HDMI/DP, 2.5G LAN | 911-7E23-001

ASUS ROG STRIX X870E-A GAMING WIFI Motherboard, NEO AMD AM5, DDR5, WiFi 7, 5Gb LAN, PCIe 5.0, AI Overclocking | 90MB1P30-M0EAY0

MSI PRO B760M-A WIFI DDR4 Motherboard, Intel LGA 1700, 12th/13th/14th Gen Support, Lightning Gen 4, Wi-Fi 6E | 911-7D99-003

ASUS TUF Gaming B850M-E WIFI Motherboard, AM5 Socket, DDR5, PCIe 5.0, WiFi 6E, 2.5Gb LAN, mATX, Supports Ryzen 9000 Series | 90MB1LS0-M0EAY0

ASUS Pro WS B850M-ACE SE Workstation Motherboard, AMD AM5, DDR5, PCIe 5.0, 10Gb LAN, IPMI | 90MB1MN0-M0EAY0

MSI MAG X870E TOMAHAWK MAX WIFI PZ Motherboard, AMD Ryzen AM5, DDR5, PCIe 5.0, WiFi 7, BT 5.4 | 911-7E84-001

MSI PRO H610M-E DDR4 Motherboard, Intel 12th/13th/14th Gen, LGA 1700, PCIe 4.0, Micro-ATX | 911-7D48-012

MSI B850M GAMING PLUS WIFI Motherboard, AMD Ryzen AM5, DDR5, PCIe 5.0, WiFi 7 | 911-7E66-001

MSI PRO Z890-S WIFI Motherboard, Intel Core Ultra Support, LGA 1851, DDR5, PCIe 5.0, WiFi 6E, ATX | 911-7E54-010

MSI PRO Z890-P WIFI Motherboard, Intel Core Ultra Support, LGA 1851, DDR5, PCIe 5.0, WiFi 6E, ATX | 911-7E34-019

MSI PRO B840M-P WIFI 6E Motherboard, AMD Ryzen AM5 Socket, DDR5, PCIe 4.0, mATX | 911-7E77-002

MSI B840 GAMING PLUS WIFI Motherboard, AMD Ryzen AM5 Socket, DDR5, PCIe 4.0, WiFi 6E, ATX | 911-7E57-002

MSI B650M GAMING WIFI Motherboard, AMD Ryzen AM5 Socket, DDR5, PCIe 4.0, mATX | 911-7E30-009
