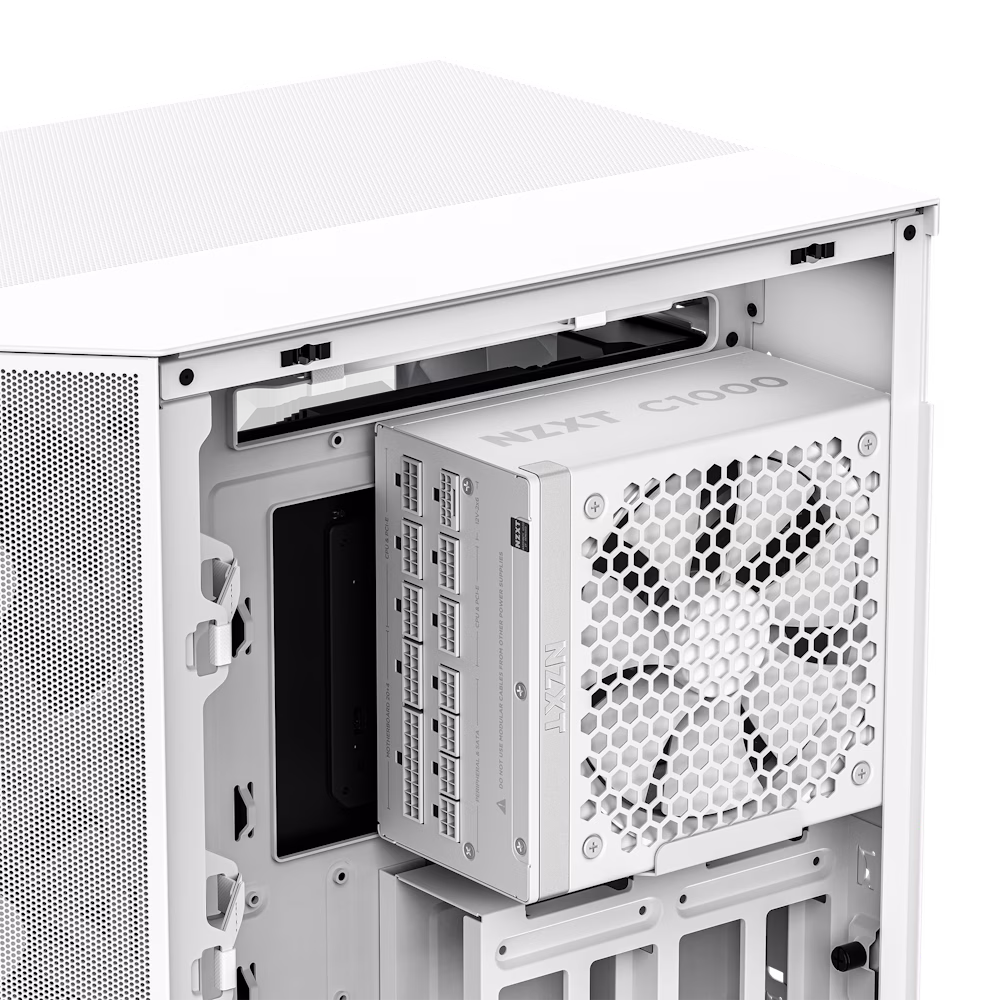

NZXT C1000 80 PLUS Gold Fully Modular Power Supply, 1000W, Fluid Dynamic Bearing, 80 Plus Gold, Japanese Capacitors, Active PF Correction, Matte White | PA-0G2BW-UK

table { border-collapse: collapse; width: 100%; } tr { border-bottom: 1px solid rgb(222, 226, 230); } td { padding: 8px; margin: 0; } td:first-child { font-weight: bold; color: #333; } h3 { margin-top: 10px; }

NZXT C1000 80 PLUS Gold Fully Modular Power Supply, 1000W, Fluid Dynamic Bearing, 80 Plus Gold, Japanese Capacitors, Active PF Correction,Tech Specs

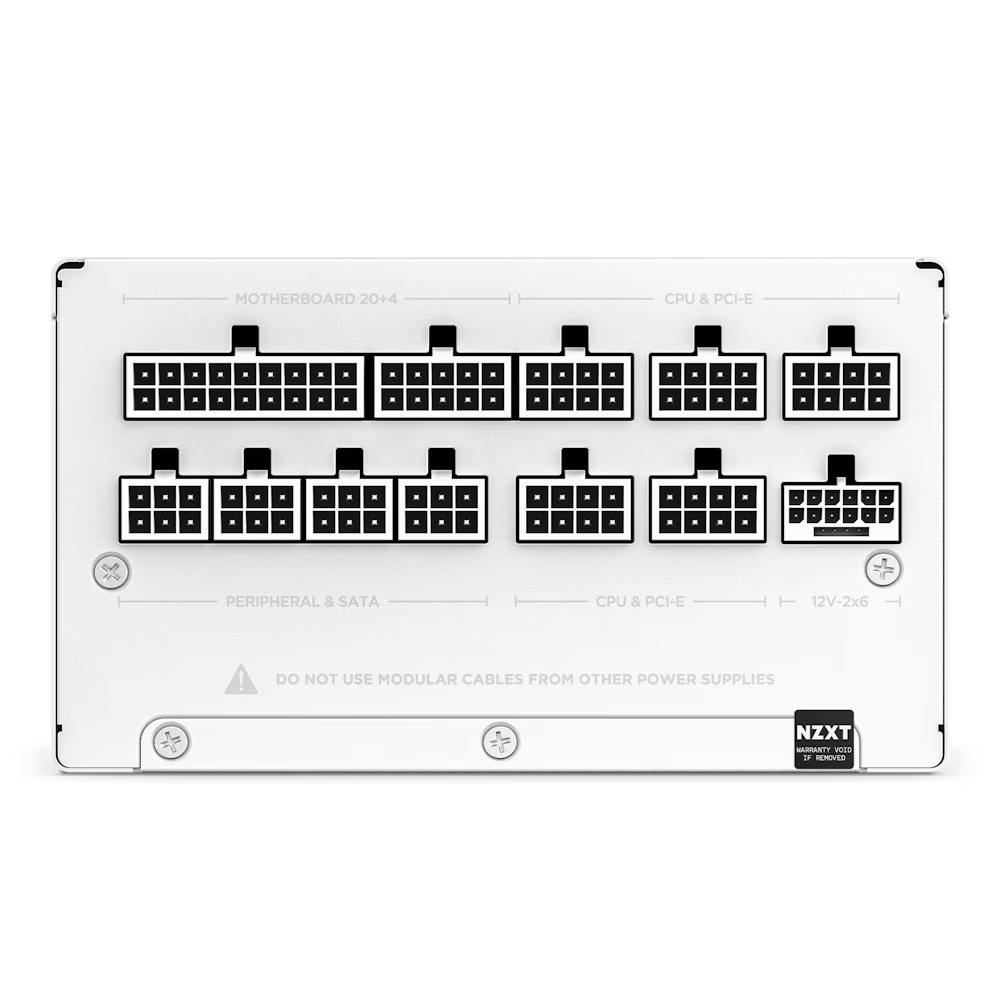

Output Connectors

• 24-pin ATX Power Cable: 1
• 4+4-pin CPU Power Cable: 1
• 8-pin CPU Power Cable: 1
• 6+2-pin PCIe Power Cable: 3
• 16-pin (12+4) 12V-2x6 PCIe Cable: 1
• SATA Cable: 12
• Peripherals Cable: 4

Cable Specs

• 24-pin ATX Power Cable: 600mm with nylon sleeving
• 4+4-pin CPU Power Cable: 700mm with nylon sleeving
• 8-pin CPU Power Cable: 700mm with nylon sleeving
• 6+2-pin PCIe Power Cable: 650mm with nylon sleeving
• 16-pin (12+4) 12V-2x6 PCIe Cable: 650mm with nylon sleeving
• SATA Cable: 500 + 150mm
• Peripherals Cable: 500 + 150mm

AC Input Rating

• 100 - 240Vac: 13A 50Hz-60Hz
• 200 - 240Vac: 6.5A 50Hz-60Hz (China & South Korea)

DC Output Rating

• 3.3V / +5V: 22A (120W)
• 12V: 83.3A (1000W)
• 5Vsb: 3A (15W)
• Total: 1000W

Energy Efficiency

• Rating: 80 Plus Gold
• 10% loading: 85.5% @115Vac
• 20% loading: 89.7% @115Vac
• 50% loading: 91.9% @115Vac
• 100% loading: 89.3% @115Vac

Electrical Features

• PF Correction: Active @0.99
• Protections: OVP / UVP / SCP / OTP / OPP / OCP

Fan Specs

• Dimensions: 135 x 135 x 25 mm
• Speed: 2300 ?? 10% RPM
• Airflow: 93.02 CFM (Min.)
• Noise: 44.5 dBA max
• Bearing: Fluid Dynamic Bearing (FDB)

Operation

• MTBF: 100,000 hours
• Temperature: 0 - 50 ??C

Dimensions

• Width: 150 mm
• Height: 86 mm
• Depth: 160 mm

General

• Material(s): Steel, PCB, and Plastic
• Compliance Standard: ATX12V v3.1 / EPS12V v2.92
• Regulation & Certification: FCC, Canada, CE, CB (IEC 62368-1), UKCA, CCC, BSMI, BIS, RCM, UAE, TUV, cTUVus, KC, CP65
• Warranty: 10 Years

Model Numbers

• Black: PA-0G2BB-CN / PA-0G2BB-UK / PA-0G2BB-US / PA-0G2BB-EU / PA-0G2BB-JP / PA-0G2BB-AU
• White: PA-0G2BW-CN / PA-0G2BW-UK / PA-0G2BW-US / PA-0G2BW-EU / PA-0G2BW-JP / PA-0G2BW-AU

EAN Numbers

• Black: 5056547204680 (CN) / 5056547204697 (UK) / 5056547204703 (US) / 5056547204710 (EU) / 5056547204727 (JP) / 5056547204734 (AU)
• White: 5056547206318 (CN) / 5056547206325 (UK) / 5056547206332 (US) / 5056547206349 (EU) / 5056547206356 (JP) / 5056547206363 (AU)

UPC Numbers

• Black: 810074844758 (CN) / 810074844765 (UK) / 810074844772 (US) / 810074844789 (EU) / 810074844796 (JP) / 810074844802 (AU)
• White: 810074846370 (CN) / 810074846387 (UK) / 810074846394 (US) / 810074846400 (EU) / 810074846417 (JP) / 810074846424 (AU)
