NZXT C1000 Gold ATX Fully Modular PSU, 80 Plus Gold Rating, 93.02 CFM Airflow, Fluid Dynamic Bearing, Active PFC, 44.5 dBA Max Noise, 2300 RPM Fan Speed, 135mm Fan Size, Black | PA-0G1BB-UK

This PSU delivers 1000 watts of clean, stable power and is ideal for gaming and workstation PCs that have multiple GPUs and high-performance CPUs. The C1000 supports the latest GPUs, including up to an NVIDIA RTX 3090 and AMD GPUs up to the 6900 XT.

More Videos

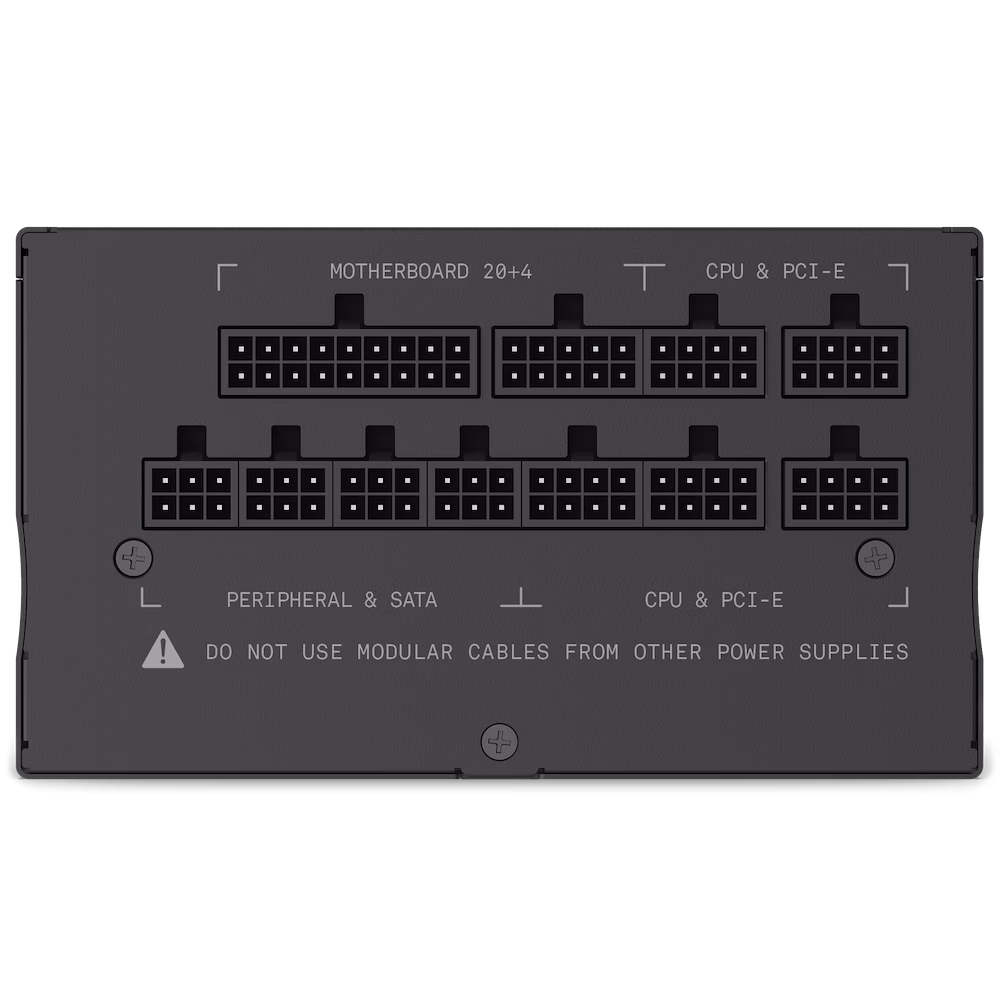

OUTPUT CONNECTORS

• 24-pin ATX power:1

• 4+4-pin CPU power:2

• 6+2-pin PCIe power:6

• SATA power:6

• Peripherals:6

CABLE SPECS

• 24-pin ATX power:600 mm, Nylon sleeving

• 4+4-pin CPU power:700 mm, Nylon sleeving

• 6+2-pin PCIe power:650 + 150 mm, Nylon sleeving

• SATA power:500 + 150 mm

• Peripherals:500 + 150 mm

AC INPUT RATING

• 100 - 240Vac:13A-6.5A 50Hz-60Hz

DC OUTPUT RATING

• +3.3V and +5V:22A (120W)

• +12V:83.5A (1002W)

• -12V:0.3A (3.6W)

• 5Vsb:3A (15W)

• Total:1000W

OPERATION

• PF Correction:Active @0.96

• MTBF:100,000 hours

• Temperature:0 - 50 ??C (derating from 100% to 80% from 40 ??C to 50 ??C)

ENERGY EFFICIENCY

• Rating:80 Plus Gold

• 20% loading:91.97% @115Vac

• 50% loading:91.79% @115Vac

• 100% loading:88.52% @115Vac

FAN SPECS

• Dimensions:135 x 135 x 25 mm

• Speed:0-2300 ?? 10% RPM

• Airflow:93.02 CFM (Tpy.)

• Noise:44.5 dBA max

• Bearing:Fluid Dynamic Bearing (FDB)

GENERAL

• Dimensions:150 x 150 x 86mm

• Material(s):Steel, PCB and Plastic

• Compliance Standard:ATX12V v2.52 / EPS12V v2.92

• Regulation & Certification:cTUV-SUDus / CUL (UL60950/62368-1) / TUV / (EN60950/62368-1) / CB/ (IEC 950/62368-1) / CCC / CEC /BSMI / RCM / EAC / CE / LVD / UKCA

• Warranty:10 years

• Model Number:PA-0G1BB
