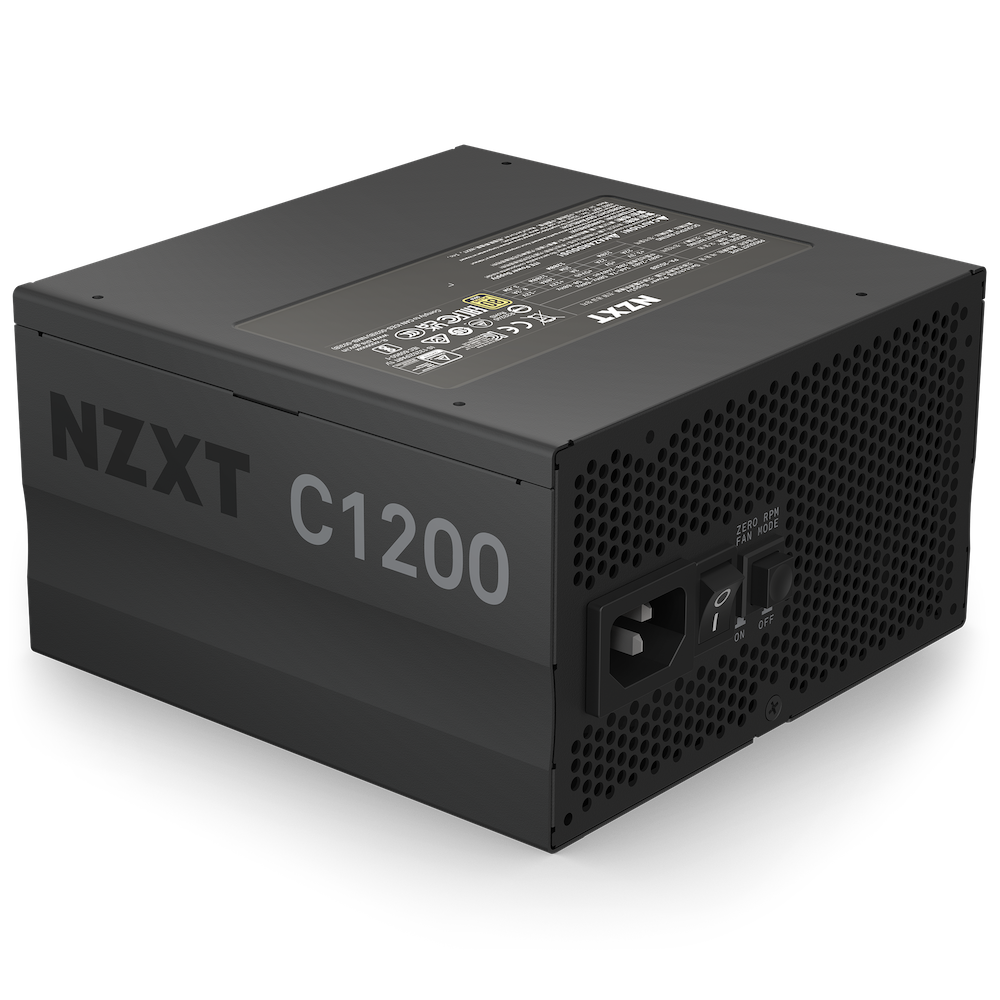

NZXT C1200 Fully-Modular ATX 3.0 1200W Power Supply, 80 Plus Gold, 135mm PWM Fan with Fluid Dynamic Bearing, 2300 RPM Speed & 93.02 CFM, Japanese Capacitors, 16-pin PCIe 12VHPWR, Black | PA-2G1BB-UK

Utilizing the ATX v3.0 power standard, the NZXT C1200 Gold pumps up to 600 watts of power to NVIDIA 40-series graphics cards over a single cable while maintaining highly efficient, low-noise performance.

• 16-pin PCIe 12VHPWR connector can pump up to 600 watts of power to a graphics card over a single cable
• Built and tested with the strictest standards for trouble-free installation and operation
• 90.5% efficiency peak at 50% load lowers temperatures, energy consumption, and noise
• Zero Fan Mode stops the fan when under light loads to reduce system noise
• 135mm PWM fan with fluid dynamic bearing operates quietly with a long lifespan
• Constructed with high-quality Japanese 105??C capacitors

Specifications

OUTPUT CONNECTORS

• 24-pin ATX power:1
• 4+4-pin CPU power:1
• 8-pin CPU Cable :1
• 6+2-pin PCIe power :2
• 16-pin (12+4) 12VHPWR PCIe Cable:1
• SATA power :8
• Peripherals :4

CABLE SPECS

• 24-pin ATX power:600 mm, Nylon sleeving
• 4+4-pin CPU power:700 mm, Nylon sleeving
• 8-Pin CPU Power Cable:700mm, Nylon sleeving
• 6+2-pin PCIe power:650 + 150 mm, Nylon sleeving
• 16-Pin (12+4) 12VHPWR PCIe Cable:650mm, Nylon sleeving
• SATA power:500 + 150 mm
• Peripherals:500 + 150 mm

AC INPUT RATING

• 100 - 240Vac:14A-7A 50Hz-60Hz

DC OUTPUT RATING

• +3.3V and +5V:22A (120W)
• +12V:100A (1200W)
• -12V:0.3A (3.6W)
• 5Vsb:3A (15W)
• Total:1200W

OPERATION

• PF Correction:Active @0.96
• MTBF:100,000 hours
• Temperature:0 - 50 ??C (derating from 100% to 80% from 40 ??C to 50 ??C)

ENERGY EFFICIENCY

• Rating:80 Plus Gold
• 20% loading:87.5% @115Vac
• 50% loading:90.5% @115Vac
• 100% loading:87.5% @115Vac

FAN SPECS

• Dimensions:135 x 135 x 25 mm
• Speed:0-2300 ?? 10% RPM
• Airflow:93.02 CFM (Tpy.)
• Noise:44.5 dBA max
• Bearing:Fluid Dynamic Bearing (FDB)

GENERAL

• Dimensions:150 x 150 x 86mm
• Material(s):Steel, PCB and Plastic
• Compliance Standard:ATX12V v3.0 / EPS12V v2.92
• Regulation & Certification:cTUV-SUDus / CUL (UL60950/62368-1) / TUV / (EN60950/62368-1) / CB/ (IEC 950/62368-1) / CCC / CEC /BSMI / RCM / EAC / CE / LVD / UKCA
