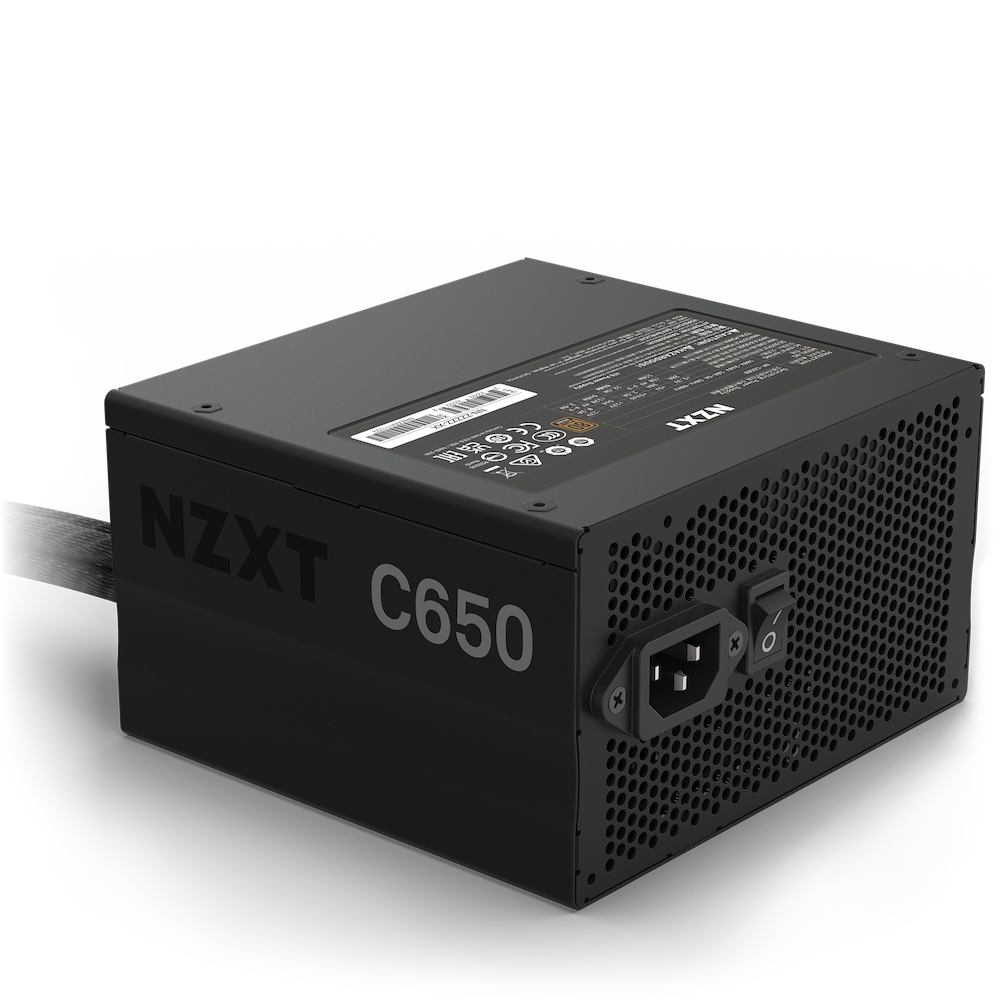

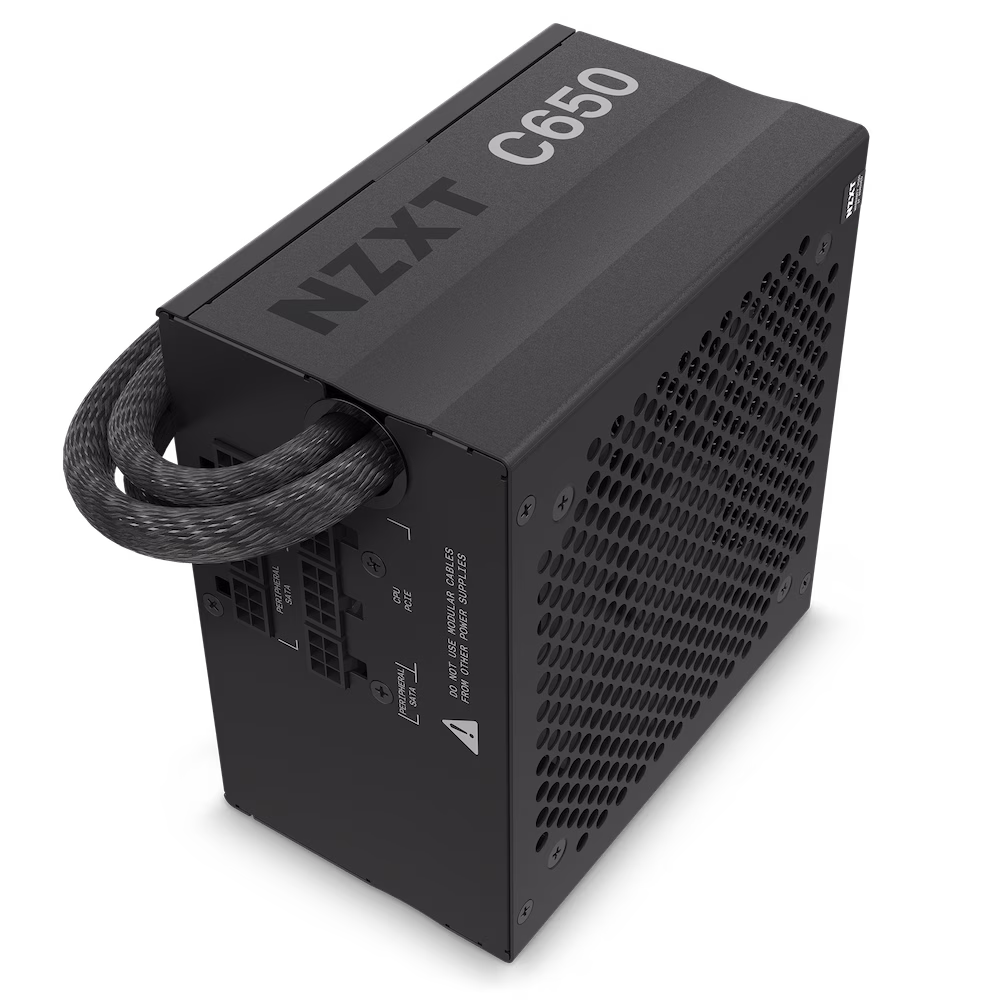

NZXT C650 Bronze - PA-6B1BB-US - 650 Watt PSU - 80 Plus Bronze Certified - DC-DC Technology - Semi Modular Design - Sleeved Cables - ATX Gaming Power Supply
Model :
SKU : PS-NZXT C650 BRONZE
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
About this item
Description
Details
The C650 brings you 650 watts of efficient power and is a must-have for the majority of power needs.
Inside the Box
-
NZXT C650 Bronze PSU1
-
24-pin ATX power (550mm)1
-
4+4-pin CPU Power Cable2
-
6+2-pin PCIe Power Cable2
-
SATA Cable2
-
Peripherals Cable1
-
6-32 Screws4
-
AC Power Cord1
Tech Specs
KEY SPECS
-
Dimensions:W 150 x L 140 x H 86 (mm)
-
Material(s):Steel, PCB and plastic
-
Compliance Standard:ATX12V v2.4 / EPS12V v2.92
-
AC Input Rating:10A/115V???5A/230V 47Hz ~ 63Hz
DC OUTPUT RATING
-
Voltage:+3.3V / +5V / +5VSB /+12V / -12V
-
Max Load:20A / 20A / 2.5A / 54A / 0.3A
-
Voltage Regulation:??5% / ??5% / ??5% / ??5% / ??10%
-
Ripple & Noise:< 50 mV p-p / < 50 mV p-p / < 50 mV p-p / < 120 mV p-p / < 120 mV p-p
-
Output Power (watt):110 / 110 / 12.5 / 648 / 3.6
-
Total:650
FAN SPECS
-
Dimensions:120 x 120 x 25 (mm)
-
Speed:2400 ??10% RPM
-
Airflow:72.90 CFM
-
Noise:<44 dBA
-
Bearing:FDB (Fluid Dynamic Bearing)
ENERGY EFFICIENCY
-
Rating:80 Plus Bronze
-
10% loading:82%
-
20% loading:83%
-
50% loading:87%
-
100% loading:83%
OPERATION
-
PF Correction:Active@0.96
-
MTBF:100,000 hours
-
Operation Temperature:0 to 40??C

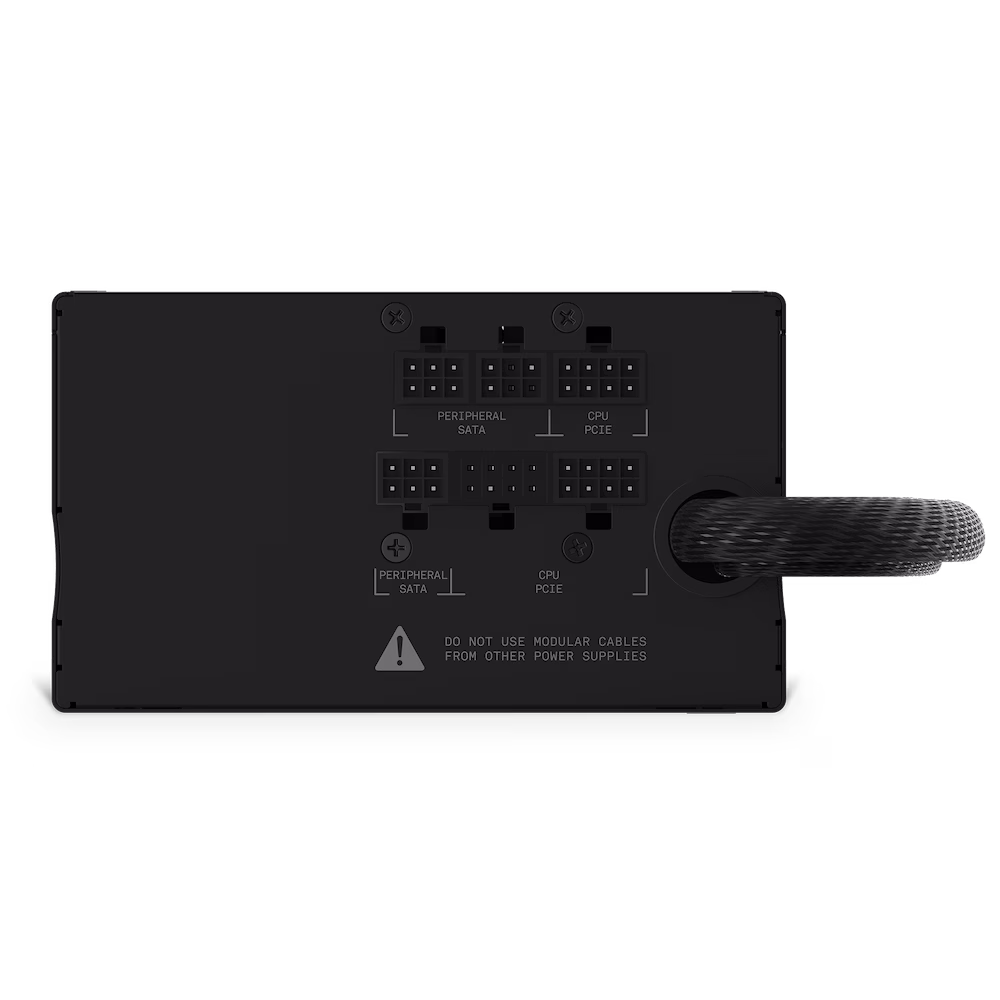

OUTPUT CONNECTOR(S)
-
24-pin ATX Power:1
-
4+4-pin CPU power:2
-
6+2-pin PCIe power:4
-
SATA Power:6
-
Peripherals:3
GENERAL
-
Regulations & Certifications (EMC & Safety) :CB / CE / FCC / TUV / cTUV-SUDus / China CCC / Taiwan BSMI R33245/ Australia RCM / EAC / UKCA / WEEE /
-
Warranty:5 years
-
Hazardous Materials:RoHS & China RoHS
MODEL NUMBER
-
CN:PA-6B1BB-CN
-
AR:PA-6B1BB-AR
-
US:PA-6B1BB-US
-
EU:PA-6B1BB-EU
-
UK:PA-6B1BB-UK
-
AU:PA-6B1BB-AU
-
JP:PA-6B1BB-JP
-
TW:PA-6B1BB-TW
-
IN:PA-6B1BB-IN
-
WO:PA-6B1BB-WO
UPC
-
CN:815671017703
-
AR:815671017710
-
US:815671017727
-
EU:815671017734
-
UK:815671017741
-
AU:815671017758
-
JP:815671017765
-
TW:815671017772
-
IN:815671017789
-
WO:815671017796
EAN
-
CN:5060301698011
-
AR:5060301698028
-
US:5060301698035
-
EU:5060301698042
-
UK:5060301698059
-
AU:5060301698066
-
JP:5060301698073
-
TW:5060301698080
-
IN:5060301698097
-
WO:5060301698103
Specification
Details
The C650 brings you 650 watts of efficient power and is a must-have for the majority of power needs.
Inside the Box
-
NZXT C650 Bronze PSU1
-
24-pin ATX power (550mm)1
-
4+4-pin CPU Power Cable2
-
6+2-pin PCIe Power Cable2
-
SATA Cable2
-
Peripherals Cable1
-
6-32 Screws4
-
AC Power Cord1
Tech Specs
KEY SPECS
-
Dimensions:W 150 x L 140 x H 86 (mm)
-
Material(s):Steel, PCB and plastic
-
Compliance Standard:ATX12V v2.4 / EPS12V v2.92
-
AC Input Rating:10A/115V???5A/230V 47Hz ~ 63Hz
DC OUTPUT RATING
-
Voltage:+3.3V / +5V / +5VSB /+12V / -12V
-
Max Load:20A / 20A / 2.5A / 54A / 0.3A
-
Voltage Regulation:??5% / ??5% / ??5% / ??5% / ??10%
-
Ripple & Noise:< 50 mV p-p / < 50 mV p-p / < 50 mV p-p / < 120 mV p-p / < 120 mV p-p
-
Output Power (watt):110 / 110 / 12.5 / 648 / 3.6
-
Total:650
FAN SPECS
-
Dimensions:120 x 120 x 25 (mm)
-
Speed:2400 ??10% RPM
-
Airflow:72.90 CFM
-
Noise:<44 dBA
-
Bearing:FDB (Fluid Dynamic Bearing)
ENERGY EFFICIENCY
-
Rating:80 Plus Bronze
-
10% loading:82%
-
20% loading:83%
-
50% loading:87%
-
100% loading:83%
OPERATION
-
PF Correction:Active@0.96
-
MTBF:100,000 hours
-
Operation Temperature:0 to 40??C
OUTPUT CONNECTOR(S)
-
24-pin ATX Power:1
-
4+4-pin CPU power:2
-
6+2-pin PCIe power:4
-
SATA Power:6
-
Peripherals:3
GENERAL
-
Regulations & Certifications (EMC & Safety) :CB / CE / FCC / TUV / cTUV-SUDus / China CCC / Taiwan BSMI R33245/ Australia RCM / EAC / UKCA / WEEE /
-
Warranty:5 years
-
Hazardous Materials:RoHS & China RoHS
MODEL NUMBER
-
CN:PA-6B1BB-CN
-
AR:PA-6B1BB-AR
-
US:PA-6B1BB-US
-
EU:PA-6B1BB-EU
-
UK:PA-6B1BB-UK
-
AU:PA-6B1BB-AU
-
JP:PA-6B1BB-JP
-
TW:PA-6B1BB-TW
-
IN:PA-6B1BB-IN
-
WO:PA-6B1BB-WO
UPC
-
CN:815671017703
-
AR:815671017710
-
US:815671017727
-
EU:815671017734
-
UK:815671017741
-
AU:815671017758
-
JP:815671017765
-
TW:815671017772
-
IN:815671017789
-
WO:815671017796
EAN
-
CN:5060301698011
-
AR:5060301698028
-
US:5060301698035
-
EU:5060301698042
-
UK:5060301698059
-
AU:5060301698066
-
JP:5060301698073
-
TW:5060301698080
-
IN:5060301698097
-
WO:5060301698103
