| Output Connectors | |
| 24-pin ATX Power | 1 |
| 4+4-pin CPU Power | 2 |
| 6+2-pin PCIe Power | 2 |
| SATA Power | 4 |
| Peripherals | 4 |
| Cable Specs | |
| 24-pin ATX Power | 600mm, Nylon sleeving |
| 4+4-pin CPU Power | 700mm, Nylon sleeving |
| 6+2-pin PCIe Power | 650 + 150mm, Nylon sleeving |
| SATA Power | 500 + 150mm |
| Peripherals | 500 + 150mm |
| AC Input Rating | |
| 100 - 240Vac | 10A-5A 50Hz-60Hz |
| DC Output Rating | |
| +3.3V | 20A (120W) |
| +5V | 20A (120W) |
| +12V | 62.5A (750W) |
| -12V | 0.3A (3.6W) |
| 5Vsb | 2.5A (12.5W) |
| Total | 750W |
| Operation | |
| PF Correction | Active@0.96 |
| MTBF | 100,000 hours |
| Operation Temperature | 0 to 40??C |
| Energy Efficiency | |
| Rating | 80 Plus Bronze |
| 10% Loading | 86.2% @115Vac |
| 20% Loading | 88.97% @115Vac |
| 50% Loading | 88.7% @115Vac |
| 100% Loading | 83.2% @115Vac |
| Fan Specs | |
| Dimensions | 120 x 120 x 25 (mm) |
| Speed | 2400 ??10% RPM |
| Airflow | 64.4 CFM (Tpy.) |
| Noise | 39.92 dBA max |
| Bearing | FDB (Fluid Dynamic Bearing) |
| General | |
| Dimensions (W x L x H) | 150 x 140 x 86mm |
| Material(s) | Steel, PCB and Plastic |
| Compliance Standard | ATX12V v2.53 / EPS12V v2.92 |
| Regulation & Certification | FCC, Canada, CE, CB(IEC 62368-1), BIS, UKCA, CCC, BSMI, Mexico NOM |
| Hazardous Materials | Taiwan and China RoHS Table, CP65, EU REACH |
| Protections | OVP (Over Voltage Protection), UVP (Under Voltage Protection), SCP (Short Circuit Protection), OTP (Over Temperature Protection), OPP (Over Power Protection), OCP (Over Current Protection) |
| Warranty | 3 years |
| Model Number | PA-7B2BB / PS-2202 |
NZXT C750 Bronze - A Reliable Power Source for Your System
The NZXT C750 Bronze is a non-modular power supply unit designed for budget-conscious builders seeking a balance of performance and affordability. Here's a breakdown of its key features:
Power Delivery:
750W Wattage: Offers sufficient power for most mid-range gaming systems and general-purpose computers.
80 Plus Bronze Certification: Ensures efficiency of up to 88% at 50% load, reducing energy consumption and heat generation.
DC-to-DC Conversion: Delivers stable power to the GPU, enhancing performance and reliability.
Cooling and Design:

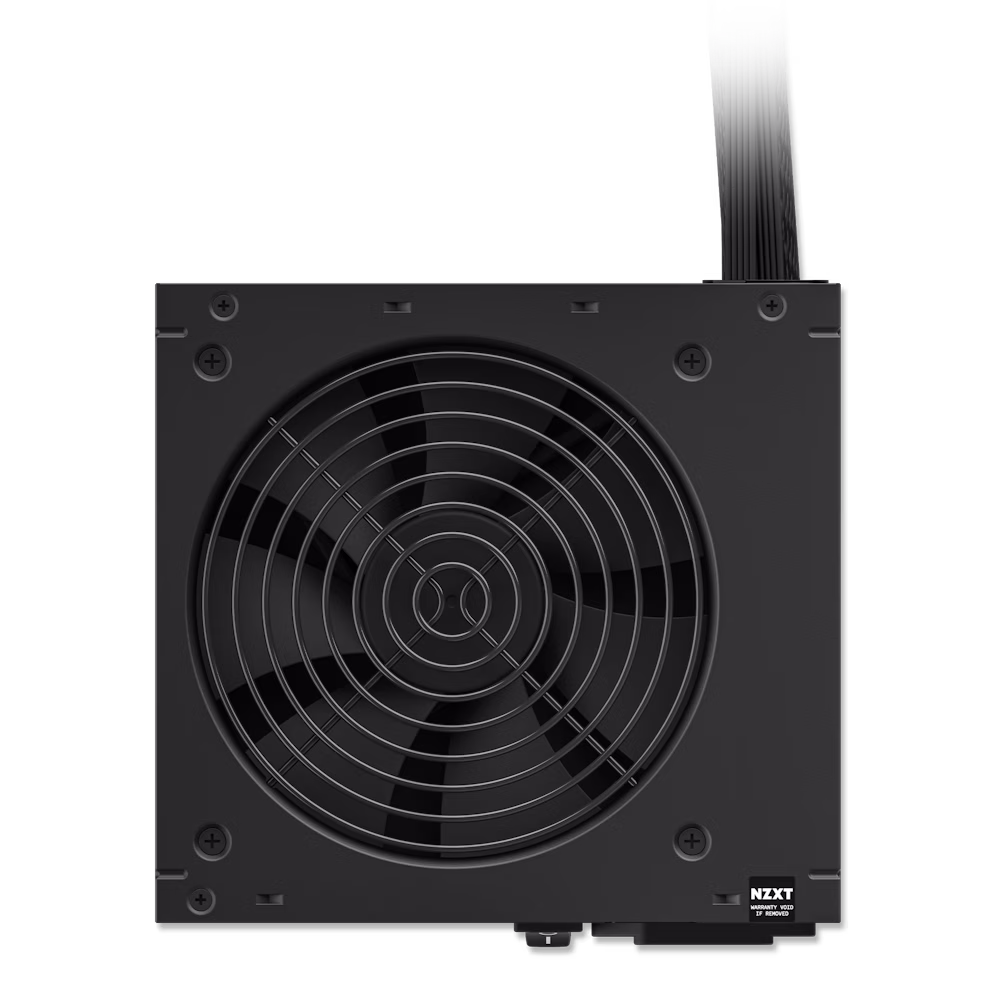

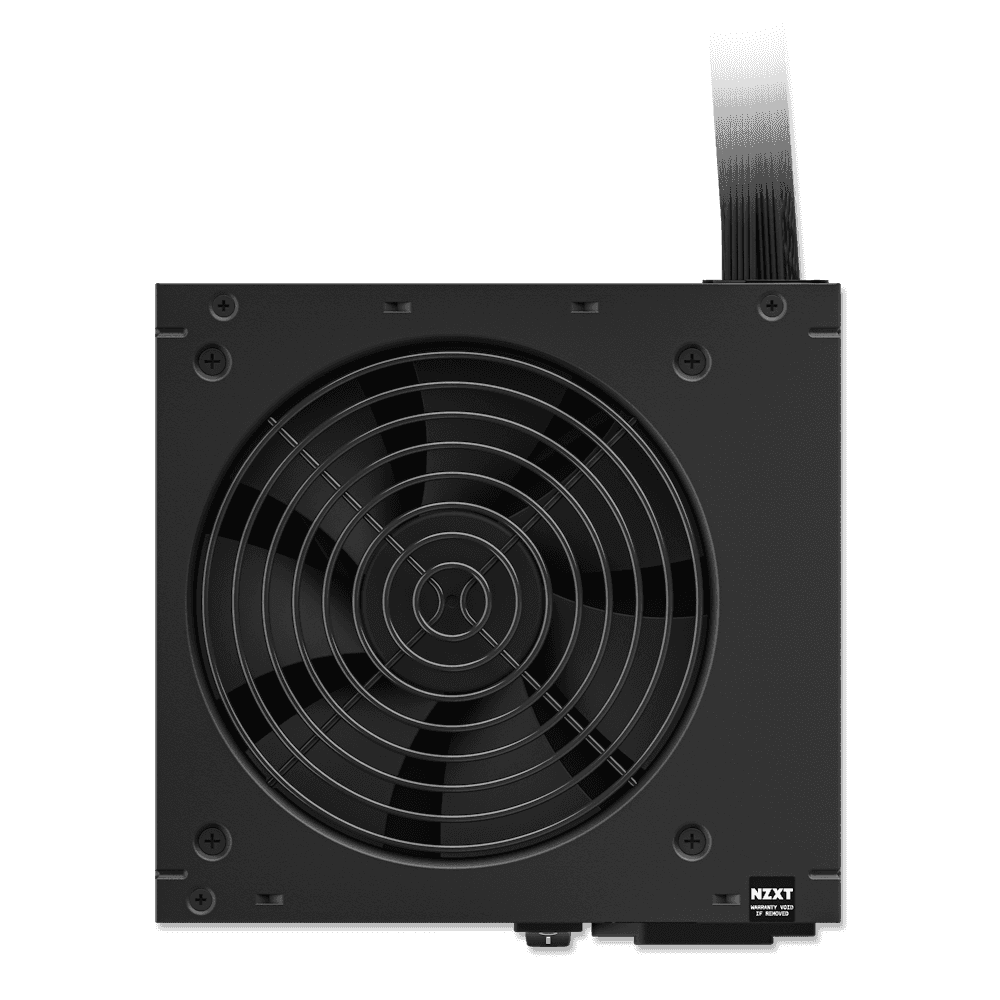

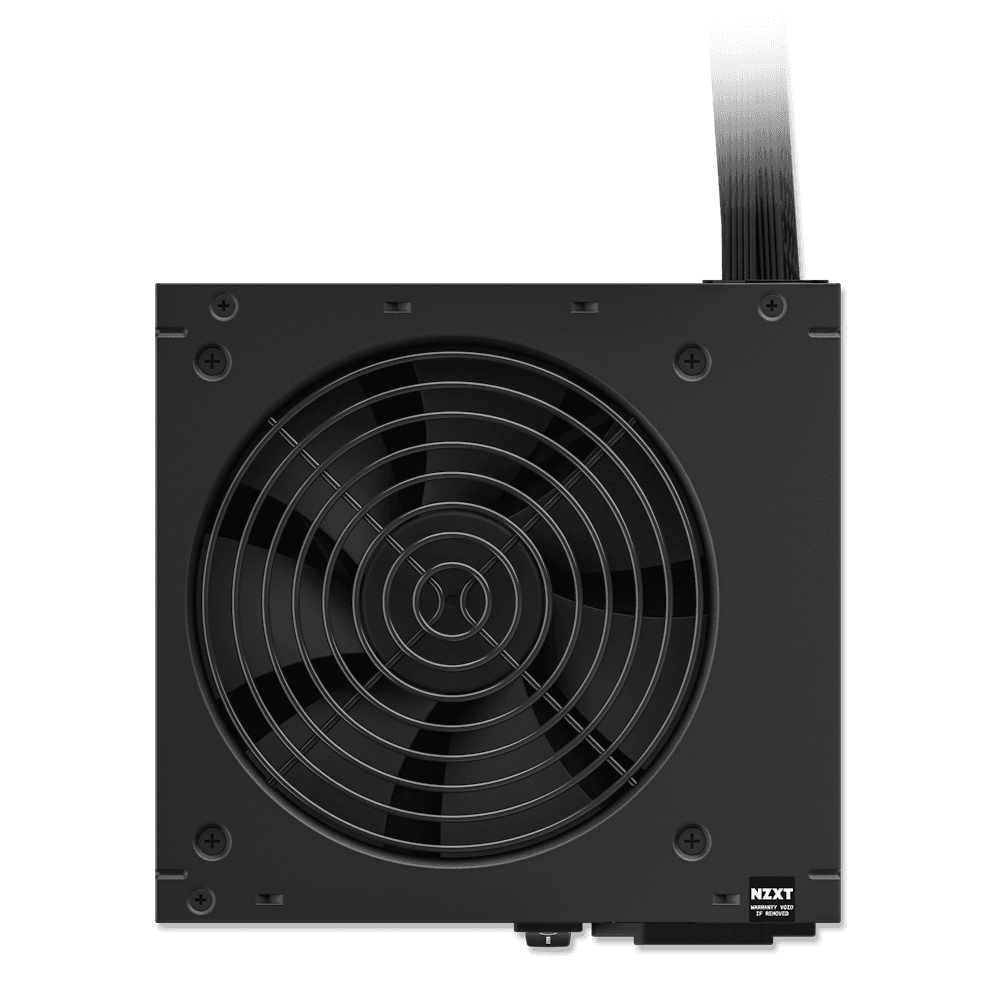

120mm Fluid Dynamic Bearing Fan: Provides quiet operation and efficient cooling.
Nylon-Sleeved Cables: Enhance the overall aesthetic of your build and improve durability.

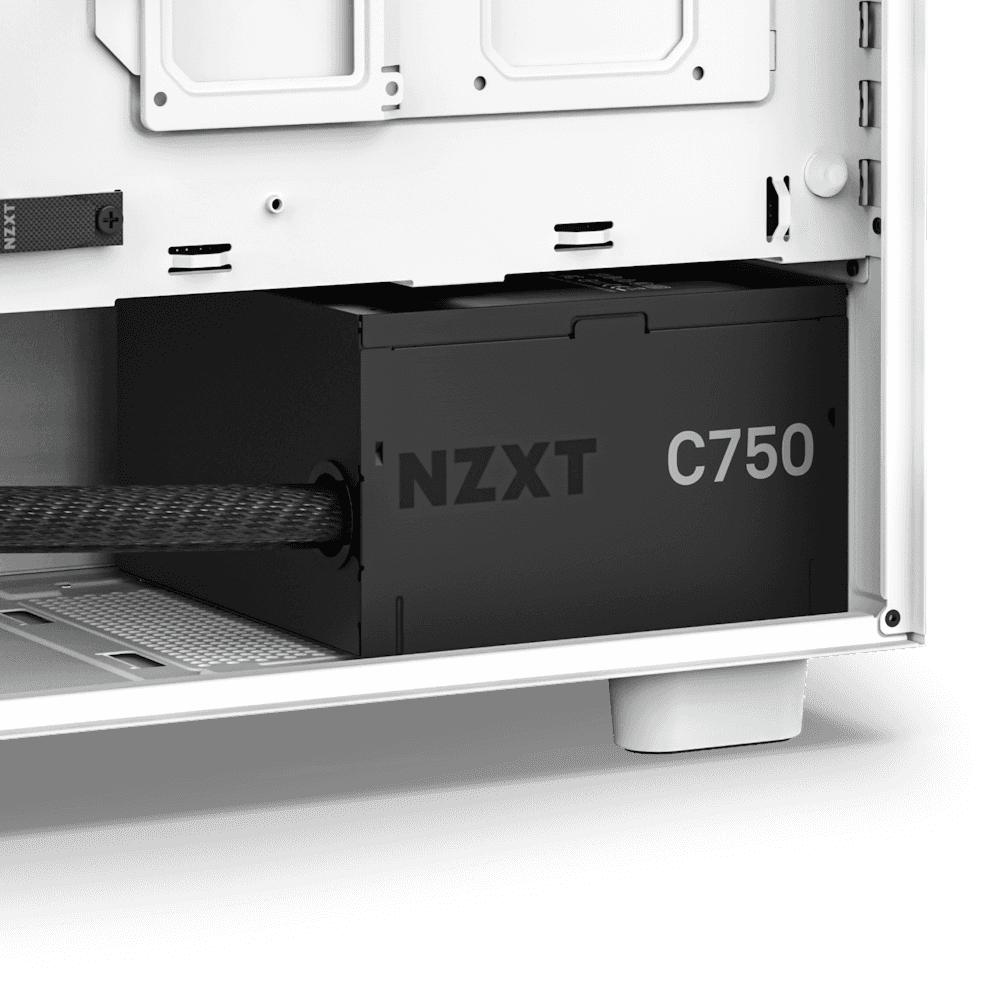

Compact Design: Fits into most standard ATX cases.
Safety and Reliability:
Over-Temperature, Over-Current, Over-Voltage, Under-Voltage, Over-Power, and Short Circuit Protection: Protects your components from potential damage.
Overall:
The NZXT C750 Bronze is a solid choice for users who prioritize affordability and reliability without sacrificing performance. While it lacks the modularity of higher-end PSUs, it offers a good balance of features for most users.
#NZXT #PSU #PowerSupply #750W #80PlusBronze #PCBuild #BudgetPSU #QuietPSU #PCComponents #Tech #UpgradeYourSetup #BuildAPC
