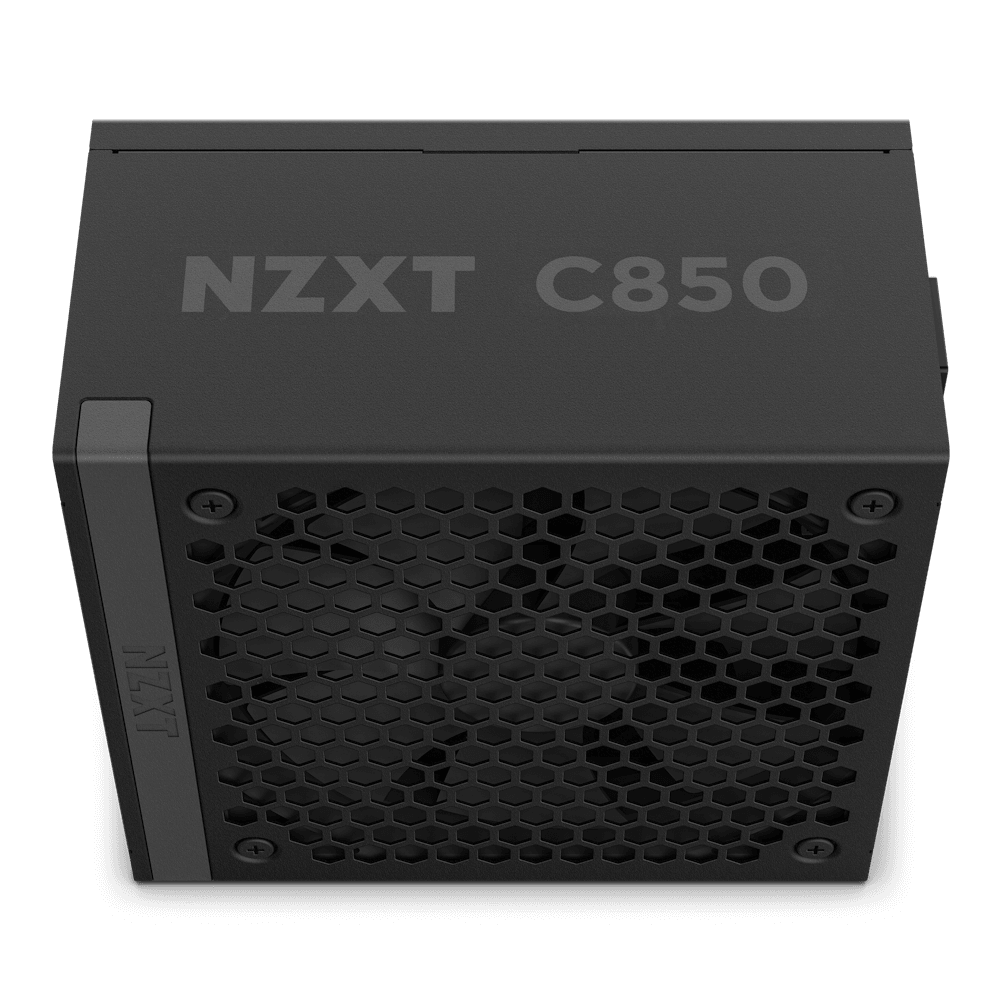

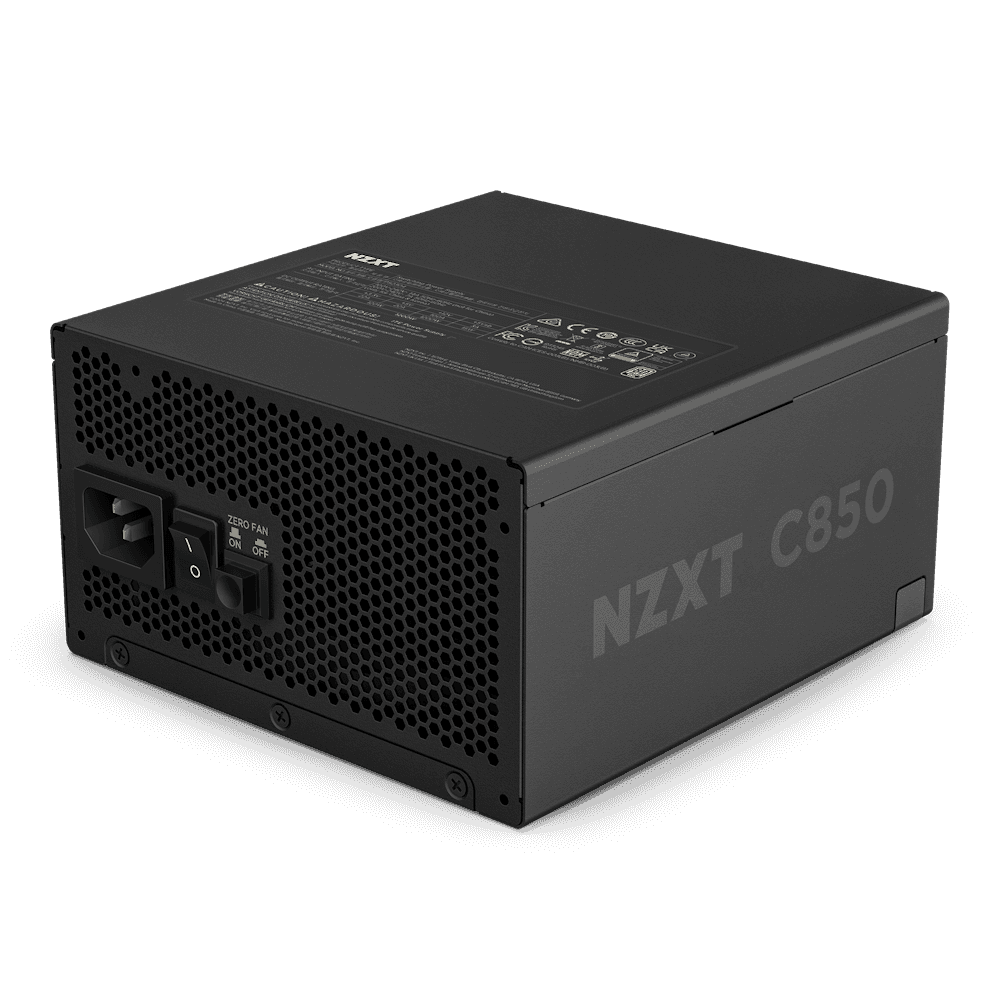

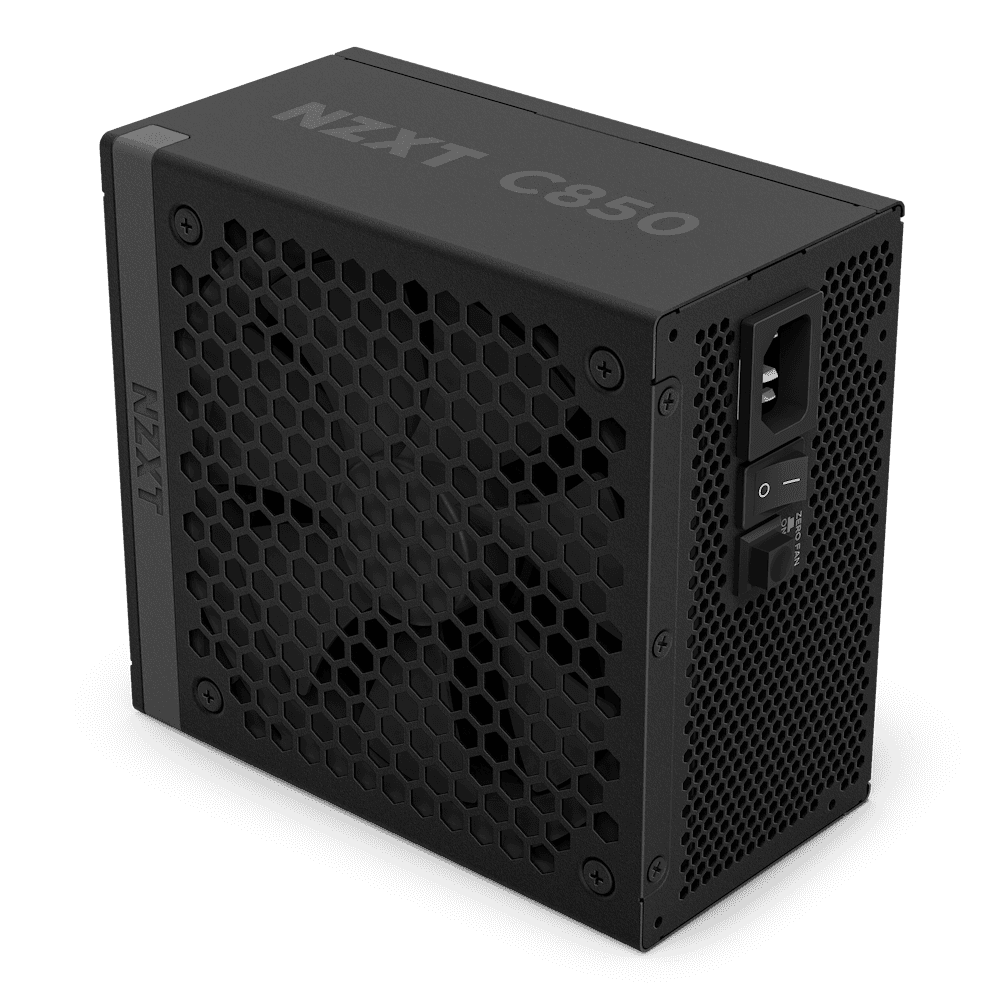

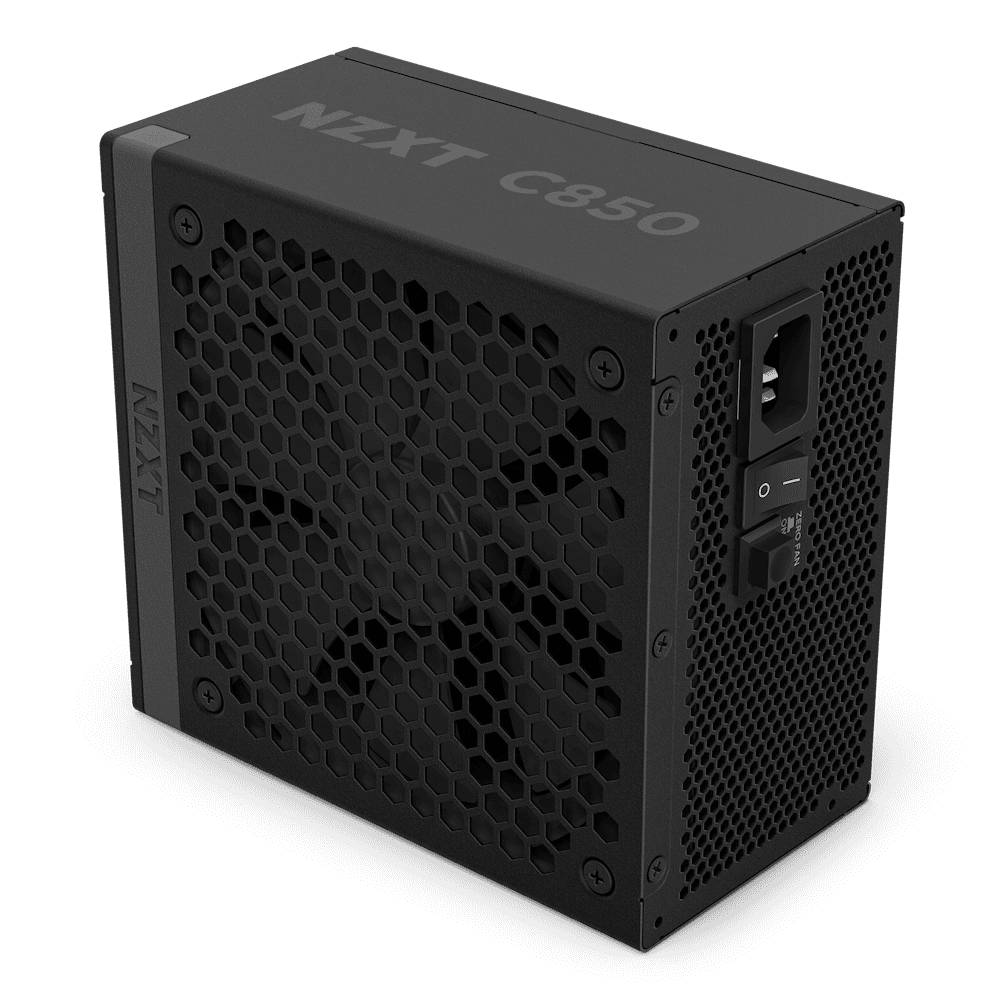

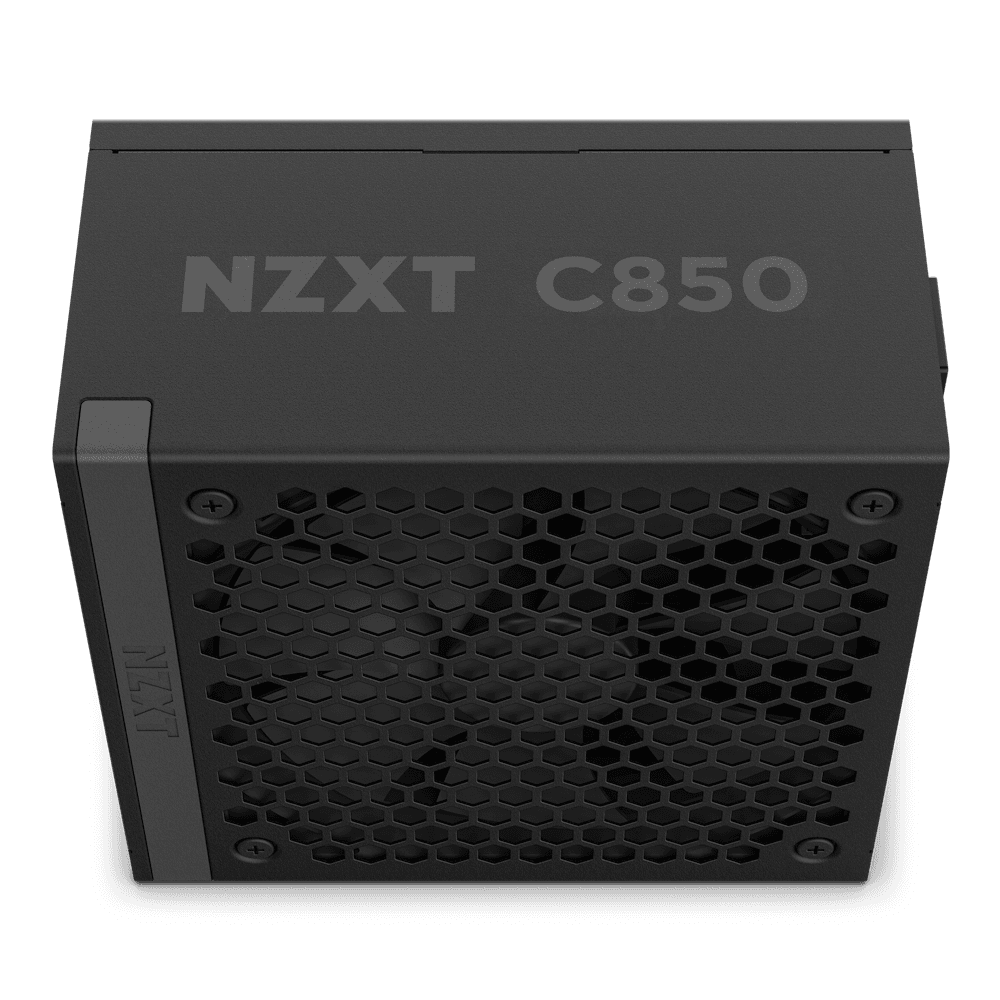

NZXT C850 80 PLUS Gold Fully Modular Power Supply, 850W, ATX12V v3.1, Fluid Dynamic Bearing, 80 Plus Gold, Japanese Capacitors, Active PF Correction, Black | PA-8G2BB-UK
Model :
SKU : PS-NZXT C850 GOLD BLACK
About this item
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
table { border-collapse: collapse; width: 100%; } tr { border-bottom: 1px solid rgb(222, 226, 230); } td { padding: 8px; margin: 0; } td:first-child { font-weight: bold; color: #333; } h3 { margin-top: 10px; }
NZXT C850 80 PLUS Gold Fully Modular Power Supply, 850W, ATX12V v3.1, Fluid Dynamic Bearing, 80 Plus Gold, Japanese Capacitors, Active PF Correction, Black | PA-8G2BB-UK Specifications

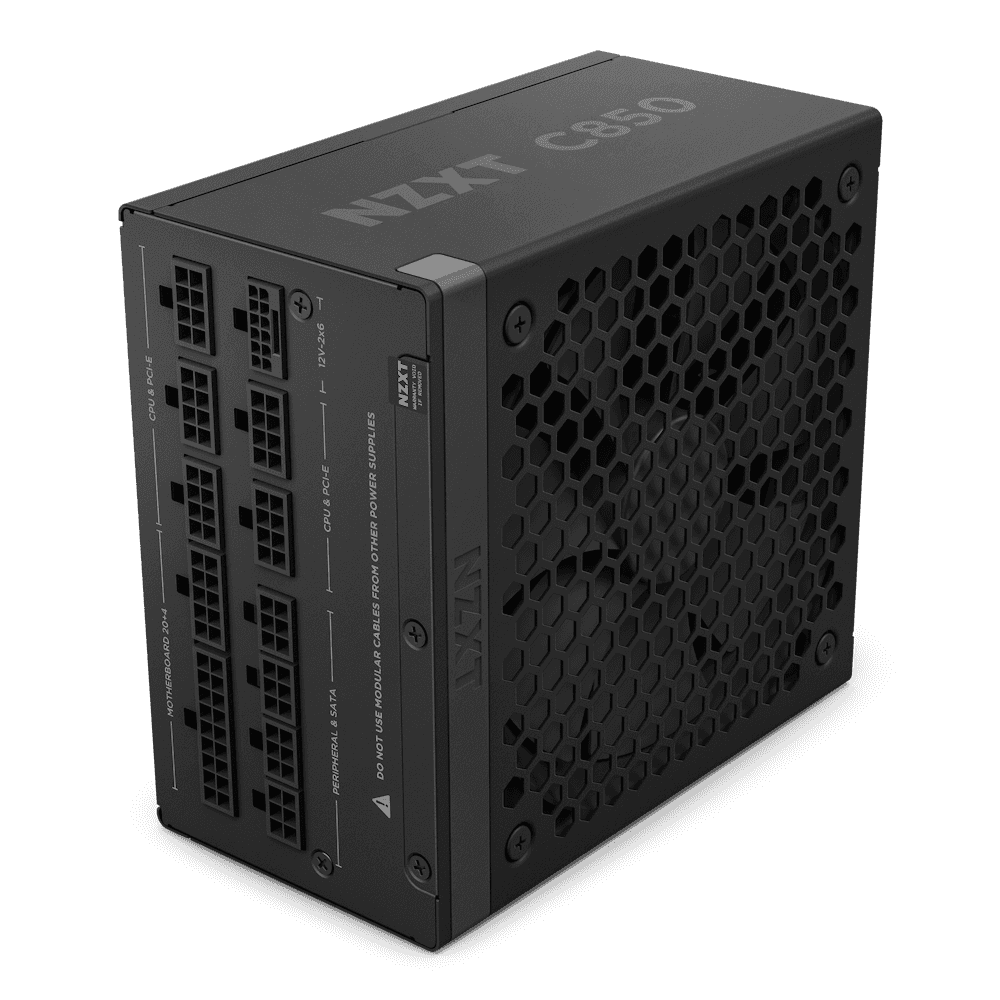

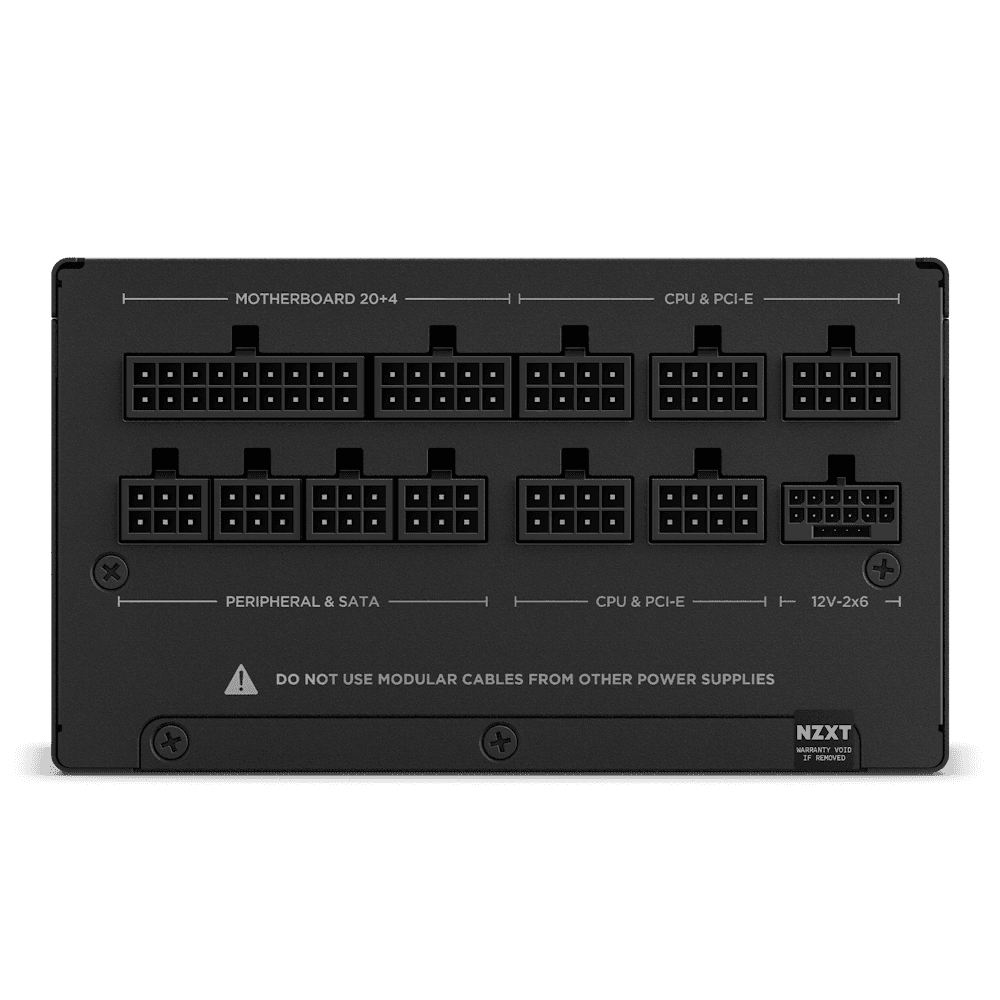

Output Connectors
| 24-pin ATX Power Cable | 1 |
| 4+4-pin CPU Power Cable | 1 |
| 8-pin CPU Power Cable | 1 |
| 6+2-pin PCIe Power Cable | 3 |
| 16-pin (12+4) 12V-2x6 PCIe Cable | 1 |
| SATA Cable | 12 |
| Peripherals Cable | 4 |
Cable Specs
| 24-pin ATX Power Cable | 600mm with nylon sleeving |
| 4+4-pin CPU Power Cable | 700mm with nylon sleeving |
| 8-pin CPU Power Cable | 700mm with nylon sleeving |
| 6+2-pin PCIe Power Cable | 650mm with nylon sleeving |
| 16-pin (12+4) 12V-2x6 PCIe Cable | 650mm with nylon sleeving |
| SATA Cable | 500 + 150mm |
| Peripherals Cable | 500 + 150mm |
AC Input Rating
| 100 - 240Vac | 10A-5A 50Hz-60Hz |
| 200 - 240Vac | - |
DC Output Rating
| 3.3V / +5V | 22A (120W) |
| 12V | 70.83A (850W) |
| 5Vsb | 3A (15W) |
| Total | 850W |
Energy Efficiency
| Rating | 80 Plus Gold |
| 10% loading | 85.8% @115Vac |
| 20% loading | 89.5% @115Vac |
| 50% loading | 91.7% @115Vac |
| 100% loading | 89.2% @115Vac |
Electrical Features
| PF Correction | Active @0.99 |
| Protections | OVP / UVP / SCP / OTP / OPP / OCP |
Fan Specs
| Dimensions | 135 x 135 x 25 mm |
| Speed | 2300 ?? 10% RPM |
| Airflow | 93.02 CFM (Min.) |
| Noise | 44.5 dBA max |
| Bearing | Fluid Dynamic Bearing (FDB) |
Operation
| MTBF | 100,000 hours |
| Temperature | 0 - 50 ??C |
Dimensions
| Width | 150 mm |
| Height | 86 mm |
| Depth | 160 mm |
General
| Material(s) | Steel, PCB and Plastic |
| Compliance Standard | ATX12V v3.1 / EPS12V v2.92 |
| Regulation & Certification | FCC, Canada, CE, CB(IEC 62368-1), UKCA, CCC, BSMI, BIS, RCM, UAE, TUV, cTUVus, KC, CP65 |
| Warranty | 10 Years |
Model Numbers and EAN/UPC Codes
| Black Model Number | PA-8G2BB-CN / PA-8G2BB-UK / PA-8G2BB-US / PA-8G2BB-EU / PA-8G2BB-JP / PA-8G2BB-AU |
| White Model Number | PA-8G2BW-CN / PA-8G2BW-UK / PA-8G2BW-US / PA-8G2BW-EU / PA-8G2BW-JP / PA-8G2BW-AU |
| EAN (Black) | 5056547204765 (CN) / 5056547204772 (UK) / 5056547204789 (US) / 5056547204796 (EU) / 5056547204802 (JP) / 5056547204819 (AU) |
| EAN (White) | 5056547206387 (CN) / 5056547206394 (UK) / 5056547206400 (US) / 5056547206417 (EU) / 5056547206424 (JP) / 5056547206431 (AU) |
| UPC (Black) | 810074844833 (CN) / 810074844840 (UK) / 810074844857 (US) / 810074844864 (EU) / 810074844871 (JP) / 810074844888 (AU) |
| UPC (White) | 810074845588 (CN) / 810074845595 (UK) / 810074845601 (US) / 810074845618 (EU) / 810074845625 (JP) / 810074845632 (AU) |
Specification
table { border-collapse: collapse; width: 100%; } tr { border-bottom: 1px solid rgb(222, 226, 230); } td { padding: 8px; margin: 0; } td:first-child { font-weight: bold; color: #333; } h3 { margin-top: 10px; }
NZXT C850 80 PLUS Gold Fully Modular Power Supply, 850W, ATX12V v3.1, Fluid Dynamic Bearing, 80 Plus Gold, Japanese Capacitors, Active PF Correction, Black | PA-8G2BB-UK Specifications
Output Connectors
| 24-pin ATX Power Cable | 1 |
| 4+4-pin CPU Power Cable | 1 |
| 8-pin CPU Power Cable | 1 |
| 6+2-pin PCIe Power Cable | 3 |
| 16-pin (12+4) 12V-2x6 PCIe Cable | 1 |
| SATA Cable | 12 |
| Peripherals Cable | 4 |
Cable Specs
| 24-pin ATX Power Cable | 600mm with nylon sleeving |
| 4+4-pin CPU Power Cable | 700mm with nylon sleeving |
| 8-pin CPU Power Cable | 700mm with nylon sleeving |
| 6+2-pin PCIe Power Cable | 650mm with nylon sleeving |
| 16-pin (12+4) 12V-2x6 PCIe Cable | 650mm with nylon sleeving |
| SATA Cable | 500 + 150mm |
| Peripherals Cable | 500 + 150mm |
AC Input Rating
| 100 - 240Vac | 10A-5A 50Hz-60Hz |
| 200 - 240Vac | - |
DC Output Rating
| 3.3V / +5V | 22A (120W) |
| 12V | 70.83A (850W) |
| 5Vsb | 3A (15W) |
| Total | 850W |
Energy Efficiency
| Rating | 80 Plus Gold |
| 10% loading | 85.8% @115Vac |
| 20% loading | 89.5% @115Vac |
| 50% loading | 91.7% @115Vac |
| 100% loading | 89.2% @115Vac |
Electrical Features
| PF Correction | Active @0.99 |
| Protections | OVP / UVP / SCP / OTP / OPP / OCP |
Fan Specs
| Dimensions | 135 x 135 x 25 mm |
| Speed | 2300 ?? 10% RPM |
| Airflow | 93.02 CFM (Min.) |
| Noise | 44.5 dBA max |
| Bearing | Fluid Dynamic Bearing (FDB) |
Operation
| MTBF | 100,000 hours |
| Temperature | 0 - 50 ??C |
Dimensions
| Width | 150 mm |
| Height | 86 mm |
| Depth | 160 mm |
General
| Material(s) | Steel, PCB and Plastic |
| Compliance Standard | ATX12V v3.1 / EPS12V v2.92 |
| Regulation & Certification | FCC, Canada, CE, CB(IEC 62368-1), UKCA, CCC, BSMI, BIS, RCM, UAE, TUV, cTUVus, KC, CP65 |
| Warranty | 10 Years |
Model Numbers and EAN/UPC Codes
| Black Model Number | PA-8G2BB-CN / PA-8G2BB-UK / PA-8G2BB-US / PA-8G2BB-EU / PA-8G2BB-JP / PA-8G2BB-AU |
| White Model Number | PA-8G2BW-CN / PA-8G2BW-UK / PA-8G2BW-US / PA-8G2BW-EU / PA-8G2BW-JP / PA-8G2BW-AU |
| EAN (Black) | 5056547204765 (CN) / 5056547204772 (UK) / 5056547204789 (US) / 5056547204796 (EU) / 5056547204802 (JP) / 5056547204819 (AU) |
| EAN (White) | 5056547206387 (CN) / 5056547206394 (UK) / 5056547206400 (US) / 5056547206417 (EU) / 5056547206424 (JP) / 5056547206431 (AU) |
| UPC (Black) | 810074844833 (CN) / 810074844840 (UK) / 810074844857 (US) / 810074844864 (EU) / 810074844871 (JP) / 810074844888 (AU) |
| UPC (White) | 810074845588 (CN) / 810074845595 (UK) / 810074845601 (US) / 810074845618 (EU) / 810074845625 (JP) / 810074845632 (AU) |
