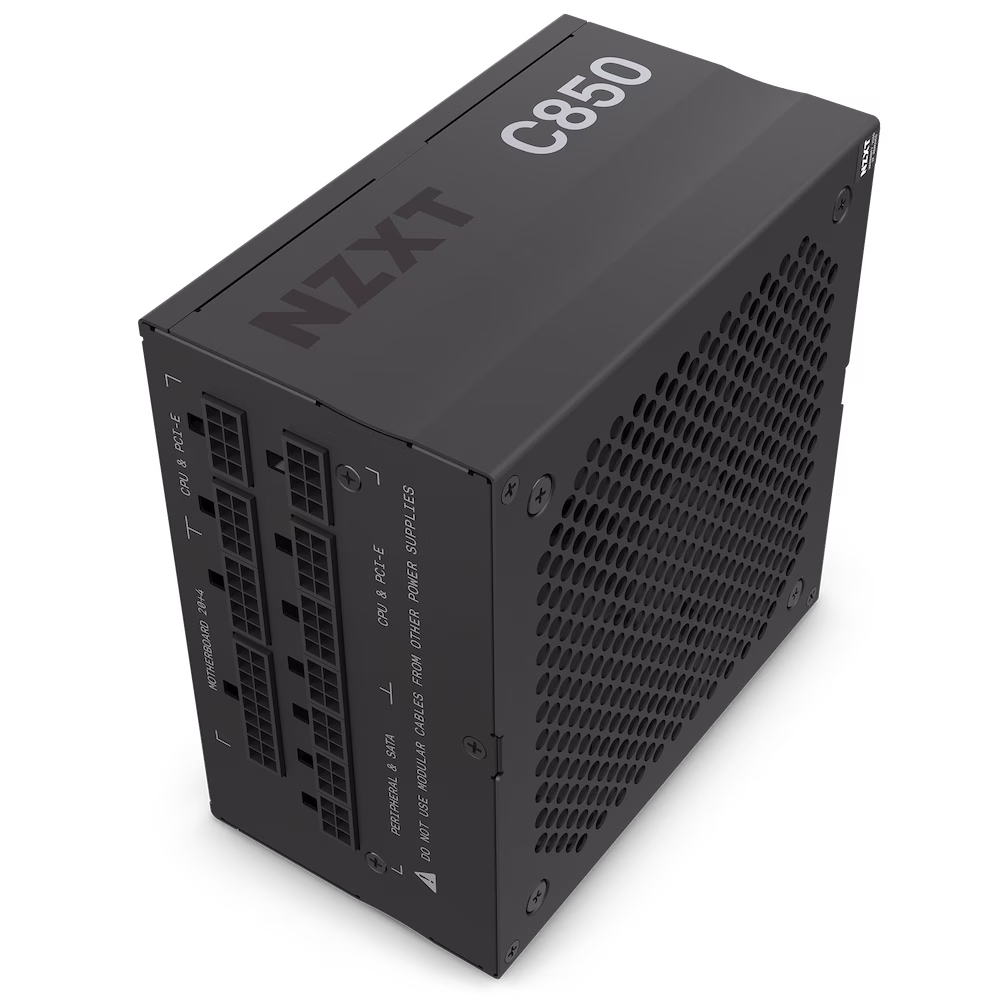

NZXT C850 Fully Modular 850W ATX Power Supply, 80+ Gold Certified, 135mm Fluid-dynamic Fan, 93.02 CFM Airflow, Supports NVIDIA GPUs up to 3090 /AMD GPUs Up to RX 6900 XT, Black | PA-8G1BB-UK

This PSU delivers 850 watts of clean, stable power which is ideal for gaming PCs with multiple GPUs, or higher power requirements. It is also useful for SLI or Crossfire builds.

• Modular design lets builders use only the cables they need
• The sleeved main cables lresist heat damage as well as fraying
• Fits any case conforming to the ATX standard
• Supports NVIDIA GPUs up to 3090 and AMD GPUs up to RX 6900 XT
• Zero RPM Fan mode silences the fan under low-load conditions
• Dynamic 135mm fluid-dynamic bearing fan
• 10-year warranty

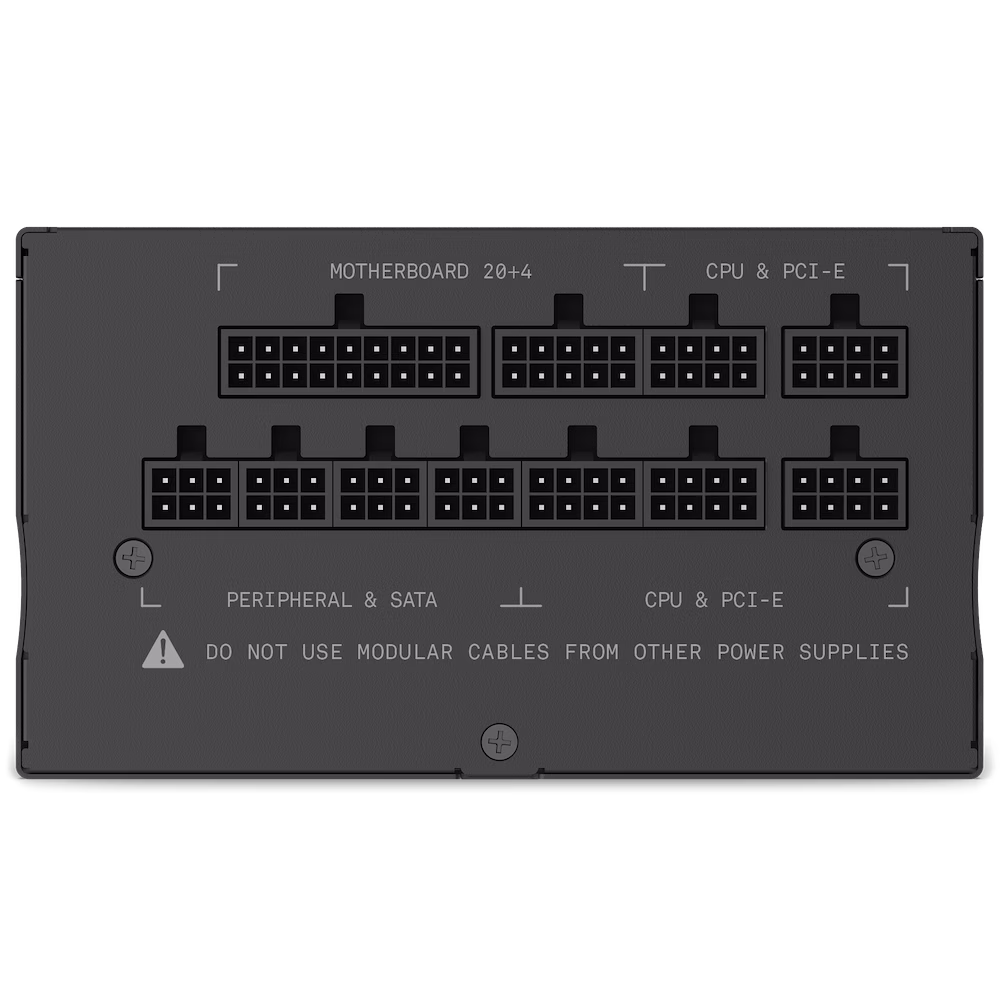

OUTPUT CONNECTORS

• 24-pin ATX power:1

• 4+4-pin CPU power:2

• 6+2-pin PCIe power:6

• SATA power:6

• Peripherals:6

CABLE SPECS

• 24-pin ATX power:600 mm, Nylon sleeving

• 4+4-pin CPU power:700 mm, Nylon sleeving

• 6+2-pin PCIe power:650 + 150 mm, Nylon sleeving

• SATA power:500 + 150 mm

• Peripherals:500 + 150 mm

AC INPUT RATING

• 100 - 240Vac:10A-5A 50Hz-60Hz

DC OUTPUT RATING

• +3.3V and +5V:22A (120W)

• +12V:70.8A (850W)

• -12V:0.3A (3.6W)

• 5Vsb:3A (15W)

• Total:850W

OPERATION

• PF Correction:Active @0.96

• MTBF:100,000 hours

• Temperature:0 - 50 ??C (derating from 100% to 80% from 40 ??C to 50 ??C)

ENERGY EFFICIENCY

• Rating:80 Plus Gold

• 20% loading:89.71% @115Vac

• 50% loading:90.80% @115Vac

• 100% loading:88.03% @115Vac

FAN SPECS

• Dimensions:135 x 135 x 25 mm

• Speed:0-2300 ?? 10% RPM

• Airflow:93.02 CFM (Tpy.)

• Noise:44.5 dBA max

• Bearing:Fluid Dynamic Bearing (FDB)

GENERAL

• Dimensions:150 x 150 x 86mm

• Material(s):Steel, PCB and Plastic

• Compliance Standard:ATX12V v2.52 / EPS12V v2.92

• Regulation & Certification:cTUV-SUDus / CUL (UL60950/62368-1) / TUV / (EN60950/62368-1) / CB/ (IEC 950/62368-1) / CCC / CEC /BSMI / RCM / EAC / CE / LVD / UKCA

• Warranty:10 years

• Model Number:PA-8G1BB

UPC

• UPC (TW):815671017383

• UPC (CN):815671017314

• UPC (AR):815671017321

• UPC (US):815671017338

• UPC (EU):815671017345

• UPC (UK):815671017352

• UPC (AU):815671017369

• UPC (JP):815671017376

• UPC (WO):815671017406

• UPC (IN):815671017390

EAN

• EAN (TW):5060301697694

• EAN (CN):5060301697625

• EAN (AR):5060301697632

• EAN (US):5060301697649

• EAN (EU):5060301697656

• EAN (UK):5060301697663

• EAN (AU):5060301697670

• EAN (JP):5060301697687

• EAN (WO):5060301697717

• EAN (IN):5060301697700
