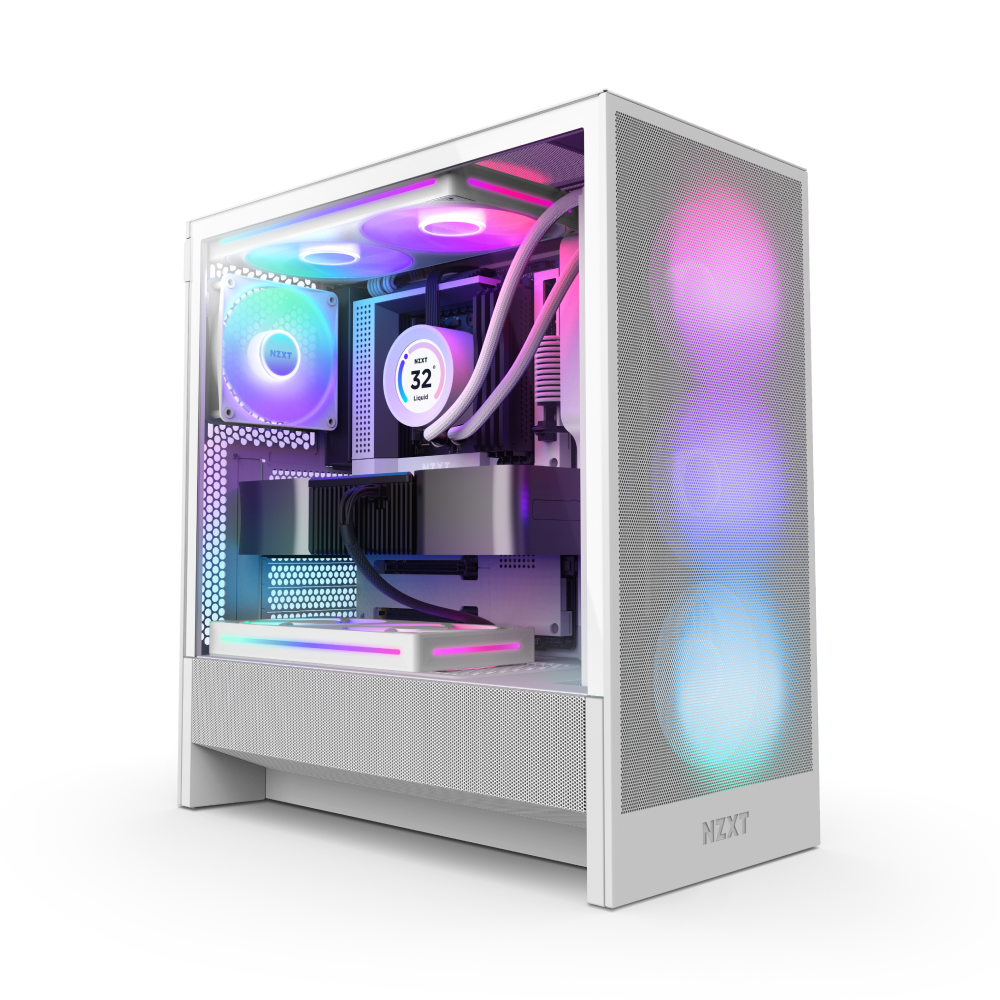

NZXT H5 Flow RGB 2024 - Compact ATX Mid-Tower PC Gaming Case - High Airflow - F360 RGB Core (CV) Included - 360mm Front & 240mm Top Radiator Support - Cable Management - Tempered Glass - White | CC-52FW-R1
Model :
SKU : ATX-NZXT CC-H52FW-R1
About this item
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
Details
The H5 Flow RGB boosts airflow and GPU cooling with its perforated PSU shroud, mesh panels, and large radiator support???all in a compact mid-tower form factor.
The PSU shroud is perforated on the side and bottom, enabling optimal air intake from two 120mm fans (not included).
Supports up to a 360mm radiator in front and a 240mm radiator up top for powerful liquid cooling potential.
Ultra-fine mesh on the top, front, and side panels creates maximum airflow and filters dust.
Equipped with a front-mounted F360 RGB Core (CV) single-frame fan and rear-mounted F120Q (CV) fan for strong out-of-the-box cooling and lighting.
Effortlessly route and conceal cables using the wide channels, hooks, and straps.
Inside the Box
H5 Flow RGB1
F360 RGB Core (CV)1
F120Q (CV)1
Installation accessories1
User guide1
Case Specifications
Specification
| Motherboard Support | E-ATX (Up to 277 mm wide), ATX, Micro-ATX, Mini-ITX |
| Enclosure Type | Mid-Tower |
| Case Material | SGCC Steel, Ultra-Clear Tempered Glass (White), Dark Tinted Tempered Glass (Black) |
| Height (with feet) | 465 mm / 18.31 in |
| Width | 225 mm / 8.86 in |
| Depth | 430 mm / 16.93 in |
| Weight | 7.63 kg / 16.82 lb |
| CPU Cooler Height | Up to 170 mm |
| GPU Length | Up to 410 mm |
| PSU Length | Up to 200 mm |
| Cable Management | Up to 28.7 mm |
| Top Radiator | Up to 240 mm (280 mm with low-profile memory) |
| Top Mounted 140mm / 280mm Radiator & Fan Combined Thickness | Up to 55 mm |
| Front Ports | USB 3.2 Type-A: 1, USB 3.2 Type-C: 1, Headset Audio Jack: 1 |
| Expansion Slots | Standard: 7, Vertical: 0 |
| Drive Bays | 2.5": 2, 3.5": 1 |
| Fan Support (Front) | 3 x 120 mm / 2 x 140 mm (1 x F360 RGB Core Case Version included) |
| Fan Support (Top) | 2 x 120 mm / 2 x 140 mm |
| Fan Support (Bottom) | 2 x 120 mm |
| Fan Support (Rear) | 1 x 120 mm (2 x F120Q Case Version included) |
| Radiator Support (Front) | Up to 360 mm |
| Radiator Support (Top) | Up to 240 mm (280 mm with low-profile memory only) |
| Fan Model (Front) | F360 RGB Core (Case Version) |
| Fan Speed (Front) | 1,700 ?? 200 RPM |
| Fan Airflow (Front) | 50.1 CFM |
| Fan Static Pressure (Front) | 1.27 mm-H???O |
| Fan Noise (Front) | 23.3 dBA |
| Fan Connector (Front) | 3-pin |
| Fan Model (Rear) | F120Q (Case Version) |
| Fan Speed (Rear) | 1,350 ?? 150 RPM |
| Fan Airflow (Rear) | 60.2 CFM |
| Fan Static Pressure (Rear) | 1.05 mm-H???O |
| Fan Noise (Rear) | 24.1 dBA |
| Fan Connector (Rear) | 3-pin |
| Warranty | 2 years |
| Model Number | CC-H52FW-R1 (White) / CC-H52FB-R1 (Black) |
| UPC | 810074845922 (White) / 810074845939 (Black) |
| EAN | 5056547205861 (White) / 5056547205878 (Black) |
