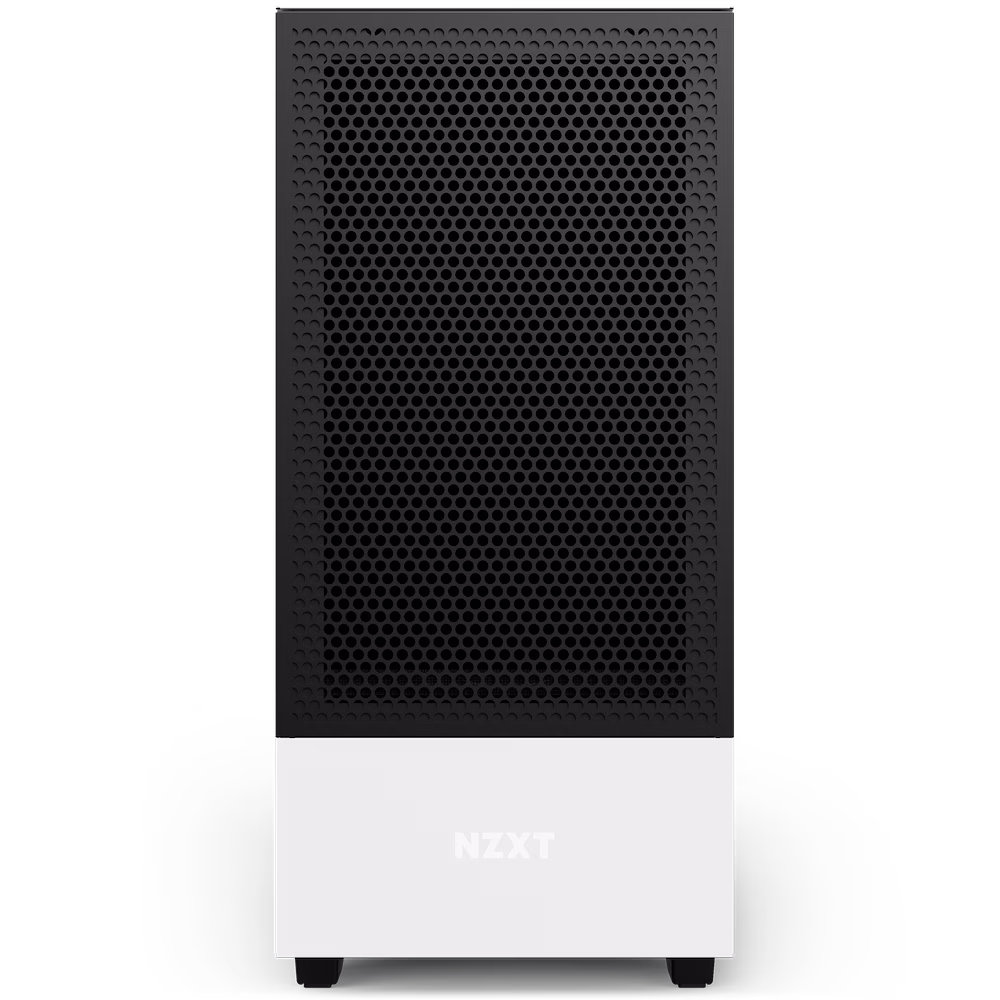

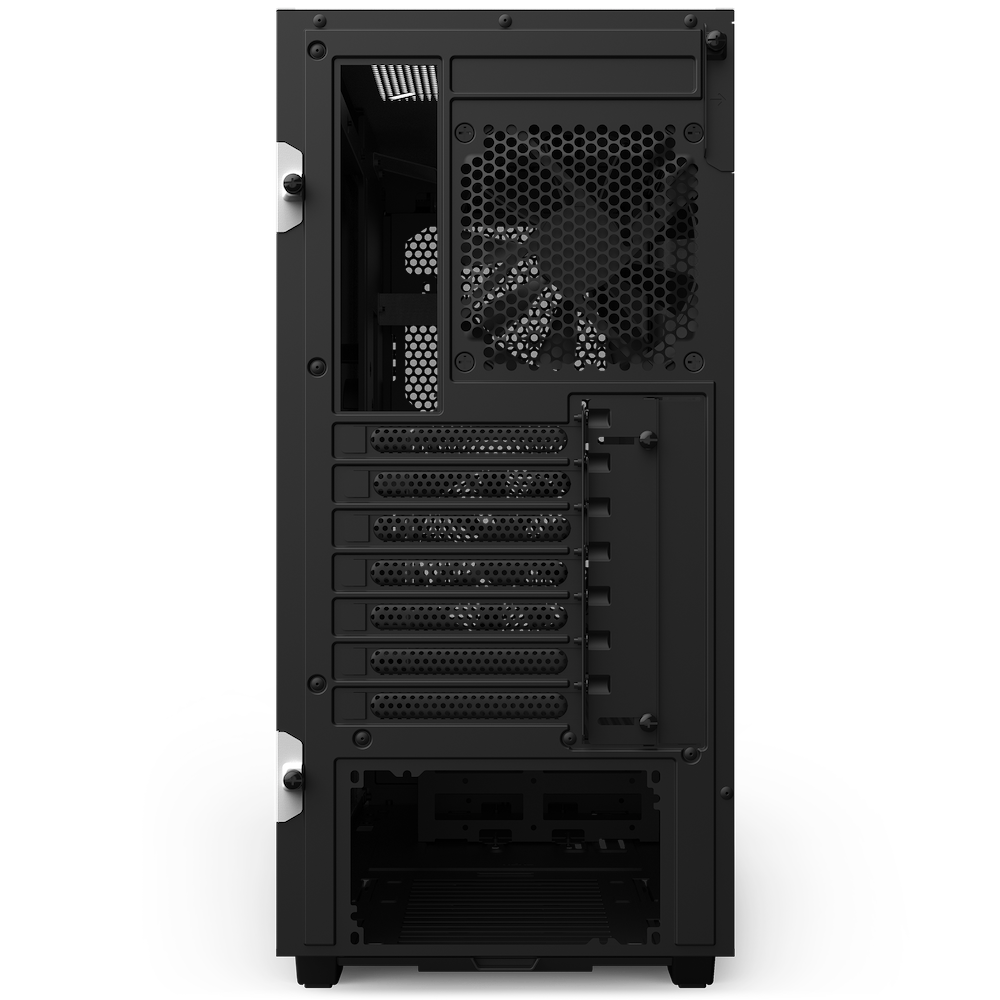

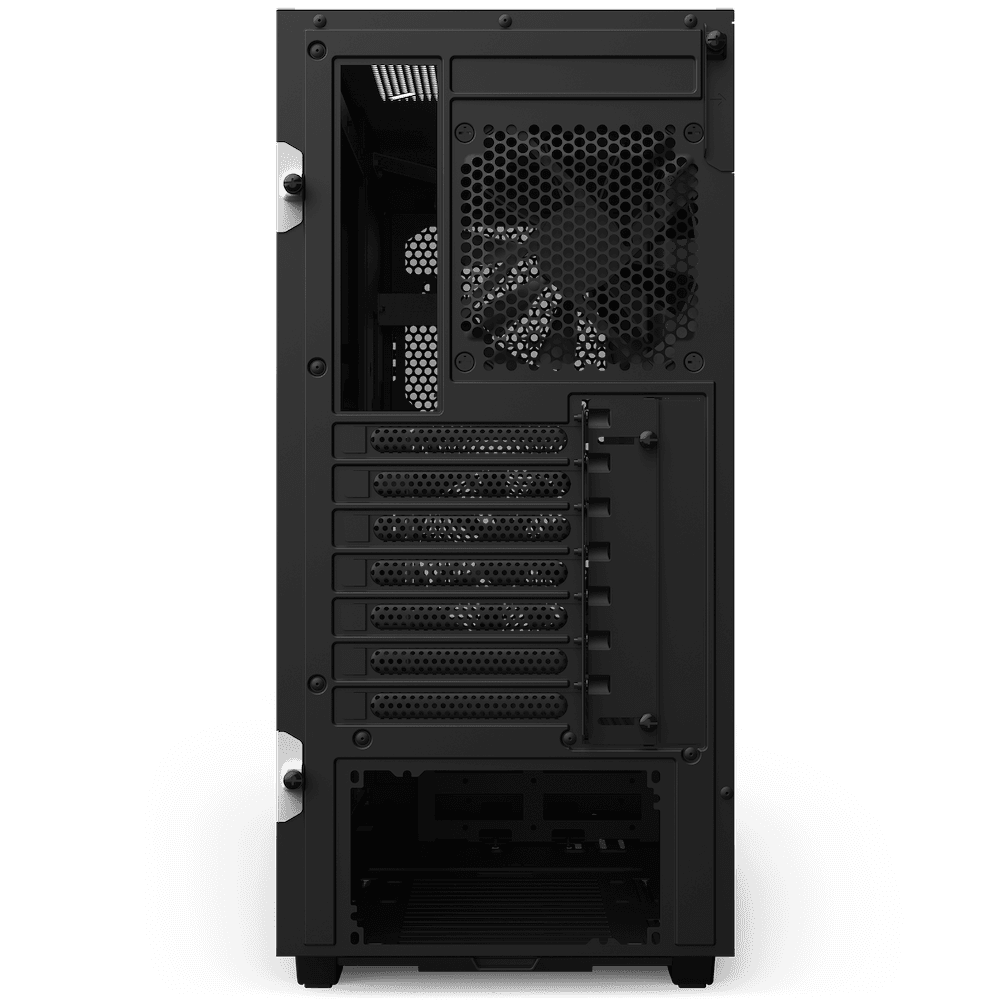

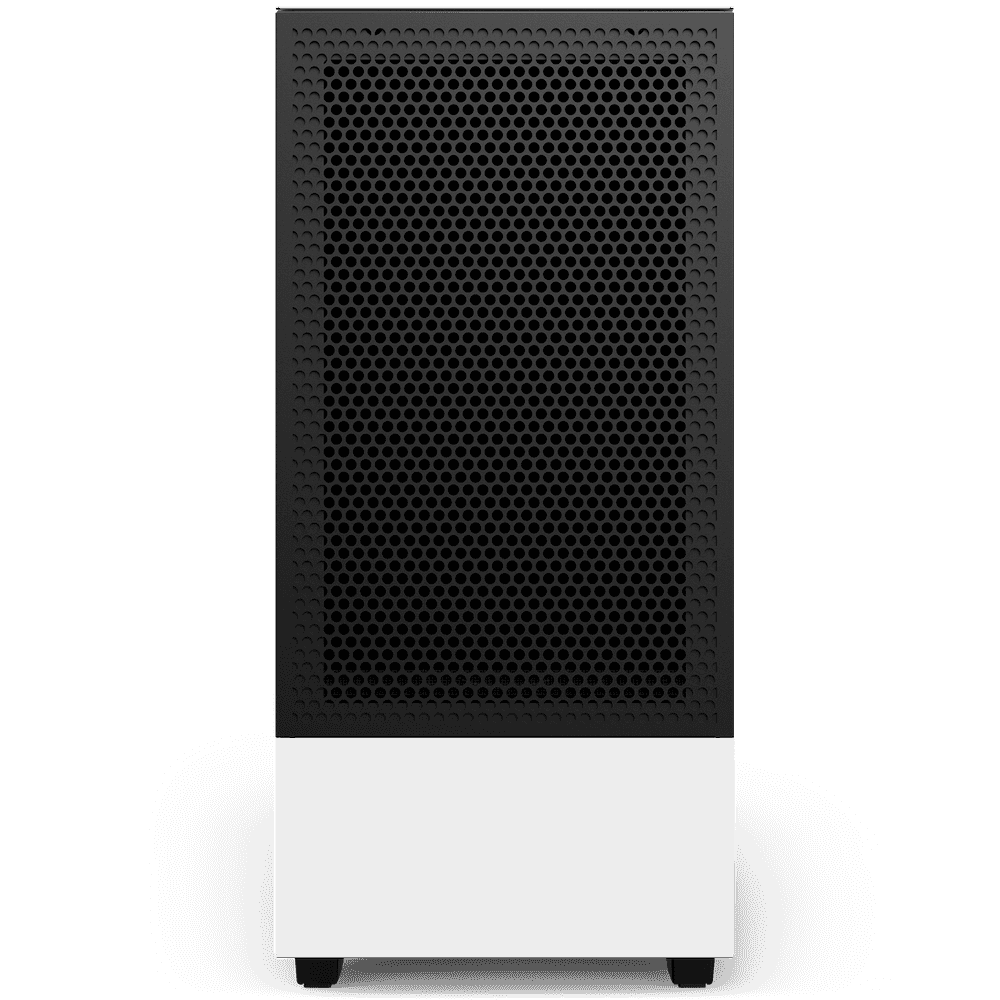

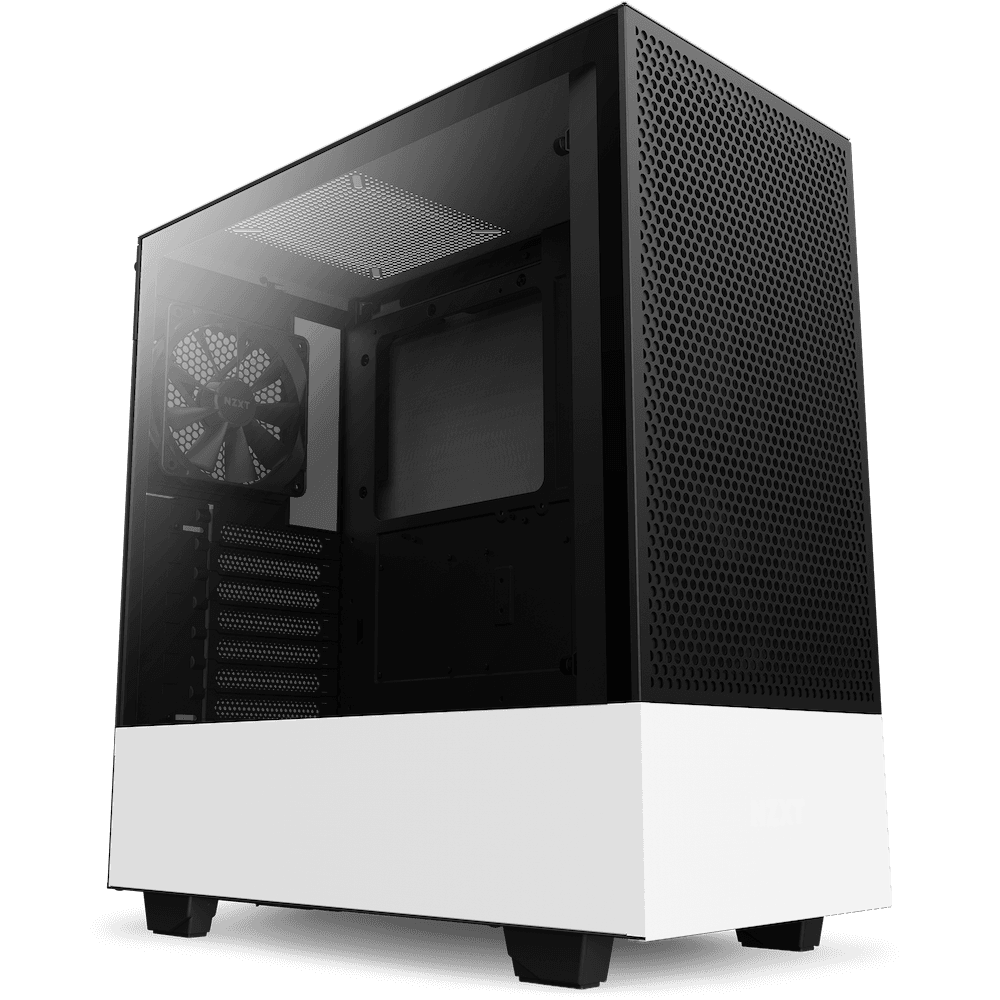

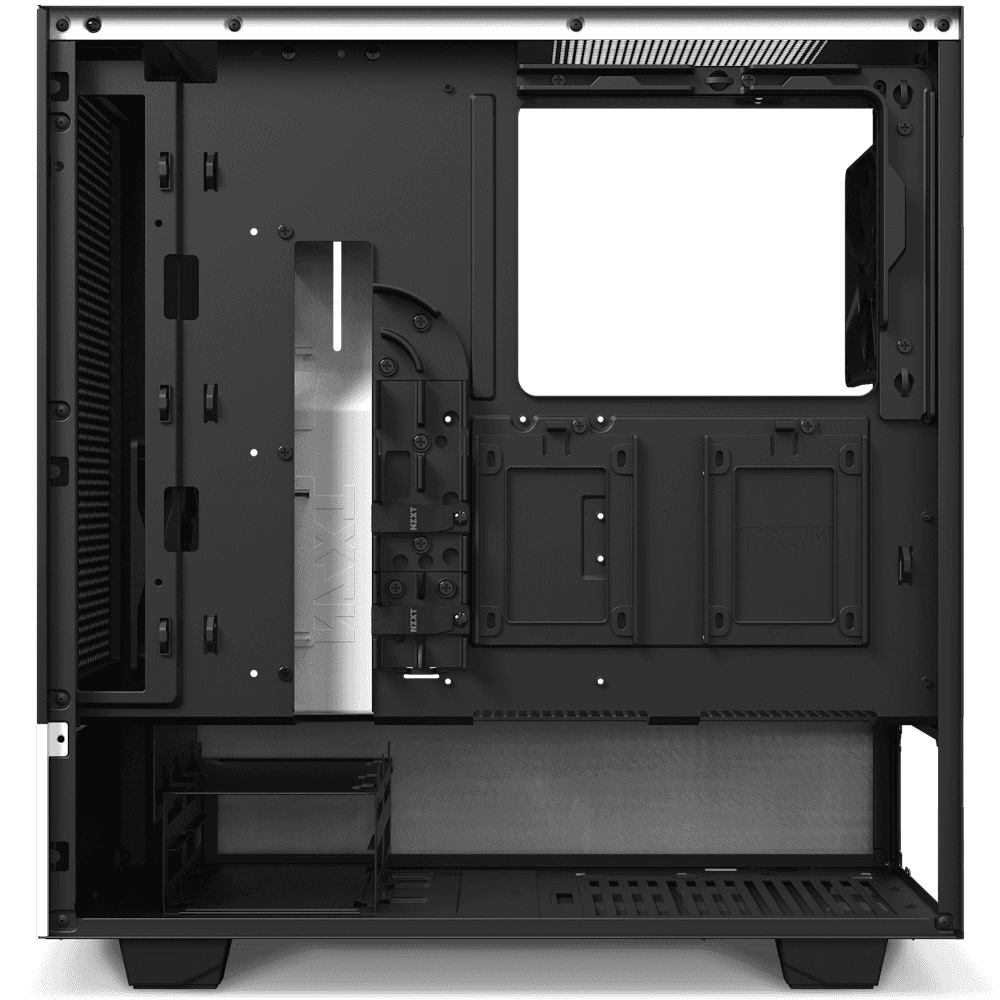

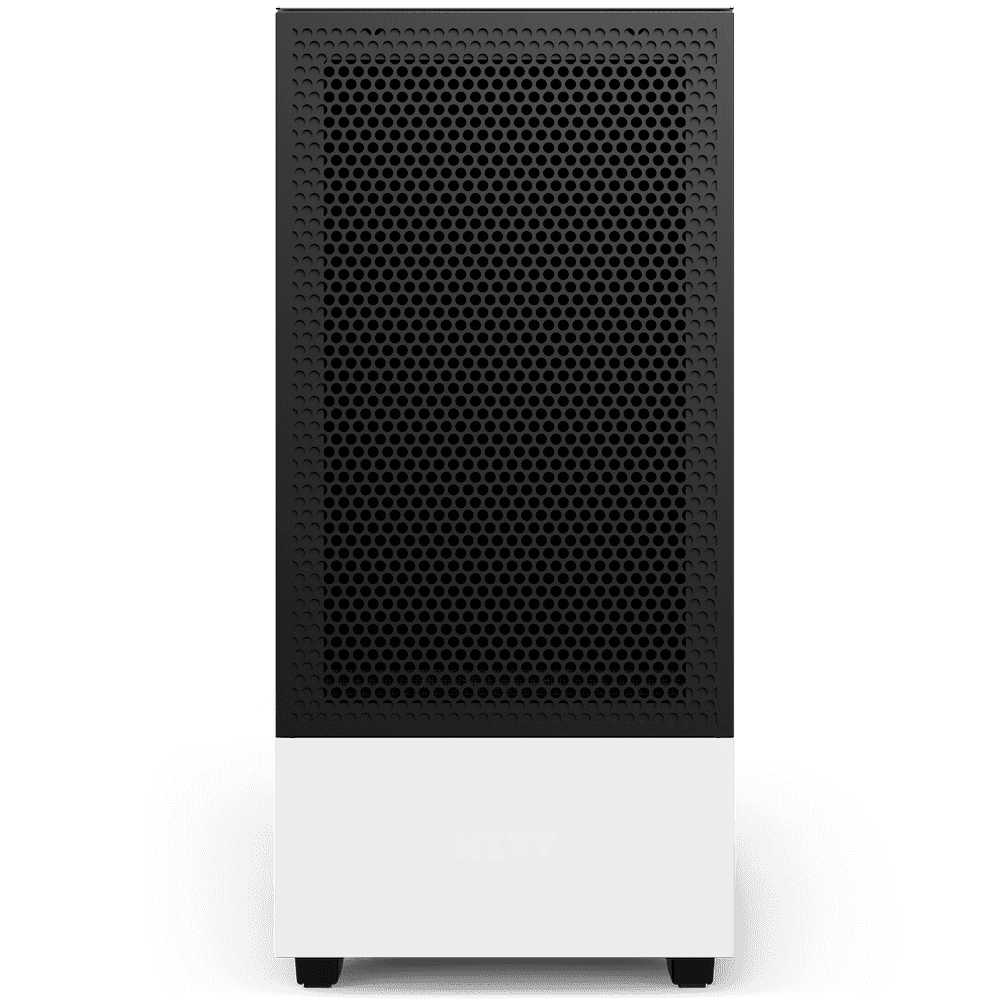

NZXT H510 FLOW EDITION ATX WHITE MID-TOWER GAMING CASE CA-H52FW-01

This compact mid-tower is an ideal case for high-performance builds and features a perforated front panel for maximized airflow. The H510 is easy to build in and offers flexibility for a variety of ATX parts.

• An optimized perforated top panel delivers increased airflow to your system for improved temperatures
• Iconic cable management bar and uninterrupted tinted tempered-glass side panel
• Cable routing kit with pre-installed channels and straps
• Two Aer F120mm fans and removable filters on all air intakes
• Removable bracket designed for radiators up to 280mm

*Case version fans and specs vary from retail version

KEY SPECS

• Motherboard Support:Mini-ITX, MicroATX, ATX

• Enclosure Type:Compact Mid-Tower

• Case Material:SGCC Steel, Clear Tempered Glass

DIMENSIONS

• Height:460 mm / 18.11 inches

• Width:210 mm / 8.26 inches

• Depth:428 mm / 16.85 inches

• Weight:6.6 kg / 14.5 lb

COMPATIBILITY & CLEARANCE

• Max CPU Cooler Clearance:165 mm

• Max GPU Clearance:360 mm

• Front Fan & Radiator Clearance:60 mm

• Cable Management:19 - 23 mm

FRONT I/O PORTS

• USB 3.2 Gen 1 Type-A:1

• USB 3.2 Gen 2 Type-C:1

• Headset Audio Jack:1

EXPANSION SLOTS

• Standard:7

• Vertical:-

DRIVE BAYS

• 2.5":2 + 1

• 3.5":2 + 1

FAN SUPPORT

• Front:2 x 120mm / 2 x 140mm

• Top:1 x 120mm / 1 x 140mm

• Rear:1 x 120mm

• Filters:All air intake

INCLUDED FANS

• Front:1 x Aer F 120mm (Case Version)

• Top:-

• Rear:1 x Aer F 120mm (Case Version)

RADIATOR SUPPORT

• Front:280mm

• Rear:120mm

FAN SPECS

• Model:Aer F 120mm (Case Version)

• Speed:1,200 ?? 200RPM

• Airflow:50.42 CFM

• Noise:28 dBA

• Bearing:Rifle Bearing

• Fan Connector:3-pin
