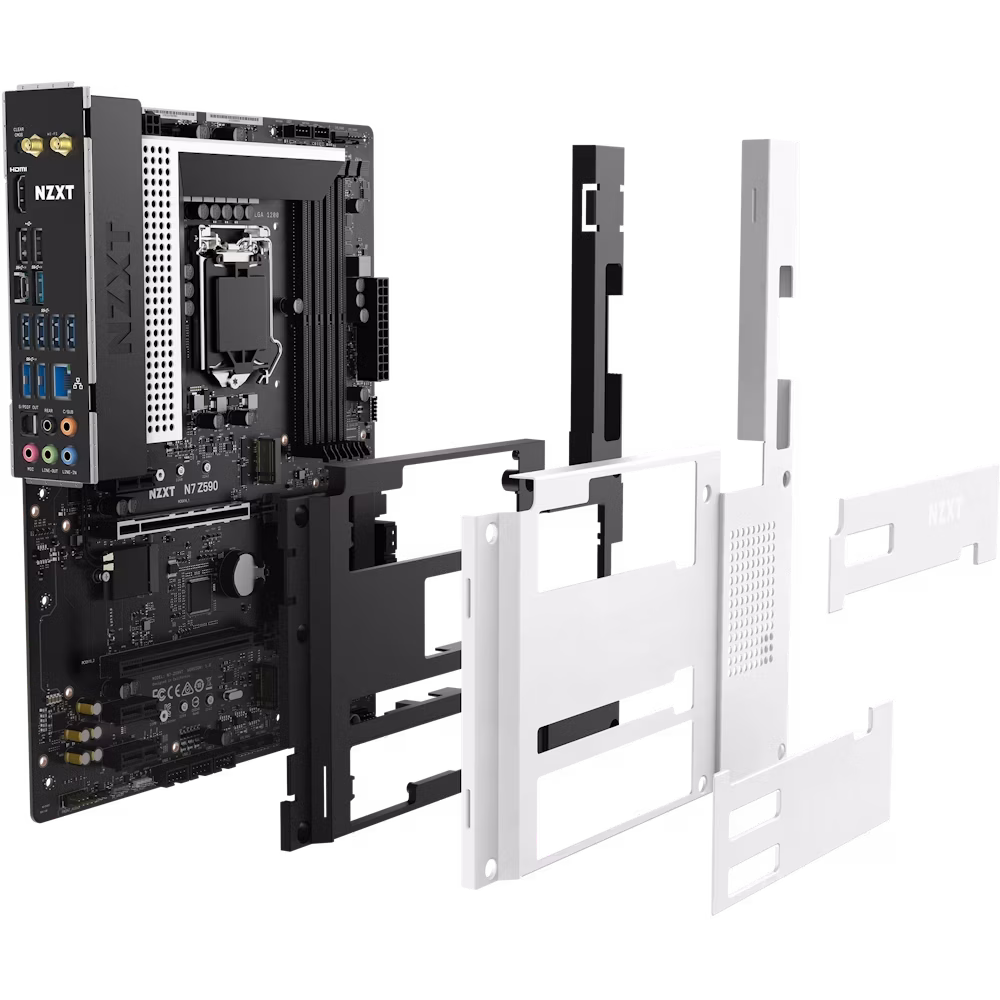

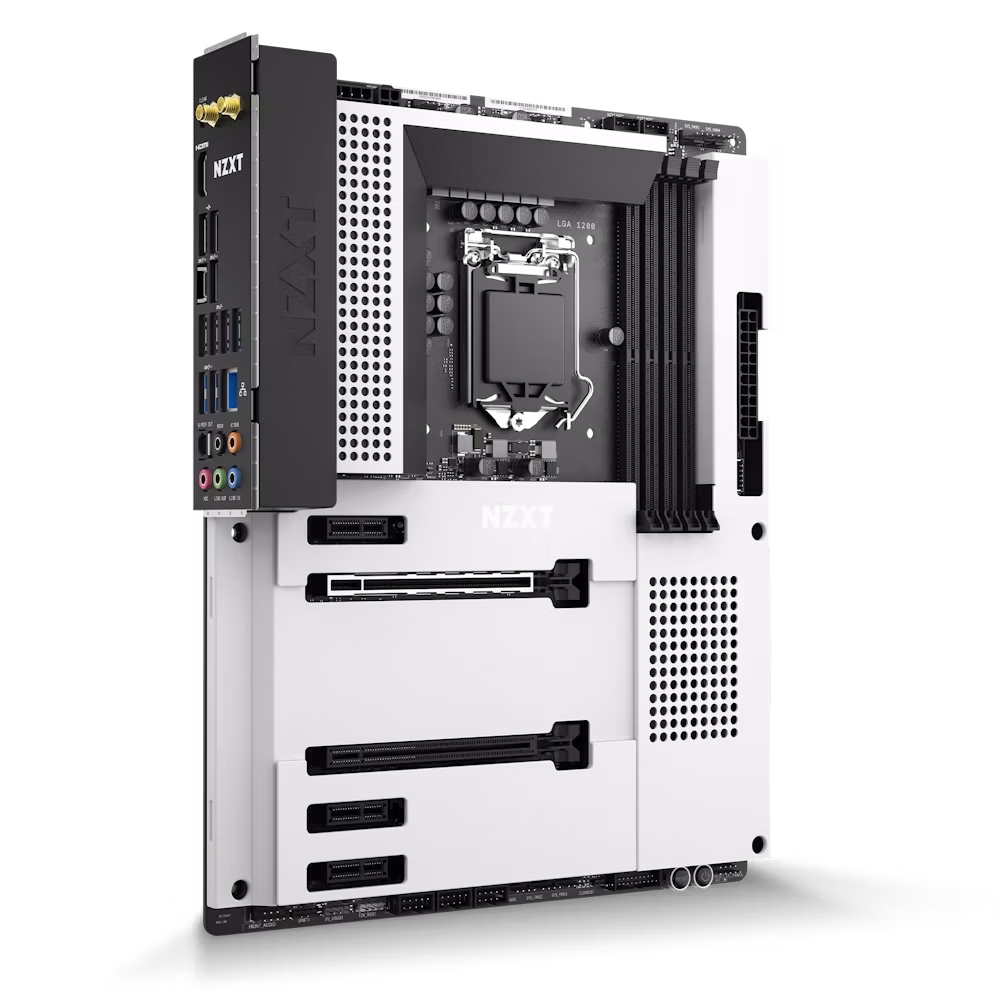

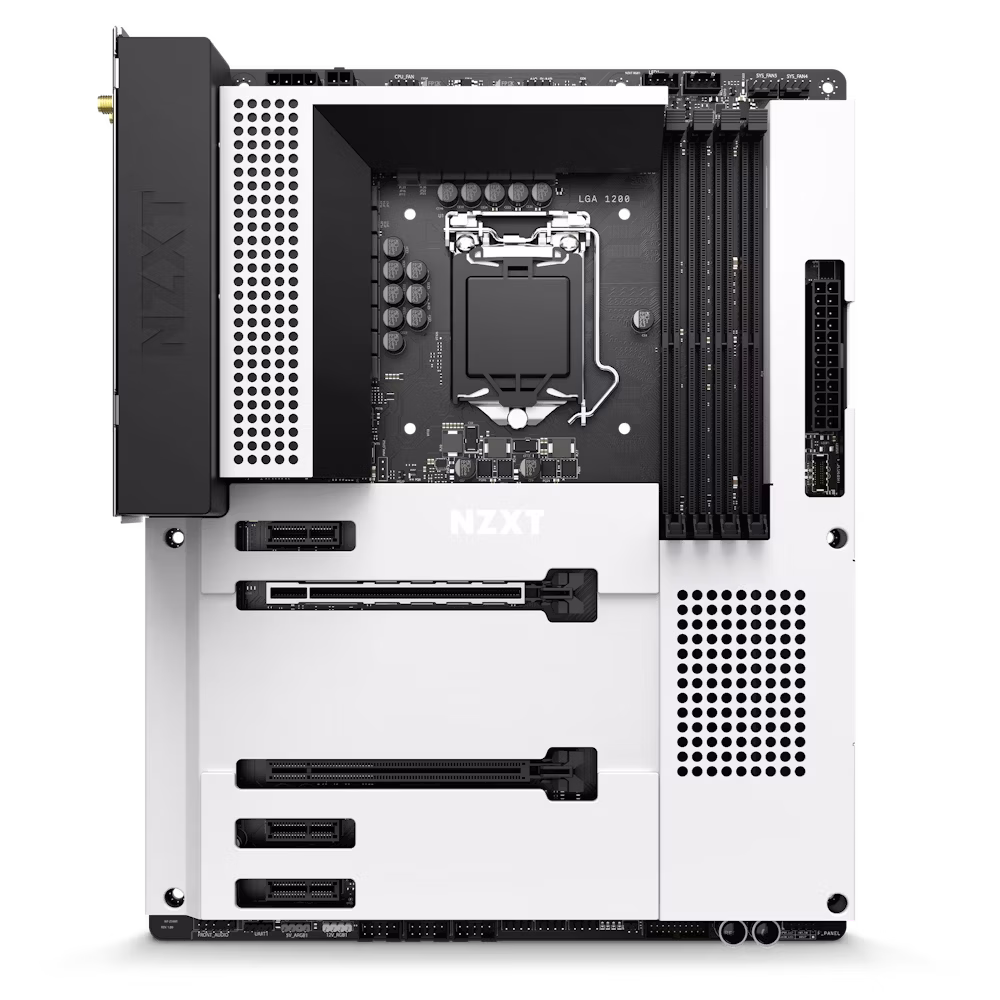

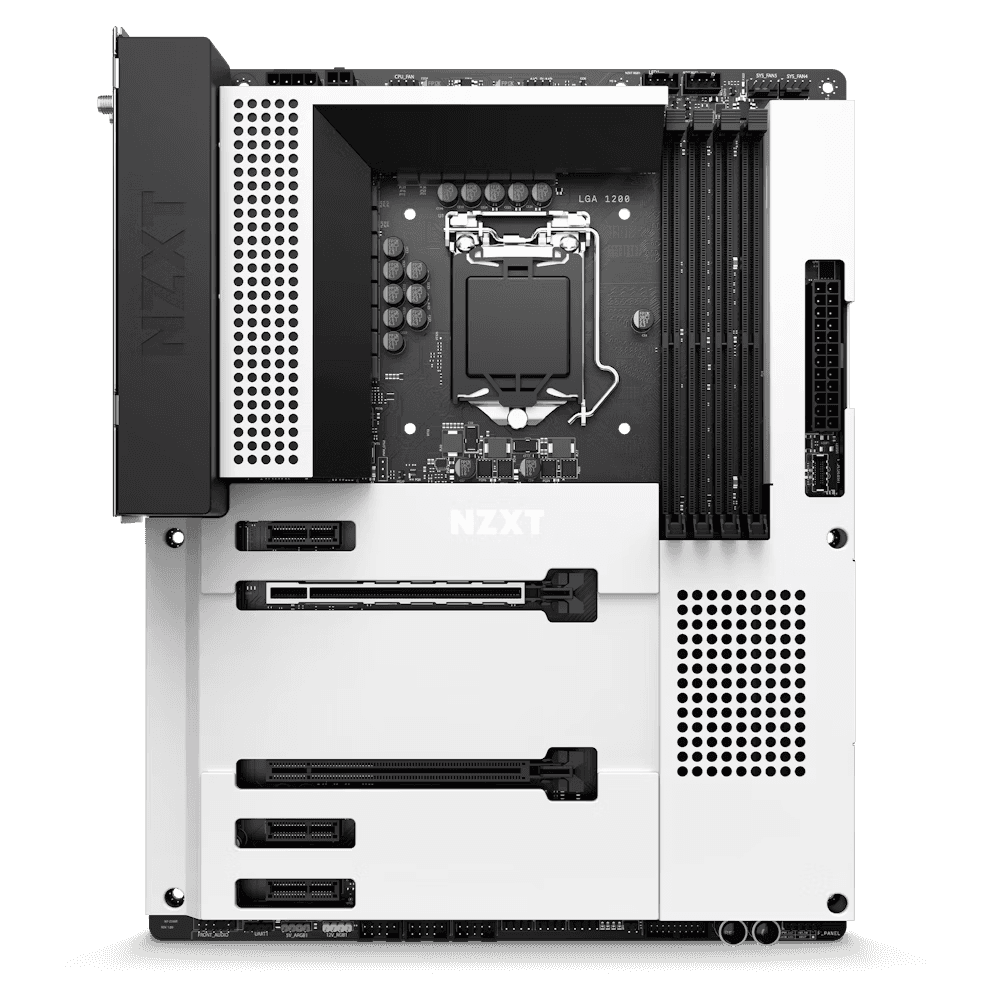

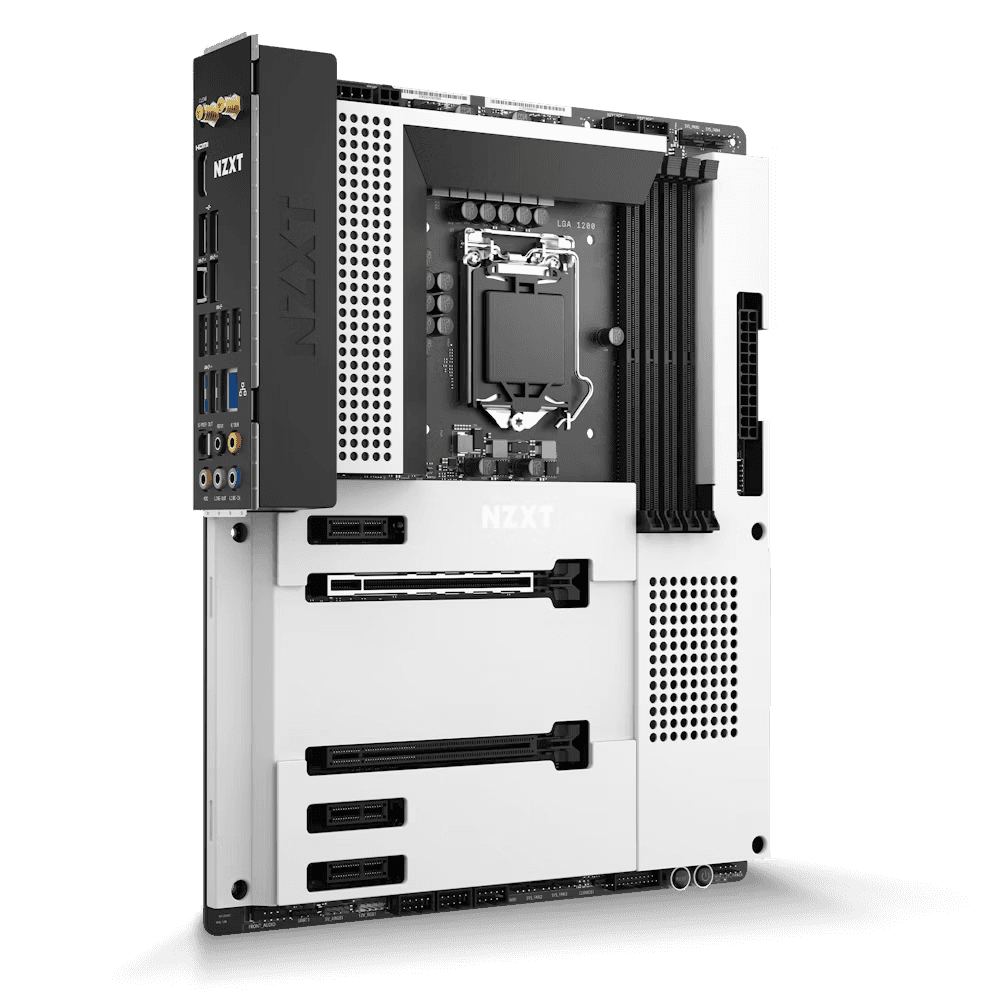

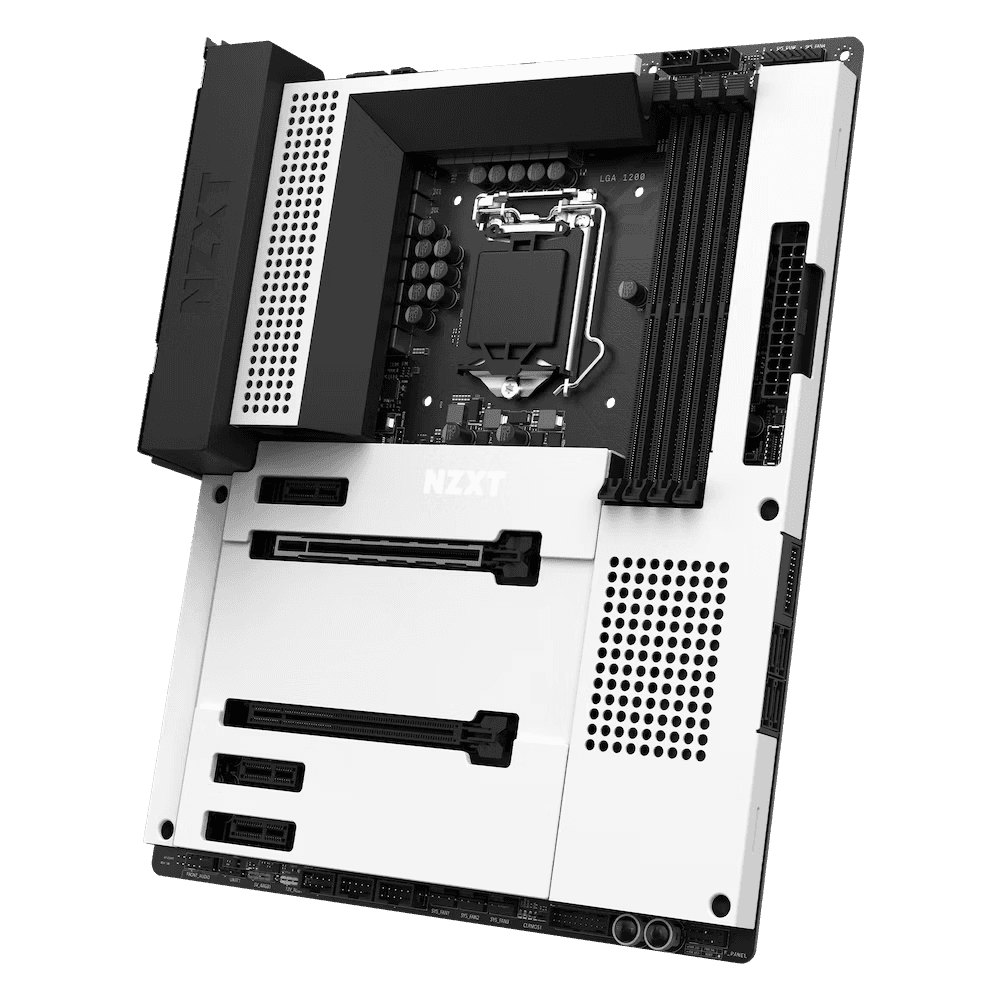

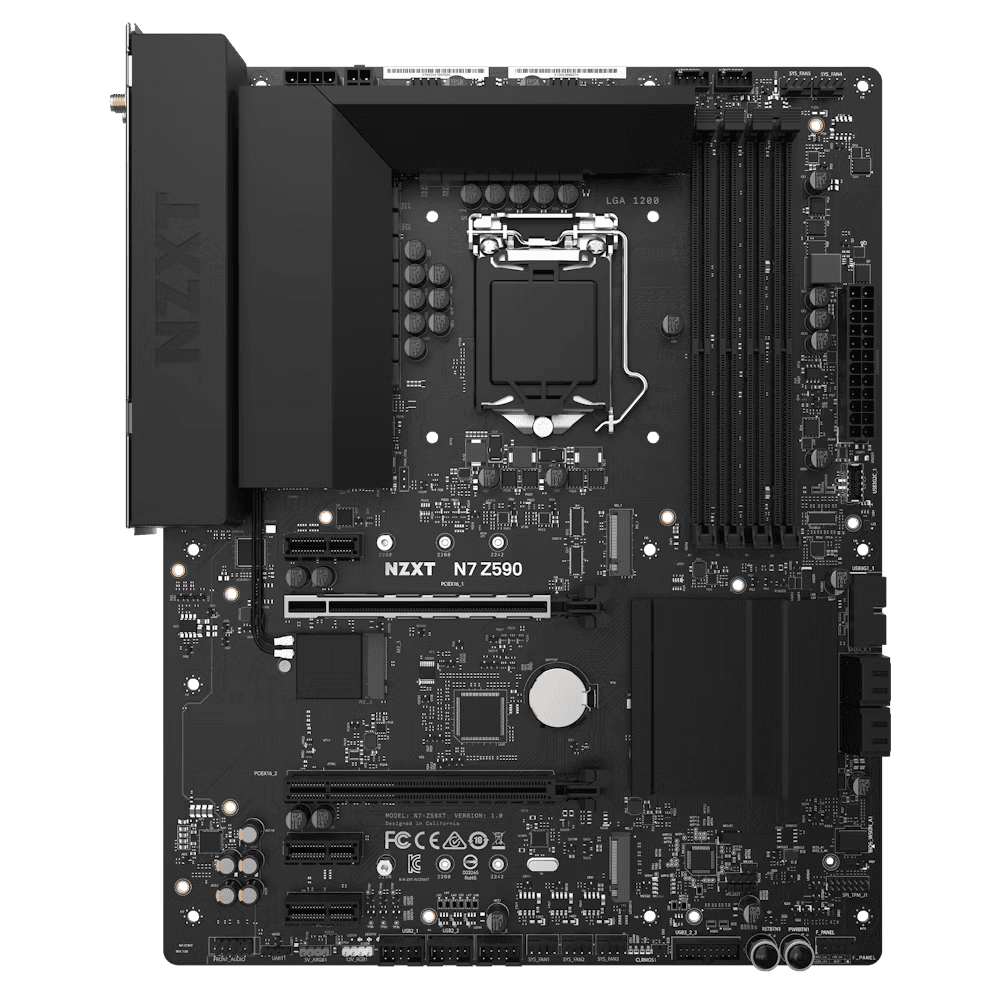

The NZXT N7 Z590 is built for enthusiasts who value a clean, industrial design without sacrificing modern performance. Unlike traditional motherboards with exposed circuitry and varied colors, the N7 series utilizes a unique metal shroud that covers almost the entire board. This white matte finish reflects light beautifully, making it the perfect foundation for builders looking to create a "Black and White" or "Pure White" masterpiece.
Optimized for Intel 11th Gen Performance

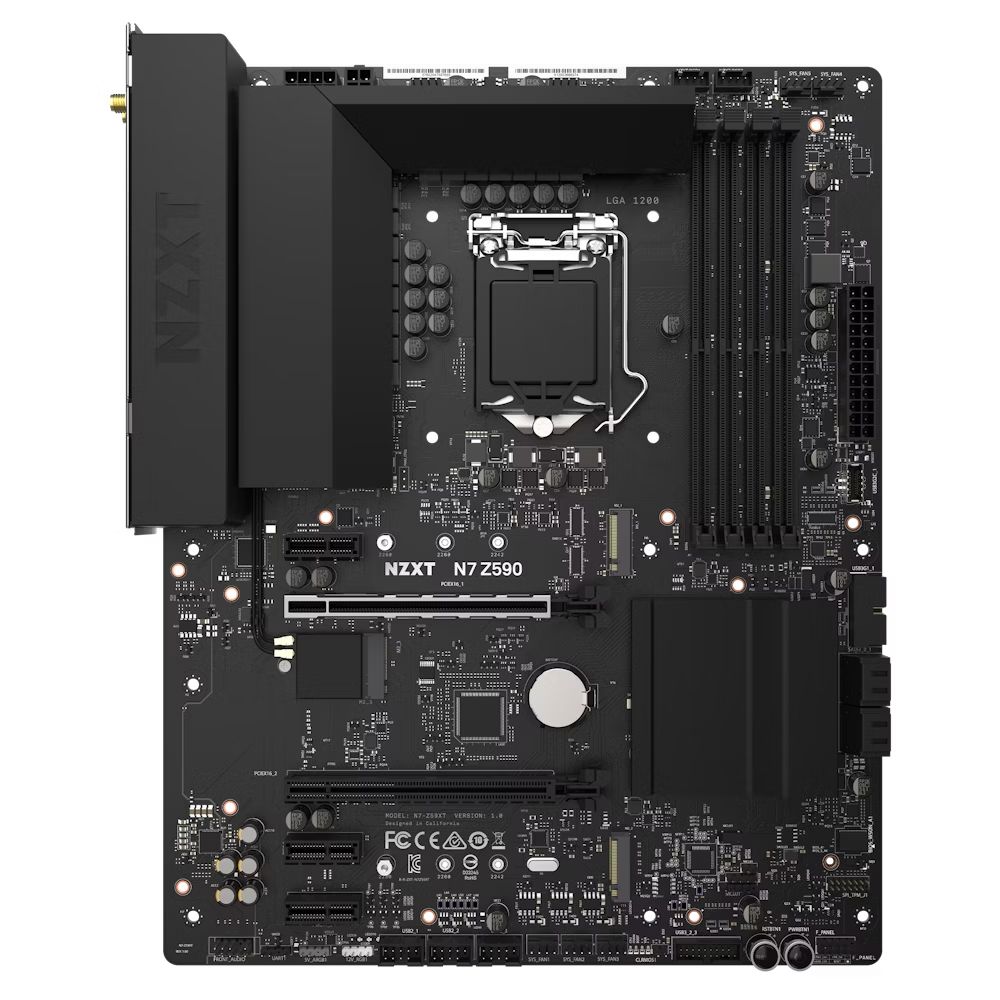

Equipped with the Intel Z590 chipset, this motherboard provides native support for PCIe 4.0, doubling the bandwidth for the latest graphics cards and NVMe SSDs when paired with an 11th Gen CPU. The power delivery system is built with a 12+2 DrMOS power stage design on a 2oz copper PCB, ensuring stable power delivery and better thermal management during intense gaming sessions or moderate overclocking.
Integrated Smart Control via NZXT CAM
One of the standout features of the N7 Z590 is its built-in digital control. You don't need separate hubs to manage your lighting and cooling; the board includes four RGB lighting channels and seven fan channels, all of which are natively supported and customizable through the NZXT CAM software. This allows you to synchronize your entire ecosystem's lighting and fan curves with a single interface.
Modern Connectivity & Wireless Freedom

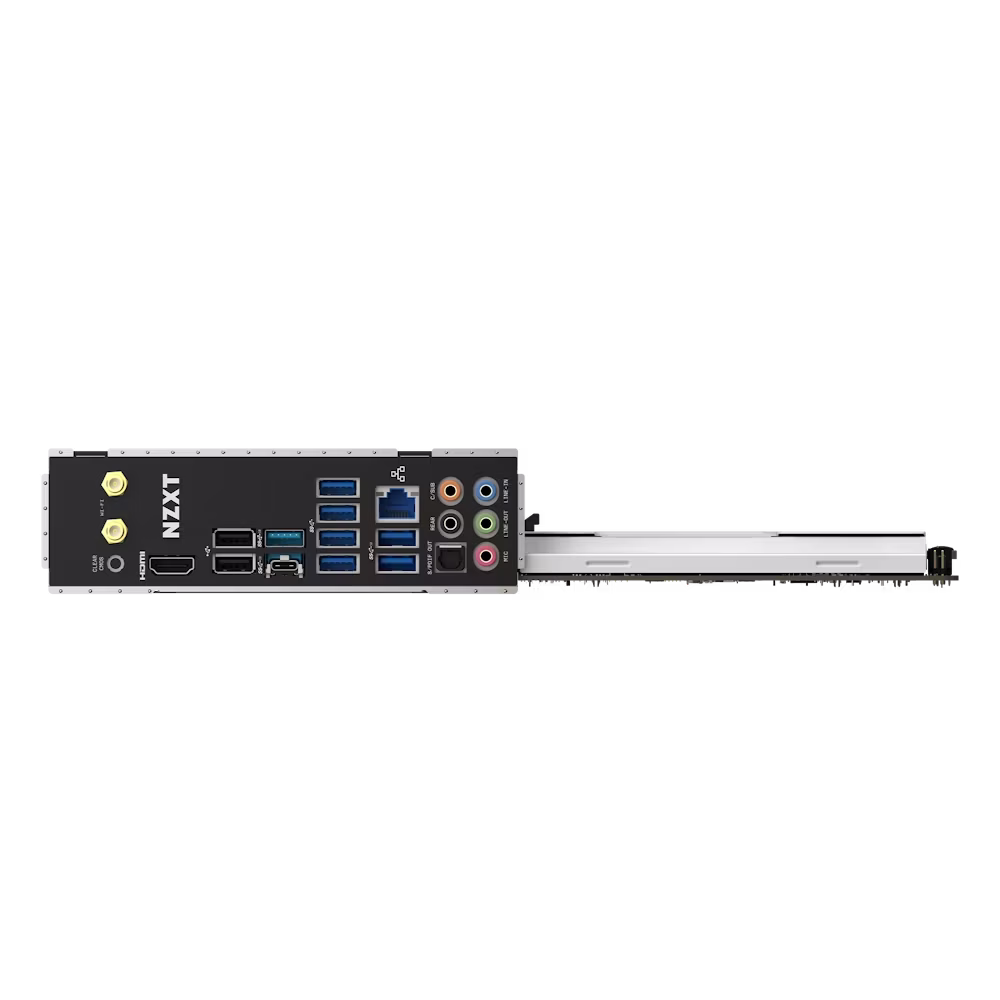

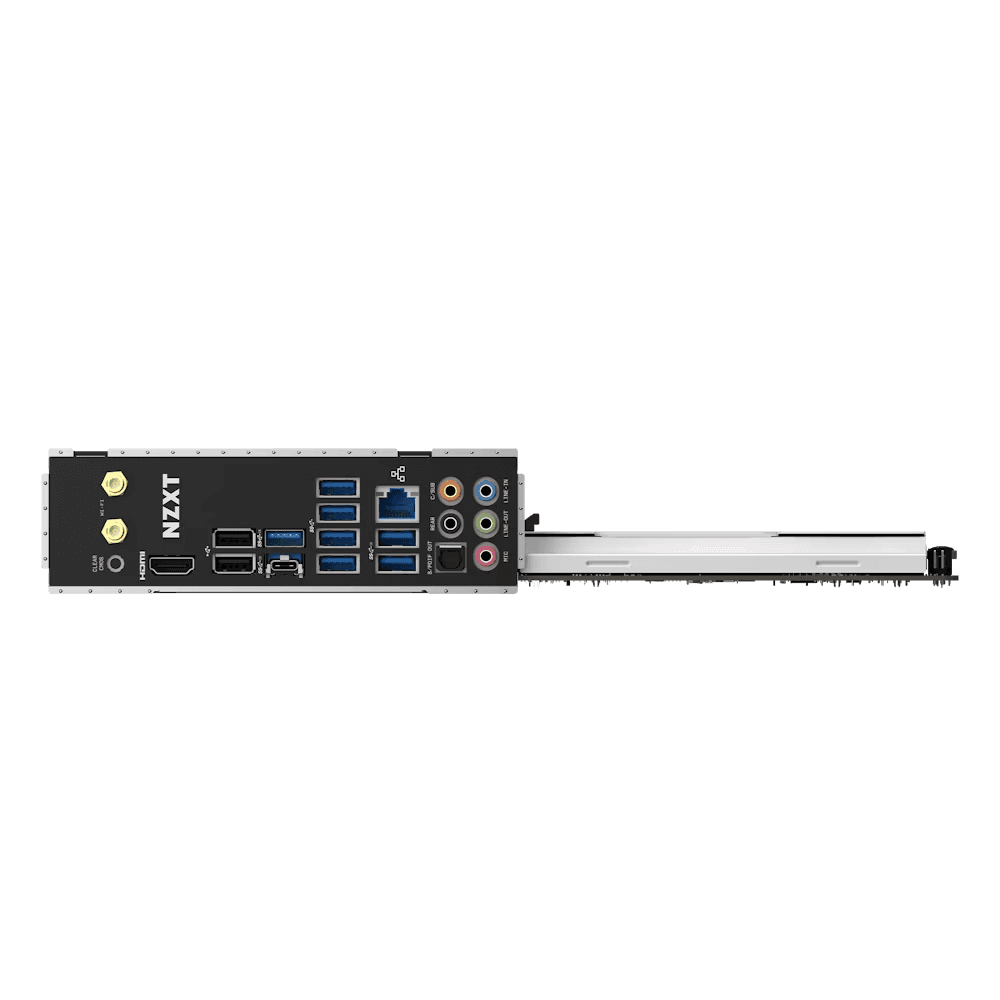

Despite its minimalist exterior, the N7 Z590 is loaded with high-speed I/O. It features integrated WiFi 6E technology, utilizing the new 6GHz band for ultra-low latency and higher speeds in crowded wireless environments. The rear I/O is also well-equipped with USB 3.2 Gen 2x2 Type-C (20Gbps), providing blistering fast data transfer for external drives and peripherals.
Why the NZXT N7 Z590-W1 Stands Out

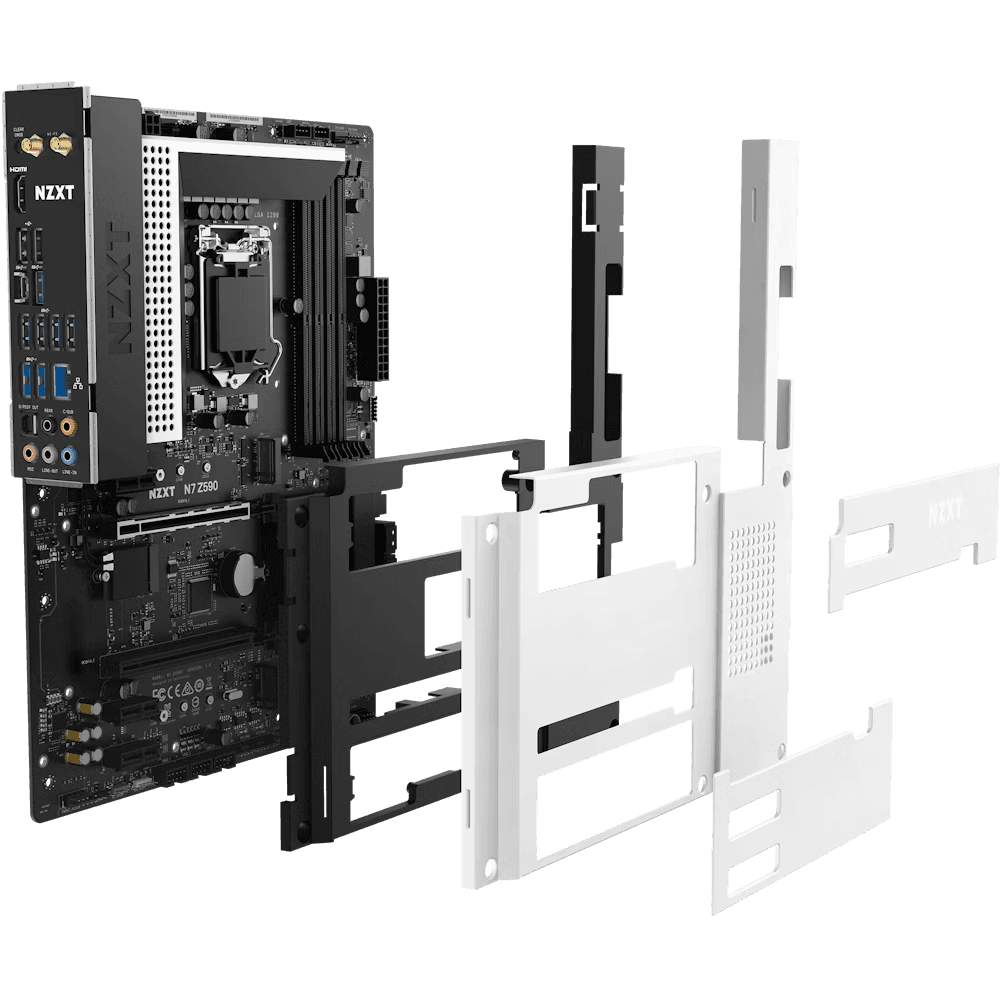

Signature Metal Shroud: A clean, white aesthetic that conceals the PCB for a professional look.
WiFi 6E & Bluetooth 5.2: The latest wireless standards for future-proof connectivity.
PCIe 4.0 Ready: Native support for the fastest modern GPUs and SSDs.
CAM-Enabled: Comprehensive control over lighting and cooling without extra hardware.
| CPU Compatibility | Intel?? Socket LGA1200 for 10th and 11th Generation Processors: Intel?? Core??? Processors. Please refer to CPU support list. |
| Turbo Boost Max 3.0 Technology | Supported |
| Chipset | Intel?? Z590 |
| DIMM Slots | 4, DDR4 only |
| Max Memory Support | 128GB |
| Memory Architecture | Dual-Channel |
| OC Frequency (11th Gen CPUs) | 4600+ MHz |
| OC Frequency (10th Gen CPUs) | 4400+ MHz |
| Base Frequency (11th Gen CPUs) | 3200 / 2933 / 2800 / 2666 / 2400 / 2133 MHz |
| Base Frequency (10th Gen CPUs) | 2933 / 2800 / 2666 / 2400 / 2133 MHz |
| Type | Non-ECC, Un-buffered Memory |
| Intel?? XMP 2.0 Support | Supported |
| Integrated Graphics | Intel?? Xe Graphics (11th Gen CPUs) / UHD (10th Gen CPUs): HDMI 2.0 / HDMI 1.4b |
| HDMI Max Resolution | 4096x2160@60Hz |
| Multi-GPU Support | AMD 2-Way CrossFireX??? Technology: Supported |
| PCIe x16 (x16 mode) | 1 (11th Gen CPUs - PCIe 4.0, 10th Gen CPUs - PCIe 3.0) |
| PCIe x16 (x4 mode) | 1 |
| PCIe 3.0 x1 | 3 |
| M.2 Type 2242/2260/2280 (PCIe x4 mode) | 1 (11th Gen CPUs - PCIe 4.0, 10th Gen CPUs - PCIe 3.0) |
| M.2 Type 2242/2260/2280 (PCIe 3.0 x4 & SATA mode) | 1 |
| SATA 6Gb/s | 4 |
| RAID 0/1/5/10 Support | Supported |
| Intel?? Smart Response Technology | Supported |
| Intel?? Rapid Storage Technology | Supported |
| Intel?? Optane Memory | Supported |
| LAN | Realtek?? RTL8125BG 2.5G |
| Wireless | Intel?? Dual-Band Wireless AX210 Wi-Fi 6E |
| Bluetooth | V5.2 |
| Audio | Realtek?? ALC1220 Codec |
| Operating System | Windows?? 10 64-bit |
| Form Factor | ATX |
| Warranty | 3 years |
| Model Number | N7-Z59XT-W1 / N7-Z59XT-B1 |
| UPC | 815671015211 / 815671015228 |
| EAN | 5060301696666 / 5060301696673 |
