Poly Studio X70 All-in-One 4K Video Conferencing Bar with TC10 Touch Controller Kit, Dual 20MP Cameras, 7.3x Digital Zoom, 140° Wide-Angle FOV, Poly DirectorAI, Advanced Audio, USB-C, HDMI, Gigabit Ethernet, AES 256-Bit Encryption | 8L531AA
Model :
SKU : POLY X70 4K CONFERENCING

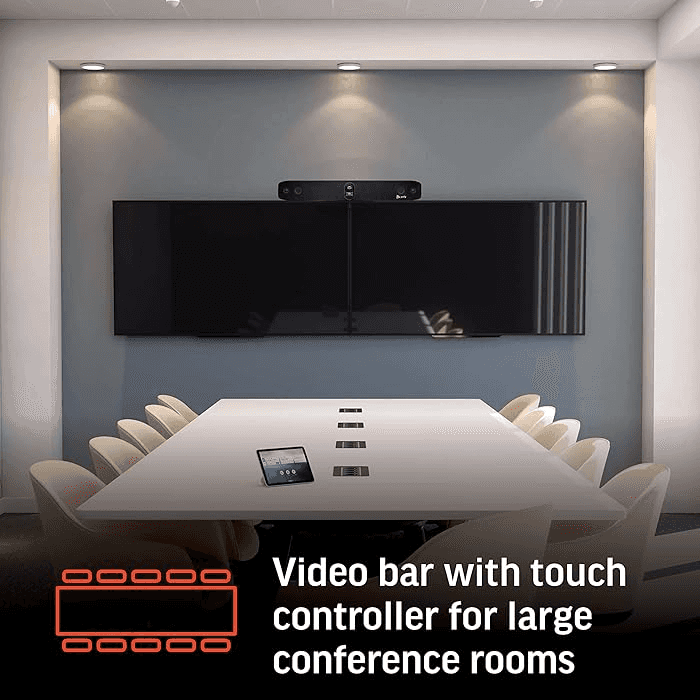

Make your large meeting room video conferencing easier and more powerful. The Poly Studio X70 offers quality audio and video performance in an all-in-one video bar.
Weight: 3200 g
Dimensions (W x D x H): 840.18 x 135.38 x 117.33 mm
What's in the box: Poly Studio X70; Ethernet cable; Wall mount kit; 2 HDMI cable; AC power adapter
Description

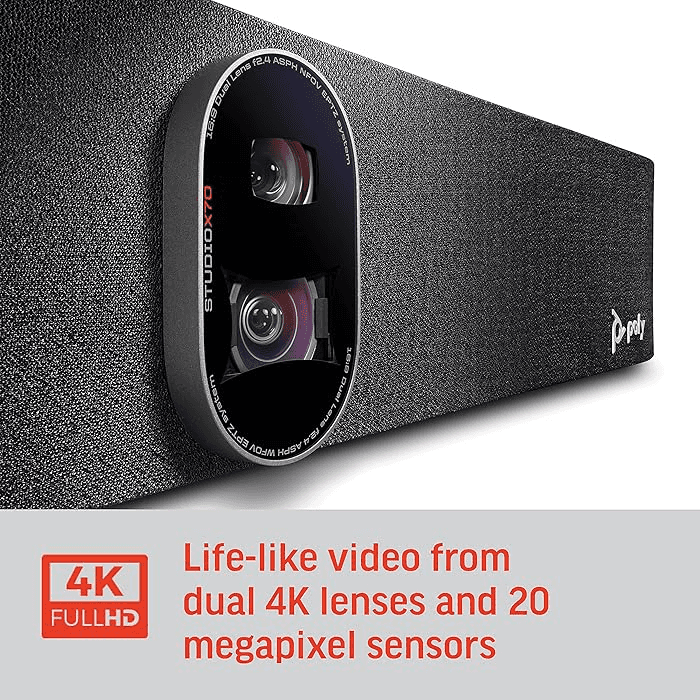

The Poly Studio X70 All-in-One Video Bar with TC10 Controller Kit is a professional video conferencing solution designed for modern meeting rooms and collaboration spaces. Featuring a dual 20MP camera system, it delivers high-quality video with support for up to 4K resolution and 7.3× digital zoom.

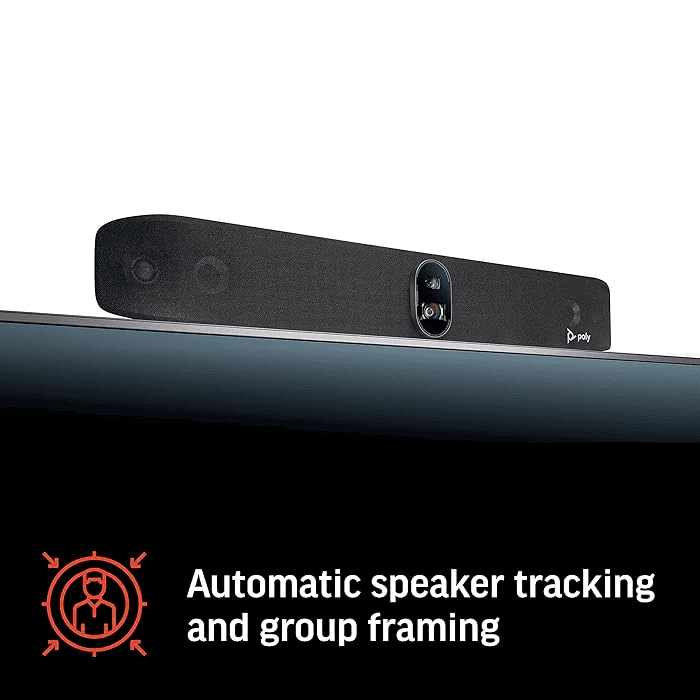

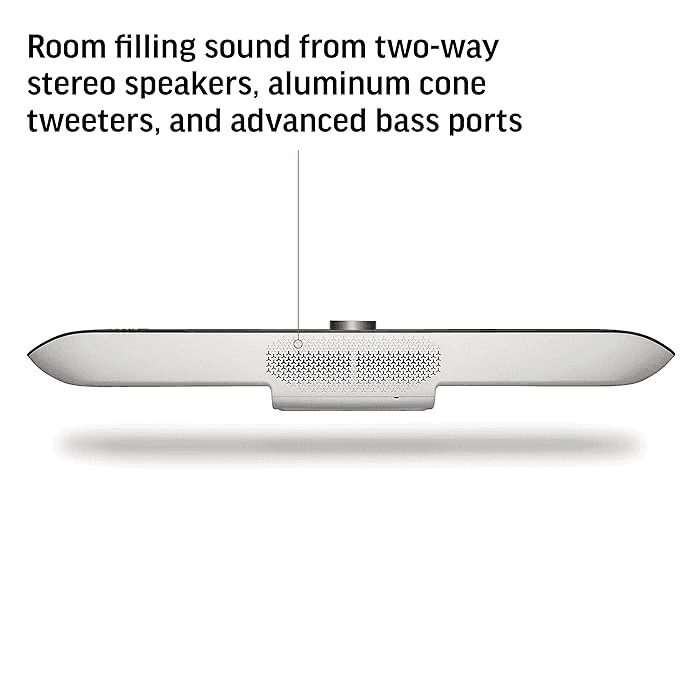

With Poly DirectorAI smart camera technology, the Studio X70 automatically adapts framing to meeting participants through people framing, group framing, perimeter detection and speaker framing. Its integrated audio system combines MEMS and second-order microphones with dedicated mid speakers and tweeters for clear meeting communication.
The system offers extensive connectivity through USB Type-C, USB Type-A, HDMI and Gigabit Ethernet ports. Advanced network capabilities, H.323 and SIP support, and AES encryption help provide reliable and secure video collaboration.
Supplied as a kit with the TC10 controller, the Poly Studio X70 is designed to simplify room control and support professional video conferencing environments.
Specification
| Poly Studio X70 All-In-One Video Bar with TC10 Controller Kit (8L531AA) | |
|---|---|
| Power supply type | External; Auto sensing |
| Lens cover capabilities | Integrated |
| Total camera resolution (megapixels) | 2 x 20 MP |
| Video frame rate | 5–30 fps (up to 4K resolution at 15 fps in call) |
| Zoom capability | 7.3x digital |
| Diagonal field of view (dFoV) | 140° (wide); 78° (narrow) |
| Ports | 1 USB Type-C® 5Gbps signaling rate; 2 USB Type-A 5Gbps signaling rate; 2 RJ-45; 1 audio-in; 1 audio-out; 2 HDMI-out 1.4 (video); 1 HDMI-in 1.4 (audio) |
| Network capabilities | IPv4; IPv6; 1x 10/100/1G Ethernet; Auto-MDIX; H.323 and/or SIP up to 6 Mbps in Poly App video mode; Polycom Lost Packet Recovery (LPR) technology; Dynamic bandwidth allocation; Reconfigurable MTU size; Web proxy support: basic, digest, and NTLM; Simple Certificate Enrollment Protocol (SCEP) |
| Smart camera technology | People framing; Group framing; DirectorAI perimeter; Speaker framing |
| Sensitivity (speaker) | 83 dB (1 W/1 m) for mid speakers; 89 dB (1 W/1 m) for tweeter speakers |
| Microphone type | Two MEMS microphones; Two second-order microphones |
| Security management | AES 128 bits encryption; AES 256 bits encryption; H.235.6 support; Authenticated access to admin menus, web interface, and APIs; Local account password policy configuration; Security profiles; Local account and login port lockout; Secure defaults; Remote logging with support for TLS; Active directory external authentication; Binary Floor Control Protocol (BFCP) |
| Security | AES 128 bits encryption; AES 256 bits encryption; H.235.6 support; Authenticated access to admin menus, web interface, and APIs; BFCP; Local account password policy configuration; Security profiles; Secure defaults; Media encryption (H.323, SIP); Remote logging with support for TLS |
| Operating temperature range | 0 to 40 °C |
| Non-Operating Humidity Range | 5 to 95% |
| Operating humidity range | 15 to 80% |
| Dimensions (W x D x H) | 840.18 x 135.38 x 117.33 mm |
| Pallet dimensions (W x D x H) | 101.6 x 121.9 x 149 cm |
| Cartons per layer | 4 |
| Weight | 3200 g |
| Pallet weight | 357 kg |
| What's in the box | Poly Studio X70; Ethernet cable; Wall mount kit; 2 HDMI cable; AC power adapter |
| Manufacturer Warranty | Poly standard one-year limited warranty |
