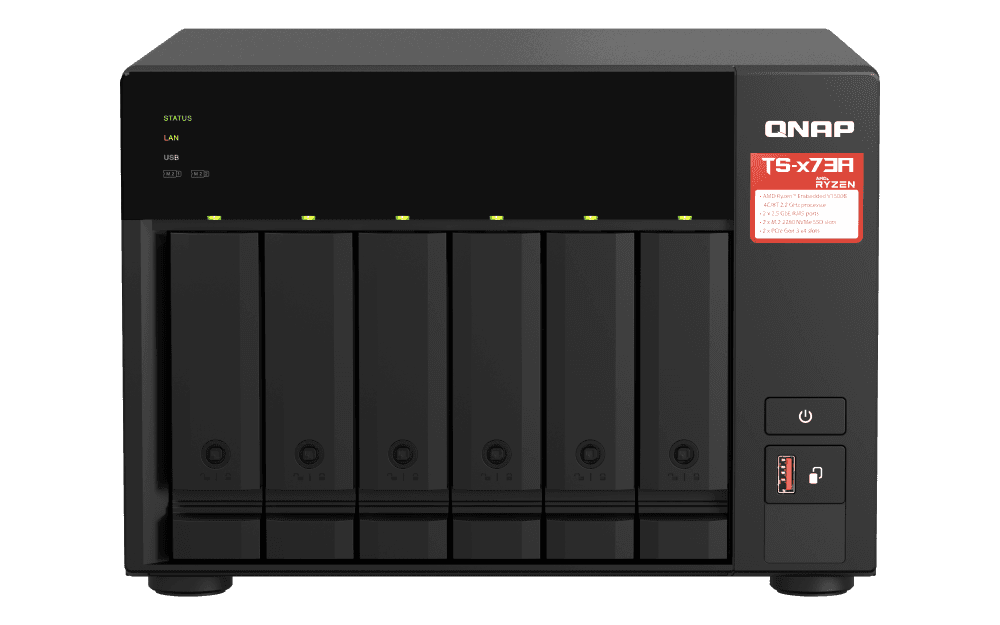

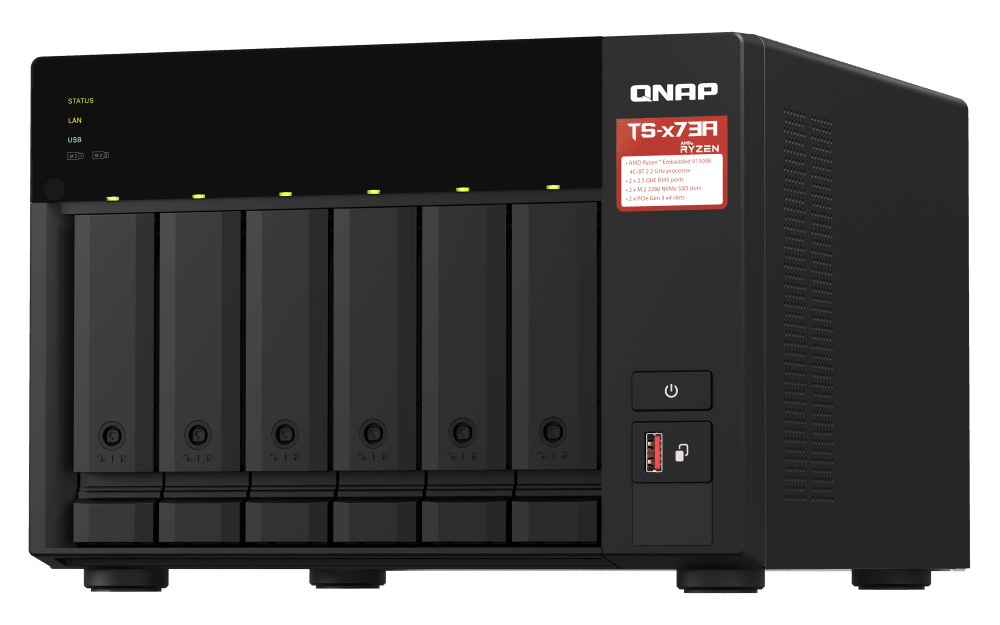

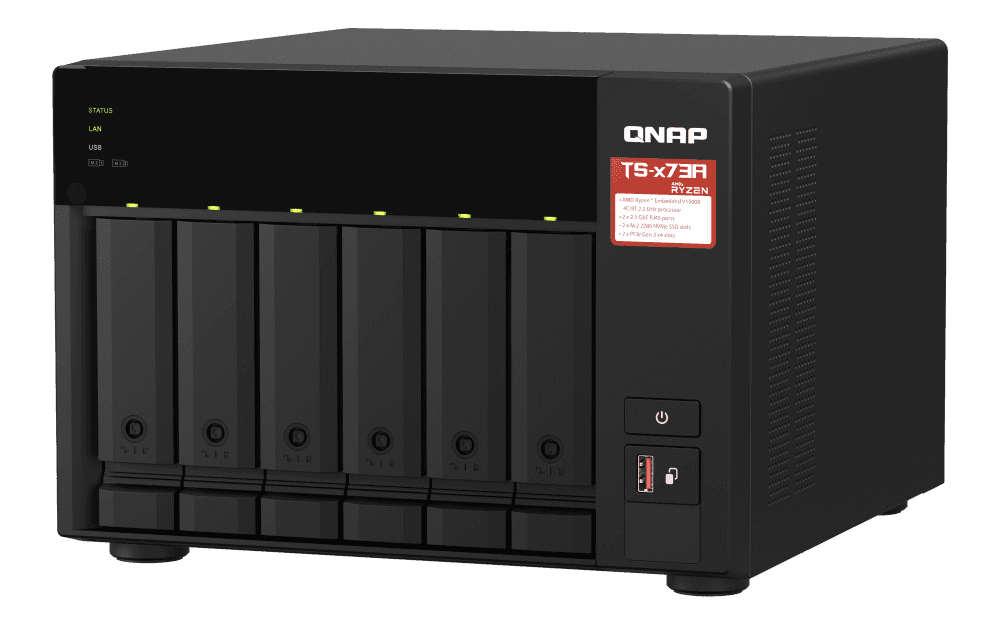

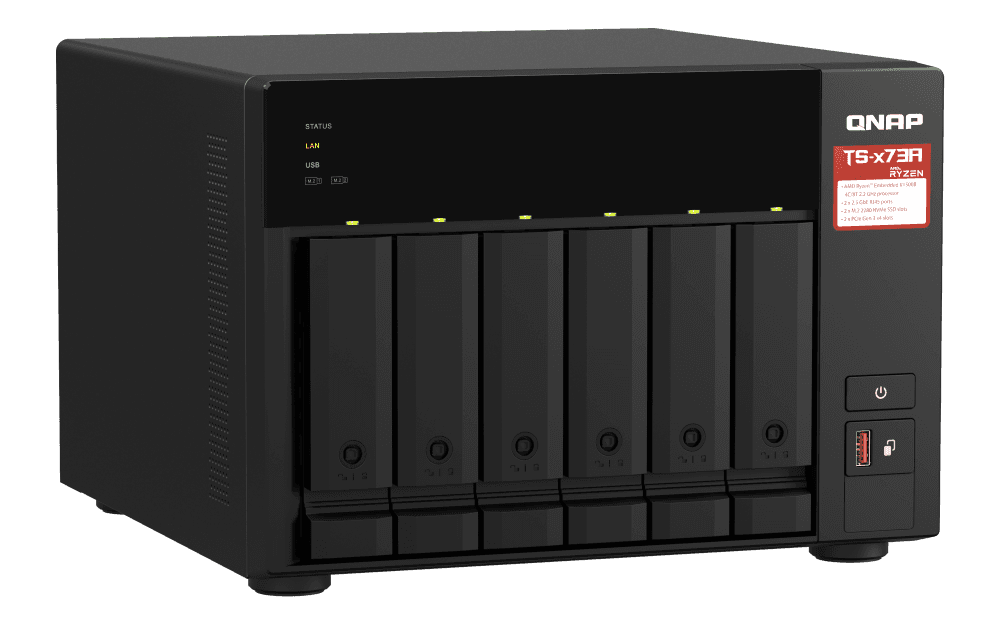

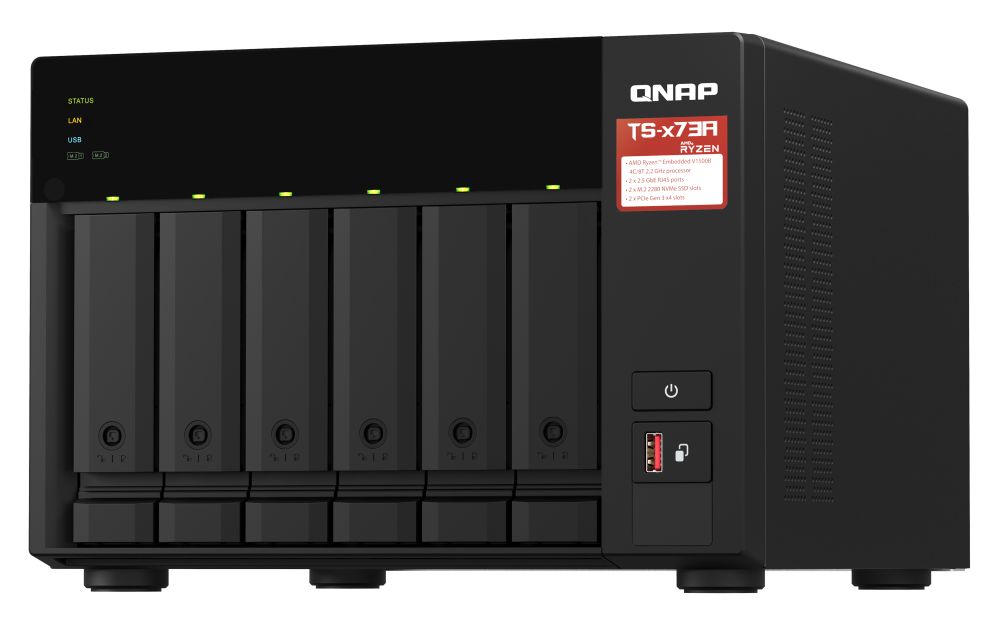

Qnap 6-Bay NAS, AMD Ryzen Embedded V1000 4 CPU, 8 GB DDR4 Memory, 6 x 3.5-inch SATA 6Gb/s, 3Gb/s, 2 PCIe Slot, USB 3.2 Gen 2 (10Gbps) Port, 250W PSU | TS-673A-8G
Model :
SKU : QNAP TS-673A-8G
About this item
Description
QNAP TS-673A: Unleash AMD Power & 2.5GbE in a Compact Tower (6 Bays, Ryzen, 8GB RAM, M.2 NVMe, PCIe Expandable)
| TS-673A-8G Specifications | |
| CPU | AMD Ryzen??? Embedded V1500B 4-core/8-thread 2.2 GHz processor |
| CPU Architecture | 64-bit x86 |
| Graphic Processors | Optional via a PCIe adapter |
| Floating Point Unit | Yes |
| Encryption Engine | Yes (AES-NI) |
| Hardware-accelerated Transcoding | Optional via a PCIe adapter |
| System Memory | 8 GB SODIMM DDR4 (1 x 8 GB) |
| Maximum Memory | 64 GB (2 x 32 GB) |
| Memory Slot | 2 x SODIMM DDR4 Support ECC memory For dual-DIMM configurations, use a pair of identical DDR4 modules |
| Flash Memory | 5GB (Dual boot OS protection) |
| Drive Bay | 6 x 3.5-inch SATA 6Gb/s, 3Gb/s Drive Compatibility: 3.5-inch SATA hard disk drives, 2.5-inch SATA solid state drives Hot-swappable: Yes |
| M.2 Slot | 2 x M.2 2280 PCIe Gen3 x1 slots Compatible with NVMe SSD PCIe Gen 3 and above. The M.2 SSD is not included as standard. It is recommended to install a heatsink (from QNAP or a third-party provider) on the M.2 SSD. |
| SSD Cache Acceleration Support | Yes |
| GPU pass-through | Yes |
| 2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 2 (2.5G/1G/100M) |
| 5 Gigabit Ethernet Port (5G/2.5G/1G/100M) | Optional via a PCIe adapter |
| 10 Gigabit Ethernet Port | Optional via a PCIe adapter |
| Wake on LAN (WOL) | Yes |
| Jumbo Frame | Yes |
| PCIe Slot | 2 Slot 1: PCIe Gen 3 x4 Slot 2: PCIe Gen 3 x4 Card dimensions for PCIe slot 1~Slot 2: 200 x 111.15 x 18.76 mm / 7.87 x 4.38 x 0.74 inches. Wider cards can be installed if the next PCIe slot will not be used. |
| USB 3.2 Gen 2 (10Gbps) Port | 3 x Type-A USB 3.2 Gen 2 10Gbps 1 x Type-C USB 3.2 Gen 1 5Gbps |
| HDMI??? Output | Optional via a PCIe adapter |
| Form Factor | Tower |
| LED Indicators | Status/Power, USB, LAN, Drive 1-6, M.2 SSD 1-2 |
| Buttons | Power, Reset, USB Auto Copy |
| Dimensions (HxWxD) | 180.2 ?? 264.3 ?? 279.6 mm Dimensions do not include foot pad (foot pad may be up to 30mm / 1.18 inches high depending on model) |
| Weight (Net) | 6.4 kg |
| Weight (Gross) | 7.3 kg |
| Operating Temperature | 0 - 40 ??C (32??F - 104??F) |
| Storage Temperature | -20 - 70??C (-4??F - 158??F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27??C (80.6??F) |
| Power Supply Unit | 250W, 100-240V AC, 50-60Hz, 3.5A |
| Power Consumption: HDD Sleep Mode | 21.891 W |
| Power Consumption: Operating Mode, Typical | 45.898 W Tested with drives fully populated. |
| Fan | System fan: 2 x 92mm CPU fan: 1 x 60mm |
| System Warning Buzzer | Yes |
| Kensington Security Slot | Yes |
| Standard Warranty | 3 |
| Max. Number of Concurrent Connections (CIFS) - with Max. Memory | 2000 |
Specification
QNAP TS-673A: Unleash AMD Power & 2.5GbE in a Compact Tower (6 Bays, Ryzen, 8GB RAM, M.2 NVMe, PCIe Expandable)
| TS-673A-8G Specifications | |
| CPU | AMD Ryzen??? Embedded V1500B 4-core/8-thread 2.2 GHz processor |
| CPU Architecture | 64-bit x86 |
| Graphic Processors | Optional via a PCIe adapter |
| Floating Point Unit | Yes |
| Encryption Engine | Yes (AES-NI) |
| Hardware-accelerated Transcoding | Optional via a PCIe adapter |
| System Memory | 8 GB SODIMM DDR4 (1 x 8 GB) |
| Maximum Memory | 64 GB (2 x 32 GB) |
| Memory Slot | 2 x SODIMM DDR4 Support ECC memory For dual-DIMM configurations, use a pair of identical DDR4 modules |
| Flash Memory | 5GB (Dual boot OS protection) |
| Drive Bay | 6 x 3.5-inch SATA 6Gb/s, 3Gb/s Drive Compatibility: 3.5-inch SATA hard disk drives, 2.5-inch SATA solid state drives Hot-swappable: Yes |
| M.2 Slot | 2 x M.2 2280 PCIe Gen3 x1 slots Compatible with NVMe SSD PCIe Gen 3 and above. The M.2 SSD is not included as standard. It is recommended to install a heatsink (from QNAP or a third-party provider) on the M.2 SSD. |
| SSD Cache Acceleration Support | Yes |
| GPU pass-through | Yes |
| 2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 2 (2.5G/1G/100M) |
| 5 Gigabit Ethernet Port (5G/2.5G/1G/100M) | Optional via a PCIe adapter |
| 10 Gigabit Ethernet Port | Optional via a PCIe adapter |
| Wake on LAN (WOL) | Yes |
| Jumbo Frame | Yes |
| PCIe Slot | 2 Slot 1: PCIe Gen 3 x4 Slot 2: PCIe Gen 3 x4 Card dimensions for PCIe slot 1~Slot 2: 200 x 111.15 x 18.76 mm / 7.87 x 4.38 x 0.74 inches. Wider cards can be installed if the next PCIe slot will not be used. |
| USB 3.2 Gen 2 (10Gbps) Port | 3 x Type-A USB 3.2 Gen 2 10Gbps 1 x Type-C USB 3.2 Gen 1 5Gbps |
| HDMI??? Output | Optional via a PCIe adapter |
| Form Factor | Tower |
| LED Indicators | Status/Power, USB, LAN, Drive 1-6, M.2 SSD 1-2 |
| Buttons | Power, Reset, USB Auto Copy |
| Dimensions (HxWxD) | 180.2 ?? 264.3 ?? 279.6 mm Dimensions do not include foot pad (foot pad may be up to 30mm / 1.18 inches high depending on model) |
| Weight (Net) | 6.4 kg |
| Weight (Gross) | 7.3 kg |
| Operating Temperature | 0 - 40 ??C (32??F - 104??F) |
| Storage Temperature | -20 - 70??C (-4??F - 158??F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27??C (80.6??F) |
| Power Supply Unit | 250W, 100-240V AC, 50-60Hz, 3.5A |
| Power Consumption: HDD Sleep Mode | 21.891 W |
| Power Consumption: Operating Mode, Typical | 45.898 W Tested with drives fully populated. |
| Fan | System fan: 2 x 92mm CPU fan: 1 x 60mm |
| System Warning Buzzer | Yes |
| Kensington Security Slot | Yes |
| Standard Warranty | 3 |
| Max. Number of Concurrent Connections (CIFS) - with Max. Memory | 2000 |
