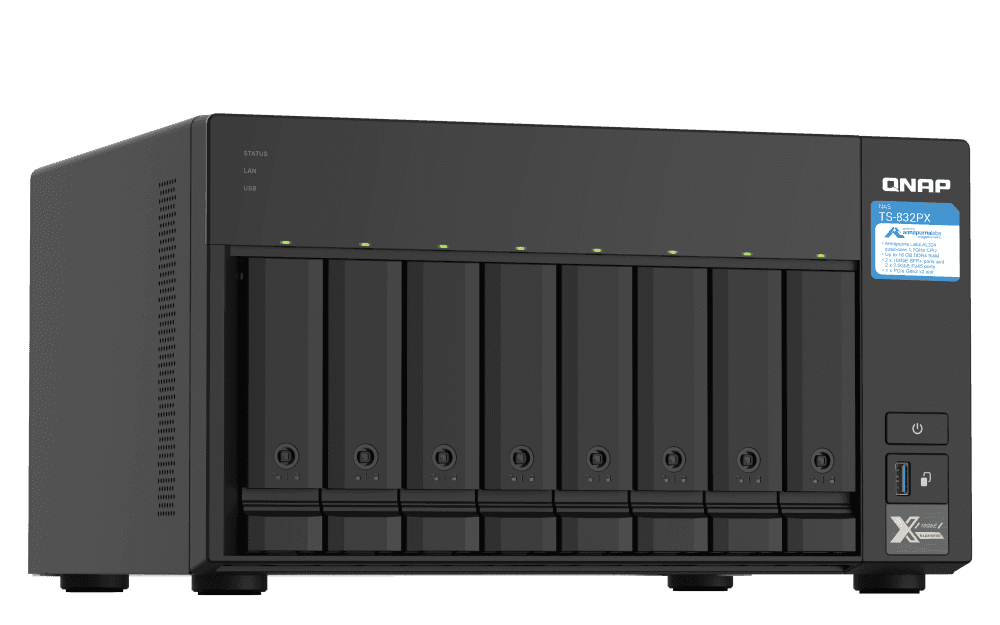

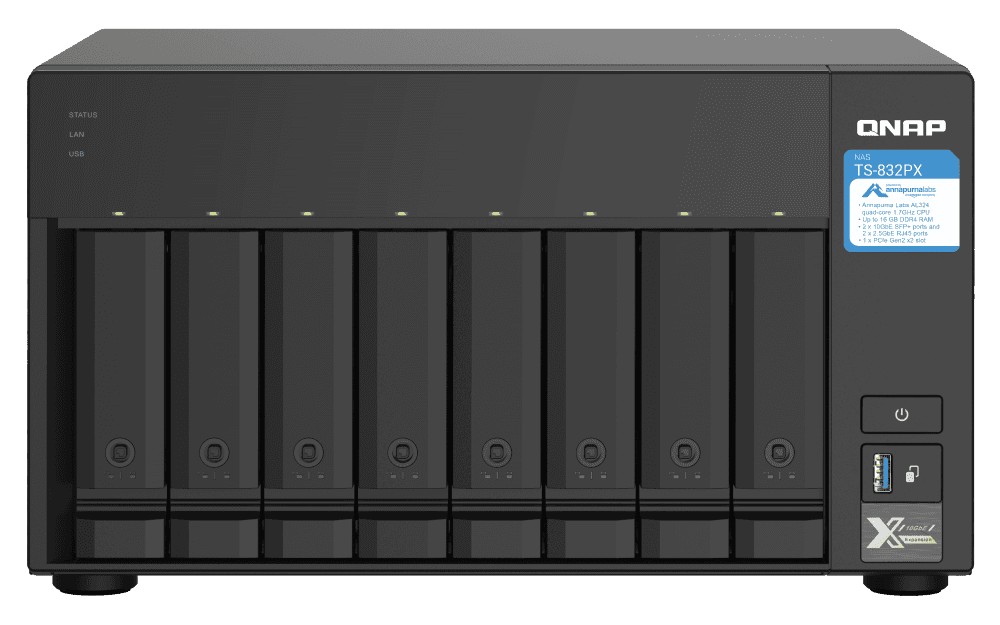

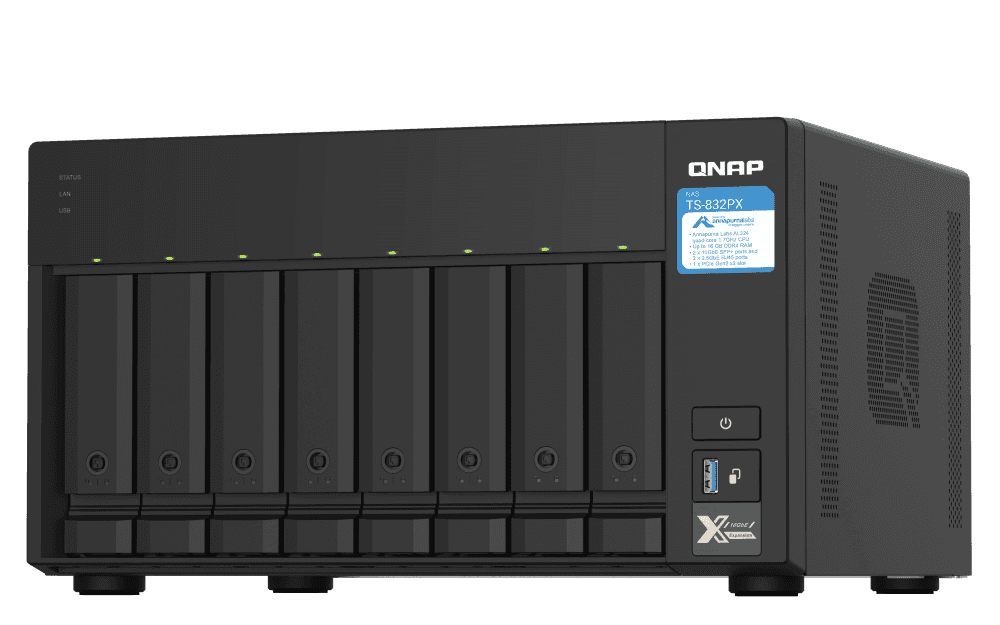

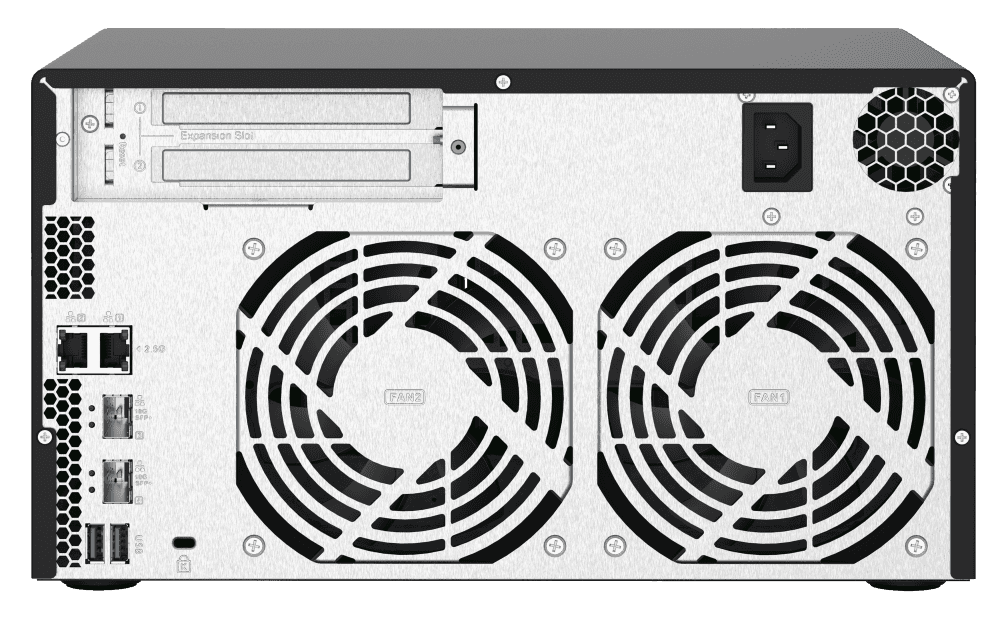

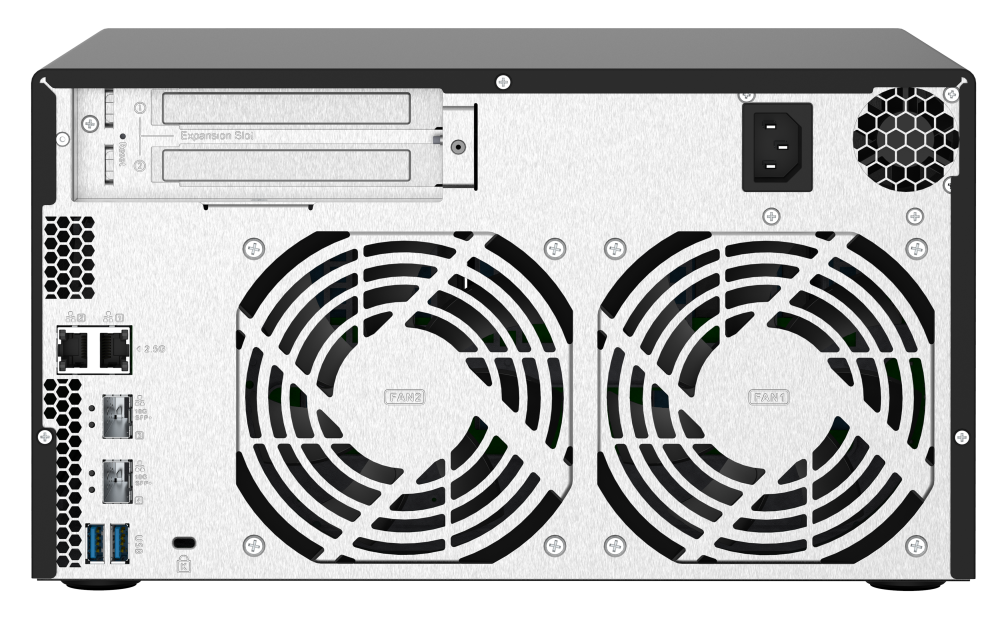

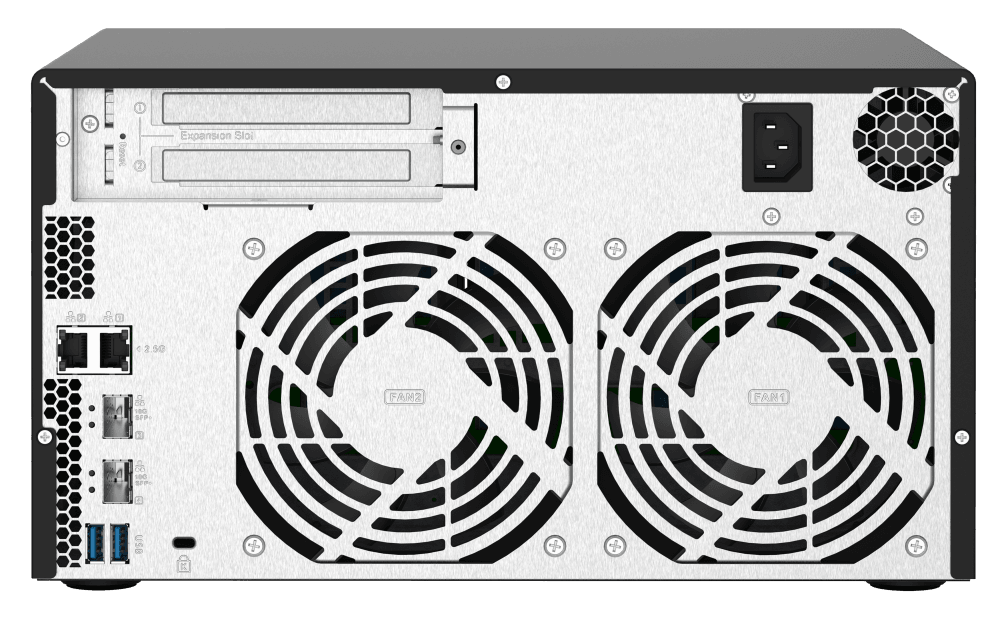

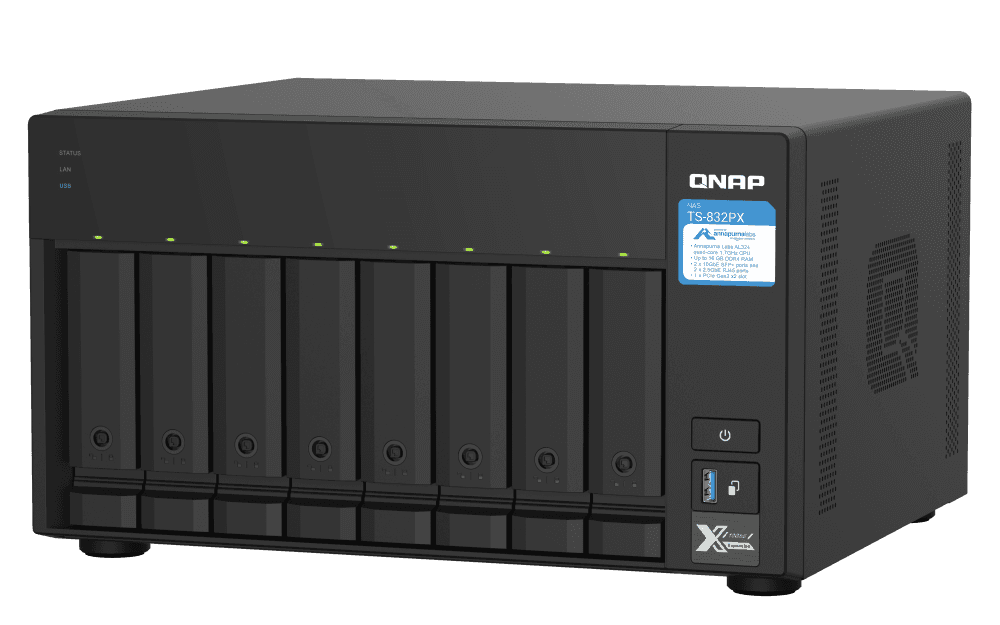

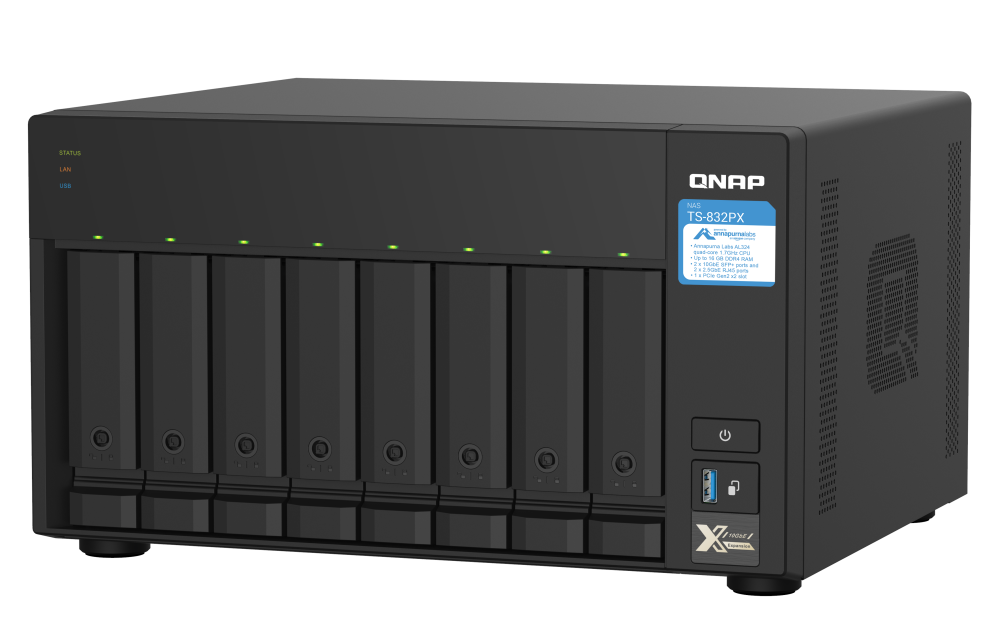

QNAP 8-Bay NAS, AL324 64-bit Quad-core 1.7GHz, 4GB DDR4 SODIMM RAM (1 x 4GB, Max 16GB), 8 x 3.5"/ 2.5" Drive Slots, 2 x 10GbE SFP+ LAN, 2 x 2.5GbE LAN, 3 x USB 3.2 Gen1 | TS-832PX-4G | TS-832PX-4G
Model :
SKU : QNAP-TS832PX-8BAY
About this item
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
table { border-collapse: collapse; width: 100%; } tr { border-bottom: 1px solid rgb(222, 226, 230); } td { padding: 8px; margin: 0; }
| TS-832PX-4G Specifications | |
| CPU | AnnapurnaLabs Alpine AL324 ARM?? Cortex-A57 4-core 1.7GHz processor |
| CPU Architecture | 64-bit ARM |
| Floating Point Unit | Yes |
| Encryption Engine | Yes |
| System Memory | 4 GB SODIMM DDR4(1 x 4 GB) |
| Maximum Memory | 16 GB (1 x 16 GB) |
| Memory Slot | 1 x SODIMM DDR4 |
| Flash Memory | 512 MB (Dual boot OS protection) |
| Drive Bay | 8 x 3.5-inch SATA 6Gb/s, 3Gb/s |
| Drive Compatibility | 3.5-inch bays: 3.5-inch SATA hard disk drives, 2.5-inch SATA hard disk drives, 2.5-inch SATA solid-state drives |
| Hot-swappable | Yes |
| M.2 Slot | Optional via a PCIe adapter |
| SSD Cache Acceleration Support | Yes |
| 2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 2 (2.5G/1G/100M/10M) |
| 10 Gigabit Ethernet Port | 2 x 10GbE SFP+ |
| Wake on LAN (WOL) | Yes (Only the 2.5GbE port) |
| Jumbo Frame | Yes |
| PCIe Slot 1 | Slot 1: PCIe Gen 2 x2 (PCIe bandwidth limitations will restrict the NAS 10GbE performance. Card dimensions for PCIe slot: 210 x 68.9x 24.76 mm / 8.27 x 2.71 x 0.97 inches.) |
| USB 3.2 Gen 1 port | 3 |
| Form Factor | Tower |
| LED Indicators | System Status, LAN, USB, HDD1~8 |
| Buttons | Power, Reset, USB Copy |
| Dimensions (HxWxD) | 180.2 ?? 329.3 ?? 280.8 mm |
| Weight (Net) | 7.05 kg |
| Weight (Gross) | 8 kg |
| Operating Temperature | 0 - 40 ??C (32??F - 104??F) |
| Storage Temperature | -20 - 70??C (-4??F - 158??F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27??C (80.6??F) |
| Power Supply Unit | 250W, 100-240V AC, 50/60Hz, 3.5A |
| Power Consumption: HDD Sleep Mode | 27.949 W |
| Power Consumption: Operating Mode, Typical | 50.858 W (Tested with drives fully populated) |
| Fan | System fan: 2 x 120mm, 12VDC CPU fan: 1 x 60mm |
| System Warning | Voice prompts or Buzzer |
| Kensington Security Slot | Yes |
| Standard Warranty | 2 years |
| Max. Number of Concurrent Connections (CIFS) - with Max. Memory | 700 |
