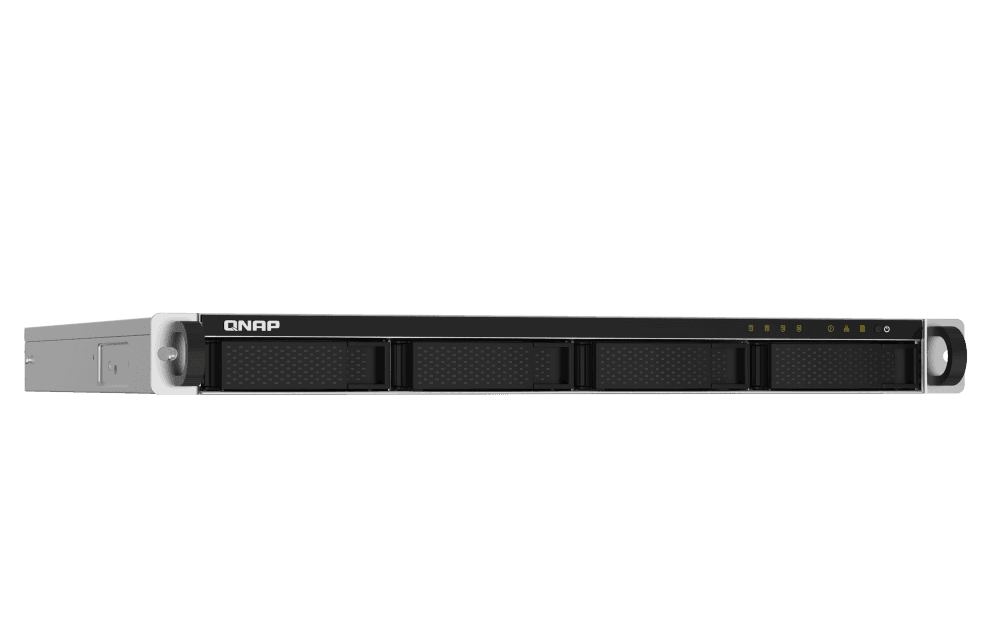

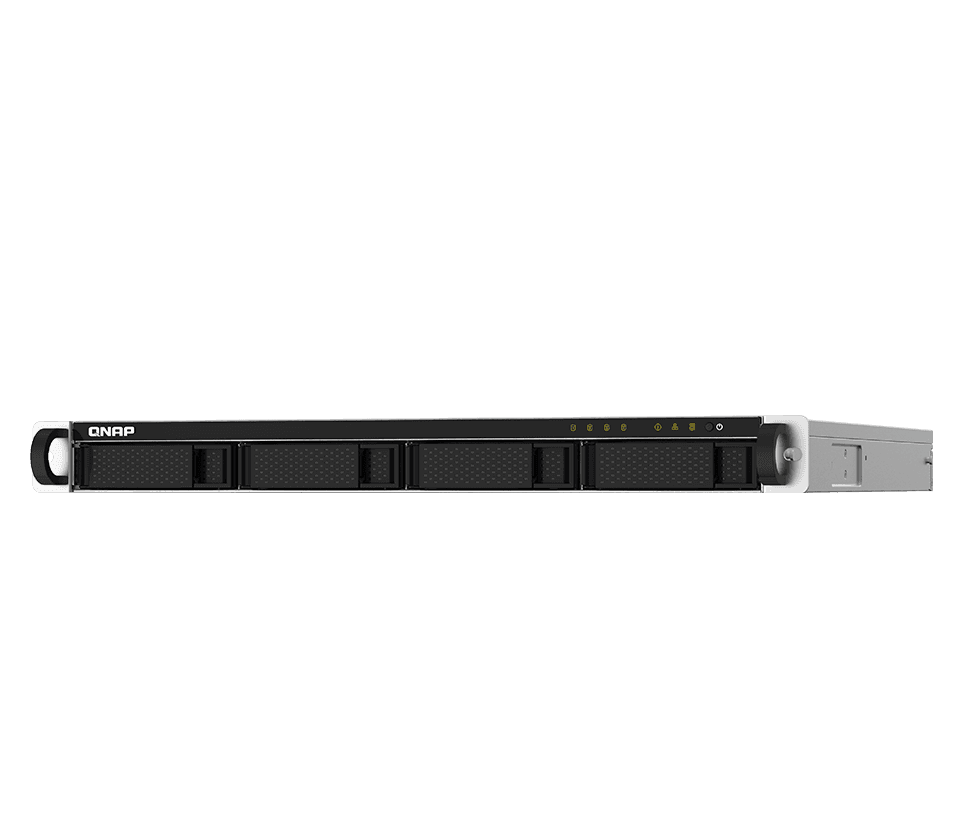

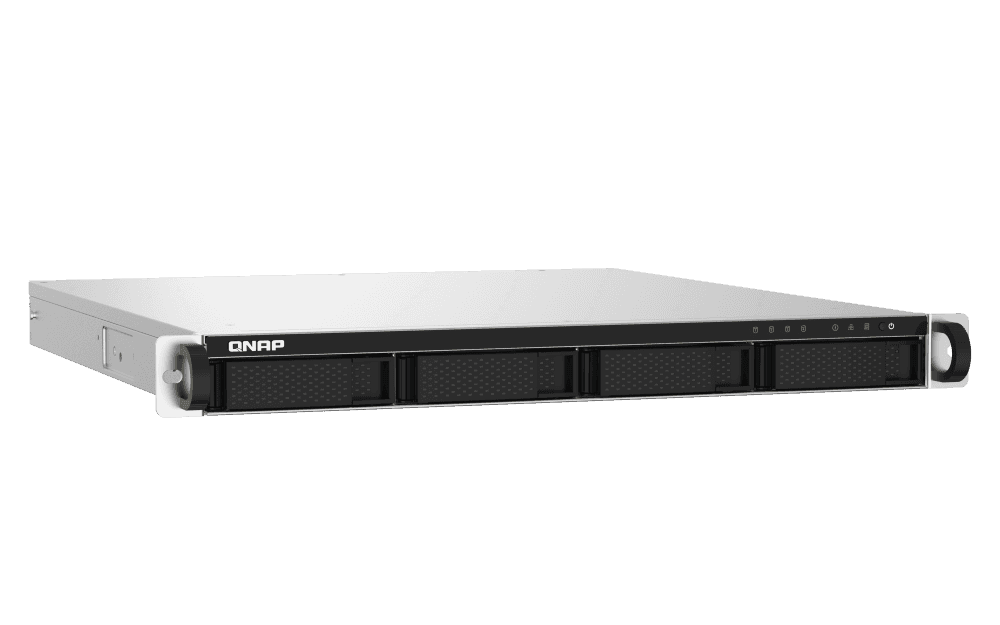

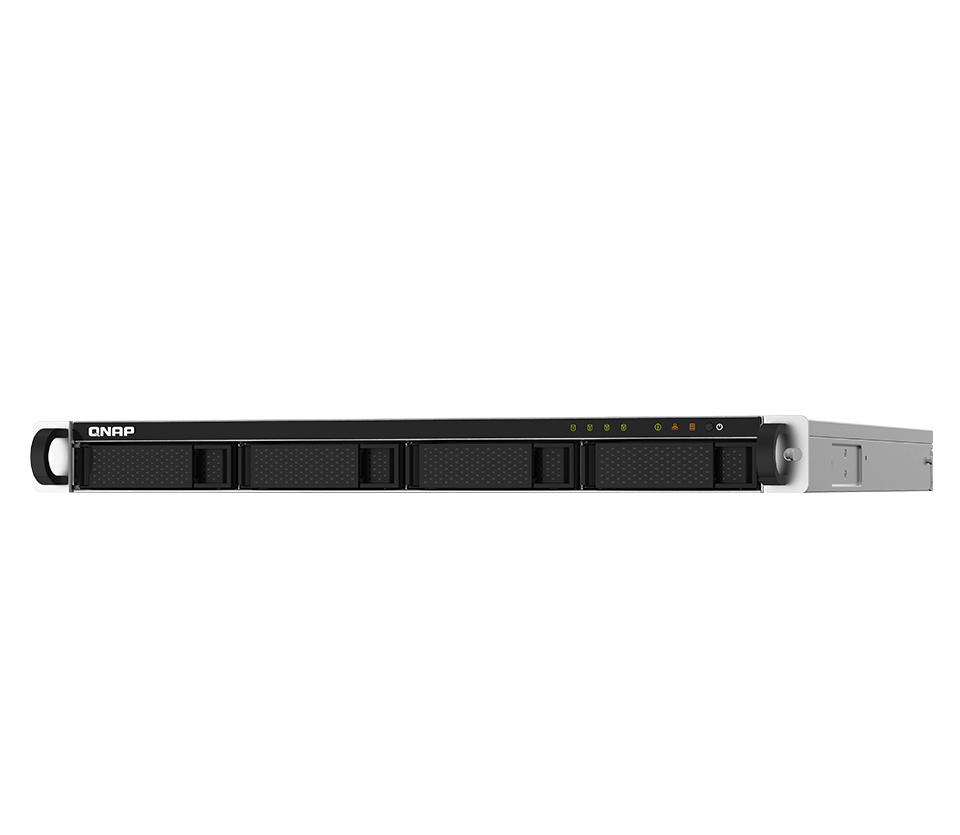

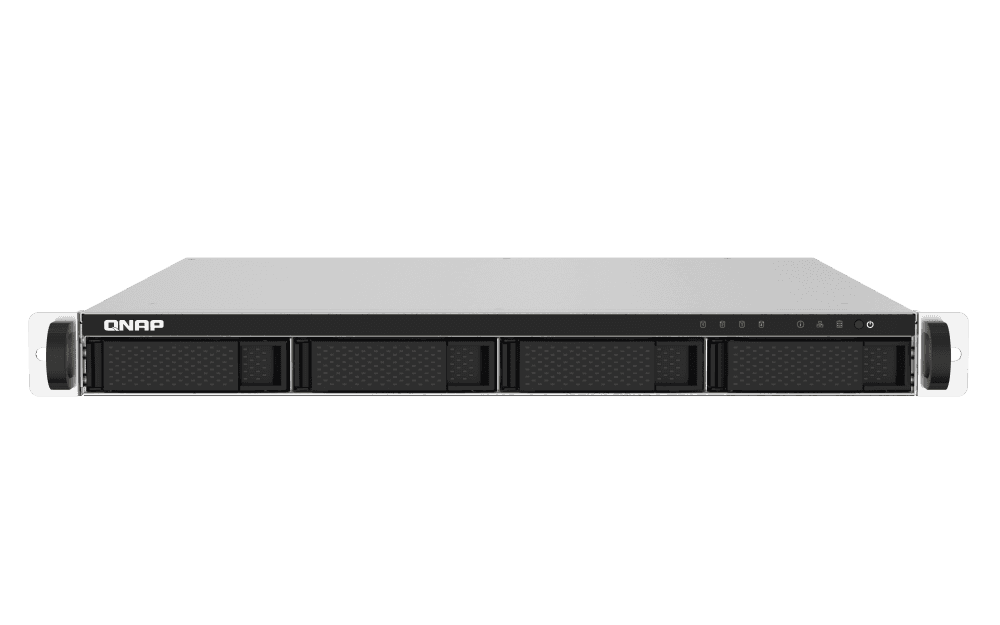

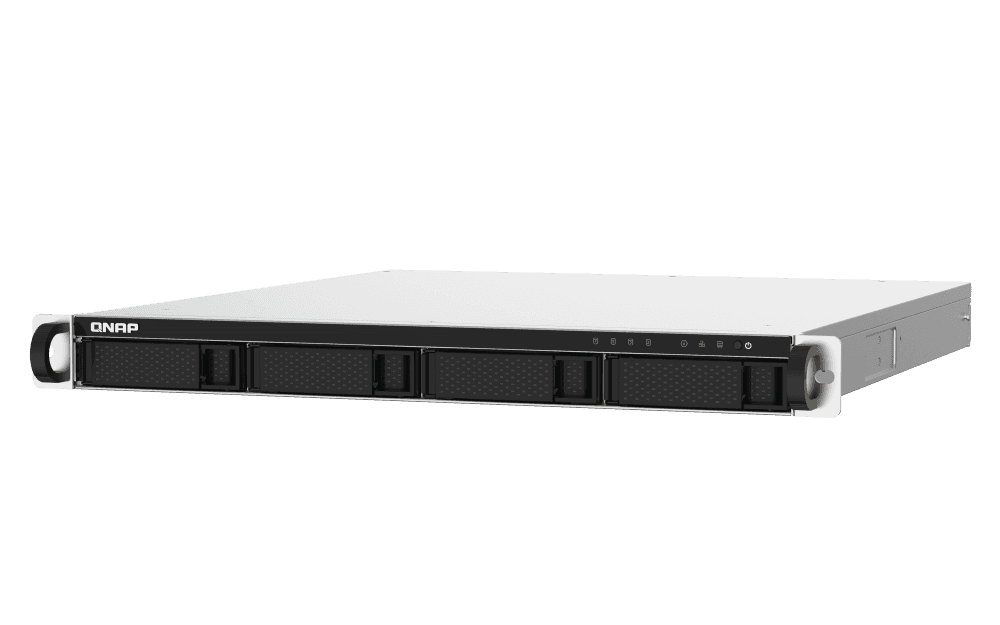

QNAP TS-432PXU-RP-2G (1.7GHZ/2GB RAM/4X SATA/2X 2.5GBE/2X 10GBE SFP +/4X USB 3.2/2X POWER SUPPLY)
Model :
SKU : QNAP TS-432PXU-RP-2G
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
QNAP TS-432PXU-RP: Unleash 10GbE Performance with Redundant Power (4-Bay, ARM, 10GbE SFP+, 2.5GbE)
| TS-432PXU-RP-2G Specifications | |
| CPU | AnnapurnaLabs Alpine AL324 64-bit ARM?? Cortex-A57 4-core 1.7GHz processor |
| CPU Architecture | 64-bit ARM |
| Floating Point Unit | Yes |
| Encryption Engine | Yes |
| System Memory | 2 GB UDIMM DDR4 (1 x 2 GB) |
| Maximum Memory | 16 GB (1 x 16 GB) |
| Memory Slot | 1 x UDIMM DDR4 |
| Flash Memory | 512 MB (Dual boot OS protection) |
| Drive Bay | 4 x 3.5" SATA 6Gb/s, 3Gb/s Drive Compatibility: 3.5-inch SATA hard disk drives, 2.5-inch SATA hard disk drives, 2.5-inch SATA solid state drives Hot-swappable: Yes |
| M.2 Slot | Optional via a PCIe adapter |
| SSD Cache Acceleration Support | Yes |
| 2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 2 (2.5G/1G/100M/10M) |
| 10 Gigabit Ethernet Port | 2 x 10GbE SFP+ Wake on LAN (WOL): Yes (Only the 2.5GbE port) |
| Jumbo Frame | Yes |
| PCIe Slot | 1 Slot 1: PCIe Gen 2 x2 Card dimensions for PCIe slot: 210 x 68.9x 18.76 mm / 8.27 x 2.71 x 0.74 inches. |
| USB 3.2 Gen 1 port | 4 |
| Form Factor | 1U Rackmount |
| LED Indicators | HDD 1-4, Status, LAN, Storage expansion |
| Buttons | Power, Reset |
| Dimensions (HxWxD) | 43.3 ?? 430 ?? 479 mm Excludes ear hook and the protruding part of the Power Supply Unit. |
| Weight (Net) | 9.08 kg |
| Weight (Gross) | 11.03 kg |
| Operating Temperature | 0 - 40 ??C (32??F - 104??F) |
| Storage Temperature | -20 - 70??C (-4??F - 158??F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27??C (80.6??F) |
| Power Supply Unit | 250W (x2) PSU, 100 - 240V |
| Power Consumption: Operating Mode, Typical | 53.343 W Tested with drives fully populated. |
| Fan | 2 x 40mm, 12VDC |
| System Warning Buzzer | Yes |
| Standard Warranty | 3 |
| Max. Number of Concurrent Connections (CIFS) - with Max. Memory | 700 |
Specification
QNAP TS-432PXU-RP: Unleash 10GbE Performance with Redundant Power (4-Bay, ARM, 10GbE SFP+, 2.5GbE)
| TS-432PXU-RP-2G Specifications | |
| CPU | AnnapurnaLabs Alpine AL324 64-bit ARM?? Cortex-A57 4-core 1.7GHz processor |
| CPU Architecture | 64-bit ARM |
| Floating Point Unit | Yes |
| Encryption Engine | Yes |
| System Memory | 2 GB UDIMM DDR4 (1 x 2 GB) |
| Maximum Memory | 16 GB (1 x 16 GB) |
| Memory Slot | 1 x UDIMM DDR4 |
| Flash Memory | 512 MB (Dual boot OS protection) |
| Drive Bay | 4 x 3.5" SATA 6Gb/s, 3Gb/s Drive Compatibility: 3.5-inch SATA hard disk drives, 2.5-inch SATA hard disk drives, 2.5-inch SATA solid state drives Hot-swappable: Yes |
| M.2 Slot | Optional via a PCIe adapter |
| SSD Cache Acceleration Support | Yes |
| 2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 2 (2.5G/1G/100M/10M) |
| 10 Gigabit Ethernet Port | 2 x 10GbE SFP+ Wake on LAN (WOL): Yes (Only the 2.5GbE port) |
| Jumbo Frame | Yes |
| PCIe Slot | 1 Slot 1: PCIe Gen 2 x2 Card dimensions for PCIe slot: 210 x 68.9x 18.76 mm / 8.27 x 2.71 x 0.74 inches. |
| USB 3.2 Gen 1 port | 4 |
| Form Factor | 1U Rackmount |
| LED Indicators | HDD 1-4, Status, LAN, Storage expansion |
| Buttons | Power, Reset |
| Dimensions (HxWxD) | 43.3 ?? 430 ?? 479 mm Excludes ear hook and the protruding part of the Power Supply Unit. |
| Weight (Net) | 9.08 kg |
| Weight (Gross) | 11.03 kg |
| Operating Temperature | 0 - 40 ??C (32??F - 104??F) |
| Storage Temperature | -20 - 70??C (-4??F - 158??F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27??C (80.6??F) |
| Power Supply Unit | 250W (x2) PSU, 100 - 240V |
| Power Consumption: Operating Mode, Typical | 53.343 W Tested with drives fully populated. |
| Fan | 2 x 40mm, 12VDC |
| System Warning Buzzer | Yes |
| Standard Warranty | 3 |
| Max. Number of Concurrent Connections (CIFS) - with Max. Memory | 700 |
