Model :
SKU : QNAP-TS-664 8GB 6BAY

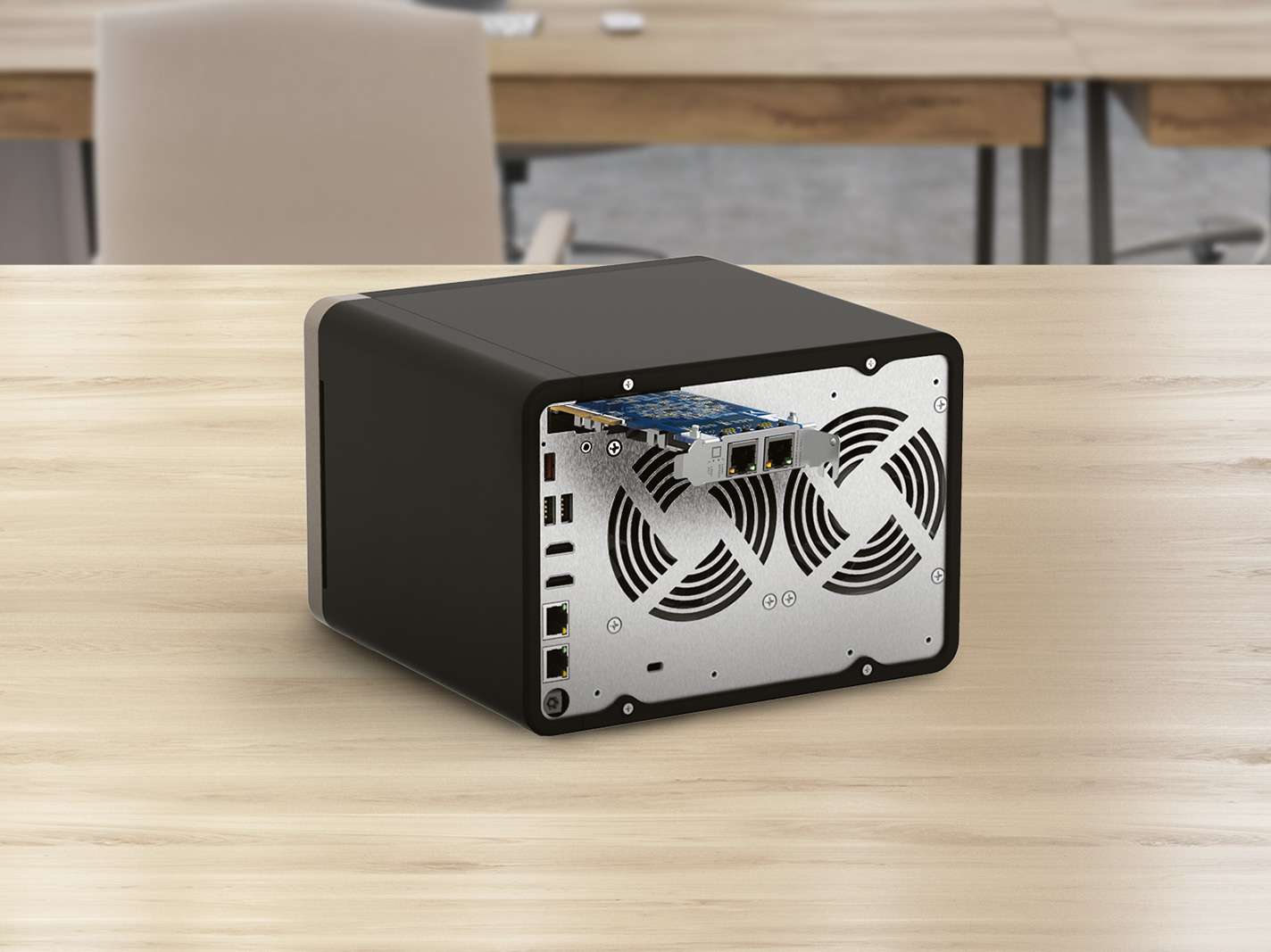

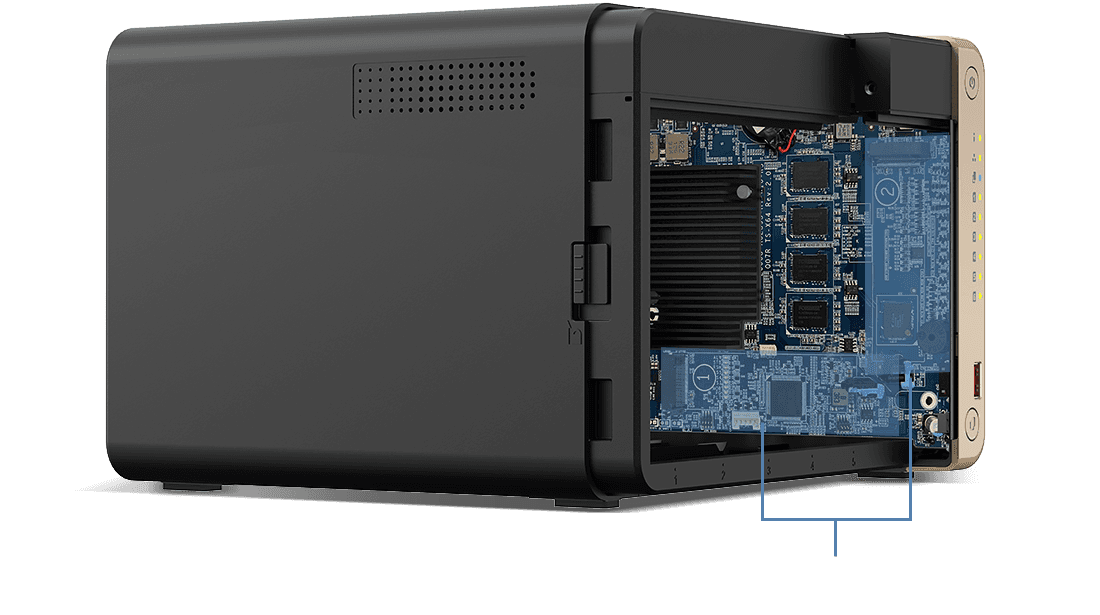

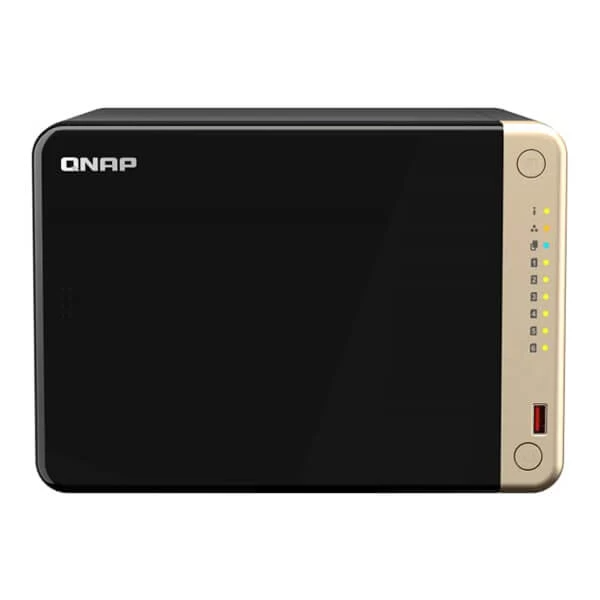

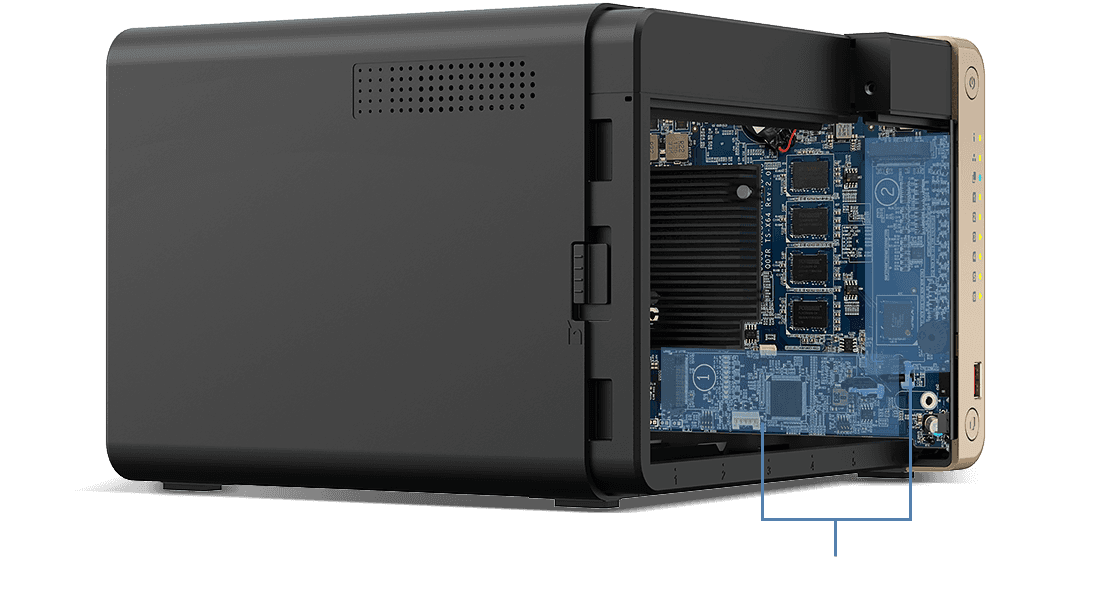

TS-664 is a compact 6-bay NAS with superior performance. Supporting up to 110 TB storage and 4 TB M.2 SSD caching* at an affordable price, the TS-664 fulfills your multitasking challenges for file management, backup, collaboration, and video conversion.
| TS-664-8G Specifications | |
| CPU | Intel?? Celeron?? N5095 4-core/4-thread processor, burst up to 2.9 GHz |
| CPU Architecture | 64-bit x86 |
| Graphic Processors | Intel?? UHD Graphics |
| Floating Point Unit | Yes |
| Encryption Engine | Yes (AES-NI) |
| Hardware-accelerated Transcoding | Yes |
| System Memory | 8 GB RAM |
| Maximum Memory | 8GB |
| Flash Memory | 4GB (Dual boot OS protection) |
| Drive Bay | 6 x 3.5-inch SATA 6Gb/s |
| Drive Compatibility | 3.5-inch SATA hard disk drives, 2.5-inch SATA solid-state drives |
| Hot-swappable | Yes |
| M.2 Slot | 2 x M.2 2280 PCIe Gen 3 x1 (Compatible with NVMe SSD PCIe Gen 3 and above) |
| SSD Cache Acceleration Support | Yes |
| 2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 2 (2.5G/1G/100M/10M) |
| 5 Gigabit Ethernet Port (5G/2.5G/1G/100M) | Optional via PCIe expansion card |
| 10 Gigabit Ethernet Port | Optional via PCIe expansion card |
| Wake on LAN (WOL) | Yes |
| Jumbo Frame | Yes |
| PCIe Slot | 1 x PCIe Gen 3 x2 (Card dimensions for PCIe slot: 190 x 68.9 x 18.76 mm / 7.48 x 2.71 x 0.74 inches) |
| USB 2.0 port | 2 |
| USB 3.2 Gen 2 (10Gbps) Port | 2 x Type-A |
| IR Sensor | Yes (Optional QNAP RM-IR004 remote control) |
| HDMI??? Output | 1, HDMI??? 2.1 (up to 4096 x 2160 @ 60Hz) |
| Form Factor | Tower |
| LED Indicators | Power/Status, LAN, USB, HDD1-6 |
| Buttons | Power, USB copy, Reset |
| Dimensions (HxWxD) | 165 ?? 235 ?? 226.5 mm |
| Weight (Net) | 2.94 kg |
| Weight (Gross) | 5.1 kg |
| Operating Temperature | 0 ~ 40??C (32??F ~ 104??F) |
| Storage Temperature | -20 - 70??C (-4??F - 158??F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27??C (80.6??F) |
| Power Supply Unit | 120W adapter, 100-240V |
| Power Consumption: HDD Sleep Mode | 23.22 W |
| Power Consumption: Operating Mode, Typical | 44.02 W (Tested with drives fully populated) |
| Fan | 2 x 90mm, 12VDC |
| System Warning | Buzzer |
| Kensington Security Slot | Yes |
| Standard Warranty | 3 years |
| Max. Number of Concurrent Connections (CIFS) - with Max. Memory | 1,500 |
