LaCie 2big Dock 28TB External RAID Desktop Storage, speeds of up to 550MB/s, Thunderbolt 3, USB4, SD/CFexpress Slots, IronWolf Pro Drives, Win, macOS systems, and iPad USB-C | STLG28000400
5298.99Home/Networking/Accessories/Accessories/QNAP TS-673A + QSW-1105-5T Bundle Pack, 6-bay AMD ...

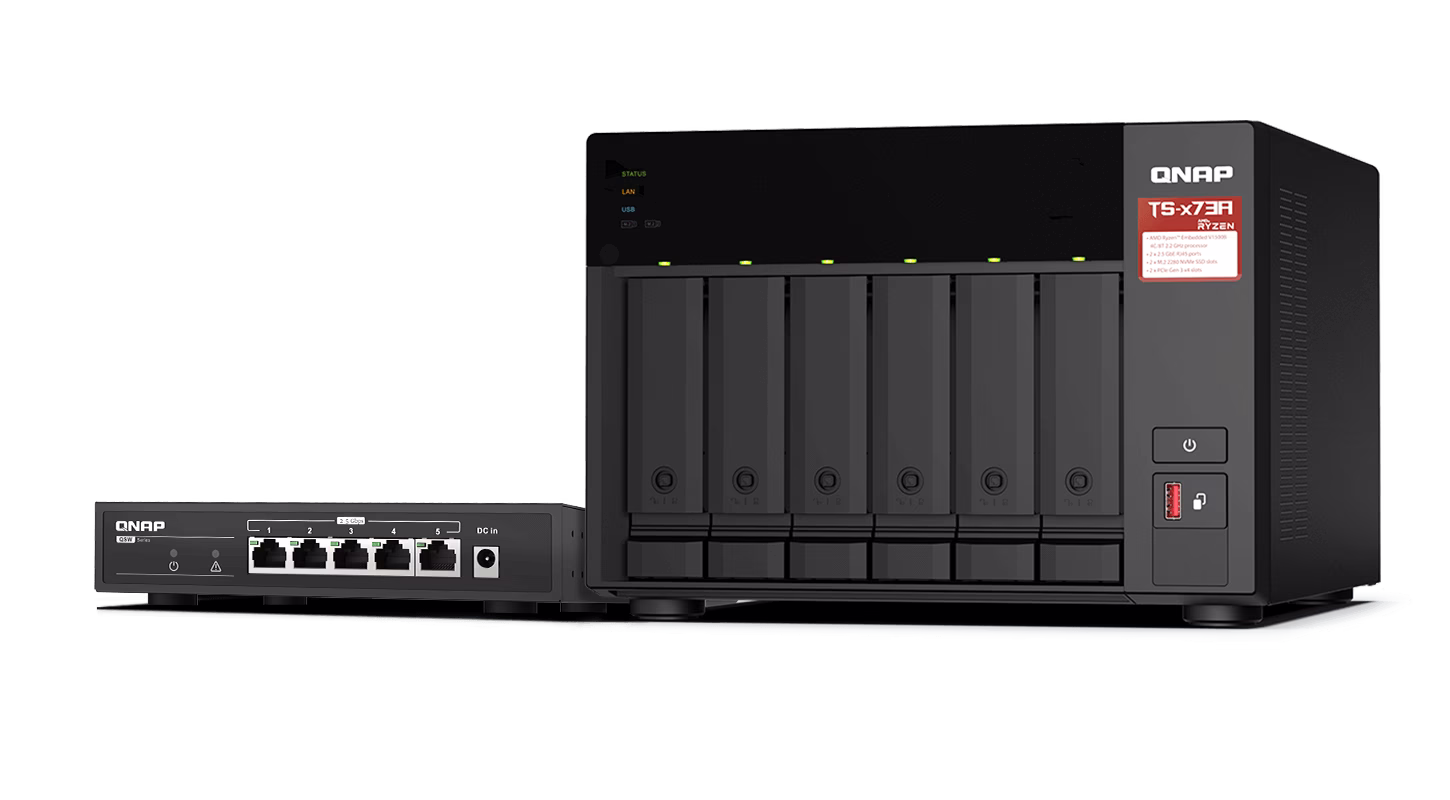

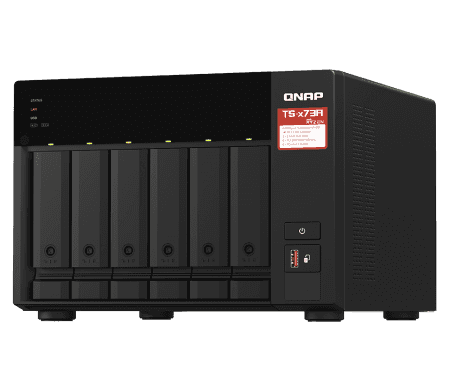

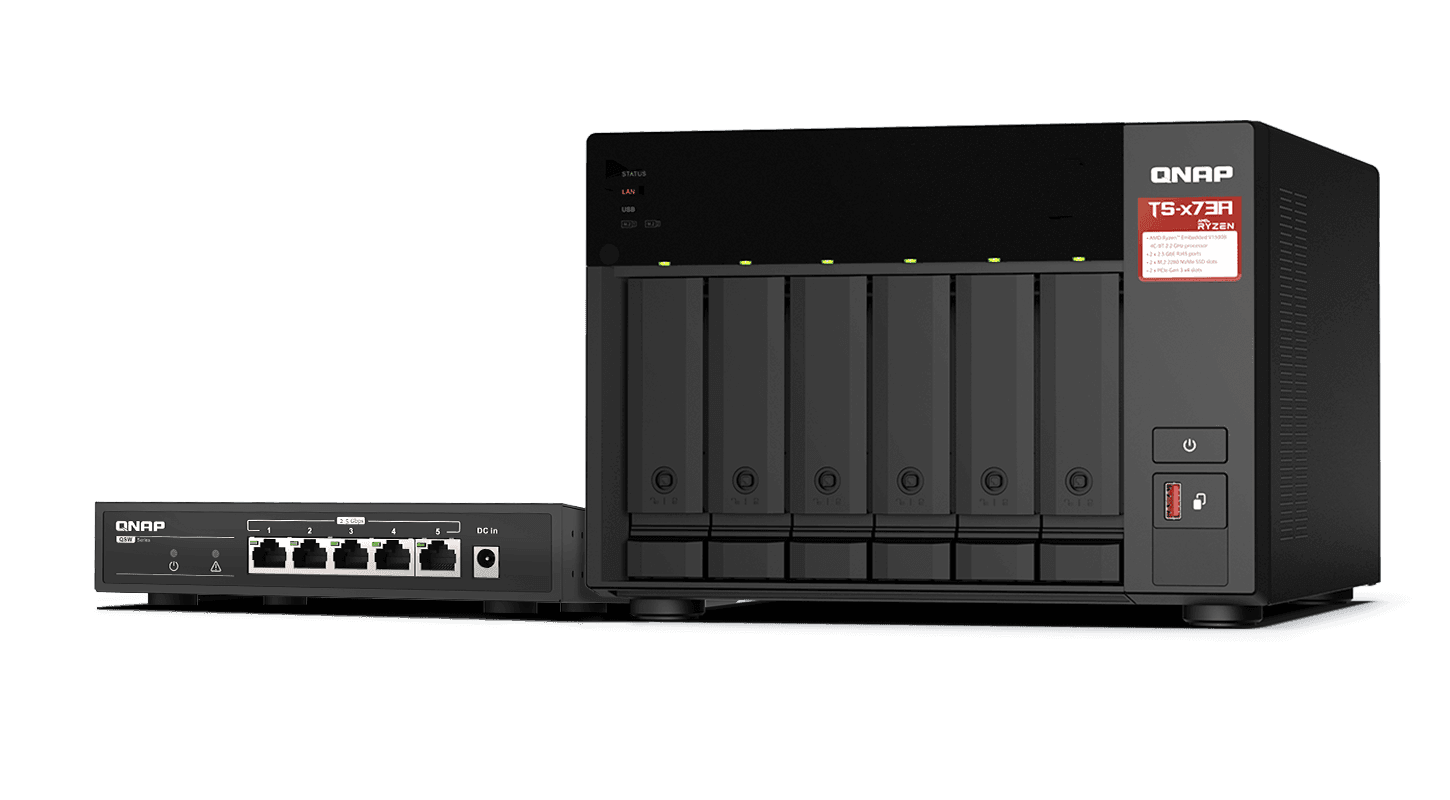

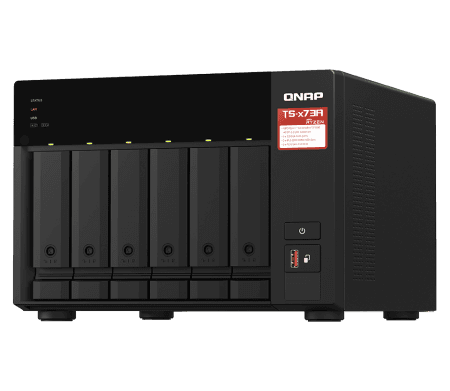

QNAP TS-673A + QSW-1105-5T Bundle Pack, 6-bay AMD Ryzen NAS with 5-Port 2.5G Switch, AMD Ryzen quad-core 2.2 GHz, 5x 2.5GbE connectivity, Flexible PCIe expansion, SSD cache acceleration, Supports QTS/QuTS hero OS | TS-673A-SW5T 6-BAY
Model :
SKU : QNAP TS-673A-SW5T 6-BAY
About this item
Description
QNAP TS-673A + QSW-1105-5T Bundle Pack, 6-bay AMD Ryzen NAS with 5-Port 2.5G Switch, AMD Ryzen quad-core 2.2 GHz, 5x 2.5GbE connectivity, Flexible PCIe expansion, SSD cache acceleration, Supports QTS/QuTS hero OS | TS-673A-SW5T 6-BAY
| CPU | AMD Ryzen??? Embedded V1500B 4-core/8-thread 2.2 GHz processor |
| CPU Architecture | 64-bit x86 |
| Graphic Processors | Optional via a PCIe adapter |
| Floating Point Unit | |
| Encryption Engine | AES-NI |
| Hardware-accelerated Transcoding | Optional via a PCIe adapter |
| System Memory | 8 GB SODIMM DDR4 (1 x 8 GB) |
| Maximum Memory | 64 GB (2 x 32 GB) |
| Memory Slot | 2 x SODIMM DDR4 |
| Support ECC memory | |
| Flash Memory | 5GB (Dual boot OS protection) |
| Drive Bay | 6 x 3.5-inch SATA 6Gb/s, 3Gb/s |
| Drive Compatibility | 3.5-inch SATA hard disk drives 2.5-inch SATA solid state drives |
| Hot-swappable | The following are not hot-swappable: M.2 SSDs, SSD cache drives, SSDs using PCIe expansion slots. |
| M.2 Slot | 2 x M.2 2280 PCIe Gen3 x1 slots |
| SSD Cache Acceleration Support | |
| GPU pass-through | |
| 2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 2 (2.5G/1G/100M) |
| 5 Gigabit Ethernet Port (5G/2.5G/1G/100M) | Optional via a PCIe adapter |
| 10 Gigabit Ethernet Port | Optional via a PCIe adapter |
| Wake on LAN (WOL) | |
| Jumbo Frame | |
| PCIe Slot | 2 Slot 1: PCIe Gen 3 x4 Slot 2: PCIe Gen 3 x4 |
| USB 3.2 Gen 2 (10Gbps) Port | 3 x Type-A USB 3.2 Gen 2 10Gbps 1 x Type-C USB 3.2 Gen 1 5Gbps |
| HDMI??? Output | Optional via a PCIe adapter |
| Form Factor | Tower |
| LED Indicators | Status/Power, USB, LAN, Drive 1-6, M.2 SSD 1-2 |
| Buttons | Power, Reset, USB Auto Copy |
| Dimensions (HxWxD) | 180.2 ?? 264.3 ?? 279.6 mm |
| Weight (Net) | 6.4 kg |
| Weight (Gross) | 7.3 kg |
| Operating Temperature | 0 - 40 ??C (32??F - 104??F) |
| Storage Temperature | -20 - 70??C (-4??F - 158??F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27??C (80.6??F) |
| Power Supply Unit | 250W, 100-240V AC, 50-60Hz, 3.5A |
| Power Consumption: HDD Sleep Mode | 21.891 W |
| Power Consumption: Operating Mode, Typical | 45.898 W |
| Fan | System fan: 2 x 92mm CPU fan: 1 x 60mm |
| System Warning | Buzzer |
| Kensington Security Slot | |
| Standard Warranty | 3 |
| Max. Number of Concurrent Connections (CIFS) - with Max. Memory | 2000 |

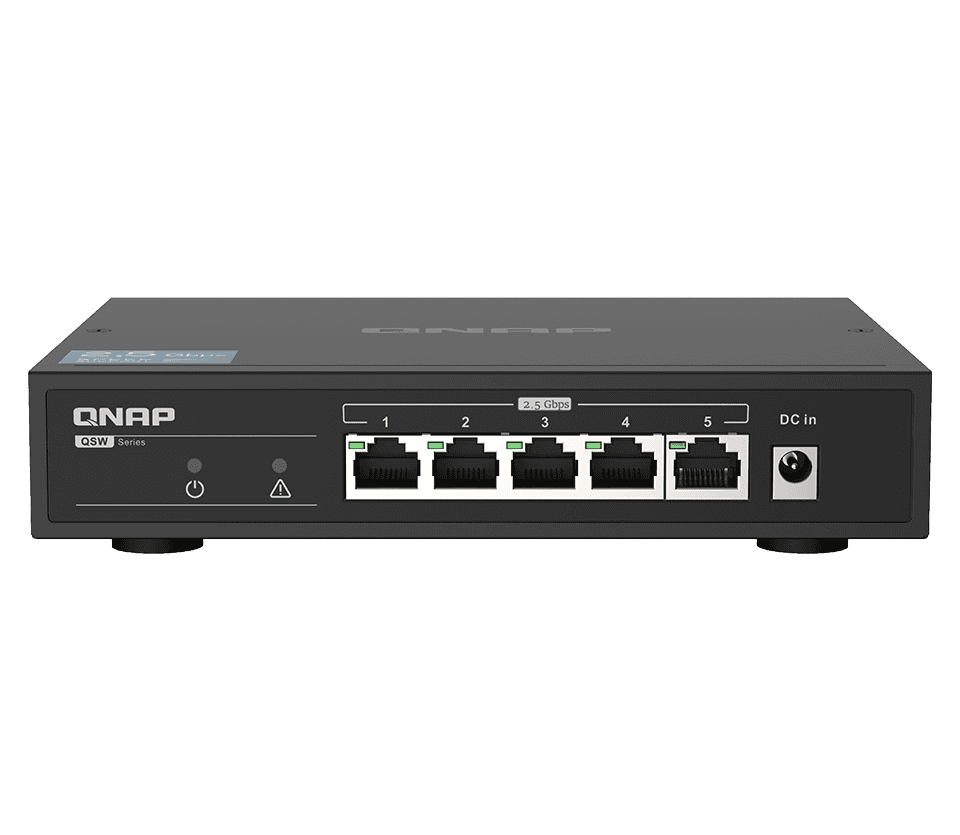

QSW-1105-5T
| Management Type | Unmanaged |
| Number of Ports | 5 |
| 2.5GbE (RJ45) | 5 |
| Power Supply Description | Adapter |
| Max. Power Consumption | 12 W |
| Input Power Type | DC |
| Input Voltage Range | 12V |
| MAC Address Table | 16K |
| Total Non-Blocking Throughput | 12.5Gbps |
| Switching Capacity | 25Gbps |
| Fan | Fanless |
| Fanless | |
| Supported Standards | IEEE 802.3 Ethernet IEEE 802.3u 100BASE-T IEEE 802.3ab 1000BASE-T IEEE 802.3bz 2.5GBase-T IEEE 802.3x Full-Duplex Flow Control |
| Form Factor | Desktop |
| LED Indicators | Per Port: Speed/Link/Activity Loop LED: Loop Per System: Power/Status |
| Dimensions (HxWxD) | 34 x 180 x 145 mm |
| Weight (Net) | 0.577 kg |
| Operating Temperature | 0??C to 40??C (32??F to 104??F) |
| Relative Humidity | 10% to 90% (non-condensing) |
| Certifications | FCC, CE, BSMI, VCCI, LVD,CCC,KCC,ASNZ |
| Electromagnetic Compliance | Class B |
| Jumbo Frames | 9K |
| Warranty | 2 Years |
Specification
QNAP TS-673A + QSW-1105-5T Bundle Pack, 6-bay AMD Ryzen NAS with 5-Port 2.5G Switch, AMD Ryzen quad-core 2.2 GHz, 5x 2.5GbE connectivity, Flexible PCIe expansion, SSD cache acceleration, Supports QTS/QuTS hero OS | TS-673A-SW5T 6-BAY
| CPU | AMD Ryzen??? Embedded V1500B 4-core/8-thread 2.2 GHz processor |
| CPU Architecture | 64-bit x86 |
| Graphic Processors | Optional via a PCIe adapter |
| Floating Point Unit | |
| Encryption Engine | AES-NI |
| Hardware-accelerated Transcoding | Optional via a PCIe adapter |
| System Memory | 8 GB SODIMM DDR4 (1 x 8 GB) |
| Maximum Memory | 64 GB (2 x 32 GB) |
| Memory Slot | 2 x SODIMM DDR4 |
| Support ECC memory | |
| Flash Memory | 5GB (Dual boot OS protection) |
| Drive Bay | 6 x 3.5-inch SATA 6Gb/s, 3Gb/s |
| Drive Compatibility | 3.5-inch SATA hard disk drives 2.5-inch SATA solid state drives |
| Hot-swappable | The following are not hot-swappable: M.2 SSDs, SSD cache drives, SSDs using PCIe expansion slots. |
| M.2 Slot | 2 x M.2 2280 PCIe Gen3 x1 slots |
| SSD Cache Acceleration Support | |
| GPU pass-through | |
| 2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 2 (2.5G/1G/100M) |
| 5 Gigabit Ethernet Port (5G/2.5G/1G/100M) | Optional via a PCIe adapter |
| 10 Gigabit Ethernet Port | Optional via a PCIe adapter |
| Wake on LAN (WOL) | |
| Jumbo Frame | |
| PCIe Slot | 2 Slot 1: PCIe Gen 3 x4 Slot 2: PCIe Gen 3 x4 |
| USB 3.2 Gen 2 (10Gbps) Port | 3 x Type-A USB 3.2 Gen 2 10Gbps 1 x Type-C USB 3.2 Gen 1 5Gbps |
| HDMI??? Output | Optional via a PCIe adapter |
| Form Factor | Tower |
| LED Indicators | Status/Power, USB, LAN, Drive 1-6, M.2 SSD 1-2 |
| Buttons | Power, Reset, USB Auto Copy |
| Dimensions (HxWxD) | 180.2 ?? 264.3 ?? 279.6 mm |
| Weight (Net) | 6.4 kg |
| Weight (Gross) | 7.3 kg |
| Operating Temperature | 0 - 40 ??C (32??F - 104??F) |
| Storage Temperature | -20 - 70??C (-4??F - 158??F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27??C (80.6??F) |
| Power Supply Unit | 250W, 100-240V AC, 50-60Hz, 3.5A |
| Power Consumption: HDD Sleep Mode | 21.891 W |
| Power Consumption: Operating Mode, Typical | 45.898 W |
| Fan | System fan: 2 x 92mm CPU fan: 1 x 60mm |
| System Warning | Buzzer |
| Kensington Security Slot | |
| Standard Warranty | 3 |
| Max. Number of Concurrent Connections (CIFS) - with Max. Memory | 2000 |
QSW-1105-5T
| Management Type | Unmanaged |
| Number of Ports | 5 |
| 2.5GbE (RJ45) | 5 |
| Power Supply Description | Adapter |
| Max. Power Consumption | 12 W |
| Input Power Type | DC |
| Input Voltage Range | 12V |
| MAC Address Table | 16K |
| Total Non-Blocking Throughput | 12.5Gbps |
| Switching Capacity | 25Gbps |
| Fan | Fanless |
| Fanless | |
| Supported Standards | IEEE 802.3 Ethernet IEEE 802.3u 100BASE-T IEEE 802.3ab 1000BASE-T IEEE 802.3bz 2.5GBase-T IEEE 802.3x Full-Duplex Flow Control |
| Form Factor | Desktop |
| LED Indicators | Per Port: Speed/Link/Activity Loop LED: Loop Per System: Power/Status |
| Dimensions (HxWxD) | 34 x 180 x 145 mm |
| Weight (Net) | 0.577 kg |
| Operating Temperature | 0??C to 40??C (32??F to 104??F) |
| Relative Humidity | 10% to 90% (non-condensing) |
| Certifications | FCC, CE, BSMI, VCCI, LVD,CCC,KCC,ASNZ |
| Electromagnetic Compliance | Class B |
| Jumbo Frames | 9K |
| Warranty | 2 Years |
