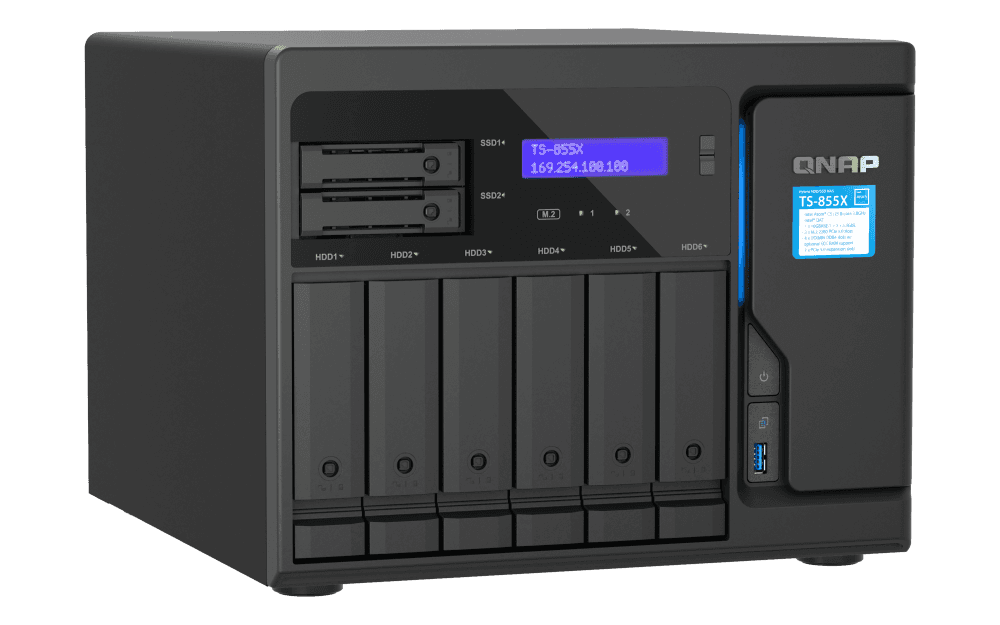

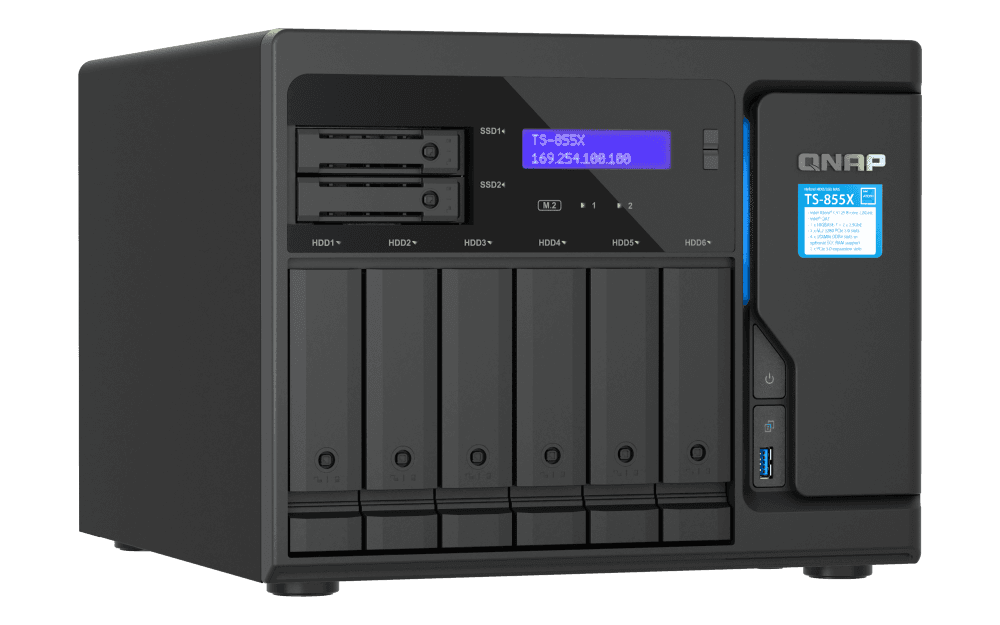

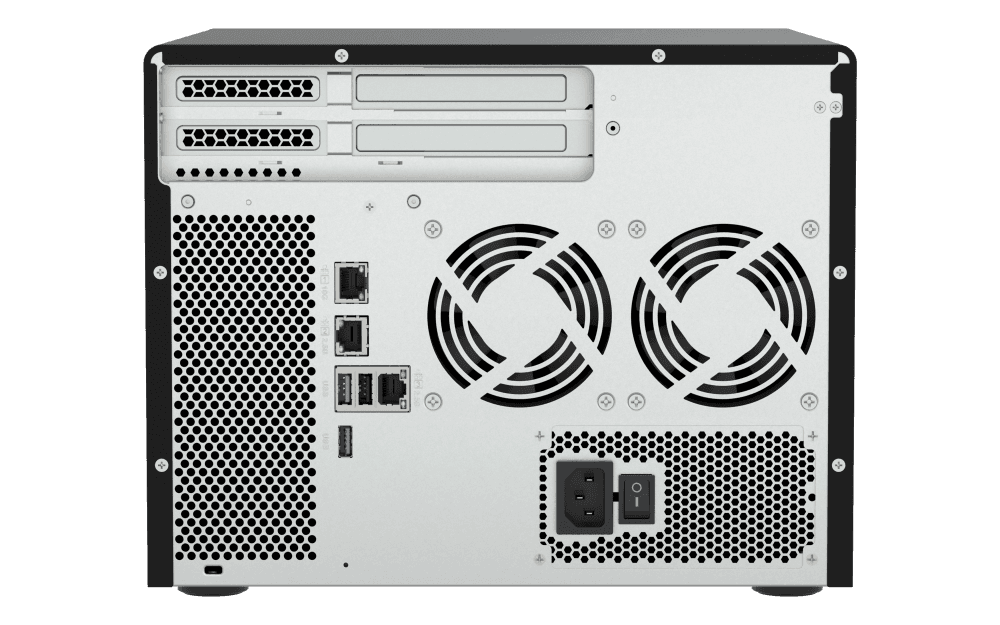

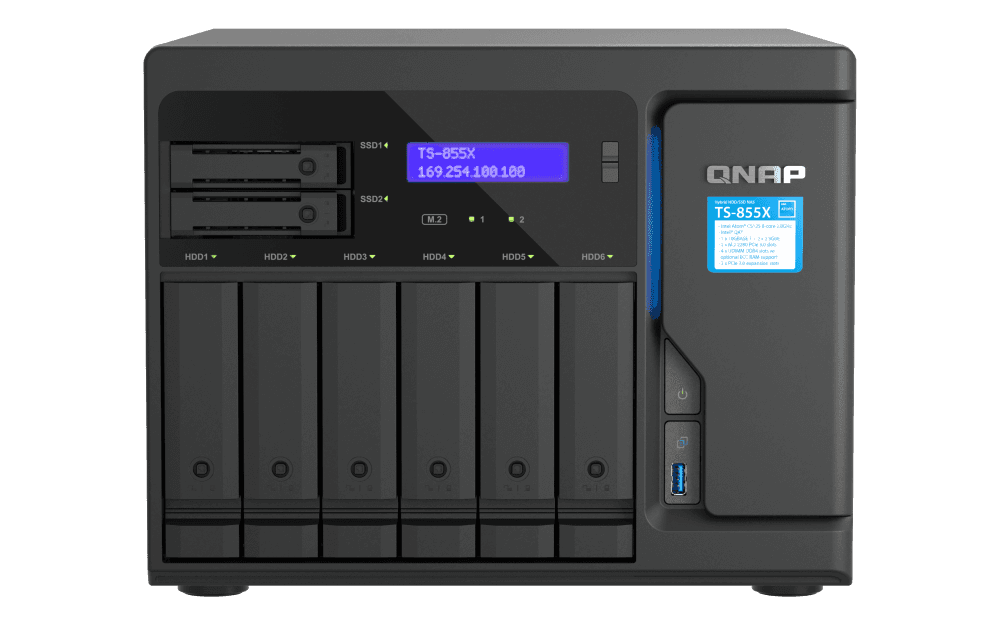

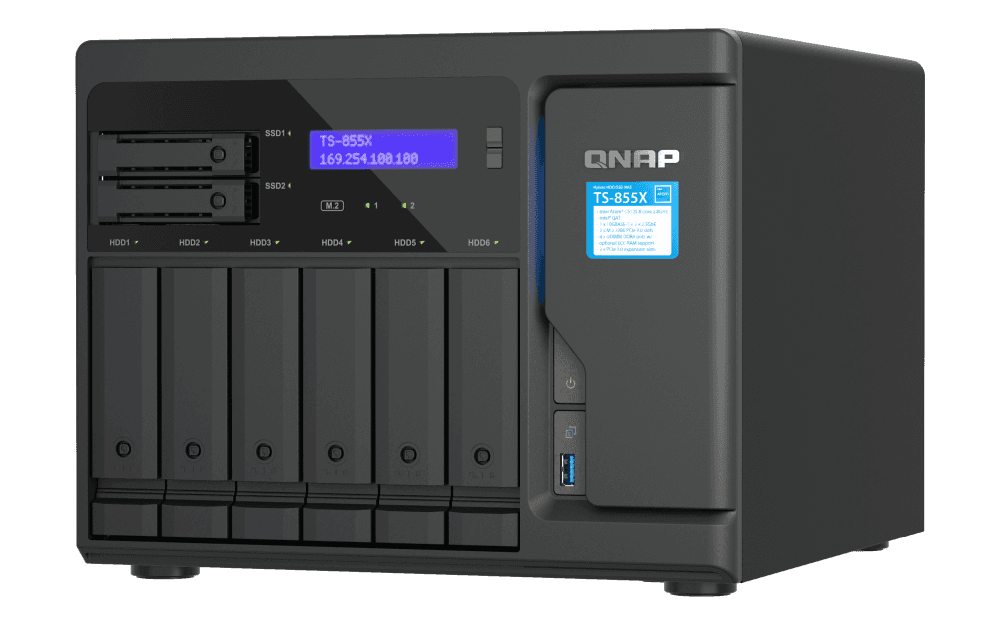

QNAP TS-855X-8G 8-BAY NAS, Intel Atom C5125 8-core processor, 2.8GHz, 4 x U-DIMM DDR4, upto 128 GB (4 x 32 GB), 64-bit x86, 4 x U-DIMM DDR4 Support ECC memory | TS-855X-8G
Model :
SKU : QNAP TS-855X-8G 8-BAY NAS
About this item
Description
| TS-855X-8G Specifications | |
| CPU | Intel ?? Atom?? C5125 8-core processor, 2.8GHz |
| CPU Architecture | 64-bit x86 |
| Floating Point Unit | Yes |
| Encryption Engine | Yes (AES-NI) |
| System Memory | 8 GB non-ECC UDIMM DDR4 (1 x 8 GB) |
| Maximum Memory | 128 GB (4 x 32 GB) |
| Memory Slot | 4 x U-DIMM DDR4 Support ECC memory |
| Flash Memory | 5GB (Dual boot OS protection) |
| Drive Bay | 6 x 3.5-inch + 2 x 2.5-inch SATA 6Gb/s, 3Gb/s 3.5-inch bays: 3.5-inch SATA hard disk drives 2.5-inch SATA solid state drives Hot-swappable: Yes |
| M.2 Slot | 2 x M.2 2280 PCIe Gen 3 x4 slots Compatible with NVMe SSD PCIe Gen 3 and above. The M.2 SSD is not included as standard. It is recommended to install a heatsink (from QNAP or a third-party provider) on the M.2 SSD. |
| SSD Cache Acceleration Support | Yes |
| SR-IOV | Yes |
| 2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 2 (2.5G/1G/100M/10M) |
| 10 Gigabit Ethernet Port | 1 x 10GBASE-T 25 Gigabit Ethernet Port: Optional via PCIe expansion card |
| Wake on LAN (WOL) | Yes Only the 2.5GbE port |
| Jumbo Frame | Yes |
| PCIe Slot | 2 Slot 1: PCIe Gen 3 x4 Card dimensions for PCIe slot 1: 260 x 111.15 x 18.76 mm / 10.25 x 4.38 x 0.74 inches. Slot 2: PCIe Gen 3 x4 Card dimensions for PCIe slot 2: 150 x 68.9 x 18.76 mm / 5.90 x 2.71 x 0.74 inches. |
| USB 2.0 port | 1 |
| USB 3.2 Gen 1 port | 3 |
| Form Factor | Tower |
| LED Indicators | Power/Status, LAN, USB, HDD1-6, SSD 1-2, M.2 SSD 1-2 |
| Buttons | Power, Reset, USB Auto Copy |
| Dimensions (HxWxD) | 225 ?? 292.9 ?? 319.8 mm Dimensions do not include foot pad (foot pad may be up to 30mm / 1.18 inches high depending on model) |
| Weight (Net) | 10.04 kg |
| Weight (Gross) | 10.04 kg |
| Operating Temperature | 0 - 40??C (32??F - 104??F) |
| Storage Temperature | -20 - 70??C (-4??F - 158??F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27??C (80.6??F) |
| Power Supply Unit | 250W PSU, 100~240V |
| Power Consumption: Operating Mode, Typical | 86.96 W Tested with drives fully populated. |
| Fan | System fan: 2 x 80mm, 12VDC CPU fan: 1 x 90mm, 12VDC |
| Other Interfaces | Kensington security slot System Warning Buzzer Kensington Security Slot: Yes |
| Standard Warranty | 3 |
| Max. Number of Concurrent Connections (CIFS) - with Max. Memory | 2500 |
Specification
| TS-855X-8G Specifications | |
| CPU | Intel ?? Atom?? C5125 8-core processor, 2.8GHz |
| CPU Architecture | 64-bit x86 |
| Floating Point Unit | Yes |
| Encryption Engine | Yes (AES-NI) |
| System Memory | 8 GB non-ECC UDIMM DDR4 (1 x 8 GB) |
| Maximum Memory | 128 GB (4 x 32 GB) |
| Memory Slot | 4 x U-DIMM DDR4 Support ECC memory |
| Flash Memory | 5GB (Dual boot OS protection) |
| Drive Bay | 6 x 3.5-inch + 2 x 2.5-inch SATA 6Gb/s, 3Gb/s 3.5-inch bays: 3.5-inch SATA hard disk drives 2.5-inch SATA solid state drives Hot-swappable: Yes |
| M.2 Slot | 2 x M.2 2280 PCIe Gen 3 x4 slots Compatible with NVMe SSD PCIe Gen 3 and above. The M.2 SSD is not included as standard. It is recommended to install a heatsink (from QNAP or a third-party provider) on the M.2 SSD. |
| SSD Cache Acceleration Support | Yes |
| SR-IOV | Yes |
| 2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 2 (2.5G/1G/100M/10M) |
| 10 Gigabit Ethernet Port | 1 x 10GBASE-T 25 Gigabit Ethernet Port: Optional via PCIe expansion card |
| Wake on LAN (WOL) | Yes Only the 2.5GbE port |
| Jumbo Frame | Yes |
| PCIe Slot | 2 Slot 1: PCIe Gen 3 x4 Card dimensions for PCIe slot 1: 260 x 111.15 x 18.76 mm / 10.25 x 4.38 x 0.74 inches. Slot 2: PCIe Gen 3 x4 Card dimensions for PCIe slot 2: 150 x 68.9 x 18.76 mm / 5.90 x 2.71 x 0.74 inches. |
| USB 2.0 port | 1 |
| USB 3.2 Gen 1 port | 3 |
| Form Factor | Tower |
| LED Indicators | Power/Status, LAN, USB, HDD1-6, SSD 1-2, M.2 SSD 1-2 |
| Buttons | Power, Reset, USB Auto Copy |
| Dimensions (HxWxD) | 225 ?? 292.9 ?? 319.8 mm Dimensions do not include foot pad (foot pad may be up to 30mm / 1.18 inches high depending on model) |
| Weight (Net) | 10.04 kg |
| Weight (Gross) | 10.04 kg |
| Operating Temperature | 0 - 40??C (32??F - 104??F) |
| Storage Temperature | -20 - 70??C (-4??F - 158??F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27??C (80.6??F) |
| Power Supply Unit | 250W PSU, 100~240V |
| Power Consumption: Operating Mode, Typical | 86.96 W Tested with drives fully populated. |
| Fan | System fan: 2 x 80mm, 12VDC CPU fan: 1 x 90mm, 12VDC |
| Other Interfaces | Kensington security slot System Warning Buzzer Kensington Security Slot: Yes |
| Standard Warranty | 3 |
| Max. Number of Concurrent Connections (CIFS) - with Max. Memory | 2500 |
