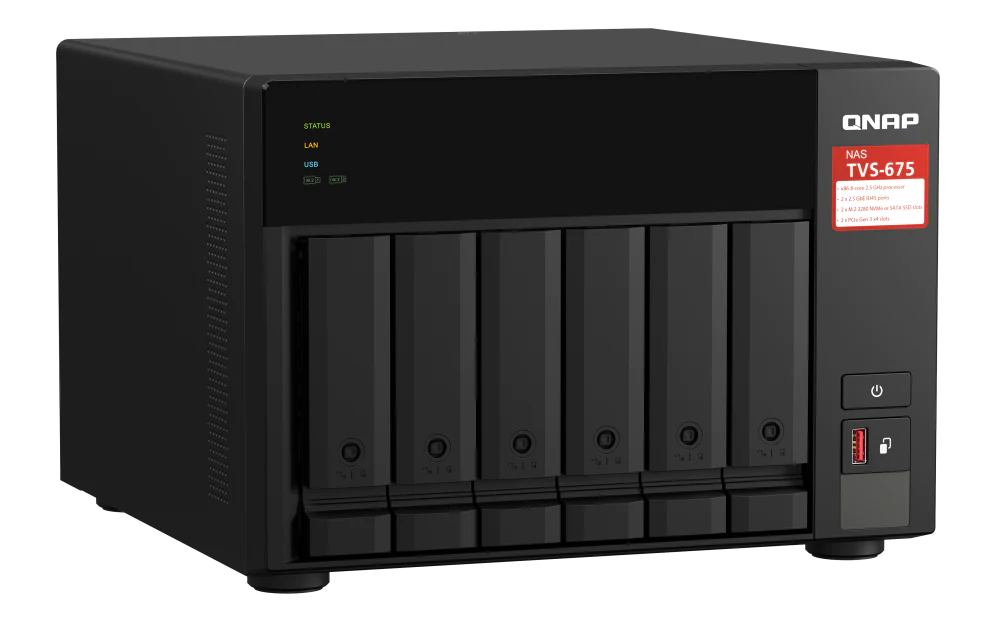

Qnap TVS-675-8G 6 Bay High-Speed Desktop NAS with ZhaoXin KX-U6580 8-core CPU, 8GB DDR4 Memory and 2.5GbE 2.5G/1G/100M Network Connectivity Diskless | TVS-675-8G
Model :
SKU : QNAP TVS-675-8G 6 BAY
About this item
Description
QNAP TVS-675-8G: Budget-Friendly 6-Bay NAS for Home & Office (Stream, Share, Secure)
| TVS-675-8G Specifications | |
| CPU | ZhaoXin KX-U6580 8-core 2.5GHz processor |
| CPU Architecture | 64-bit x86 |
| Graphic Processors | ZhaoXin C-960 Graphics |
| Floating Point Unit | Yes |
| Encryption Engine | Yes (AES-NI) |
| Hardware-accelerated Transcoding | Yes |
| System Memory | 8 GB SODIMM DDR4 (1 x 8 GB) |
| Maximum Memory | 64GB (2 x 32 GB) |
| Memory Slot | 2 x SODIMM DDR4 (For dual-DIMM configuration, you must use a pair of identical DDR4 modules.) |
| Flash Memory | 5GB (Dual boot OS protection) |
| Drive Bay | 6 x 3.5-inch SATA 6Gb/s, 3Gb/s |
| Drive Compatibility | 3.5-inch SATA hard disk drives 2.5-inch SATA solid state drives |
| Hot-swappable | Yes |
| M.2 Slot | 2 x M.2 2280 PCIe Gen 3 x1 or SATA 6Gb/s slots Compatible with NVMe SSD PCIe Gen 3 and above. Please refer to compatibility list. |
| SSD Cache Acceleration Support | Yes |
| 2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 2 (2.5G/1G/100M) |
| 5 Gigabit Ethernet Port (5G/2.5G/1G/100M) | Optional via an adapter |
| 10 Gigabit Ethernet Port | Optional via an adapter |
| Wake on LAN (WOL) | Yes (Only the 2.5GbE port) |
| Jumbo Frame | Yes |
| PCIe Slot | 2 Slot 1: PCIe Gen 3 x4 Slot 2: PCIe Gen 3 x4 Card dimensions for PCIe slot 1~Slot 2: 190 x 111.15 x 18.76 mm / 7.48 x 4.38 x 0.74 inches. Wider cards can be installed if the next PCIe slot will not be used. |
| USB 3.2 Gen 1 port | 2 |
| USB 3.2 Gen 2 (10Gbps) Port | 2 x Type-A |
| HDMI??? Output | 1, HDMI??? 2.0 (up to 3840 x 2160 @ 60Hz) |
| Form Factor | Tower |
| LED Indicators | HDD 1-6, Status, LAN, USB, M.2 SSD 1-2 |
| Buttons | Power, Reset, USB Copy |
| Dimensions (HxWxD) | 180.2 ?? 264.3 ?? 279.6 mm Dimensions do not include foot pad (foot pad may be up to 30mm / 1.18 inches high depending on model) |
| Weight (Net) | 7 kg |
| Weight (Gross) | 7.8 kg |
| Operating Temperature | 0 - 40 ??C (32??F - 104??F) |
| Storage Temperature | -20 - 70??C (-4??F - 158??F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27??C (80.6??F) |
| Power Supply Unit | 250W, 100-240V AC, 50/60Hz, 3.5A |
| Power Consumption: HDD Sleep Mode | 41.897 W |
| Power Consumption: Operating Mode, Typical | 60.794 W |
| Fan | 3 x 80mm, 12VDC |
| System Warning Buzzer | Yes |
| Kensington Security Slot | Yes |
| Standard Warranty | 3 years |
| Max. Number of Concurrent Connections (CIFS) - with Max. Memory | 2000 |
Specification
QNAP TVS-675-8G: Budget-Friendly 6-Bay NAS for Home & Office (Stream, Share, Secure)
| TVS-675-8G Specifications | |
| CPU | ZhaoXin KX-U6580 8-core 2.5GHz processor |
| CPU Architecture | 64-bit x86 |
| Graphic Processors | ZhaoXin C-960 Graphics |
| Floating Point Unit | Yes |
| Encryption Engine | Yes (AES-NI) |
| Hardware-accelerated Transcoding | Yes |
| System Memory | 8 GB SODIMM DDR4 (1 x 8 GB) |
| Maximum Memory | 64GB (2 x 32 GB) |
| Memory Slot | 2 x SODIMM DDR4 (For dual-DIMM configuration, you must use a pair of identical DDR4 modules.) |
| Flash Memory | 5GB (Dual boot OS protection) |
| Drive Bay | 6 x 3.5-inch SATA 6Gb/s, 3Gb/s |
| Drive Compatibility | 3.5-inch SATA hard disk drives 2.5-inch SATA solid state drives |
| Hot-swappable | Yes |
| M.2 Slot | 2 x M.2 2280 PCIe Gen 3 x1 or SATA 6Gb/s slots Compatible with NVMe SSD PCIe Gen 3 and above. Please refer to compatibility list. |
| SSD Cache Acceleration Support | Yes |
| 2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 2 (2.5G/1G/100M) |
| 5 Gigabit Ethernet Port (5G/2.5G/1G/100M) | Optional via an adapter |
| 10 Gigabit Ethernet Port | Optional via an adapter |
| Wake on LAN (WOL) | Yes (Only the 2.5GbE port) |
| Jumbo Frame | Yes |
| PCIe Slot | 2 Slot 1: PCIe Gen 3 x4 Slot 2: PCIe Gen 3 x4 Card dimensions for PCIe slot 1~Slot 2: 190 x 111.15 x 18.76 mm / 7.48 x 4.38 x 0.74 inches. Wider cards can be installed if the next PCIe slot will not be used. |
| USB 3.2 Gen 1 port | 2 |
| USB 3.2 Gen 2 (10Gbps) Port | 2 x Type-A |
| HDMI??? Output | 1, HDMI??? 2.0 (up to 3840 x 2160 @ 60Hz) |
| Form Factor | Tower |
| LED Indicators | HDD 1-6, Status, LAN, USB, M.2 SSD 1-2 |
| Buttons | Power, Reset, USB Copy |
| Dimensions (HxWxD) | 180.2 ?? 264.3 ?? 279.6 mm Dimensions do not include foot pad (foot pad may be up to 30mm / 1.18 inches high depending on model) |
| Weight (Net) | 7 kg |
| Weight (Gross) | 7.8 kg |
| Operating Temperature | 0 - 40 ??C (32??F - 104??F) |
| Storage Temperature | -20 - 70??C (-4??F - 158??F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27??C (80.6??F) |
| Power Supply Unit | 250W, 100-240V AC, 50/60Hz, 3.5A |
| Power Consumption: HDD Sleep Mode | 41.897 W |
| Power Consumption: Operating Mode, Typical | 60.794 W |
| Fan | 3 x 80mm, 12VDC |
| System Warning Buzzer | Yes |
| Kensington Security Slot | Yes |
| Standard Warranty | 3 years |
| Max. Number of Concurrent Connections (CIFS) - with Max. Memory | 2000 |
