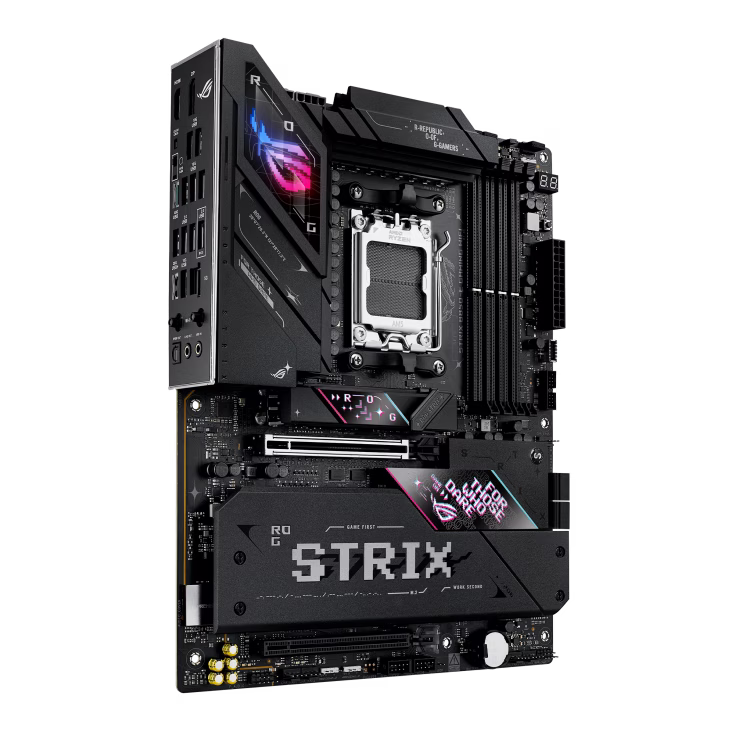

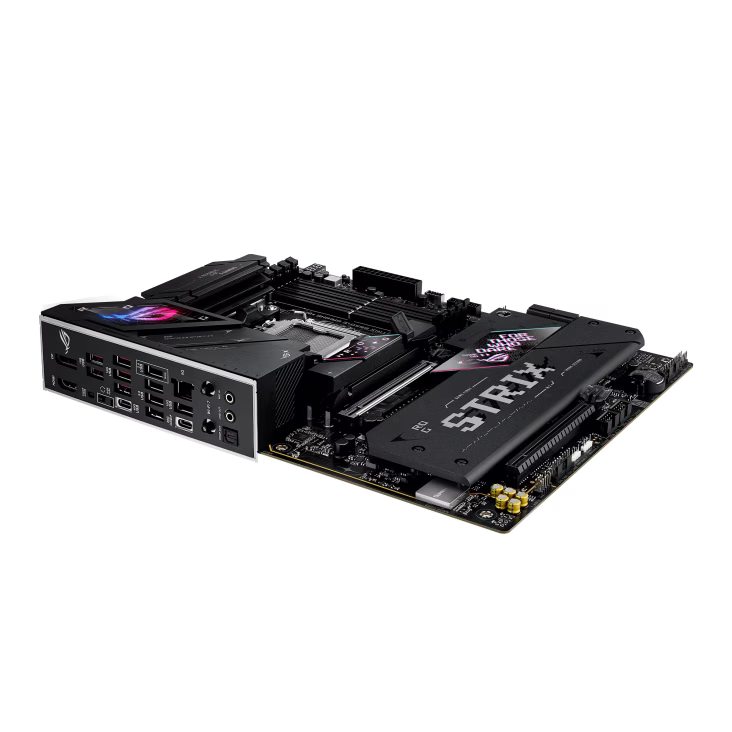

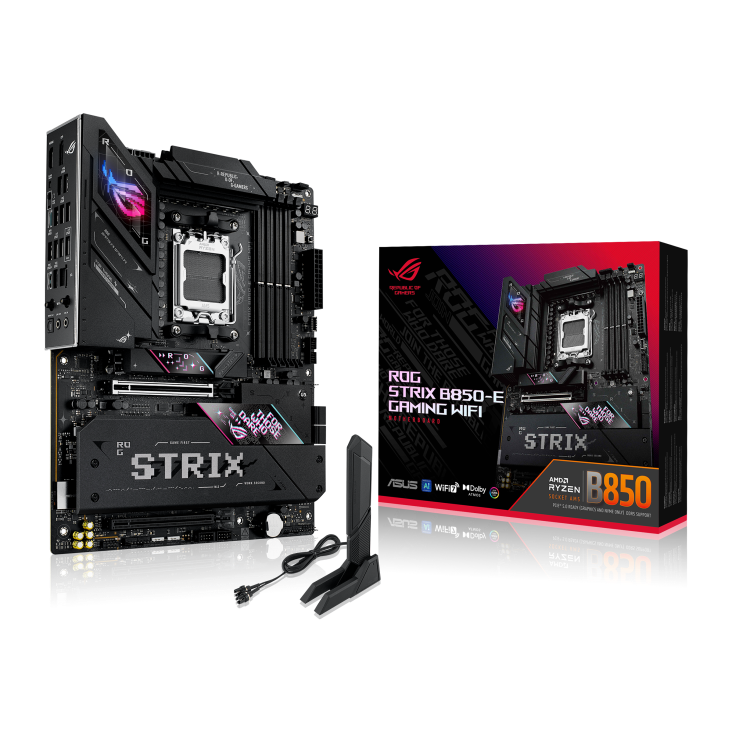

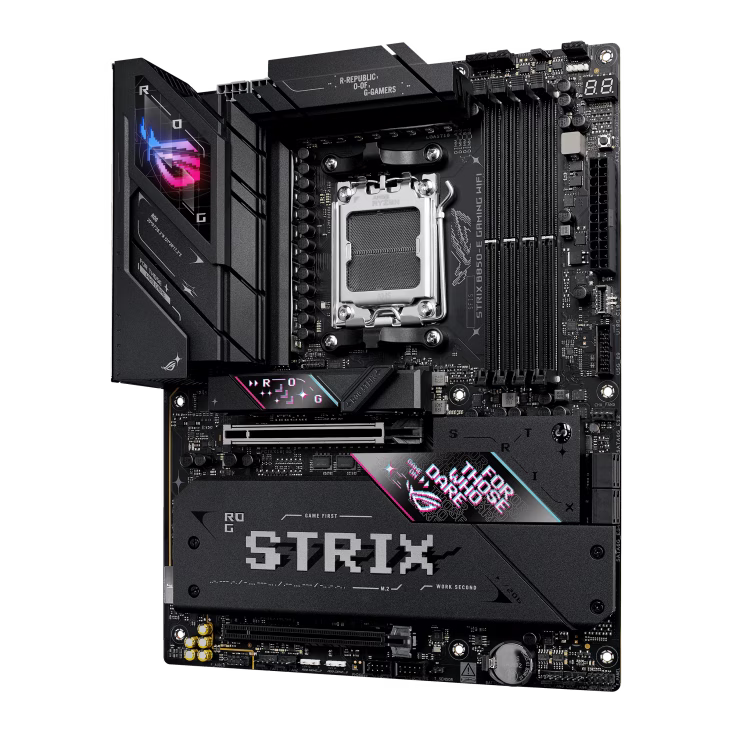

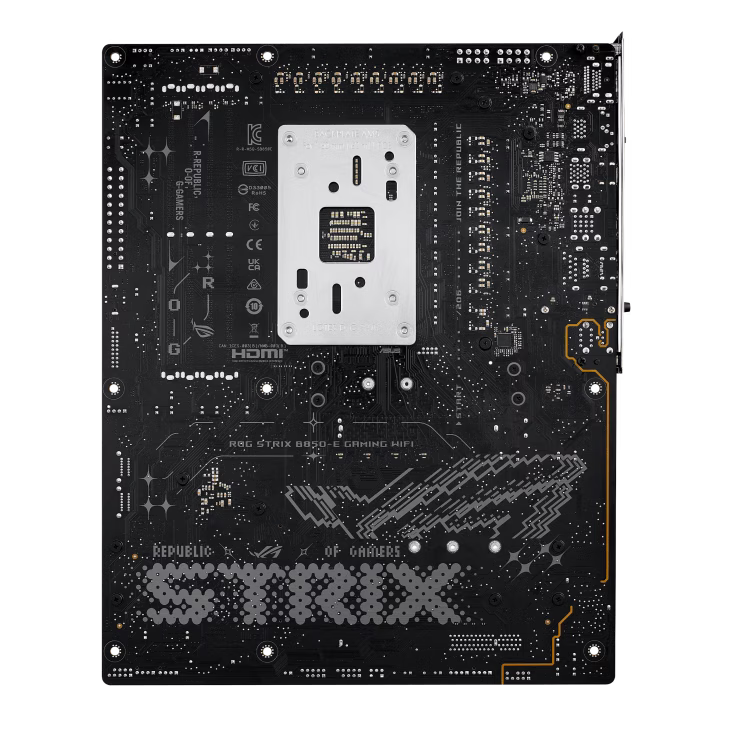

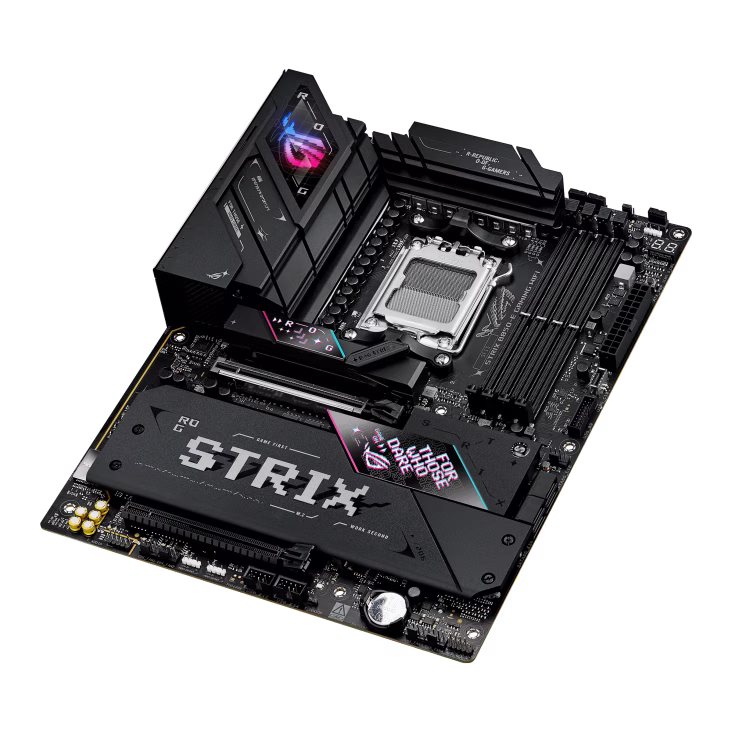

ASUS ROG Strix B850-E Gaming WiFi AMD AM5 B850 ATX Motherboard 16+2+2 Stages, Dynamic OC, Core Flex, DDR5 w/AEMP, WiFi 7, 5X M.2, 5G LAN, PCIe 5.0, USB4, USB 20Gbps Type-C, AI OC, AI Networking | 90MB1J60-M0EAY0
Model :
SKU : MB-ASUS ROG B850-E GAM WI
About this item
About this item
Description
Using AI technology to understand natural-language questions or scenario descriptions, ASUS AI Advisor allows users to explore the functionality and advanced features of ASUS motherboards in a simple and straightforward way.
Specification
| CPU | AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors * Refer to ASUS support site for CPU support list. |
| Chipset | AMD B850 Chipset |
| Memory | 4 x DIMM slots, max. 256GB, DDR5 Supports up to 8000+MT/s (OC) ECC & Non-ECC, Un-buffered DIMM Dual channel memory architecture Supports AMD EXPO™, ASUS AEMP * Non-ECC, un-buffered DDR5 supports On-Die ECC |
| Graphics | 1 x DisplayPort (8K@30Hz) 1 x HDMI™ (4K@60Hz) 1 x USB4® Type-C® (40Gbps, supports display output) * Specs may vary depending on CPU |
| Expansion Slots | Ryzen™ 9000 & 7000: 1 x PCIe 5.0 x16 slot with Q-Release Slim (x16/x8) Ryzen™ 8000: 1 x PCIe 5.0 x16 slot with Q-Release Slim (PCIe 4.0 x8/x4) B850 Chipset: 1 x PCIe 4.0 x16 slot (x4 mode) * PCIe bifurcation rules and bandwidth sharing apply |
| Storage | 5 x M.2 slots, 4 x SATA 6Gb/s ports Ryzen™ 9000 & 7000: PCIe 5.0 x4 Ryzen™ 8000: PCIe 4.0 x4 B850: PCIe 4.0 x4 RAID: Ryzen™ 9000 (0/1/5/10), Ryzen™ 8000 (0/1), Ryzen™ 7000 (0/1/10) * Bandwidth sharing between M.2_4 & PCIEX16(G4) |
| Ethernet | 1 x Realtek 5Gb Ethernet with ASUS LANGuard |
| Wireless & Bluetooth | Wi-Fi 7 (2x2, 2.4/5/6GHz, up to 6.5Gbps) Bluetooth® 5.4 * Wi-Fi 7 requires Windows 11 24H2+ |
| USB | Rear (12 ports): - 1 x USB4® 40Gbps (Type-C®) - 1 x USB 20Gbps (Type-C®, up to 30W PD/PPS) - 6 x USB 10Gbps (Type-A) - 4 x USB 2.0 (Type-A) Front (7 ports): - 1 x USB 10Gbps Type-C® - 1 x USB 5Gbps header (2 ports) - 2 x USB 2.0 headers (4 ports) |
| Audio | ROG SupremeFX 7.1 Surround (ALC4080) - 120 dB SNR playback / 110 dB recording - Savitech SV3H712 AMP - Gold-plated jacks, optical S/PDIF out - Premium capacitors, SupremeFX shielding |
| Back Panel I/O | 1 x USB4® Type-C® (40Gbps) 1 x USB 20Gbps Type-C® (PD/PPS up to 30W) 6 x USB 10Gbps Type-A 4 x USB 2.0 Type-A 1 x DisplayPort, 1 x HDMI™ 1 x Realtek 5Gb LAN 1 x Wi-Fi module 2 x Gold-plated audio jacks, 1 x Optical S/PDIF 1 x BIOS FlashBack™, 1 x Clear CMOS |
| Internal I/O | 1 x 24-pin ATX Power, 2 x 8-pin CPU Power 7 x Fan headers (CPU, AIO, Chassis) 5 x M.2 slots, 4 x SATA USB: 1 x USB 10Gbps Type-C®, 1 x USB 5Gbps header, 2 x USB 2.0 headers Misc: 3 x ARGB Gen 2, CPU OV jumper, thermal sensor, power button |
| Special Features | Extreme Engine Digi+, 5K black metallic capacitors Q-Design (Q-Release, Q-Slot, Q-DIMM, Q-LED, Q-Antenna, etc.) ASUS Thermal Solution (M.2 heatsinks, backplate) ASUS EZ DIY (Pre-mounted I/O shield, BIOS FlashBack™, ProCool) Aura Sync with ARGB Gen 2 headers |
| Software | ROG Exclusive: ROG CPU-Z, Dolby Atmos ASUS Exclusive: Armoury Crate, Aura Creator/Sync, GameFirst, Fan Xpert 4, USB Wattage Watcher, GlideX Bundled: AIDA64 Extreme (60d trial), Adobe CC trial, Norton 360 (60d), WinRAR (40d) |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS with AI Overclocking, EZ Flash 3, CrashFree BIOS 3, Dynamic OC Switcher, Core Flex |
| Accessories | 2 x SATA cables, ASUS WiFi Q-Antenna, thermal pad for M.2 22110, M.2 Q-Slide package, 5 x M.2 rubbers Cable ties, ROG key chain, ROG Strix stickers, Quick start guide |
| Operating System | Windows 11 |
| Form Factor | ATX (30.5 cm x 24.4 cm) |
