| CPU Support | Intel?? Core??? Ultra Processors (Series 2) |
| Chipset | Intel?? B860 Chipset |
| Memory | 4 x DIMM slots, Max. 256GB, DDR5 Supports up to 8666+ MT/s (OC), Non-ECC, Un-buffered, Dual Channel Supports Intel?? Extreme Memory Profile (XMP), ASUS Enhanced Memory Profile III (AEMP III) |
| Graphics Output | 1 x DisplayPort 1.4 1 x HDMI??? 2.1 1 x Thunderbolt??? 4 (supports DisplayPort and Thunderbolt??? video outputs) |
| Expansion Slots | 1 x PCIe 5.0 x16 slot (SafeSlot) |
| Storage | 4 x M.2 slots: - M.2_1: 2242/2260/2280 (PCIe 5.0 x4) - M.2_2: 2280 (PCIe 4.0 x4) - M.2_3: 2280 (PCIe 4.0 x4) - M.2_4: 2230/2280 (PCIe 4.0 x4) 4 x SATA 6Gb/s ports Supports Intel?? Rapid Storage Technology with RAID 0/1/5/10 |
| Ethernet | 1 x Intel?? 2.5Gb Ethernet ASUS LANGuard |
| Wireless & Bluetooth | Wi-Fi 7 (802.11be), 2x2 Supports 2.4/5/6GHz frequency bands Bluetooth?? v5.4 |
| USB Ports | Rear USB (Total 10 ports): - 1 x Thunderbolt??? 4 (USB Type-C??) - 1 x USB 20Gbps (USB Type-C??) - 1 x USB 10Gbps (Type-A) - 3 x USB 5Gbps (Type-A) - 4 x USB 2.0 (Type-A) Front USB (Total 6 ports): - 1 x USB 10Gbps connector (supports USB Type-C??) - 1 x USB 5Gbps header (supports 2 additional USB 5Gbps ports) - 2 x USB 2.0 headers (support 3 additional USB 2.0 ports) |
| Audio | Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC - Impedance sense for front and rear headphone outputs - Internal audio amplifier - Supports Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) - Supports up to 32-Bit/192 kHz playback Audio Features: - SupremeFX Shielding Technology - Savitech SV3H712 AMP - Rear optical S/PDIF out port - Premium audio capacitors - Dedicated audio PCB layers - Audio cover |

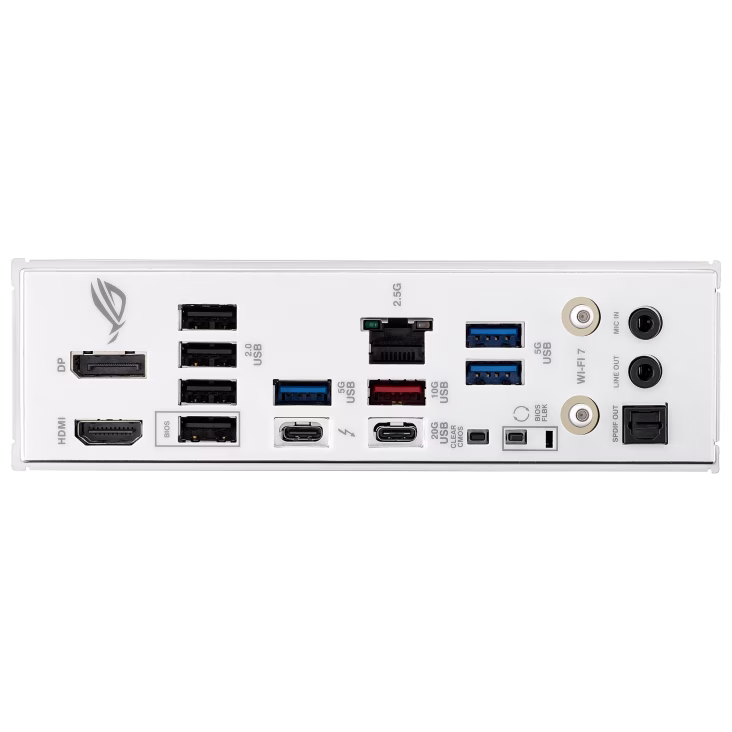

| Back Panel I/O Ports | 1 x Thunderbolt??? 4 USB Type-C?? port 1 x USB 20Gbps port (USB Type-C?? with DP Alt mode) 1 x USB 10Gbps port (Type-A) 3 x USB 5Gbps ports (Type-A) 4 x USB 2.0 ports (Type-A) 1 x DisplayPort 1 x HDMI??? port 1 x Wi-Fi module 1 x Intel?? 2.5Gb Ethernet port 2 x Audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack??? button 1 x Clear CMOS button |
| Internal I/O Connectors | Fan and Cooling Related: - 1 x 4-pin CPU Fan header - 1 x 4-pin CPU OPT Fan header - 1 x 4-pin AIO Pump header - 2 x 4-pin Chassis Fan headers Power Related: - 1 x 24-pin Main Power connector - 2 x 8-pin +12V CPU Power connectors Storage Related: - 4 x M.2 slots (Key M) - 4 x SATA 6Gb/s ports USB: - 1 x USB 10Gbps connector (supports USB Type-C??) - 1 x USB 5Gbps header (supports 2 additional USB 5Gbps ports) - 2 x USB 2.0 headers (support 3 additional USB 2.0 ports) Miscellaneous: - 3 x Addressable Gen2 headers - 1 x Front Panel Audio header (F_AUDIO) - 1 x 10-1 pin Front System Panel header - 1 x Thermal Sensor header |
| Special Features | Extreme Engine Digi+: - 5K Black metallic capacitors ASUS Q-Design: - M.2 Q-Latch - M.2 Q-Release - M.2 Q-Slide - PCIe Slot Q-Release Slim (with PCIe SafeSlot) - Q-Antenna - Q-Dashboard - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution: - M.2 heatsink backplate - M.2 heatsink - VRM heatsink design ASUS EZ DIY: - BIOS FlashBack??? button - BIOS FlashBack??? LED - Clear CMOS button - CPU Socket lever protector - ProCool - Pre-mounted I/O shield - SafeSlot - SafeDIMM Aura Sync: - Addressable Gen2 headers |
| Software Features | ROG Exclusive Software: - ROG CPU-Z - Dolby Atmos ASUS Exclusive Software: - Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 4 - GameFirst - Power Saving - AIDA64 Extreme (60 days free trial) - HWiNFO - ASUS AI Advisor - ASUS DriverHub - ASUS GlideX - TurboV Core - Adobe Creative Cloud (30 Days Free Trial) - Norton 360 for Gamers (60 Days Free Trial) - WinRAR (40 Days Free Trial) |
| UEFI BIOS | AI Overclocking Guide ASUS EZ DIY: - ASUS CrashFree BIOS 3 - ASUS EZ Flash - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey NPU Boost |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, UEFI PXE |

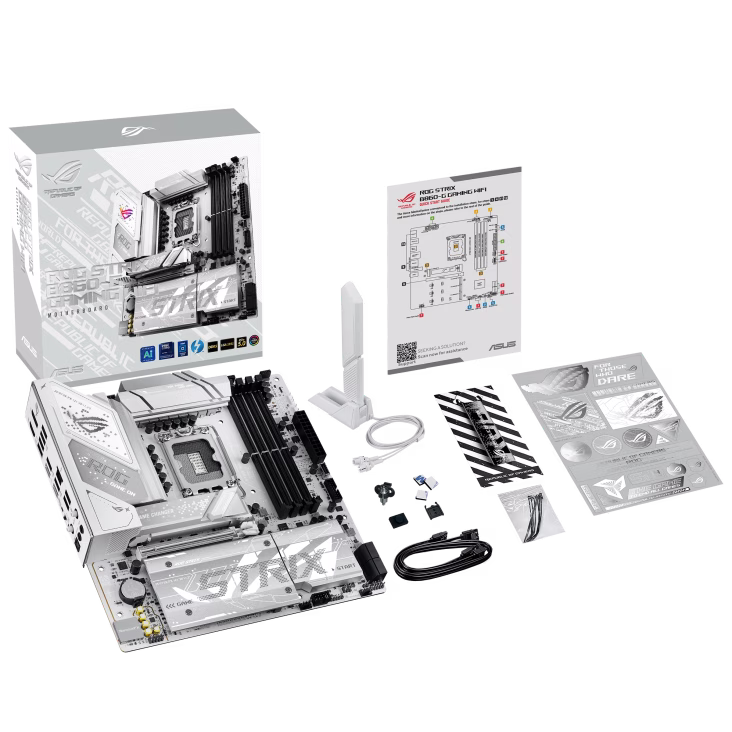

| Accessories | Cables: - 2 x SATA 6Gb/s cables Miscellaneous: - 1 x ASUS WiFi Q-Antenna - 1 x Cable ties package - 1 x M.2 Q-Latch - 1 x M.2 Q-Slide - 1 x ROG key chain - 1 x ROG Strix stickers - 3 x M.2 rubbers - 1 x M.2 backplate rubber package(s) Documentation: - 1 x Quick start guide |
| Operating System | Windows 11 (22H2 & later) |
| Form Factor | micro-ATX Form Factor 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm) |
