UGREEN 1TB Portable External NVMe SSD, USB 3.2 Gen 2x2 20Gbps, Up to 2000MB/s Read/Write, Aluminum Body with Dual Cooling, Compatible with iPhone 16, PC, Windows, MAC, Xbox, PS3/4

598.99

Samsung SSD Specifications

General Feature

Application: Client PCs
Capacity: 4,000 GB (1 GB=1 Billion byte by IDEMA)
Form Factor: 2.5 inch
Interface: SATA 6 Gb/s Interface, compatible with SATA 3 Gb/s & SATA 1.5 Gb/s interface
Dimension (Pack: WxHxD): 100 X 69.85 X 6.8 (mm)
Weight: Apporx. 54.0g Weight
Storage Memory: Samsung V-NAND 4bit MLC
Controller: Samsung MKX Controller
Cache Memory: Samsung 4 GB Low Power DDR4 SDRAM

Special Feature

TRIM Support: TRIM Supported
S.M.A.R.T Support: S.M.A.R.T Supported
GC (Garbage Collection): Auto Garbage Collection Algorithm
Encryption Support: AES 256-bit Encryption (Class 0), TCG/Opal, IEEE1667 (Encrypted drive)
WWN Support: World Wide Name supported
Device Sleep Mode Support: Yes

Performance

Sequential Read: Up to 560 MB/s Sequential Read (Performance may vary based on system hardware & configuration)
Sequential Write: Up to 530 MB/s Sequential Write (Performance may vary based on system hardware & configuration, Measured with Intelligent TurboWrite technology being activated)
Random Read (4KB, QD32): Up to 98,000 IOPS Random Read (Performance may vary based on system hardware & configuration, Measured with Intelligent TurboWrite technology being activated)
Random Write (4KB, QD32): Up to 88,000 IOPS Random Write (Performance may vary based on system hardware & configuration, Measured with Intelligent TurboWrite technology being activated)
Random Read (4KB, QD1): Up to 11,000 IOPS Random Read (Performance may vary based on system hardware & configuration, Measured with Intelligent TurboWrite technology being activated)
Random Write (4KB, QD1): Up to 35,000 IOPS Random Write (Performance may vary based on system hardware & configuration, Measured with Intelligent TurboWrite technology being activated)

Environment

Average Power Consumption (system level): Average: 3.2 W, Maximum: 5.5 W (Burst mode) (Actual power consumption may vary depending on system hardware & configuration)
Power consumption (Idle): Max. 35 mW (Actual power consumption may vary depending on system hardware & configuration)
Allowable Voltage: 5V ?? 5% Allowable voltage
Reliability (MTBF): 1.5 Million Hours Reliability (MTBF)
Operating Temperature: 0 - 70 ??? Operating Temperature
Shock: 1,500 G & 0.5 ms (Half sine)

Accessories

Installation Kit: Not Available

Software

Management SW: Magician Software for SSD management

Description

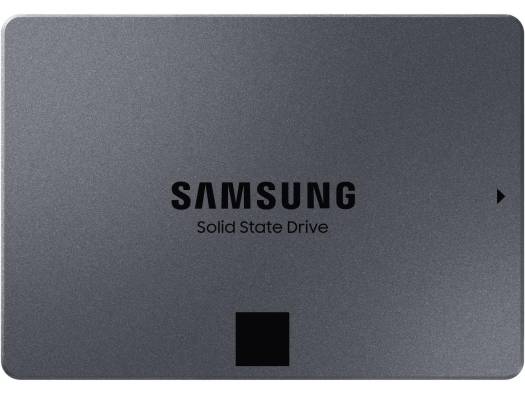

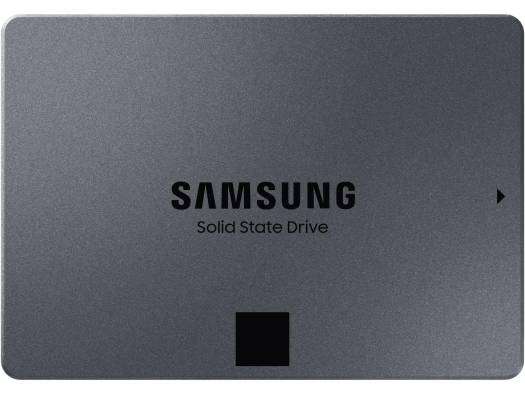

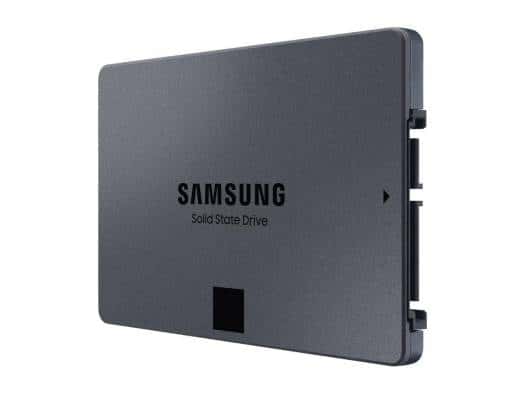

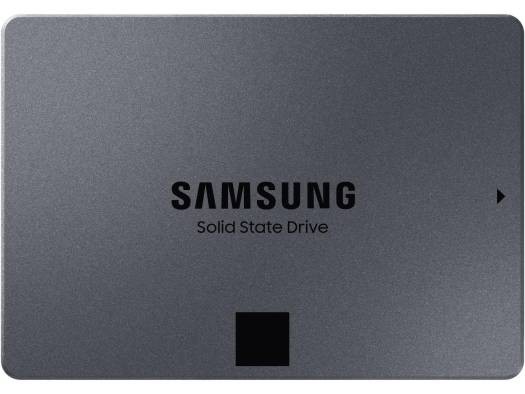

The Samsung 870 EVO 4TB Internal SSD is a premium SATA storage solution designed for gamers, professionals, content creators, and business users who require high-capacity, reliable performance. Built with advanced Samsung V-NAND technology, it delivers exceptional speed, endurance, and compatibility for desktops, laptops, and workstations.

Featuring a massive 4TB storage capacity, the 870 EVO achieves sequential read speeds of up to 560 MB/s and write speeds of up to 530 MB/s, maximizing the capabilities of the SATA III interface. Equipped with a 1GB LPDDR4 cache and Samsung's advanced MKX controller, it ensures fast application loading, responsive multitasking, and efficient file transfers.

The standard 2.5-inch form factor allows easy installation in a wide range of systems, making it an ideal upgrade for increasing storage capacity and improving overall system performance. With a reliability rating of 1.5 million hours MTBF, the Samsung 870 EVO is engineered for long-term stability and dependable operation.

Perfect for storing large game libraries, creative projects, business data, and everyday computing workloads.

Model: MZ-77E4T0BW

Specification

Samsung SSD Specifications

General Feature

Application: Client PCs
Capacity: 4,000 GB (1 GB=1 Billion byte by IDEMA)
Form Factor: 2.5 inch
Interface: SATA 6 Gb/s Interface, compatible with SATA 3 Gb/s & SATA 1.5 Gb/s interface
Dimension (Pack: WxHxD): 100 X 69.85 X 6.8 (mm)
Weight: Apporx. 54.0g Weight
Storage Memory: Samsung V-NAND 4bit MLC
Controller: Samsung MKX Controller
Cache Memory: Samsung 4 GB Low Power DDR4 SDRAM

Special Feature

TRIM Support: TRIM Supported
S.M.A.R.T Support: S.M.A.R.T Supported
GC (Garbage Collection): Auto Garbage Collection Algorithm
Encryption Support: AES 256-bit Encryption (Class 0), TCG/Opal, IEEE1667 (Encrypted drive)
WWN Support: World Wide Name supported
Device Sleep Mode Support: Yes

Performance

Sequential Read: Up to 560 MB/s Sequential Read (Performance may vary based on system hardware & configuration)
Sequential Write: Up to 530 MB/s Sequential Write (Performance may vary based on system hardware & configuration, Measured with Intelligent TurboWrite technology being activated)
Random Read (4KB, QD32): Up to 98,000 IOPS Random Read (Performance may vary based on system hardware & configuration, Measured with Intelligent TurboWrite technology being activated)
Random Write (4KB, QD32): Up to 88,000 IOPS Random Write (Performance may vary based on system hardware & configuration, Measured with Intelligent TurboWrite technology being activated)
Random Read (4KB, QD1): Up to 11,000 IOPS Random Read (Performance may vary based on system hardware & configuration, Measured with Intelligent TurboWrite technology being activated)
Random Write (4KB, QD1): Up to 35,000 IOPS Random Write (Performance may vary based on system hardware & configuration, Measured with Intelligent TurboWrite technology being activated)

Environment

Average Power Consumption (system level): Average: 3.2 W, Maximum: 5.5 W (Burst mode) (Actual power consumption may vary depending on system hardware & configuration)
Power consumption (Idle): Max. 35 mW (Actual power consumption may vary depending on system hardware & configuration)
Allowable Voltage: 5V ?? 5% Allowable voltage
Reliability (MTBF): 1.5 Million Hours Reliability (MTBF)
Operating Temperature: 0 - 70 ??? Operating Temperature
Shock: 1,500 G & 0.5 ms (Half sine)

Accessories

Installation Kit: Not Available

Software

Management SW: Magician Software for SSD management
