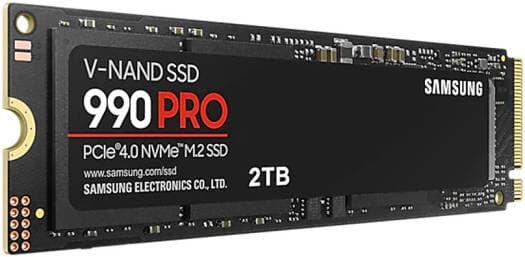

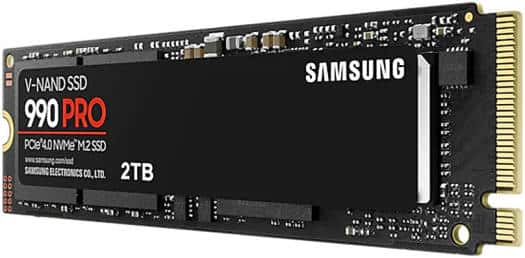

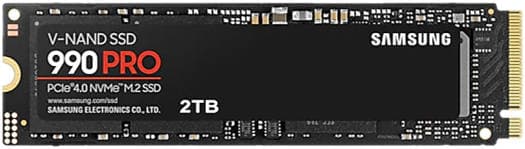

Samsung 990 Pro 2 TB NVMe M.2 Internal SSD, PCIe Gen 4.0 x4, NVMe 2.0, 1.5 Million Hrs Reliability (MTBF), S.M.A.R.T Support Supported, 7450 MB/s Sequential Read Speed, 6900 MB/s Sequential Write Speed, 3.3 Voltage, V-NAND 3-bit MLC, | MZ-V9P2T0BW

General Feature

• Application: Client PCs, Game Consoles
• Rated Capacity: 2,000GB (1GB=1 Billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)
• Form Factor: M.2 (2280)
• Interface: PCIe Gen 4.0 x4, NVMe 2.0
• Dimension (WxHxD): 80 x 22 x 2.3 mm
• Weight: Max 9.0g Weight
• Storage Memory: Samsung V-NAND 3-bit MLC
• Controller: Samsung in-house Controller
• Cache Memory: Samsung 2GB Low Power DDR4 SDRAM

Special Feature

• TRIM Support: Supported
• S.M.A.R.T Support: Supported
• GC (Garbage Collection): Auto Garbage Collection Algorithm
• Encryption Support: AES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive)
• WWN Support: Not supported
• Device Sleep Mode Support: Yes

Performance

• Sequential Read: Up to 7,450 MB/s * Performance may vary based on system hardware & configuration
• Sequential Write: Up to 6,900 MB/s * Performance may vary based on system hardware & configuration
• Random Read (4KB, QD32): Up to 1,400,000 IOPS * Performance may vary based on system hardware & configuration
• Random Write (4KB, QD32): Up to 1,550,000 IOPS * Performance may vary based on system hardware & configuration
• Random Read (4KB, QD1): Up to 22,000 IOPS * Performance may vary based on system hardware & configuration
• Random Write (4KB, QD1): Up to 80,000 IOPS * Performance may vary based on system hardware & configuration

Environment

• Average Power Consumption (system level): *Average: 5.5 W *Maximum: 8.5 W (Burst mode) (Actual power consumption may vary depending on system hardware & configuration)
• Power consumption (Idle): Max. 55 mW (Actual power consumption may vary depending on system hardware & configuration)
• Allowable Voltage: 3.3 V ?? 5 % Allowable voltage
• Reliability (MTBF): 1.5 Million Hours Reliability (MTBF)
• Operating Temperature: 0 - 70 ??? Operating Temperature
• Shock: 1,500 G & 0.5 ms (Half sine)

Accessories

• Installation Kit: Not Available

Software

• Management SW: Magician Software for SSD management

Warranty

• 5-Year Limited Warranty or 1200 TBW Limited Warranty
