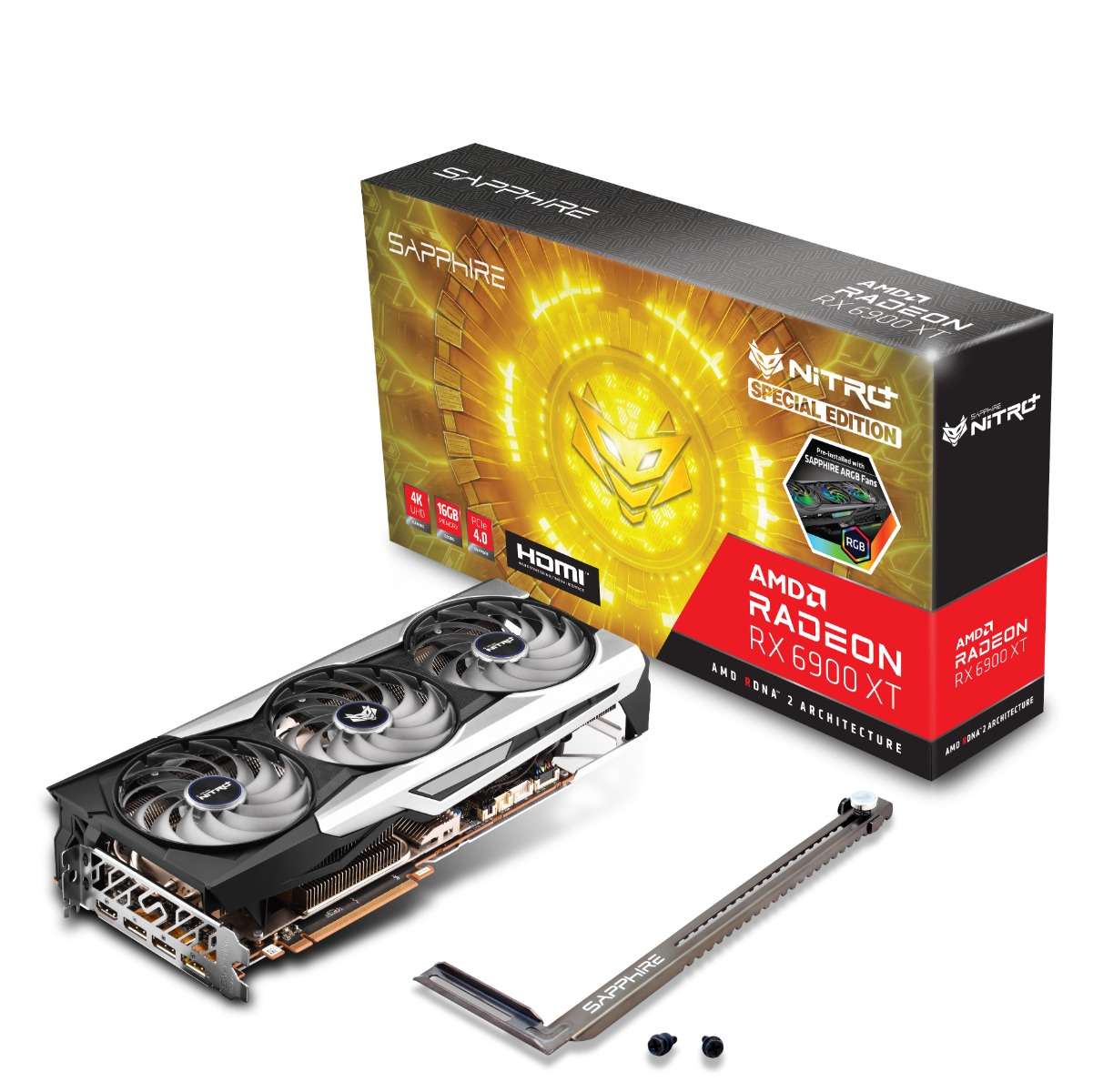

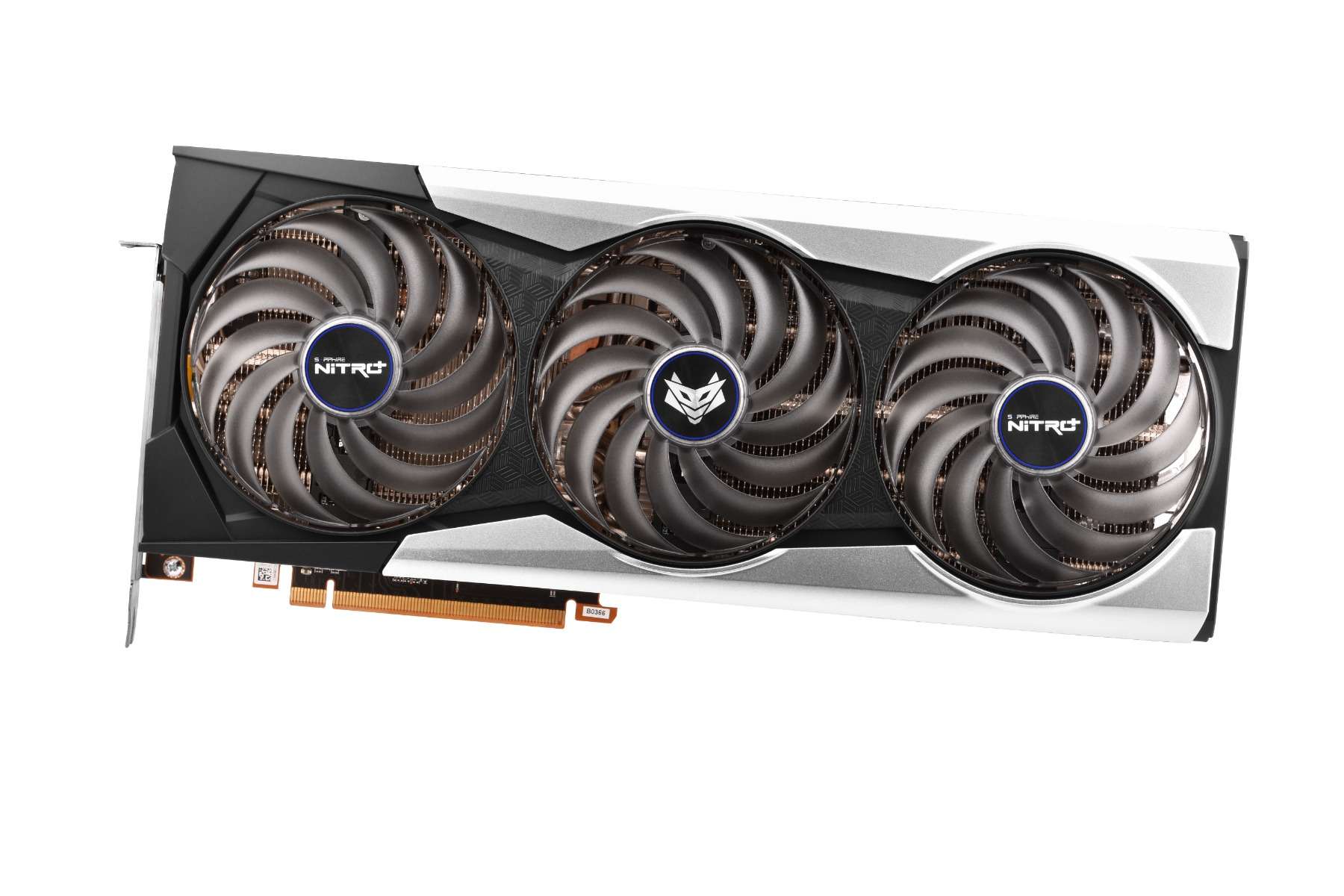

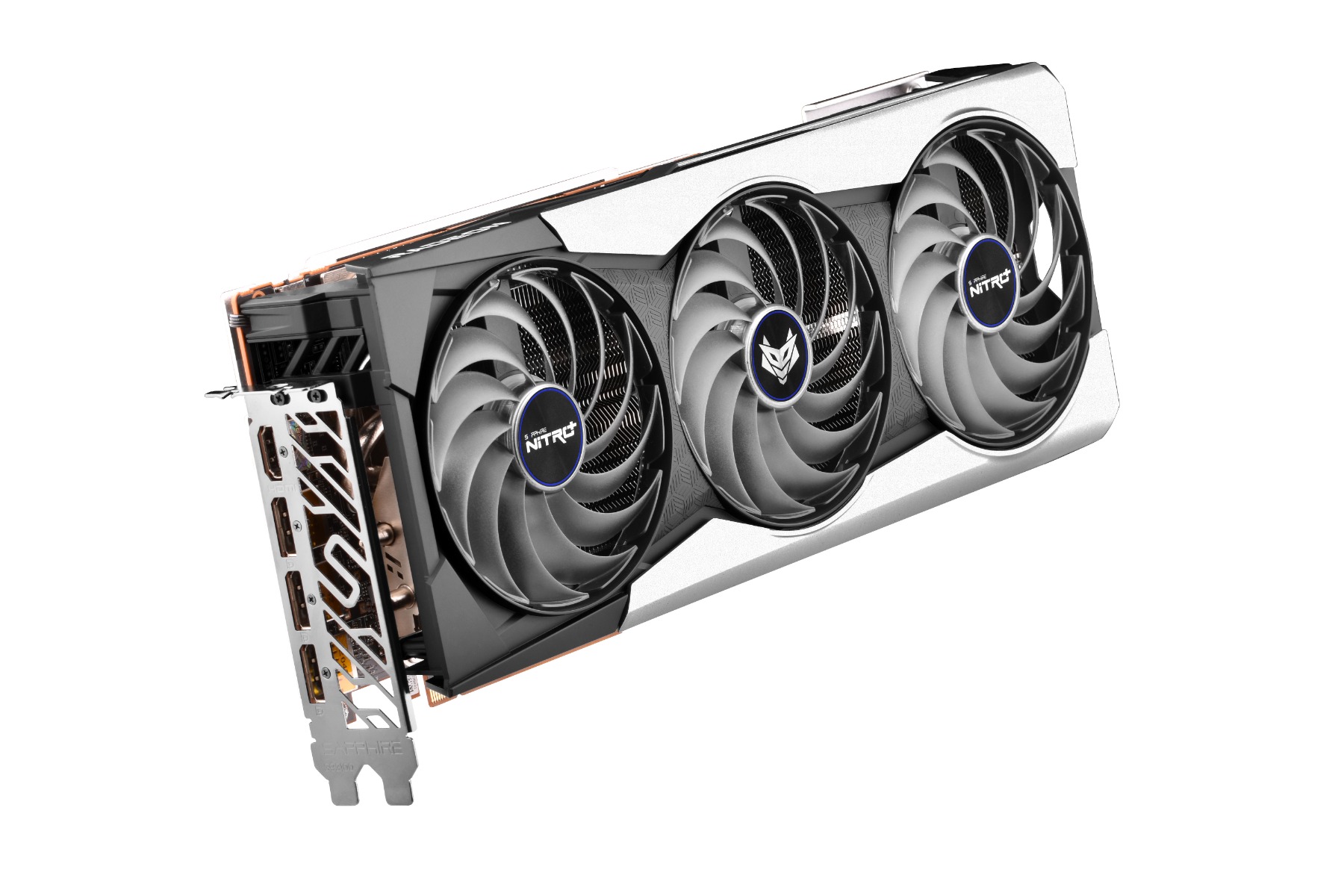

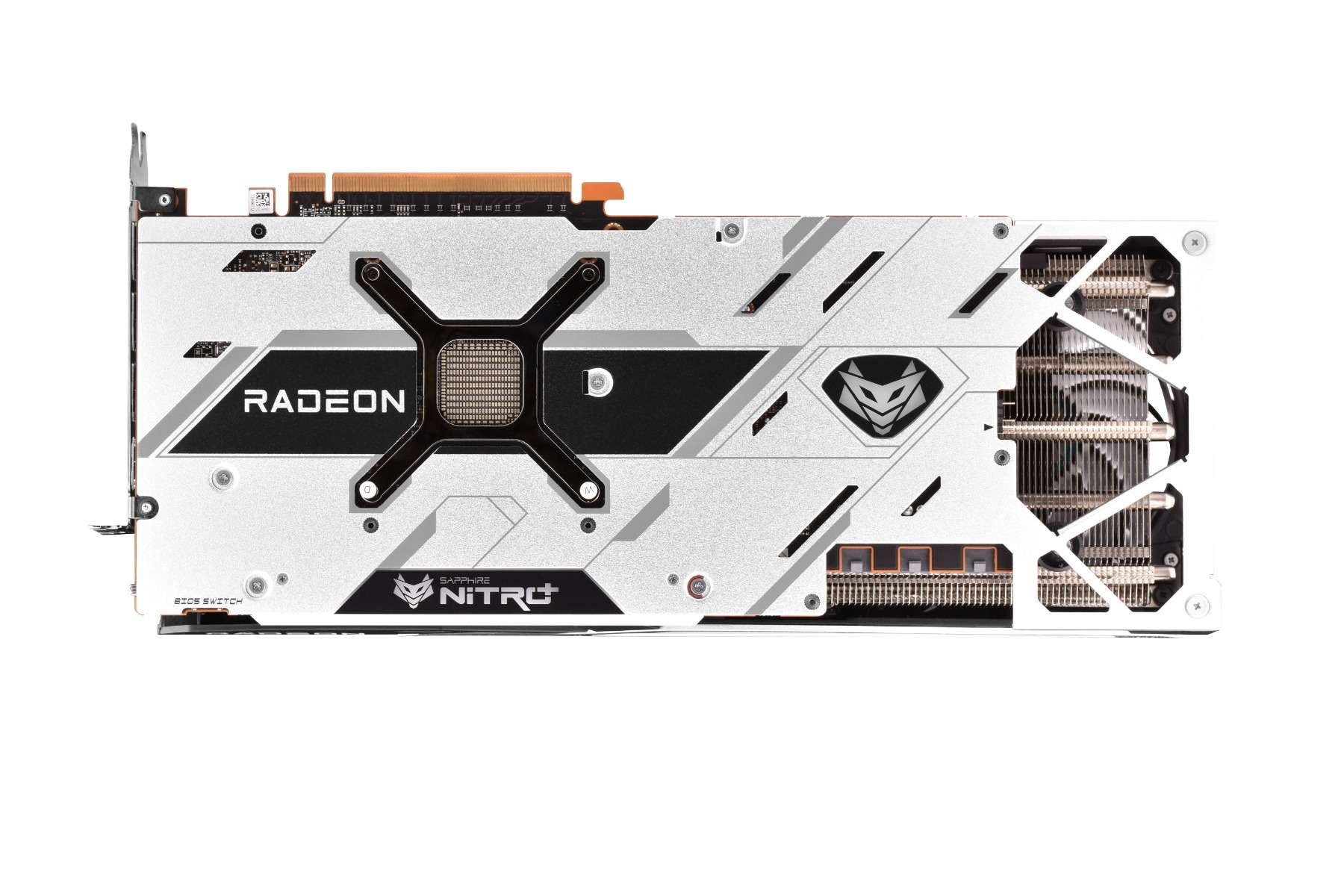

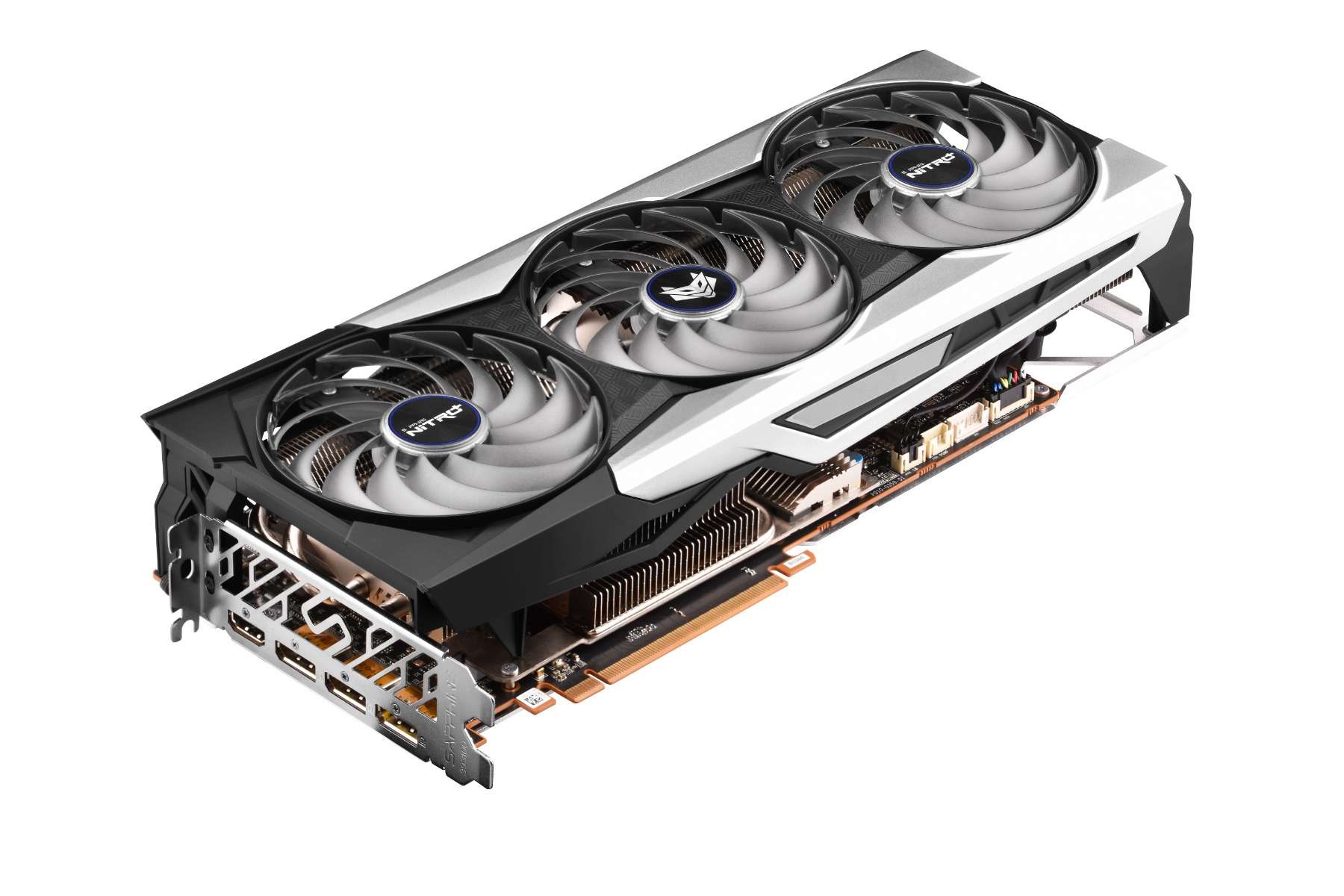

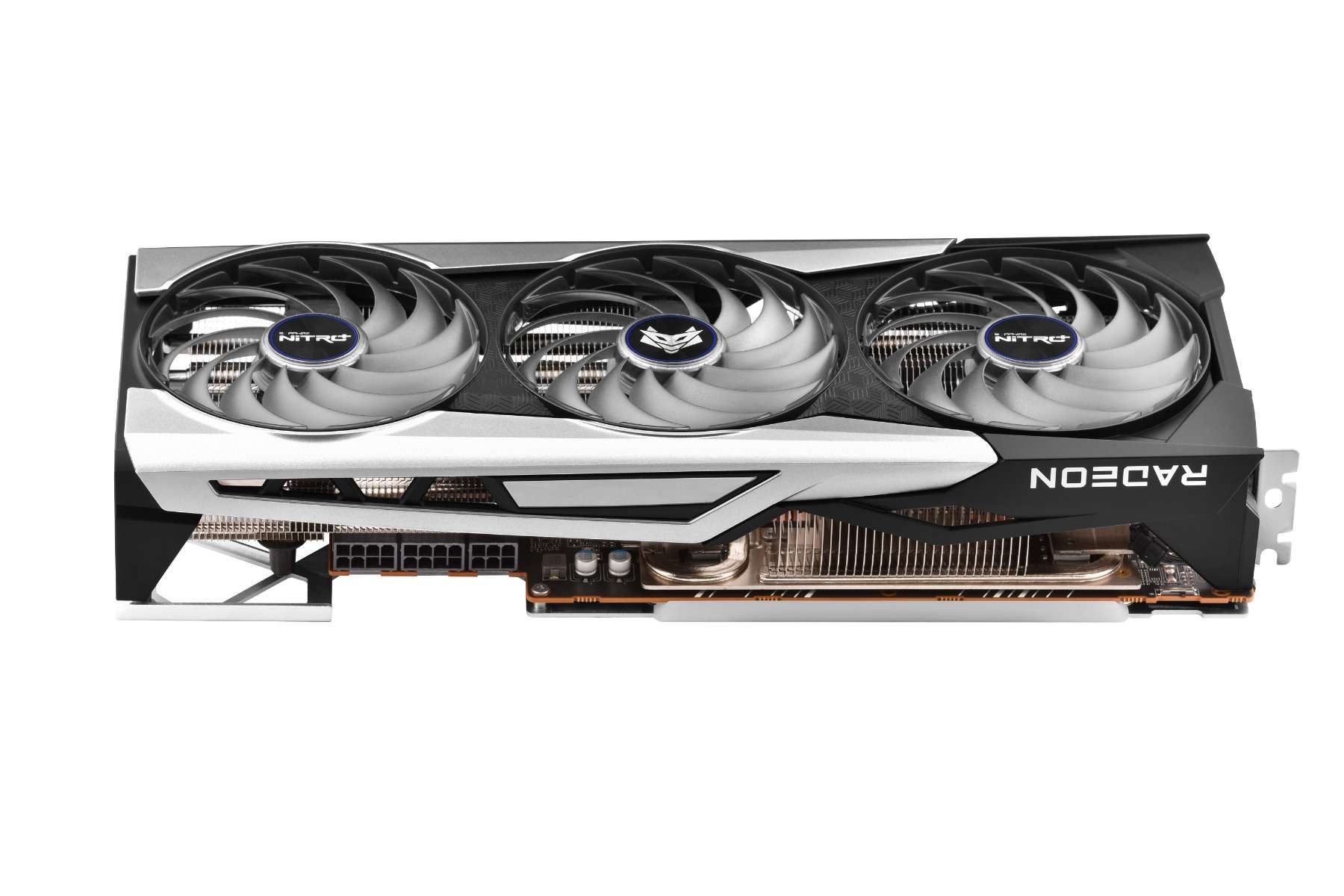

Sapphire Radeon RX 6900 XT Nitro+ Special Edition - Radeon RX 6900 XT, 16GB GDDR6, 256Bit, PCI-Express 4.0, DirectX 12, OpenGL 4.6, 1x HDMI, 3x DisplayPort, Gaming Graphics Card | 11308-03-20G
Model :
SKU : GC-SAPHIRE RX6900XT-
Description
| AMD Radeon??? RX 6900 XT Graphics Card Specifications | |
| GPU | AMD Radeon??? RX 6900 XT Graphics Card |
| Architecture | AMD RDNA??? 2 Architecture |
| Process Size | 7nm |
| Engine Clock | Boost Clock: Up to 2365 MHz Game Clock: Up to 2135 MHz |
| Stream Processors | 5120 |
| Infinity Cache | 128MB |
| Ray Accelerators | 80 |
| Memory Size/Bus | 16GB GDDR6 |
| Memory Clock | 16 Gbps Effective |
| Displays | Maximum 4 Displays |
| Resolution | HDMI???: 7680??4320 DisplayPort1.4: 7680??4320 |
| Interface | PCI-Express 4.0 x16 |
| Output | 1x HDMI 3x DisplayPort |
| BIOS Support | Dual UEFI |
| Game Index | 4K |
| Sapphire Features | Dual BIOS Max Boost TriXX Software Switch Premium Digital Power Design Fuse Protection Tri-X Cooling Technology Intelligent Fan Control Precision Fan Control Backplate with ARGB ARGB Fans Two-Ball Bearing Fans Hybrid Fan Blade Wave Fin Design V Shape Fin Design for GPU Cooling Integrated Cooling Module K6.5 Memory Pad TriXX Supported Fan Check Fan Quick Connect TriXX Boost NITRO Glow External RGB LED MB Synchronization |
| AMD Features | AMD RDNA??? 2 Gaming Architecture DirectX?? 12 Ultimate Hardware Raytracing 7nm GPU GDDR6 Memory PCI?? Express 4.0 Support AMD FreeSync??? Technology DisplayPort??? 1.4 with DSC HDMI??? Video Streaming up to 8K Radeon??? VR Ready Premium AMD FidelityFX Radeon??? Image Sharpening Radeon??? Anti-Lag Radeon??? Software Game Driver Optimizations High Performance 4K Gaming |
| Cooling | 3 Fans |
| Form Factor | 2.7 slot, ATX Dimension: 320(L)X 134.85(W)X 58.4 (H)mm |
| Power Consumption | 363W |
| OS | Linux??, Windows?? 7*, Windows?? 10, and Windows 11. 64-bit operating system required *Does not support all features including but not limited to Hardware Raytracing |
| System Requirement | Minimum 850 Watt Power Supply 2 x 8-pin + 1 x 6-pin Power Connector. PCI Express?? based PC is required with one X16 lane graphics slot available on the motherboard. Minimum 8GB of system memory. 16GB recommended. |
Specification
| AMD Radeon??? RX 6900 XT Graphics Card Specifications | |
| GPU | AMD Radeon??? RX 6900 XT Graphics Card |
| Architecture | AMD RDNA??? 2 Architecture |
| Process Size | 7nm |
| Engine Clock | Boost Clock: Up to 2365 MHz Game Clock: Up to 2135 MHz |
| Stream Processors | 5120 |
| Infinity Cache | 128MB |
| Ray Accelerators | 80 |
| Memory Size/Bus | 16GB GDDR6 |
| Memory Clock | 16 Gbps Effective |
| Displays | Maximum 4 Displays |
| Resolution | HDMI???: 7680??4320 DisplayPort1.4: 7680??4320 |
| Interface | PCI-Express 4.0 x16 |
| Output | 1x HDMI 3x DisplayPort |
| BIOS Support | Dual UEFI |
| Game Index | 4K |
| Sapphire Features | Dual BIOS Max Boost TriXX Software Switch Premium Digital Power Design Fuse Protection Tri-X Cooling Technology Intelligent Fan Control Precision Fan Control Backplate with ARGB ARGB Fans Two-Ball Bearing Fans Hybrid Fan Blade Wave Fin Design V Shape Fin Design for GPU Cooling Integrated Cooling Module K6.5 Memory Pad TriXX Supported Fan Check Fan Quick Connect TriXX Boost NITRO Glow External RGB LED MB Synchronization |
| AMD Features | AMD RDNA??? 2 Gaming Architecture DirectX?? 12 Ultimate Hardware Raytracing 7nm GPU GDDR6 Memory PCI?? Express 4.0 Support AMD FreeSync??? Technology DisplayPort??? 1.4 with DSC HDMI??? Video Streaming up to 8K Radeon??? VR Ready Premium AMD FidelityFX Radeon??? Image Sharpening Radeon??? Anti-Lag Radeon??? Software Game Driver Optimizations High Performance 4K Gaming |
| Cooling | 3 Fans |
| Form Factor | 2.7 slot, ATX Dimension: 320(L)X 134.85(W)X 58.4 (H)mm |
| Power Consumption | 363W |
| OS | Linux??, Windows?? 7*, Windows?? 10, and Windows 11. 64-bit operating system required *Does not support all features including but not limited to Hardware Raytracing |
| System Requirement | Minimum 850 Watt Power Supply 2 x 8-pin + 1 x 6-pin Power Connector. PCI Express?? based PC is required with one X16 lane graphics slot available on the motherboard. Minimum 8GB of system memory. 16GB recommended. |
