Home/PC Components/Storage Devices/Hard Drives/Seagate Exos X18 18TB 512e/4Kn SATA III 6 Gb/s 3.5...

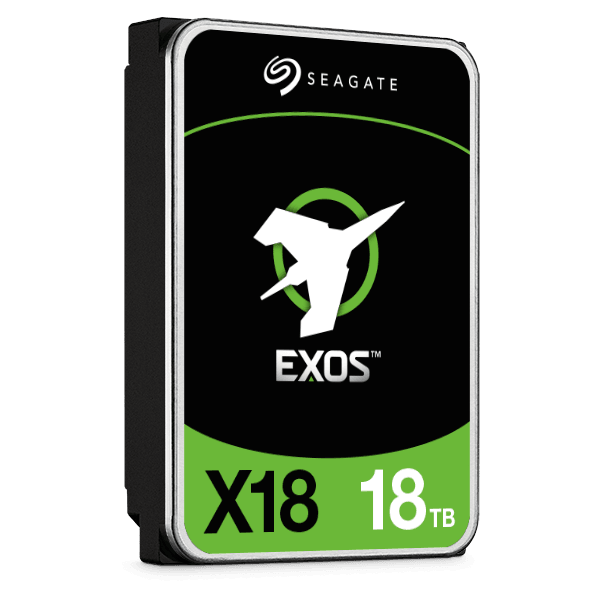

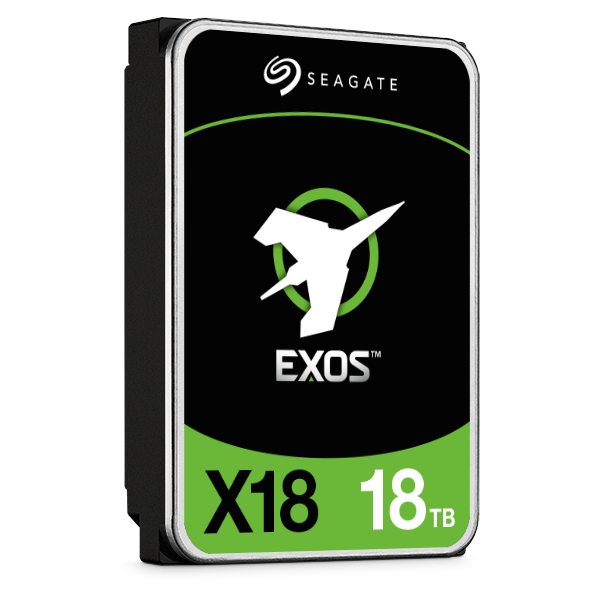

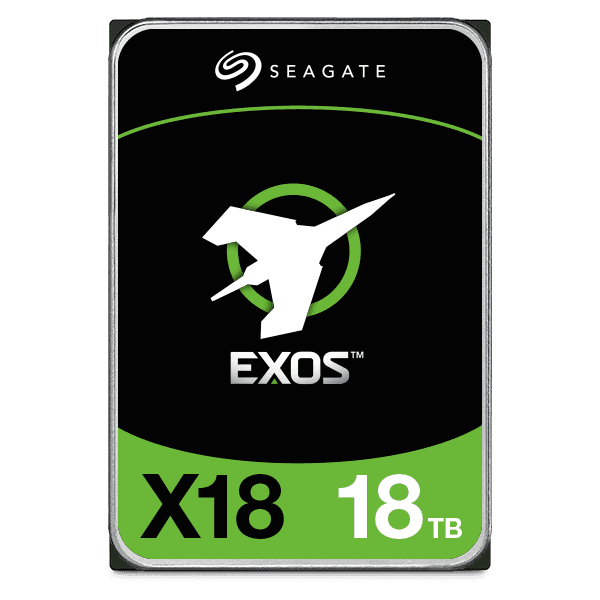

Seagate Exos X18 18TB 512e/4Kn SATA III 6 Gb/s 3.5" Internal Hard Drive, Data Transfer Speeds Up to 270 MB/s, 7200 RPM Speed, 256MB Cache, Fast Format 2,500,000 Hours MTBF | ST18000NM000J
Model :
SKU : HD-SEAGATE 18TB EXOS X18
About this item
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
table { border-collapse: collapse; width: 100%; } tr { border-bottom: 1px solid rgb(222, 226, 230); } td { padding: 8px; margin: 0; } td:first-child { font-weight: bold; color: #333; } h3 { margin-top: 10px; }
Seagate Exos X18 18TB 512e/4Kn SATA III 6 Gb/s 3.5" Internal Hard Drive, Data Transfer Speeds Up to 270 MB/s, 7200 RPM Speed, 256MB Cache, Fast Format 2,500,000 Hours MTBF | ST18000NM000J
| Capacity | 18 TB |
| Standard Model FastFormat??? (512e/4Kn) | ST18000NM000J |
| SED Model FastFormat (512e/4Kn) | ST18000NM001J |
| SED-FIPS FastFormat (512e/4Kn) | 1.2 |
| Features | |
| Helium Sealed-Drive Design | Yes |
| Conventional Magnetic Recording (CMR) | Yes |
| Protection Information (T10 DIF) | Yes |
| SuperParity | Yes |
| SATA 6 Gb/s | Yes |
| Low Halogen | Yes |
| PowerChoice Idle Power Technology | Yes |
| PowerBalance Power/Performance Technology | Yes |
| Hot-Plug Support | Yes |
| Cache, Multi-segmented (MB) | 256 |
| Organic Solderability Preservative | Yes |
| RSA 3072 Firmware Verification (SD&D) | Yes |
| Mean Time Between Failures (MTBF, hours) | 2,500,000 |
| Reliability/Data Integrity | |
| Reliability Rating @ Full 24x7 Operation (AFR) | 0.35% |
| Non-recoverable Read Errors per Bits Read | 1 sector per 10E15 |
| Power-On Hours per Year (24x7) | 8,760 |
| 512e Sector Size (Bytes per Sector) | 512 |
| 4Kn Sector Size (Bytes per Sector) | 4,096 |
| Limited Warranty (years) | 5 |
| Performance | |
| Spindle Speed (RPM) | 7,200 RPM |
| Interface Access Speed (Gb/s) | 6.0, 3.0 |
| Max. Sustained Transfer Rate OD (MB/s, MiB/s) | 270/258 |
| Random Read/Write 4K QD16 WCD (IOPS) | 170/550 |
| Average Latency (ms) | 4.16 |
| Interface Ports | Single |
| Rotation Vibration @20-1500 Hz (rad/sec??) | 12.5 |
| Power Consumption | |
| Idle A (W) Average | 5.3 W |
| Max Operating, Random Read/Write 4K/16Q (W) | 9.4, 6.4 |
| Power Supply Requirements | +12 V and +5 V |
| Environmental | |
| Temperature, Operating (??C) | 5??C-60??C |
| Vibration, Non-operating: 2 to 500 Hz (Grms) | 2.27 |
| Shock, Operating 2 ms (Read/Write) (Gs) | 50 |
| Shock, Non-operating 2 ms (Gs) | 200 |
| Physical | |
| Height (mm/in, max) | 26.1 mm/1.028 in |
| Width (mm/in, max) | 101.85 mm/4.01 in |
| Depth (mm/in, max) | 147 mm/5.787 in |
| Weight (lb/g) | 670 g/1.477 lb |
| Carton Unit Quantity | 20 |
| Cartons per Pallet/Cartons per Layer | 40/8 |
Specification
table { border-collapse: collapse; width: 100%; } tr { border-bottom: 1px solid rgb(222, 226, 230); } td { padding: 8px; margin: 0; } td:first-child { font-weight: bold; color: #333; } h3 { margin-top: 10px; }
Seagate Exos X18 18TB 512e/4Kn SATA III 6 Gb/s 3.5" Internal Hard Drive, Data Transfer Speeds Up to 270 MB/s, 7200 RPM Speed, 256MB Cache, Fast Format 2,500,000 Hours MTBF | ST18000NM000J
| Capacity | 18 TB |
| Standard Model FastFormat??? (512e/4Kn) | ST18000NM000J |
| SED Model FastFormat (512e/4Kn) | ST18000NM001J |
| SED-FIPS FastFormat (512e/4Kn) | 1.2 |
| Features | |
| Helium Sealed-Drive Design | Yes |
| Conventional Magnetic Recording (CMR) | Yes |
| Protection Information (T10 DIF) | Yes |
| SuperParity | Yes |
| SATA 6 Gb/s | Yes |
| Low Halogen | Yes |
| PowerChoice Idle Power Technology | Yes |
| PowerBalance Power/Performance Technology | Yes |
| Hot-Plug Support | Yes |
| Cache, Multi-segmented (MB) | 256 |
| Organic Solderability Preservative | Yes |
| RSA 3072 Firmware Verification (SD&D) | Yes |
| Mean Time Between Failures (MTBF, hours) | 2,500,000 |
| Reliability/Data Integrity | |
| Reliability Rating @ Full 24x7 Operation (AFR) | 0.35% |
| Non-recoverable Read Errors per Bits Read | 1 sector per 10E15 |
| Power-On Hours per Year (24x7) | 8,760 |
| 512e Sector Size (Bytes per Sector) | 512 |
| 4Kn Sector Size (Bytes per Sector) | 4,096 |
| Limited Warranty (years) | 5 |
| Performance | |
| Spindle Speed (RPM) | 7,200 RPM |
| Interface Access Speed (Gb/s) | 6.0, 3.0 |
| Max. Sustained Transfer Rate OD (MB/s, MiB/s) | 270/258 |
| Random Read/Write 4K QD16 WCD (IOPS) | 170/550 |
| Average Latency (ms) | 4.16 |
| Interface Ports | Single |
| Rotation Vibration @20-1500 Hz (rad/sec??) | 12.5 |
| Power Consumption | |
| Idle A (W) Average | 5.3 W |
| Max Operating, Random Read/Write 4K/16Q (W) | 9.4, 6.4 |
| Power Supply Requirements | +12 V and +5 V |
| Environmental | |
| Temperature, Operating (??C) | 5??C-60??C |
| Vibration, Non-operating: 2 to 500 Hz (Grms) | 2.27 |
| Shock, Operating 2 ms (Read/Write) (Gs) | 50 |
| Shock, Non-operating 2 ms (Gs) | 200 |
| Physical | |
| Height (mm/in, max) | 26.1 mm/1.028 in |
| Width (mm/in, max) | 101.85 mm/4.01 in |
| Depth (mm/in, max) | 147 mm/5.787 in |
| Weight (lb/g) | 670 g/1.477 lb |
| Carton Unit Quantity | 20 |
| Cartons per Pallet/Cartons per Layer | 40/8 |
