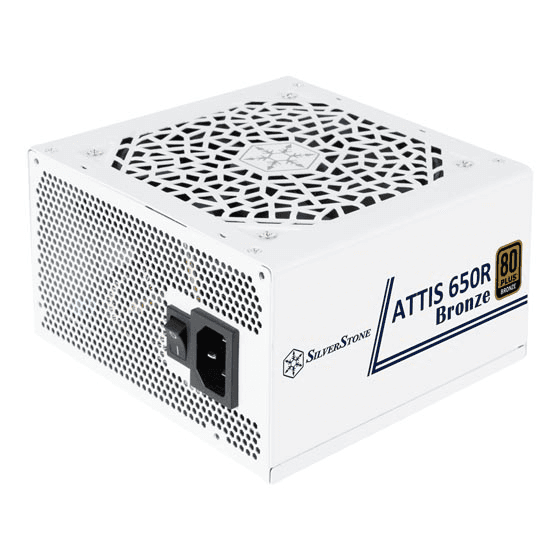

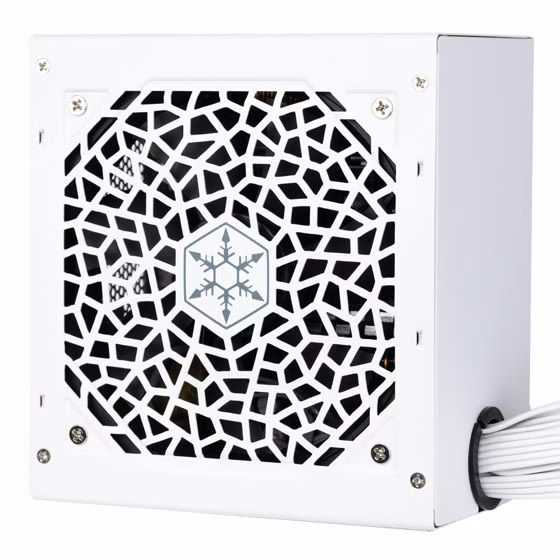

Silverstone ATTIS 650R Bronze 80 PLUS Bronze 650W ATX 3.1 ATX White Power Supply, Active PFC+Double forward+DC to DC Design | SST-AT650R-BF-WBW (White)
Model :
SKU : PS-SILVERSTO ATTIS 650R W
About this item
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
About this item
Description
Compliant with ATX 3.1 standards and supports up to 2X power excursion
Bronze Efficiency Certified
Designed for 80 Plus Bronze level efficiency to minimize heat while considerably reducing electricity consumption.
High Reliability Cooling Fan

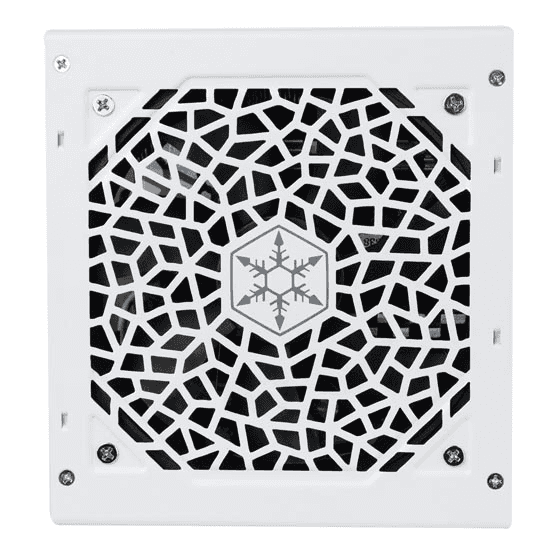

The cooling is entrusted to a 120mm fan that offers exceptional airflow and low operational-induced noise level.
Powerful single +12V rail design, perfect for future high-end component upgrades or overclocking

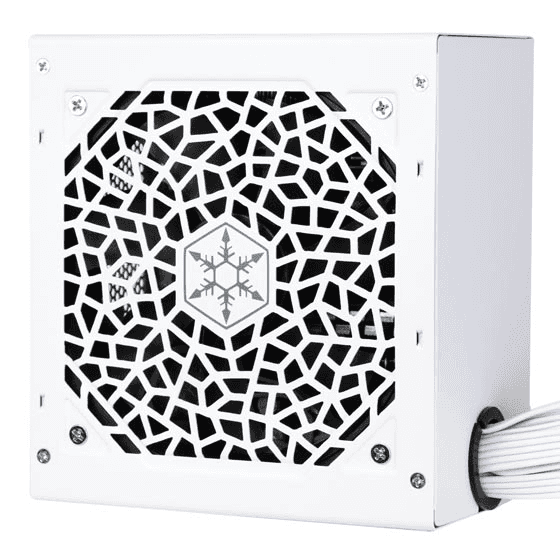

Flat cables have much greater flexibility to allow for tighter folding and management of cables
Advanced protections for safety and security
Over power protection
Over voltage protection
Short circuit protection
Under voltage protection
Specification
Specification
| Load Range | |||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| |||||||||||||||||||||||||||||||||||||

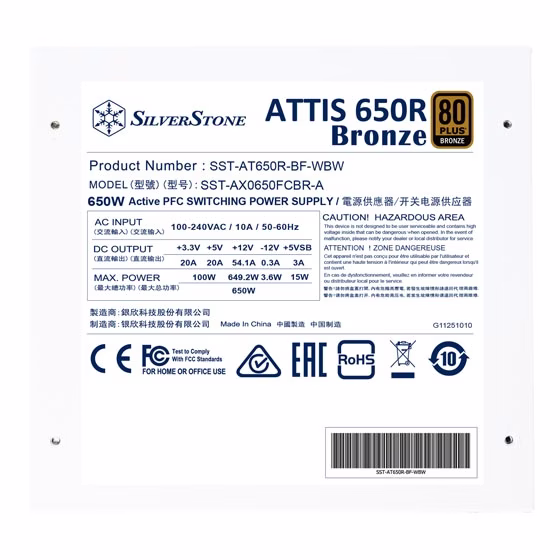

| Product No. | SST-AT650R-BF (Black) SST-AT650R-BF-WBW (White) | ||||||||||||||||||||||||||||||||||||
| Model (Safety Certification) | SST-AX0650FCBR-A | ||||||||||||||||||||||||||||||||||||
| Color | Black (lead-free paint) White (lead-free paint) | ||||||||||||||||||||||||||||||||||||
| Max. DC Output | 650W | ||||||||||||||||||||||||||||||||||||
| Combined +3.3V & +5V | 100W | ||||||||||||||||||||||||||||||||||||
| Combined +12V | 649.2W | ||||||||||||||||||||||||||||||||||||
| Input Voltage | 90 ~ 264 Vrms | ||||||||||||||||||||||||||||||||||||
| Input Frequency Range | 47Hz ~ 63Hz | ||||||||||||||||||||||||||||||||||||
| PFC | Active PFC (PF > 0.9 at full load) | ||||||||||||||||||||||||||||||||||||
| Efficiency | 82% ~ 85% (at 20% ~ 100% loading) | ||||||||||||||||||||||||||||||||||||
| MTBF | 100,000 hours | ||||||||||||||||||||||||||||||||||||
| Operating Temperature | 0°C ~ 50°C | ||||||||||||||||||||||||||||||||||||
| Protection | Over Power Protection Over Voltage Protection Short Circuit Protection Under Voltage Protection | ||||||||||||||||||||||||||||||||||||
| Connectors | 1 × 24 / 20-Pin motherboard connector 2 × 4-Pin + 4-Pin ATX 12V connectors 4 × 8 / 6-Pin PCIe connectors 6 × SATA connectors 3 × 4-Pin Peripheral connectors | ||||||||||||||||||||||||||||||||||||
| Cooling System | Silent 120mm fan | ||||||||||||||||||||||||||||||||||||
| Noise Level | 18 dBA minimum | ||||||||||||||||||||||||||||||||||||
| Certification | 80 PLUS Bronze | ||||||||||||||||||||||||||||||||||||
| Form Factor | ATX (PS2) | ||||||||||||||||||||||||||||||||||||
| Dimension | 150mm (W) × 86mm (H) × 140mm (D) 5.91" (W) × 3.39" (H) × 5.5" (D) | ||||||||||||||||||||||||||||||||||||
| Weight | 1.52 kg | ||||||||||||||||||||||||||||||||||||
| Other | GPU Support list | ||||||||||||||||||||||||||||||||||||
