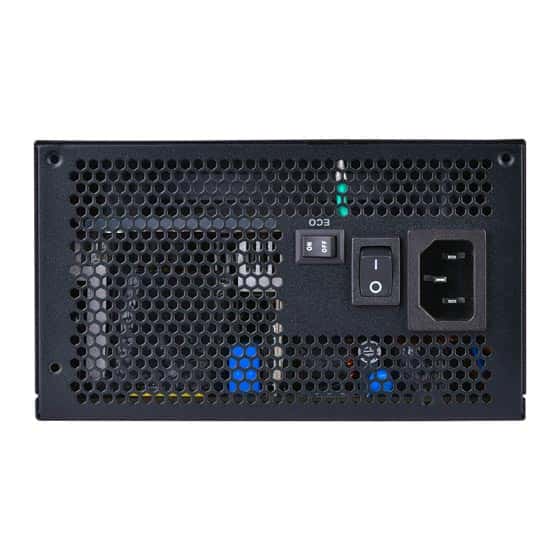

SILVERSTONE DA750R BLACK 80PLUS GOLD 750W ATX 3.0,PCIE 5.0 FULLY MODULAR POWERSUPPLY | SST-DA750R-GMA
Model :
SKU : PS-SILVER DA750R 750W BLK
About this item
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
About this item
Description
Product No.
SST-DA750R-GMA-WWW (White)
SST-DA750R-GMA (Black)
Model (safety certification)
SST-AX0750MCGD-C
Color
White (lead-free paint)
Black (lead-free paint)
Max. DC Output
750W
Power density
415W/L

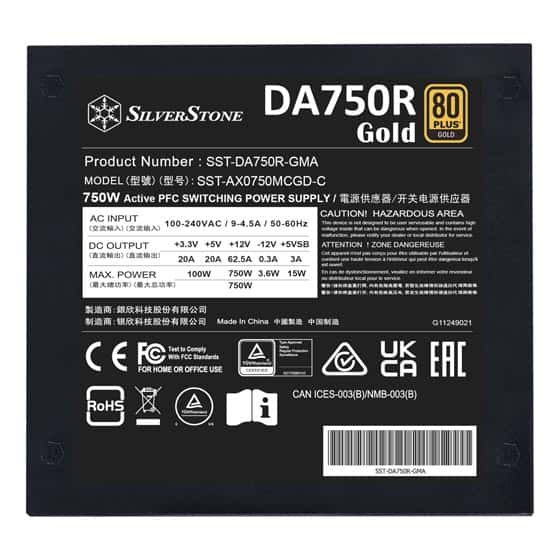

Load Range
| Output | +3.3V | +5V | +12V | +5VSB | -12V |
|---|---|---|---|---|---|
| Max.(Amps) | 20A | 20A | 62.5A | 3A | 0.3A |
| Min.(Amps) | 0A | 0A | 0A | 0A | 0A |
| Range (%) | ??3% | ??3% | +5%-7% | ??5% | ??8% |
| Line Reg.(%) | ??1% | ??1% | ??1% | ??1% | ??1% |
| Ripple(mVp-p) | 40mV | 40mV | 80mV | 40mV | 80mV |
Combined +3.3V & +5V
100W
Combined +12V
750W
Input Voltage
90 ~ 264 Vrms
Input Frequency Range
47Hz ~ 63Hz
PFC
Active PFC (PF>0.9 at full load)
Efficiency
???87% & <89%
MTBF
100,000 hours
Operating temperature
0??C ~ 50??C
Protection
Over Current Protection
Over Power Protection
Over Voltage Protection
Short Circuit Protection
Over Temperature Protection
Under Voltage Protection

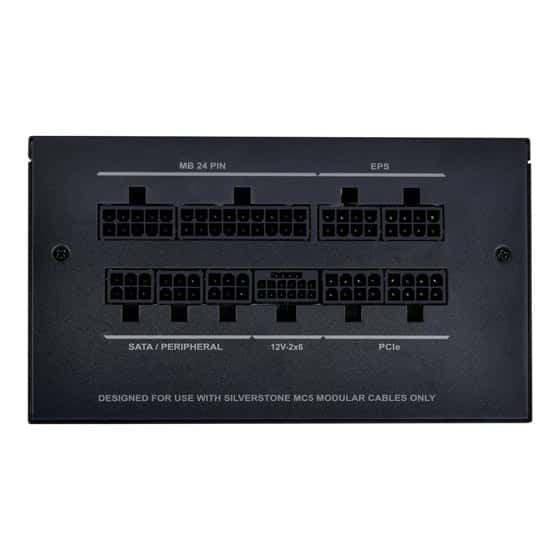

Connectors
1 x 24 / 20-Pin motherboard connector
2 x 8 / 4-Pin EPS / ATX 12V connector
4 x 8 / 6-Pin PCIe connectors
1 x 12V-2x6 connector
8 x SATA connectors
4 x 4-Pin Peripheral connector
??? DA750R-GMA/DA750R-GMA-WWW are not compatible with PP05-E and PP06 cables.

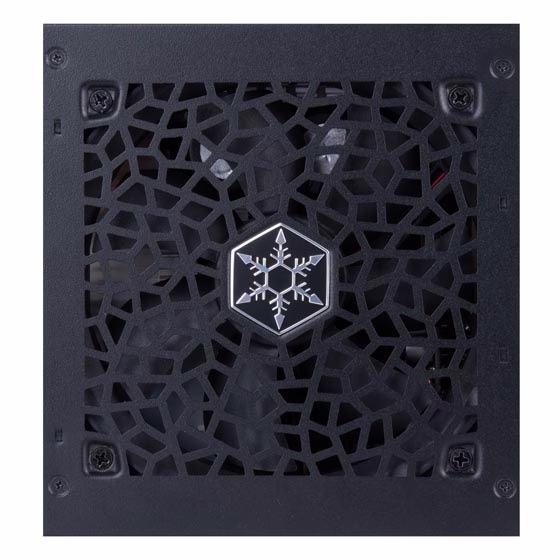

Cooling System
Silent 120mm fan
Noise Level
0 dBA minimum
Certification
80 PLUS Gold
Form factor
ATX (PS2)
Dimension
150mm (W) ?? 86mm (H) ?? 140mm (D)
5.91" (W) x 3.39" (H) x 5.51" (D)
Weight
2.08kg
Specification
Product No.
SST-DA750R-GMA-WWW (White)
SST-DA750R-GMA (Black)
Model (safety certification)
SST-AX0750MCGD-C
Color
White (lead-free paint)
Black (lead-free paint)
Max. DC Output
750W
Power density
415W/L
Load Range
| Output | +3.3V | +5V | +12V | +5VSB | -12V |
|---|---|---|---|---|---|
| Max.(Amps) | 20A | 20A | 62.5A | 3A | 0.3A |
| Min.(Amps) | 0A | 0A | 0A | 0A | 0A |
| Range (%) | ??3% | ??3% | +5%-7% | ??5% | ??8% |
| Line Reg.(%) | ??1% | ??1% | ??1% | ??1% | ??1% |
| Ripple(mVp-p) | 40mV | 40mV | 80mV | 40mV | 80mV |
Combined +3.3V & +5V
100W
Combined +12V
750W
Input Voltage
90 ~ 264 Vrms
Input Frequency Range
47Hz ~ 63Hz
PFC
Active PFC (PF>0.9 at full load)
Efficiency
???87% & <89%
MTBF
100,000 hours
Operating temperature
0??C ~ 50??C
Protection
Over Current Protection
Over Power Protection
Over Voltage Protection
Short Circuit Protection
Over Temperature Protection
Under Voltage Protection
Connectors
1 x 24 / 20-Pin motherboard connector
2 x 8 / 4-Pin EPS / ATX 12V connector
4 x 8 / 6-Pin PCIe connectors
1 x 12V-2x6 connector
8 x SATA connectors
4 x 4-Pin Peripheral connector
??? DA750R-GMA/DA750R-GMA-WWW are not compatible with PP05-E and PP06 cables.
Cooling System
Silent 120mm fan
Noise Level
0 dBA minimum
Certification
80 PLUS Gold
Form factor
ATX (PS2)
Dimension
150mm (W) ?? 86mm (H) ?? 140mm (D)
5.91" (W) x 3.39" (H) x 5.51" (D)
Weight
2.08kg
